The MHU50LP heater has a 3 inch diameter vent size. It connects to our F102840 (3" Vertical Vent Kit), F102860 (Horizontal Vent Kit), and the F102848 (4" Vertical Vent Kit).

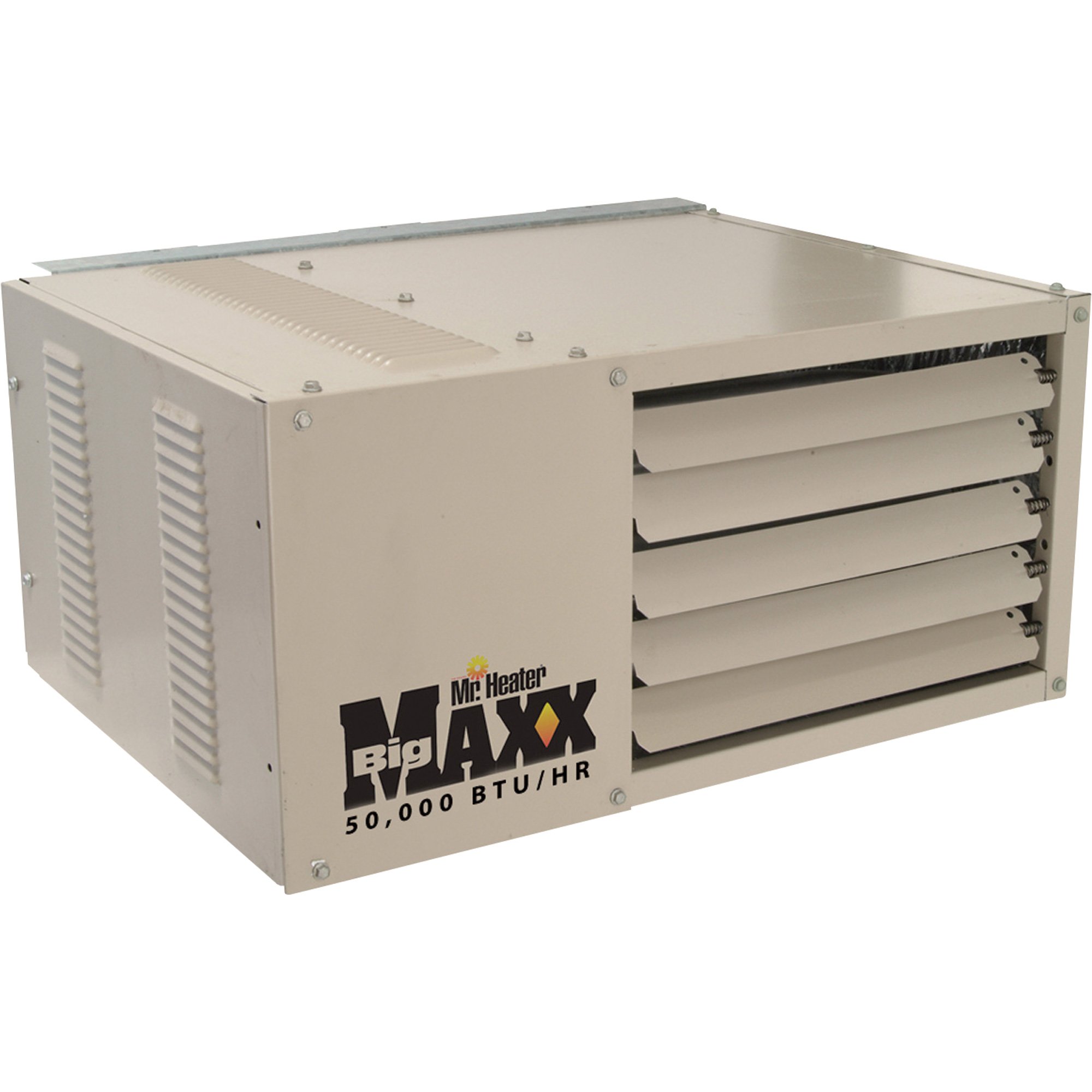

Mr. Heater Big Maxx™ Propane Garage/Workshop Heater — 50,000 BTU, Model# F260410
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Power exhaust allows for vertical or horizontal venting
- Designed for right or left side piping, electrical and flue connections by simply rotating 180°
- Tubular heat exchanger and spark ignition
- Venting kit required (sold separately — Item#s 28794, 28795 vertical mounts; Item#s 29794 horizontal mount)
- Thermostat sold separately — Item# 173641 Note: Due to BTU loss through exhaust gases, heater runs at approx. 81% operating efficiency. Check local codes and ordinances for approved installation and usage.
See full description
-
what is the vent size on the heater?
-
Helpful?
-
The vent size on this Mr Heater is 3 inches diameter.
Helpful?
-
-
I live at 6300 ft will this heater work at my elevation?
-
I live @ 6000 ft and it works and operates fine
Helpful?
-
Above 2000 feet the manifold pressure must be adjusted on some units. There is a table listed in the manual to adjust the pressure accordingly.
Helpful?
-
-
Is the unit not safe if installed less than 8' from the floor?
I am having a residential 3.5 bay garage built and it will have 8' ceilings.
1 answer-
Installation in parking structures must be in accordance with the current Standard for Parking Structures ANSI/NFPA No. 88A. Natural Gas and Propane Installation Code CSA B149.1 states an eight foot minimum clearance from the floor to the bottom of the heater must be maintained.
Helpful?
-
-
Can you vent through the wall below the heater or does it have to be vented through the wall equal or above the heater when mounted?
1 answer-
The horizontal vent through the wall would need to be above the vent exhaust of the heater so condensation could exit the tubing. For upward sloped vent a condensate tee and drain must be installed within the first 5’ from the unit heater.
Helpful?
-
-
how do i reverse the inlet and outlet.
I have looked at the manuel but can't find instructions to change the inlet and outlet ?
1 answer-
The heater is not able to reverse inlet and outlet and operate properly.
Helpful?
-
-
Will this work with a 4" horizontal power vent?
I am replacing an old propane furnace which is vented with a 4" pipe which leaves the unit vertically and then turns horizontally through the wall with a blower up where it goes through the wall that turns on when the burner starts. Will this system work with this heater?
1 answer-
No, this heater will not turn your blower on when the heater fires up. This heater has an enduced draft blower to help with exhaust. We recommend to contact the manufacturer directly to see if your combination of rise and run will work with this unit. As always, check local codes as well to ensure you meet all local standards.
Helpful?
-
-
does it come with 4" adapater to vent pipe (for horizontal)? I will buy pipe locally
do I need anything else except a wiring pig tail and gas line (I assume it require 1/2" NOT 3/4") and of course vent pipe, cap wall thimble, etc.
1 answer-
The heater does not come with an adapter for 4" vent pipe. It would use 1/2" gas line. There would not be anything else required for the installation.
Helpful?
-
-
What is the fuel usage gal/hour?
1 answer-
There is not a rating on fuel consumption gal/hour because it can vary on many different factors.
Helpful?
-
-
My pole building is36x30 with 11 ft high ceilings.
Will this heater be to small.
1 answer-
This heater will work in your pole barn just fine as long as the desired temperature and actual temperature in your building does not exceed 30 degrees.
Helpful?
-
-
do you have to use vent kit required here or can you buy your own
1 answer-
You could find the venting locally but you would have to check local and state codes as applicable to the venting of this unit and the venting kit and or parts you would be using to make sure of safety, legality and for insurance purposes.
Helpful?
-
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Propane Garage Heaters
See All Mr. Heater Propane Garage Heaters
Currently Viewing This Product
Shipping: Sold Out
Specifications
Specifications
Mr. Heater Big Maxx™ Propane Garage/Workshop Heater — 50,000 BTU, Model# F260410
HeatStar Propane Heater, 40,000 BTU, Model# 4040 LAS
HeatStar High-Intensity Infrared Propane Heater, 120,000 BTU, Model# F190731
SunStar Tough Guy Straight Positive Pressure Tube Heater - Propane, 175,000 BTU, Infrared, 50ft. Emitter Tube, Model# SPS175-50-TG-L5
Heat Output
Same
50,000 Btu/hour
40,000 Btu/hour
120,000 Btu/hour
175,000 Btu/hour
Heat Type
Same
Forced Air
Radiant
Infrared
Infrared
Heating Capability
Same
700 ft²
750 ft²
3,000 ft²
3,000 ft²
Needs Direct Venting
Same
Yes
No
No
-
Blower Included
Same
Yes
No
No
Yes
Thermostat Included
Same
No
No
No
No
Oxygen Depletion Sensor
Same
No
No
No
-
Dimensions L x W x H (in.)
Same
18.5 x 25 x 17 in
30.25 x 19.25 x 12.0 in
82.5 x 21.5 x 11.0 in
612.0 x 13.0 x 8.0 in
Product Weight
Same
-
lb
lb
190.4000 lb
Volts
Same
-
-
-
120
