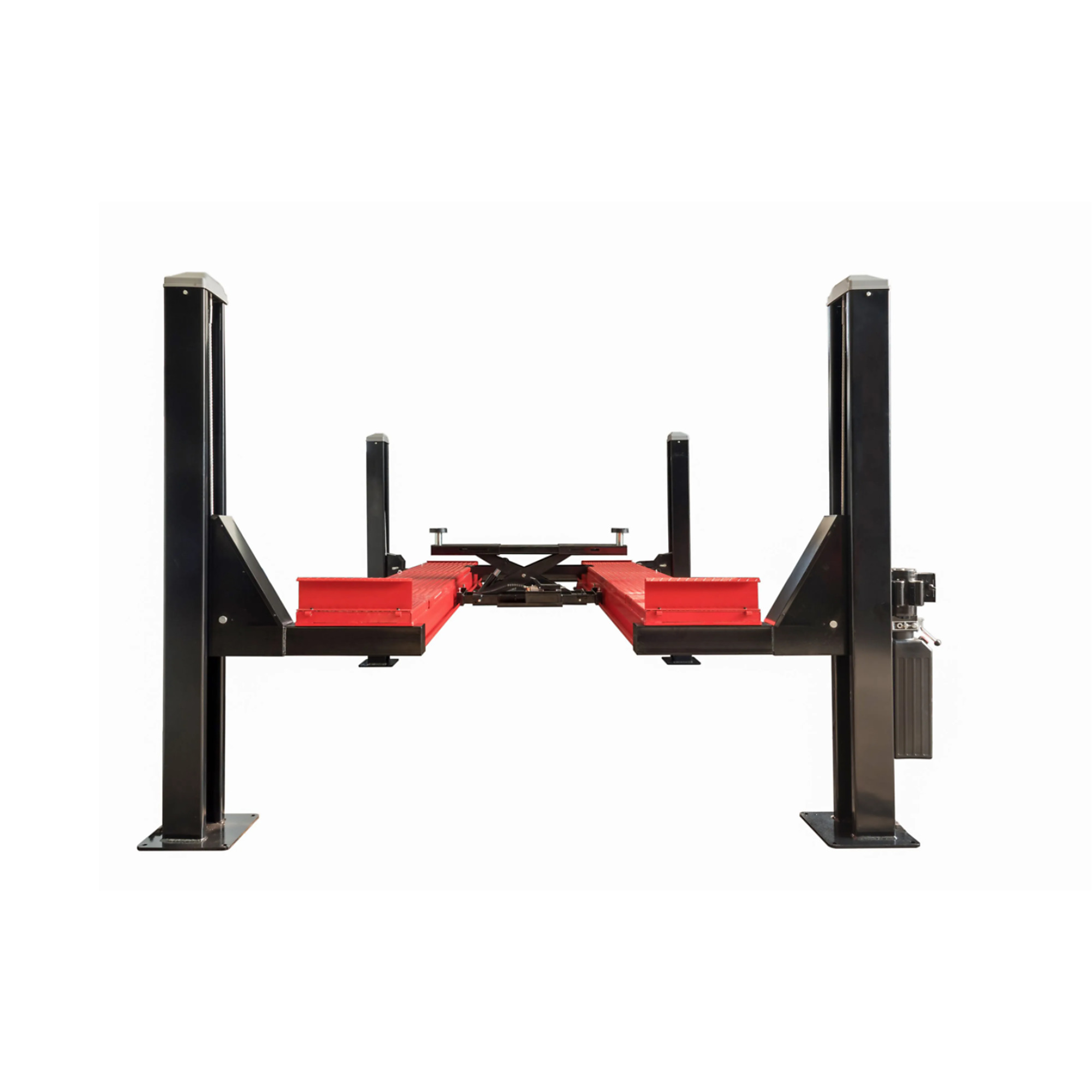

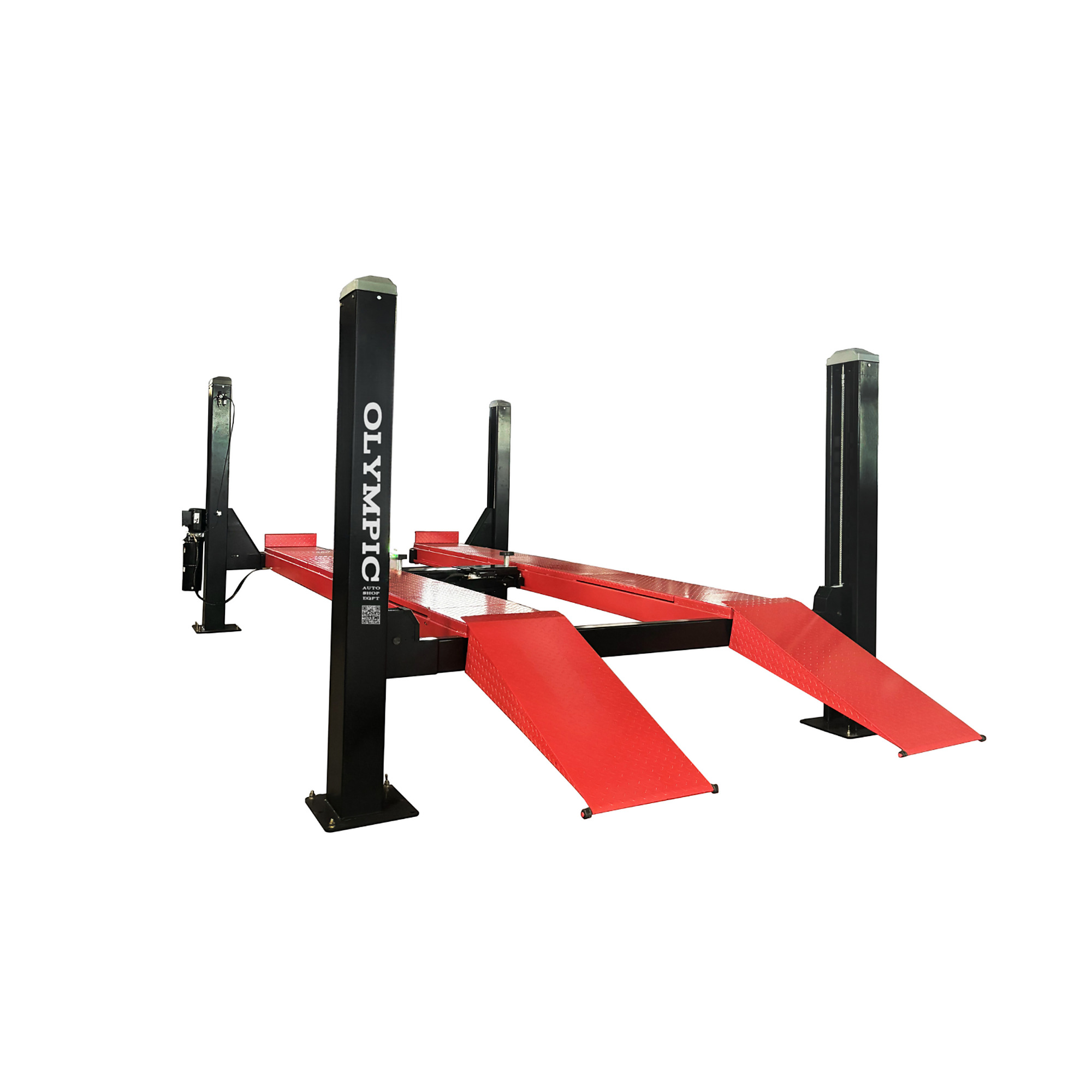

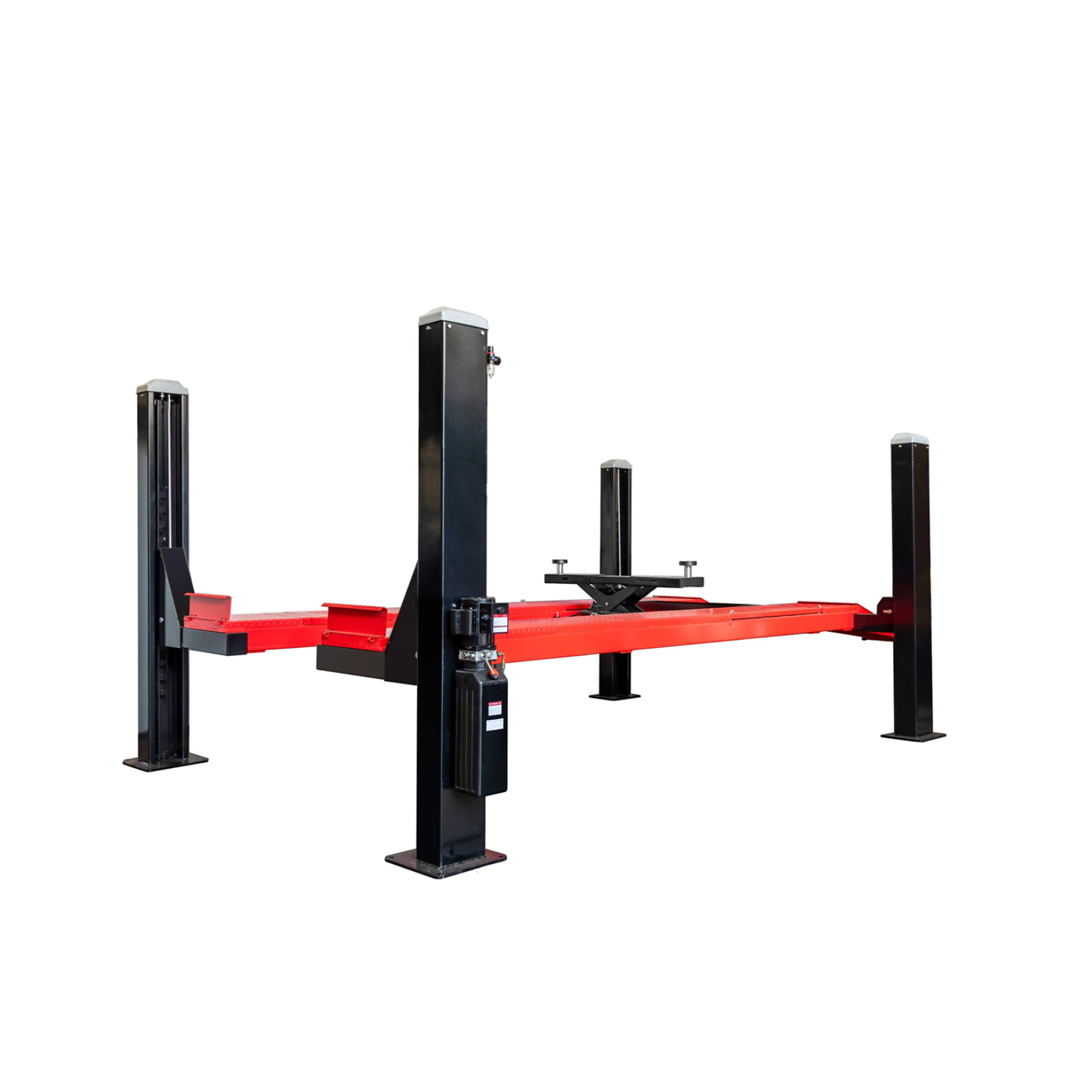

Model: Olympic 4PHDXLA-11 / 11,000-lb Alignment 4-Post Lift / Open Front / 10-Year Warranty

Item# 6952601
Model: Olympic 4PHDXLA-11 / 11,000-lb Alignment 4-Post Lift / Open Front / 10-Year Warranty

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Model: Olympic 4PHDXLA-11 / 11,000-lb Alignment 4-Post Lift / Open Front / 10-Year Warranty

Click or Tap image to Zoom

$13,399.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Olympic 10-Year Warranty
  • Free Shipping Nationwide
  • 11,000 lb capacity
  • Extra-long alignment runways
  • Dual hydraulic cylinders

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

4-Post lift: 4PHDXLA-11 – 11,000 lb open-front alignment lift. Professional alignment access with slip plates and turntable positions.

What's Included

    (1) 110V 2.2KW 60Hz 1Ph power unit  (2) Alignment Turntables (1) Detachable stop set included (4) Drip trays

Features + Benefits

  • Olympic 10-Year Warranty
  • Free Shipping Nationwide
  • 11,000 lb capacity
  • Extra-long alignment runways
  • Dual hydraulic cylinders
  • Multi-lock positions
  • Cable-driven system
  • Powder-coated finish
  • CE certified
  • Adjustable approach ramps
  • Turnplate cutouts
  • Rear slip plates
  • Optional caster kit
  • Drip trays included
  • 110V/220V power
  • Reinforced structure
  • Smooth hydraulic movement
  • Tested 150%
  • Industrial-grade finish
  • Professional alignment ready

Key Specs

AttributeSpecification

item#

6952601

Brand

Olympic Equipment

Manufacturer's Warranty

10 year limited warranty

Ship Weight

3385.0 LB

Capacity

11,000 lb

Max. Rise

74.9 ft

Horsepower

4 HP
AttributeSpecification

Motor Phase

Single-phase

Volts

110

Time of Full Rise

50 sec.

Drive-Thru Clearance

99.6 in

Material

Steel

Product Weight

3100.0000 lb

Dimensions L x W x H (in.)

246.06 x 137.99 x 99.53 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

10 year limited warranty

Compare with Most Popular in Four-Post Lifts

See All Four-Post Lifts

See All Olympic Equipment Four-Post Lifts

Specifications

Specifications
Model: Olympic 4PHDXLA-11 / 11,000-lb Alignment 4-Post Lift / Open Front / 10-Year Warranty
BendPak 4-Post Wide/Standard Car Lift, 9000-Lb. Capacity, Gray, Model# HD-9XL
BendPak 4-Post Truck and Car Lift, 14,000-Lb. Capacity, Model# HDS-14
BendPak Compact 4-Post Car Lift, 7000-Lb. Capacity, Model# HD-7P
Capacity
Same

11,000 lb

9,000 lb

14,000 lb

7,000 lb

Max. Rise
Same

74.9 ft

6.2 ft

6.4 ft

7 ft

Horsepower
Same

4 HP

3 HP

3 HP

3 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

110

220

220

220

Time of Full Rise
Same

50 sec.

50 sec.

60 sec.

60 sec.

Drive-Thru Clearance
Same

99.6 in

86.5 in

98.25 in

76.5 in

Material
Same

Steel

Steel

Steel

Steel

Product Weight
Same

3100.0000 lb

-

-

-

Dimensions L x W x H (in.)
Same

246.06 x 137.99 x 99.53 in

-

-

-

Lock Spacing
Same

-

4 in

4 in

-

Locking Position (qty.)
Same

-

14

15

17
