BendPak Heavy-Duty 4-Post Truck Lift, 40,000-Lb. Capacity, Model# HDS-40

Item# 144259
BendPak Heavy-Duty 4-Post Truck Lift, 40,000-Lb. Capacity, Model# HDS-40

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BendPak Heavy-Duty 4-Post Truck Lift, 40,000-Lb. Capacity, Model# HDS-40

Click or Tap image to Zoom

$32,695.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Requires 297in.L x 154in.W floor space
  • Rail-kit for optional accessories
  • Forklift Required
  • Single hydraulic cylinder mounted under runway
  • Internal "anti-sway" slider blocks in each column

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Bendpak heavy-duty 4-post, 40,000-lb. capacity truck lift requires 297in.L x 154in.W floor space. Item too large for lift gate. Requires forklift on site for unloading. This item is delivered by flatbed truck Monday-Friday with 24 hours advance notice. A forklift is required to offload the lift from a dock-height flatbed trailer.

What's Included

    (4) Posts (2) Runways (2) Equalizeer cables (4) Oversize sheaves (1) Power unit

Downloads

Product Manual

Features + Benefits

  • Requires 297in.L x 154in.W floor space
  • Rail-kit for optional accessories
  • Forklift Required
  • Single hydraulic cylinder mounted under runway
  • Internal "anti-sway" slider blocks in each column
  • Heavy-duty aircraft cables

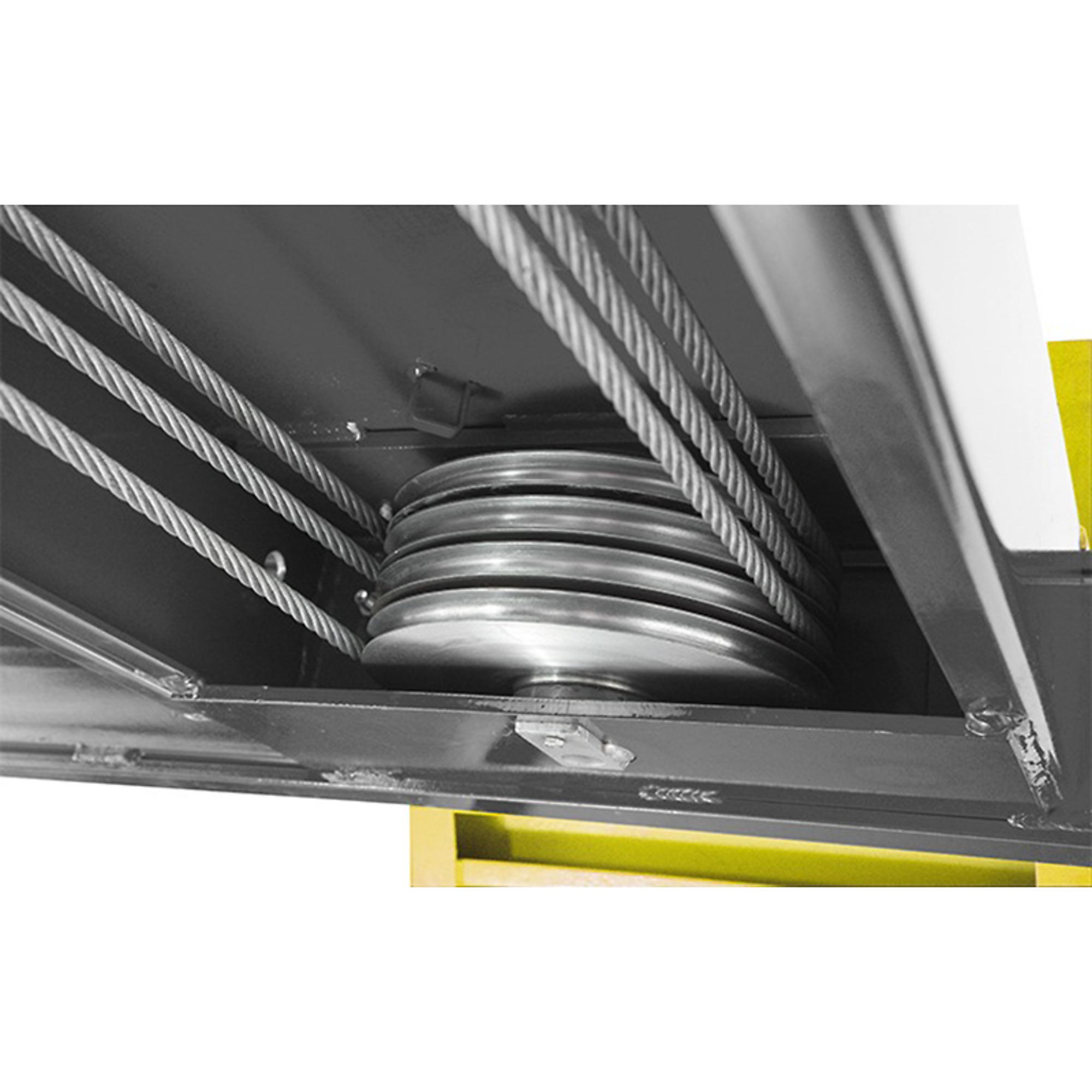

  • Oversized, self-lubricating cable sheaves
  • Rugged 4in. sheave axles
  • Multi-position safety locks
  • Nonskid runway surface
  • Push-button safety release
  • Adjustable runways
  • Recommended Rolling Jacks RJ-18 (Item# 144718) or RJ-25 for use with this unit
  • Item too large for lift gate; Requires forklift on site for unloading
  • Electric/hydraulic power system

Key Specs

AttributeSpecification

item#

144259

Brand

BendPak

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

6748.0 LB

Capacity

40,000 lb

Max. Rise

5.8 ft

Horsepower

5 HP
AttributeSpecification

Motor Phase

Single-phase

Volts

220/240

Lock Spacing

4 in

Locking Position (qty.)

13

Time of Full Rise

75 sec.

Drive-Thru Clearance

109 in

Material

Steel

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

12 months parts/12months labor

Compare with Most Popular in Four-Post Lifts

See All Four-Post Lifts

See All BendPak Four-Post Lifts

Specifications

Specifications
BendPak Heavy-Duty 4-Post Truck Lift, 40,000-Lb. Capacity, Model# HDS-40
BendPak 4-Post Wide/Standard Car Lift, 9000-Lb. Capacity, Gray, Model# HD-9XL
BendPak 4-Post Truck and Car Lift, 14,000-Lb. Capacity, Model# HDS-14
BendPak Compact 4-Post Car Lift, 7000-Lb. Capacity, Model# HD-7P
Capacity
Same

40,000 lb

9,000 lb

14,000 lb

7,000 lb

Max. Rise
Same

5.8 ft

6.2 ft

6.4 ft

7 ft

Horsepower
Same

5 HP

3 HP

3 HP

3 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

220/240

220

220

220

Lock Spacing
Same

4 in

4 in

4 in

-

Locking Position (qty.)
Same

13

14

15

17

Time of Full Rise
Same

75 sec.

50 sec.

60 sec.

60 sec.

Drive-Thru Clearance
Same

109 in

86.5 in

98.25 in

76.5 in

Material
Same

Steel

Steel

Steel

Steel
