Klutch MIG/Flux-Core Multi-Process Welder with Inverter Technology, 120 Volts, 140 Amp Max.

Item# 4856738
"Klutch MIG/Flux-Core Multi-Process Welder with Inverter Technology, 120 Volts, 140 Amp Max."
Klutch MIG/Flux-Core Multi-Process Welder with Inverter Technology, 120 Volts, 140 Amp Max.

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klutch MIG/Flux-Core Multi-Process Welder with Inverter Technology, 120 Volts, 140 Amp Max.

Click or Tap image to Zoom

$279.99

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    2 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Versatile Operation: MIG and flux-core welding functions handle a wide range of projects and materials
  • Multi-Metal Capability: Welds mild steel and stainless steel up to 3/16in. thick for versatile performance
  • Extra-Lightweight Inverter Design: Inverter technology delivers up to 50% weight savings over comparable models without sacrificing weld consistency
  • Take-Anywhere Portability: Built-in carrying handle makes it easy to move between workstations or take to the jobsite
  • Wide Output Range: 30–140 Amp output handles thin sheet metal to heavier stock

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Klutch MIG/Flux-Core Multi-Process Welder with Inverter Technology, 120 Volts, 140 Amp Max.
  • Hobart Welding Apron, Flame-Retardant Cotton, Black, One size fits most, Model# 770686
  • Klutch Cut-Resistant Goatskin/Cowhide TIG Welding Gloves
  • Ironton Auto-Darkening Welding Helmet with Grind Mode, Matte Black, Large
Price for all four:

$349.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Klutch 140 Welder with Wire-Feed Speed Control is an inverter-powered, wire-feed welder for MIG and flux-core welding. The inverter-based system offers increased power output from a smaller transformer, resulting in a super-lightweight system that is portable enough to take almost anywhere. Comes complete with a regulator and gas hose for easy connection. Directly connect this unit to 120V household power, and it's ready to go to work. Designed for use on mild steel and stainless steel up to 3/16in. thick.

What's Included

    (1) Klutch MIG Welder (1) MIG torch (1) Regulator and gas valve (1) Ground cable and clamp (1) Gas hose (2) Contact tips (1) Flux-core nozzle

Downloads

Product Manual
Play Item Video

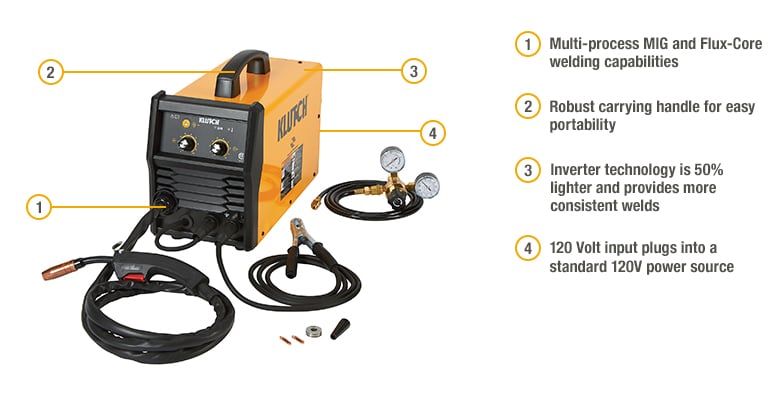

Features + Benefits

  • Versatile Operation: MIG and flux-core welding functions handle a wide range of projects and materials
  • Multi-Metal Capability: Welds mild steel and stainless steel up to 3/16in. thick for versatile performance
  • Extra-Lightweight Inverter Design: Inverter technology delivers up to 50% weight savings over comparable models without sacrificing weld consistency
  • Take-Anywhere Portability: Built-in carrying handle makes it easy to move between workstations or take to the jobsite
  • Wide Output Range: 30–140 Amp output handles thin sheet metal to heavier stock
  • Easy Wire Feeder Access: Hinged door opens and closes quickly for wire feeder operation and spool changes
  • Precise Control: Infinite wire-feed and voltage controls allow fine-tuned adjustments for cleaner, more consistent welds
  • Plug-and-Play Power: Connects directly to standard 120V household power—no special wiring needed
  • Gas or Gasless: Compatible with shielding gas for MIG welding or runs flux-core wire without gas
  • CSA Approved: Meets CSA safety standards for reliable, certified performance

Key Specs

AttributeSpecification

item#

4856738

Brand

Klutch

Manufacturer's Warranty

1 year limited warranty

Ship Weight

27.0 LB

Volts

120

Max. Amps

140

Power Type

DC

Multi-process

No

Spool Gun Included

No

Welding Processes

Flux-Core, MIG

Max. Weld Thickness

0.188 in

Max. Welding Wire Diameter

0.035 in

Duty Cycle

30%
AttributeSpecification

Weldable Materials

Steel

Min. Amps

30

Wire Feed Speed Control

Yes

Cart Included

No

Mig Ready

Yes

Power Cord Length

6.5 ft

Clamp Cable Length

6.5 ft

Electrode Cable Length

0 ft

Regulator and Gas Hose Included

Yes

Shielding Gas Required

No

Product Weight

24.2000 lb

Dimensions L x W x H (in.)

18.0 x 8.5 x 13.0 in

Reviews

Questions & Answers

22 Reviews This action will navigate to reviews.

Questions

1–10 of 22 Questions
Sort by:

  1. What is the duty cycle ratio? How long can I weld continuously?

    1 answer

    1. The duty cycle is 30% at 90 amps. The maximum you may weld continuously is 3 minutes. The duty cycle defines the number of minutes, within a 10 minute period, during which a given machine can safely produce a particular current. If the machine working time reaches to the maximum working time according to the duty cycle, the thermal protector will activate and the “Overload Indicator” will illuminate. The machine will automatically shut down until it cools, then you may resume welding again.

      Helpful?

  2. Where do you purchase a new conductive liner.

    1 answer

    1. A replacement conductive liner is not available for the welder.

      Helpful?

  3. Where can I buy a replacement welding lead if the gas tube inside leaks?

    1 answer

    1. The wire feeder assembly, part #KLH4856738.12, can be purchased through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  4. Is the wire feed aluminum or plastic

    1 answer

    1. The wire feeder is plastic.

      Helpful?

  5. How to switch it from gasless to mig. I'm sure i have to reverse the polarity

    1 answer

    1. The MIG electrode polarity jumper should be connected to the positive (+) DINSE socket. The ground cable would then be connected to the negative (-) DINSE socket. Please make sure to use the drive roll marked "V". Attach the included gas hose to the regulator's outlet and the welder's gas inlet. Wrench tighten both connections. Then, connect the gas regulator with the gas cylinder.

      Helpful?

  6. I just received my klutch 140. I noticed in the directions that it specifies different wire drives for MIG vs flux core. In the owners manual it says to use a v drive roller for MiG and a KV drive roller for flux core. Does the unit come with both?

    1 answer

    1. The welder is ready for MIG and flux-core welding, which means it should include both necessary drive rollers.

      Helpful?

  7. Can this unit be powered by a generator, if so what rating required?

    1 answer

    1. This welder requires 15 amps on a 120 volt circuit. A generator rated for 2,000 continuous watts or greater is recommended.

      Helpful?

  8. I just bought this welder earlier this week and I was wondering Can I use this welder as a power source to stick weld with?

    1 answer

    1. This welder is not designed for stick welding. It is not equipped with any receptacles to power auxiliary products.

      Helpful?

  9. Do you sell replacement contact tips for the gun?

    1 answer

    1. This welder uses Tweco style contact tips. It can be uses with .030" tips like item 48316 or .035" tips like item 48318.

      Helpful?

  10. Does it have a lift tag attachment?

    1 answer

    1. This welder does not have a lift TIG option.

      Helpful?
