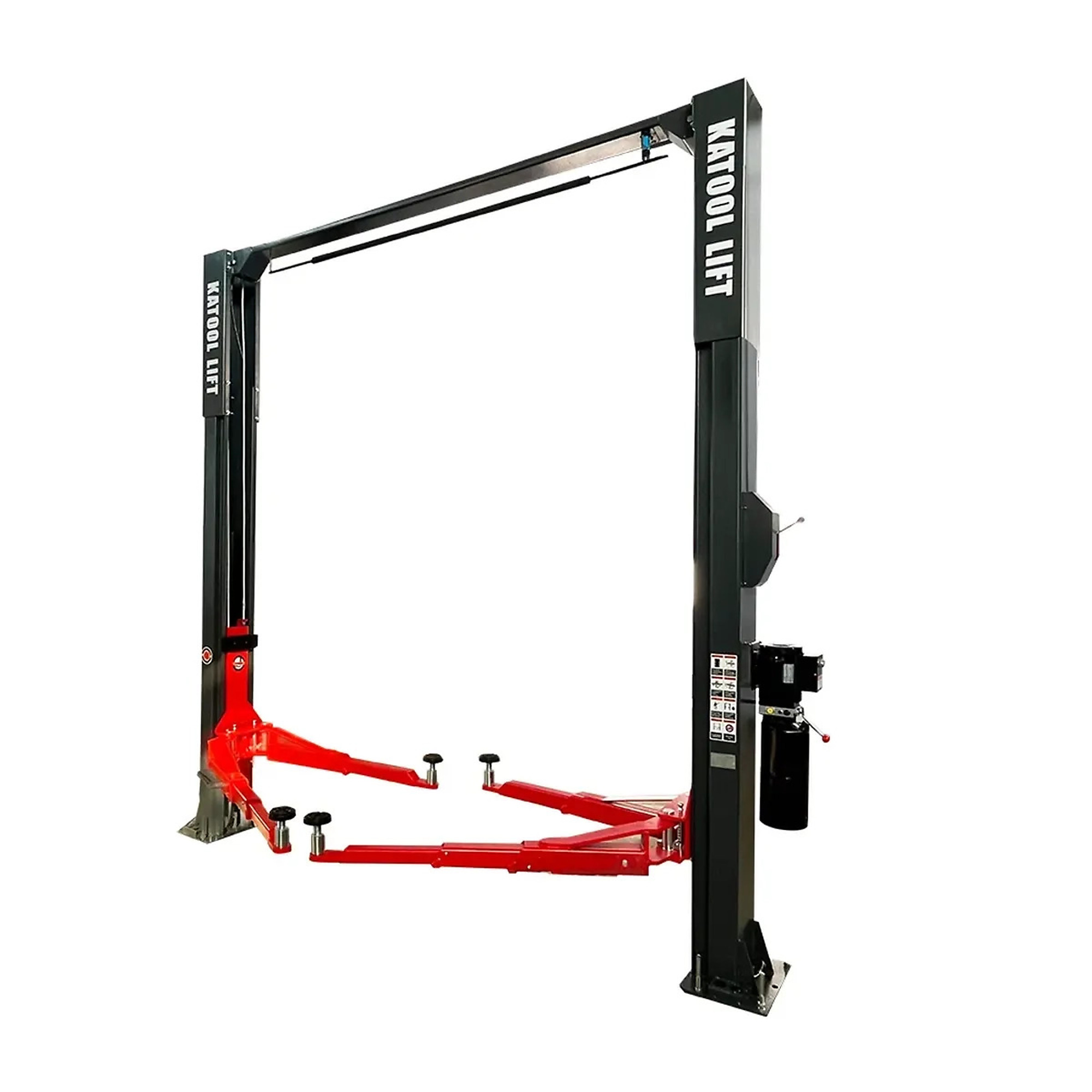

Katool Clear-Floor Two-Post Lift — 14000 Lb. Capacity, Overhead Beam, Model# KT-M140XD

Item# 7001487
Katool Clear-Floor Two-Post Lift — 14000 Lb. Capacity, Overhead Beam, Model# KT-M140XD

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Katool Clear-Floor Two-Post Lift — 14000 Lb. Capacity, Overhead Beam, Model# KT-M140XD

Click or Tap image to Zoom

$4199.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Massive 14,000 lb capacity for heavy trucks, vans, and fleet vehicles.
  • Overhead clear-floor design for unobstructed workspace and easy maneuvering.
  • Reinforced symmetric lifting arms for balanced load distribution.

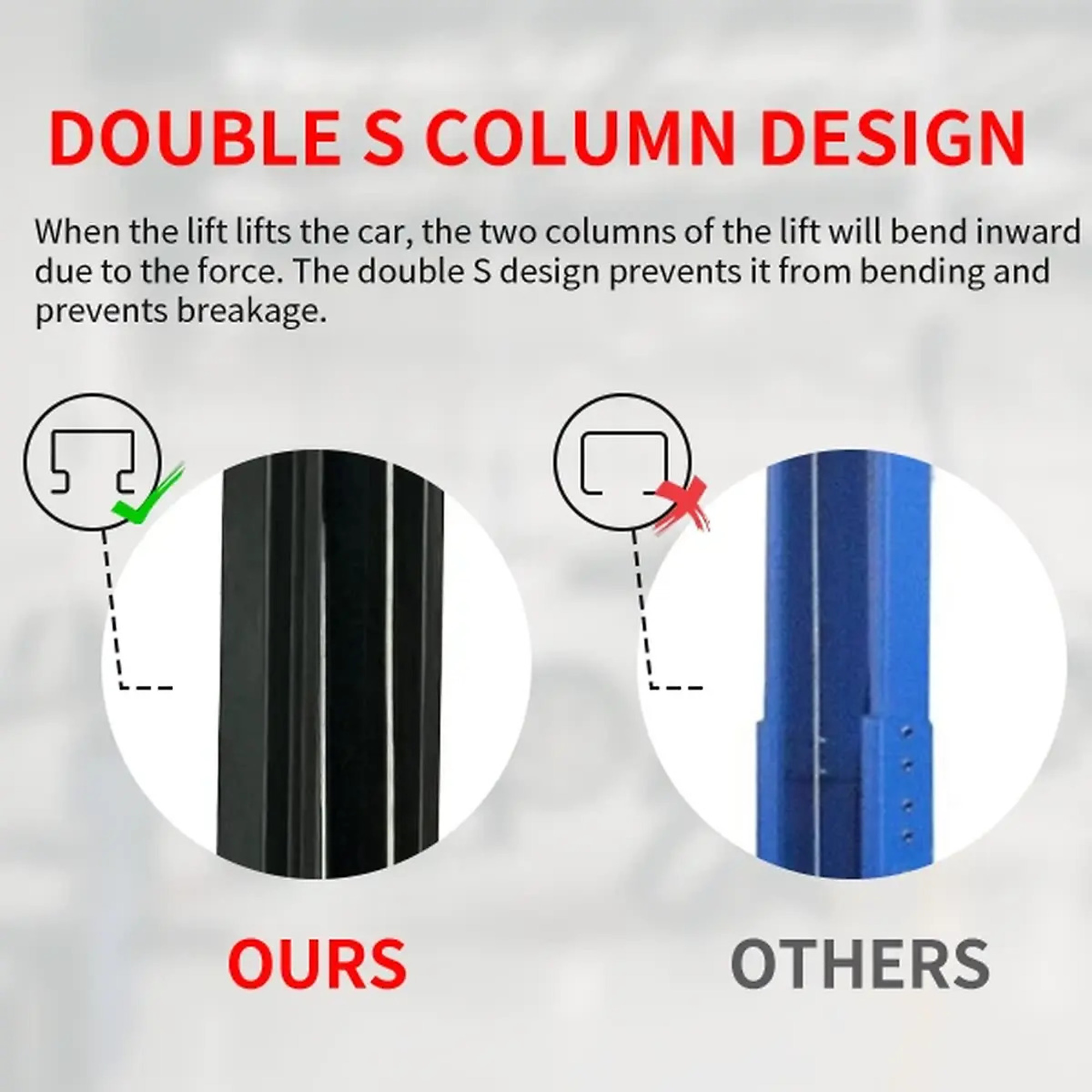

  • High-strength steel columns with precision-cut safety lock rails.
  • A forklift is required to offload the lift from a box truck or a dock-height flatbed trailer.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Katool KT-M140XD is a commercial-grade 14,000 lb overhead two-post lift engineered for professional automotive repair and heavy-duty vehicle servicing. Its overhead beam design maximizes stability and workspace, while reinforced arms accommodate wide and long-wheelbase trucks. Built for reliability, power, and safety, the KT-M140XD is a premium solution for high-volume shops. A forklift is required to offload the lift from a box truck or a dock-height flatbed trailer.

What's Included

    (1) Vehicle Lift

Features + Benefits

  • Massive 14,000 lb capacity for heavy trucks, vans, and fleet vehicles.
  • Overhead clear-floor design for unobstructed workspace and easy maneuvering.
  • Reinforced symmetric lifting arms for balanced load distribution.
  • High-strength steel columns with precision-cut safety lock rails.
  • A forklift is required to offload the lift from a box truck or a dock-height flatbed trailer.

Key Specs

AttributeSpecification

item#

7001487

Brand

KATOOL

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1960.0 LB

Capacity

14,000 lb

Max. Rise

73 ft
AttributeSpecification

Horsepower

4 HP

Motor Phase

Single-phase

Volts

220

Material

Alloy Steel

Product Weight

2050.0000 lb

Dimensions L x W x H (in.)

20.0 x 158.0 x 167.0 in

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. Are the front and rear arms the same size?

    1 answer

    1. The front and rear arms are the same size. The arms will adjust from 29.58"-59.06" (750-1500 MM).

      Helpful?

  2. Do you have layout dimensions

    1 answer

    1. Overall Height: 167 inches
      Overall Width: 158 inches
      Drive-Thru Clearance: 133 inches
      Max Lifting Height: 73 inches
      Lift Weight: 1,808 pounds

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty

Compare with Most Popular in Two-Post Lifts

See All Two-Post Lifts

See All KATOOL Two-Post Lifts

Specifications

Specifications
Katool Clear-Floor Two-Post Lift — 14000 Lb. Capacity, Overhead Beam, Model# KT-M140XD
BendPak 2-Post Car Lift, 10,000-Lb. Capacity, Model# 10AP
BendPak 2-Post Truck and Car Lift, 10,000 Lb. Capacity, Model# 10APX
BendPak, Two Post Parking Lift 6000lb Capacity, Capacity 6000 lb, Max. Rise 6.8 ft, Horsepower 4 HP, Model# PL-6000DCX
Capacity
Same

14,000 lb

10,000 lb

10,000 lb

6,000 lb

Max. Rise
Same

73 ft

6 ft

6.5 ft

6.8 ft

Horsepower
Same

4 HP

3 HP

3 HP

4 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

220

220

220

220

Material
Same

Alloy Steel

Steel

Steel

Steel

Product Weight
Same

2050.0000 lb

1710.0000 lb

1766.0000 lb

2288.0000 lb

Dimensions L x W x H (in.)
Same

20.0 x 158.0 x 167.0 in

145.0 x 20.0 x 145.0 in

145.0 x 20.0 x 157.0 in

163.5 x 112.0 x 131.0 in

Lock Spacing
Same

-

3.75 in

4 in

-

Locking Position (qty.)
Same

-

14

15

10

Time of Full Rise
Same

-

45 sec.

45 sec.

50 sec.

Pad Height
Same

-

4 in

4 in

-

Drive-Thru Clearance
Same

-

102 in

102 in

-
