The height from the concrete floor to the wheel track (minimum runway height) when the lift is down is 4.76 inches.

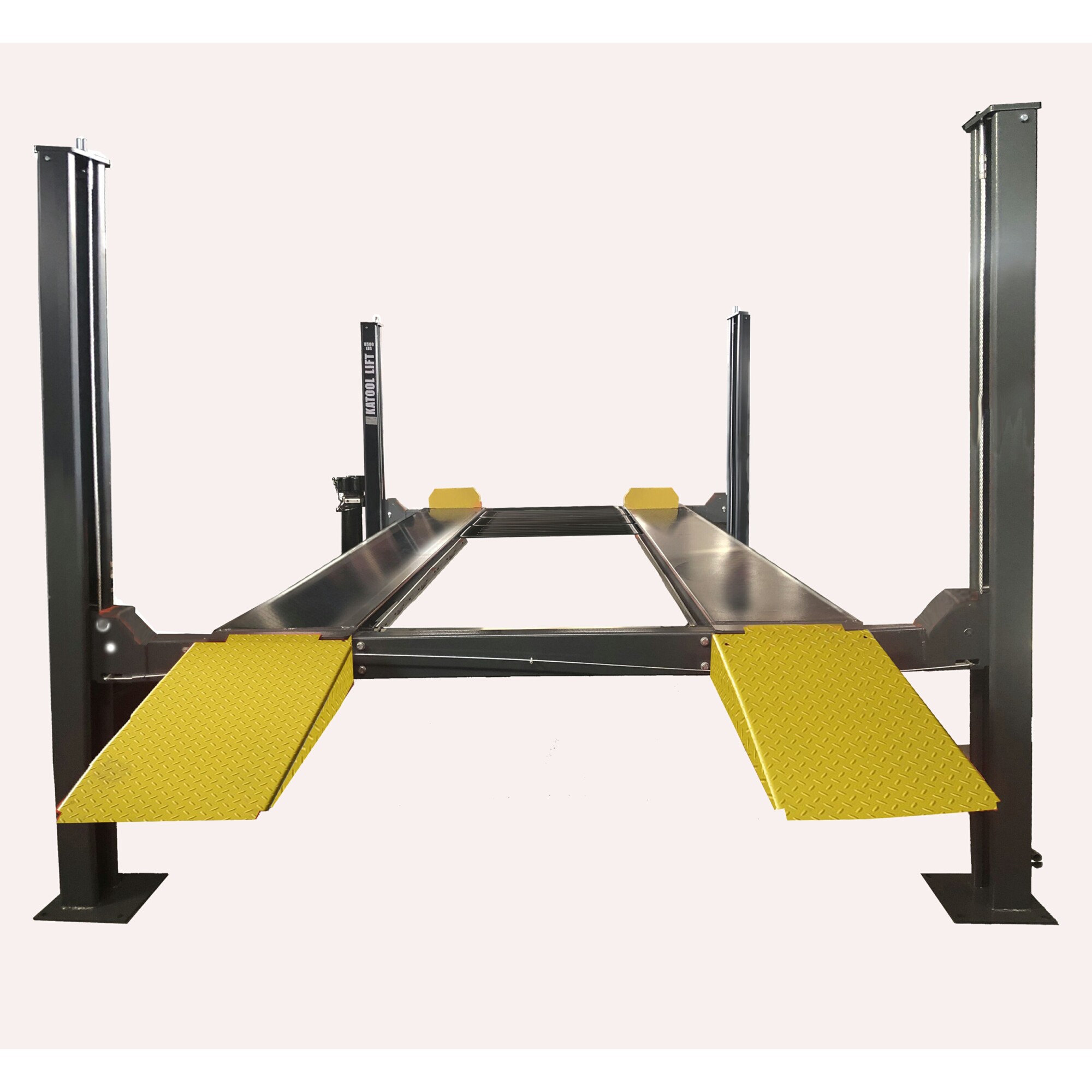

Katool 4-Post Vehicle Lift, 8500-Lb. Capacity, 3 HP, Model# KT-4H850
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$3599.00
- 8500 lbs lifting capacity.
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
- Single Point Manual Safety Lock Release.
- Four mechanical locking devices, each equipped with both primary and secondary safety locks.
- Powerside column can be installed at both sides, front or rear.
See full description
What's Included
- (8) Anchor Bolts (1) Hydraulic Pump
Features + Benefits
- 8500 lbs lifting capacity.
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
- Single Point Manual Safety Lock Release.
- Four mechanical locking devices, each equipped with both primary and secondary safety locks.
- Powerside column can be installed at both sides, front or rear.

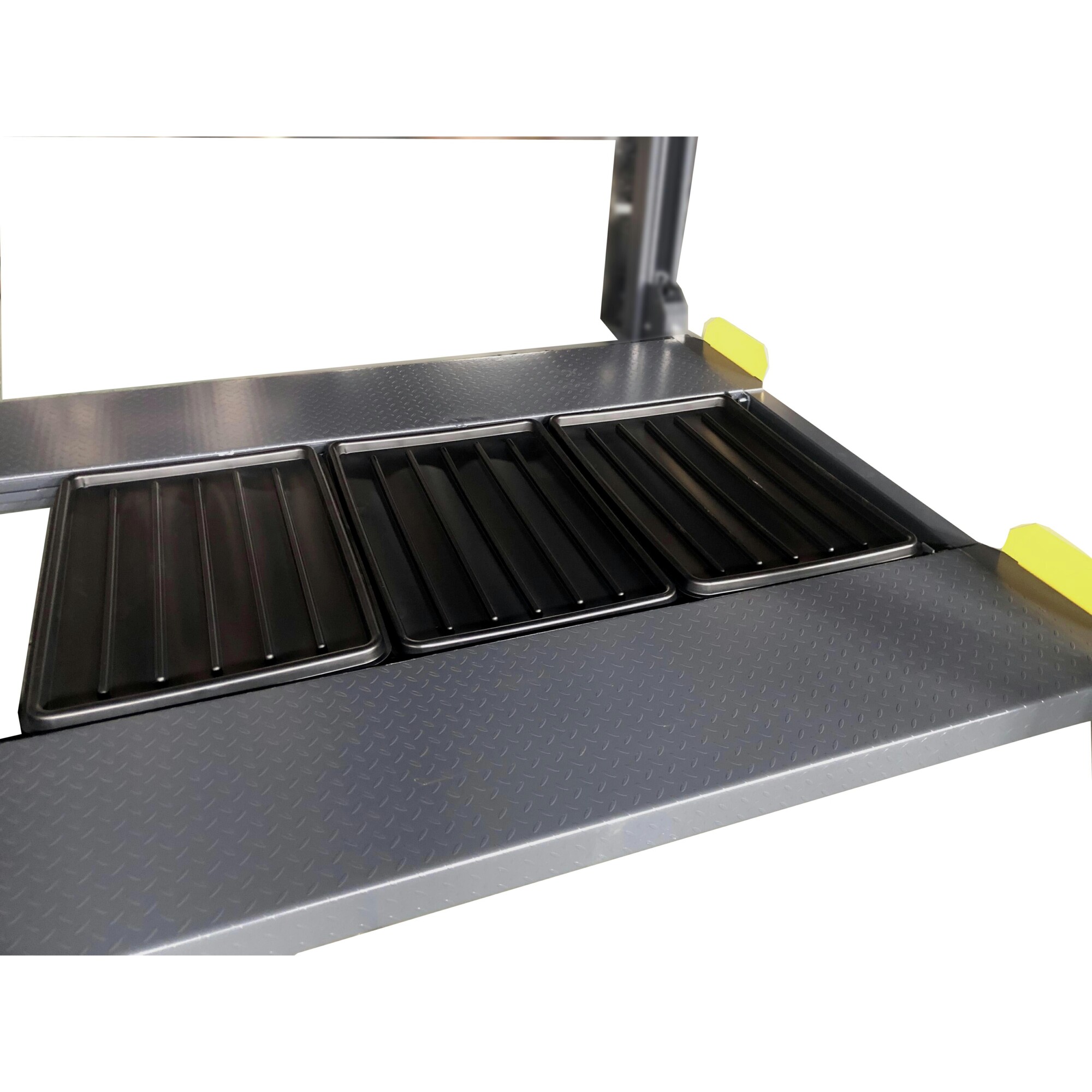

- Comes with two drip trays and a jack tray.
- A forklift is required to offload the lift from a box truck or a dock-height flatbed trailer.
See All Four-Post Lifts
See All KATOOL Four-Post Lifts
Currently Viewing This Product
Specifications
Specifications
Katool 4-Post Vehicle Lift, 8500-Lb. Capacity, 3 HP, Model# KT-4H850
BendPak 4-Post Wide/Standard Car Lift, 9000-Lb. Capacity, Gray, Model# HD-9XL
BendPak 4-Post Truck and Car Lift, 14,000-Lb. Capacity, Model# HDS-14
BendPak Compact 4-Post Car Lift, 7000-Lb. Capacity, Model# HD-7P
Capacity
Same
8,500 lb
9,000 lb
14,000 lb
7,000 lb
Max. Rise
Same
5.8 ft
6.2 ft
6.4 ft
7 ft
Horsepower
Same
3 HP
3 HP
3 HP
3 HP
Motor Phase
Same
Single-phase
Single-phase
Single-phase
Single-phase
Volts
Same
110
220
220
220
Locking Position (qty.)
Same
10
14
15
17
Product Weight
Same
1900.0000 lb
-
-
-

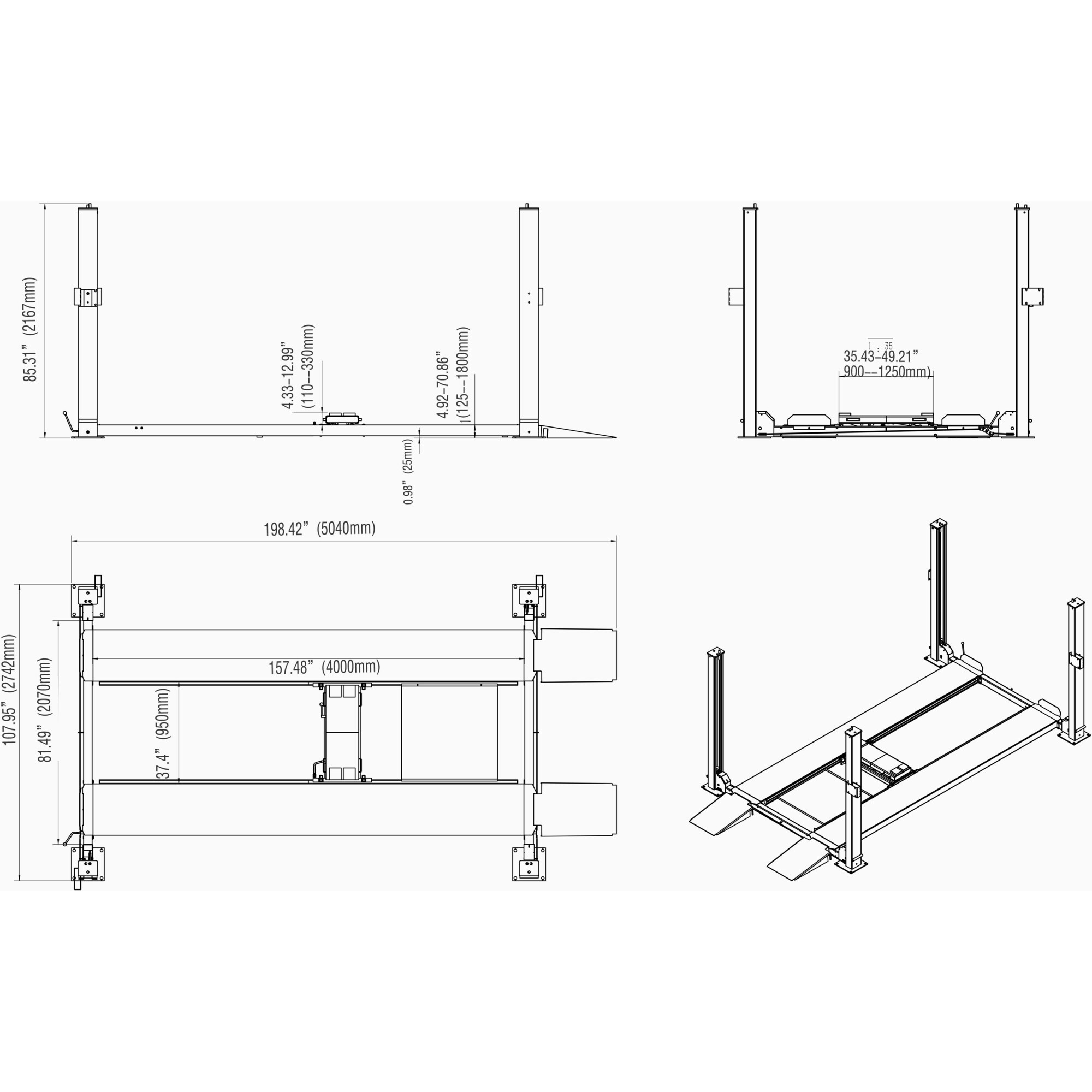

Dimensions L x W x H (in.)
Same
198.0 x 107.95 x 90.0 in
-
-
-
Lock Spacing
Same
-
4 in
4 in
-
Time of Full Rise
Same
-
50 sec.
60 sec.
60 sec.
Drive-Thru Clearance
Same
-
86.5 in
98.25 in
76.5 in
Material
Same
-
Steel
Steel
Steel
