BendPak 4-Post Extra-Tall Car Lift, 9000-Lb. Capacity, Model# HD-9XW

Item# 1446892
"BendPak 4-Post Extra-Tall Car Lift, 9000-Lb. Capacity, Model# HD-9XW"
Top Seller
BendPak 4-Post Extra-Tall Car Lift, 9000-Lb. Capacity, Model# HD-9XW

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BendPak 4-Post Extra-Tall Car Lift, 9000-Lb. Capacity, Model# HD-9XW

Click or Tap image to Zoom

$6495.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • 9000-lb. maximum lifting capacity
  • 82in. high-rise design has additional drive-under clearance for higher vehicles
  • Forklift Required
  • Perfect for parking, storage and service
  • Runways accommodate narrow and standard vehicles

See full description

Complete Your Solution

  • BendPak 4-Post Extra-Tall Car Lift, 9000-Lb. Capacity, Model# HD-9XW
  • BendPak Rolling Drain Pan for 4-Post Truck and Car Lifts, Model# DP-30
  • BendPak Rolling Bridge Jack for 4-Post Lifts, 4500-Lb. Capacity, Model# RBJ-4500
  • BendPak Integrated Rolling Bridge Airline Kit for 4-Post Car Lifts, Model# AK-14
Price for all four:

$9500.00

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This BendPak® 4-Post Extra-Tall Car Lift is a reliable electric/hydraulic power system lift that's ideal for vehicle service or storage. The lift has a space-saving design that is comparable in size to a typical parking space and is designed to maximize valuable floor area. Features a single-phase 220V, 2 HP motor that brings the lift to full rise in just 45 seconds. 15 locking positions in each column provide excellent operator safety. 224in.L x 110 1/4in.W x 100in.H overall, 100 1/4in.W between posts. 19in.W runways are adjustable. 188in. runway length. Standard gray finish. Optional caster kit available (Item# 14468C, sold separately). Works with rolling bridge jack (Item# 144767, sold separately). Forklift required for unloading lift. This item is delivered by flatbed truck Monday--Friday with 24 hours advance notice. A forklift is required to offload the lift from a dock-height flatbed trailer.

What's Included

    (1) 4-post extra-tall car lift (Model# HD-9XW)

Downloads

Product Manual

Features + Benefits

  • 9000-lb. maximum lifting capacity
  • 82in. high-rise design has additional drive-under clearance for higher vehicles
  • Forklift Required
  • Perfect for parking, storage and service
  • Runways accommodate narrow and standard vehicles
  • Unit is lockable every 4in.H of spacing
  • Oversized self-lubricating cable rollers keep things operating smoothly
  • Heavy-duty 3/8in. dia. aircraft cable and rugged 1 1/4in. roller axles stand up to tough use
  • Runways feature a non-skid surface
  • Electric/hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Internal anti-sway slider blocks in each column
  • Customizable power unit location for versatility

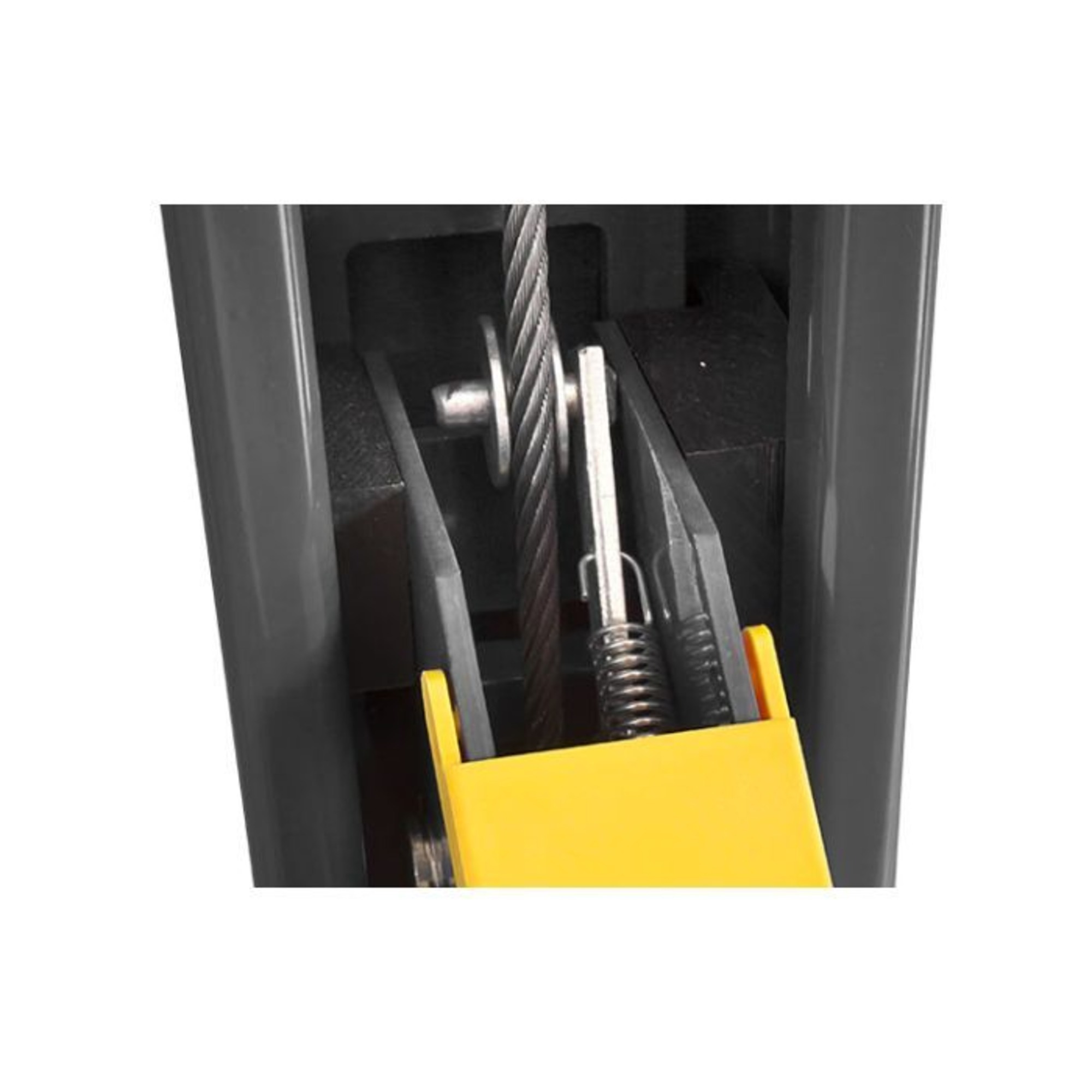

  • Includes internal anti-sway slider blocks, cables, multi-position safety locks and sheaves for excellent operator safety
  • Note: Underside of runways are not enclosed
  • Includes runways with rail kit for optional accessories
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
  • ETL approved
  • Item too large for lift gate; Requires forklift on site for unloading
  • Freestanding design requires no special foundation and installation is not complicated

Key Specs

AttributeSpecification

item#

1446892

Brand

BendPak

Manufacturer's Warranty

24 months parts/12months labor

Ship Weight

1802.0 LB

Capacity

9,000 lb

Max. Rise

7.2 ft

Horsepower

3 HP
AttributeSpecification

Motor Phase

Single-phase

Volts

220

Lock Spacing

4 in

Locking Position (qty.)

17

Time of Full Rise

50 sec.

Drive-Thru Clearance

86.5 in

Material

Steel

Reviews

Questions & Answers

15 Reviews This action will navigate to reviews.

Questions

1–10 of 21 Questions
Sort by:

  1. Is this lift Made In USA or Imported?

    1. Made in China.

      Helpful?

    2. This item is imported from China.

      Helpful?

  2. How difficult is it to adjust the ramp width from narrow to wide?

    Can the ramps just be slid back and forth between narrow and wide, or does it require tools, disassembly and reassembly?

    1. To move between positions you have to unbolt the ramp (4 bolts) and slide it to the other position. It is not hard but not something you want to do all the time.

      Helpful?

    2. To adjust the width on this BendPak Lift, the offside runway needs to be unbolted from the cross tube. Then, the single runway can be slid into the ideal location. The adjustable runway would then need to be bolted down again to make it secure.

      Helpful?

  3. Does this lift require an external air source and are the locks the only pneumatic function?

    1. Yes and yes. You will also need an air regulator/filter to lower the air pressure, I have mine set to 40 psi and they work well.

      Helpful?

    2. The BendPak 4-Post Wide/High Lift does require an external air source and filter, regulator, oiler. The air source is just to supply the safety locks and optional rolling jacks.

      Helpful?

  4. item 1446891-1456

    how high are ramps off the floor when in low position. My car is very low to the floor.

    1. The ramps are 5 inches off the floor when fully down. I have one vehicle with only 4 inches of ground clearance and it rolls on without any problems.

      Helpful?

    2. The ramps are 6" off the floor.

      Helpful?

  5. I have a sloping concrete floor in my garage for drainage. Can this lift work on this floor? If not can you add metal shims to level?

    1. According to the manual, you must install it on a level pad. The maximum amount of shimming on any column cannot exceed 1/2 inch.

      Helpful?

    2. This lift must be installed on a solid level concrete floor with no more than 3-degrees of slope.

      Helpful?

  6. What is the full load amps on the motor - I need to add a thermal overload. I don't see it anywhere in the information.

    1 answer

    1. The motor on this car lift would have a full load rating of 11 amps.

      Helpful?

  7. Can the ramps be moved to where they are together?

    1 answer

    1. It would not be recommended to moved the lift once it is installed.

      Helpful?

  8. What is the minimum garage ceiling height required to install /use?

    1 answer

    1. The maximum lift on the car lift is 82" and would would then need to take into consideration the height of the vehicle and add a few more inches for clearance for the ceiling height.

      Helpful?

  9. How does this unit move side to side if the wheels are not swivel wheels? Thx. Kook

    1 answer

    1. The optional caster kit will have swivel casters. The kit is item #14468C.

      Helpful?

  10. Is this lift ok for a 4 inch thick concrete slab?

    1 answer

    1. Yes, this lift requires a concrete slab minimum of 3.5 inches thick.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

See All Lift Accessories
BendPak Rolling Drain Pan for 4-Post Truck and Car Lifts, Model# DP-30
4.0 out of 5 stars. 2 reviews

BendPak Rolling Drain Pan for 4-Post Truck and Car Lifts, Model# DP-30

Item # 144625

$525.00

Warranty

Manufacturer's Warranty

24 months parts/12months labor

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Repair Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.

Compare with Most Popular in Four-Post Lifts

See All Four-Post Lifts

See All BendPak Four-Post Lifts

Specifications

Specifications
BendPak 4-Post Extra-Tall Car Lift, 9000-Lb. Capacity, Model# HD-9XW
BendPak 4-Post Extended Truck and Car Lift, 14,000-Lb. Capacity, Model# HDS-14LSX
BendPak 4-Post Wide/Standard Car Lift, 9000-Lb. Capacity, Gray, Model# HD-9XL
BendPak 4-Post Car Lift, 9000-Lb. Capacity, Model# HD-9
Capacity
Same

9,000 lb

14,000 lb

9,000 lb

9,000 lb

Max. Rise
Same

7.2 ft

6.4 ft

6.2 ft

6 ft

Horsepower
Same

3 HP

3 HP

3 HP

3 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

220

220

220

220

Lock Spacing
Same

4 in

4 in

4 in

4 in

Locking Position (qty.)
Same

17

15

14

14

Time of Full Rise
Same

50 sec.

60 sec.

50 sec.

50 sec.

Drive-Thru Clearance
Same

86.5 in

98.25 in

86.5 in

86.5 in

Material
Same

Steel

Steel

Steel

Steel
