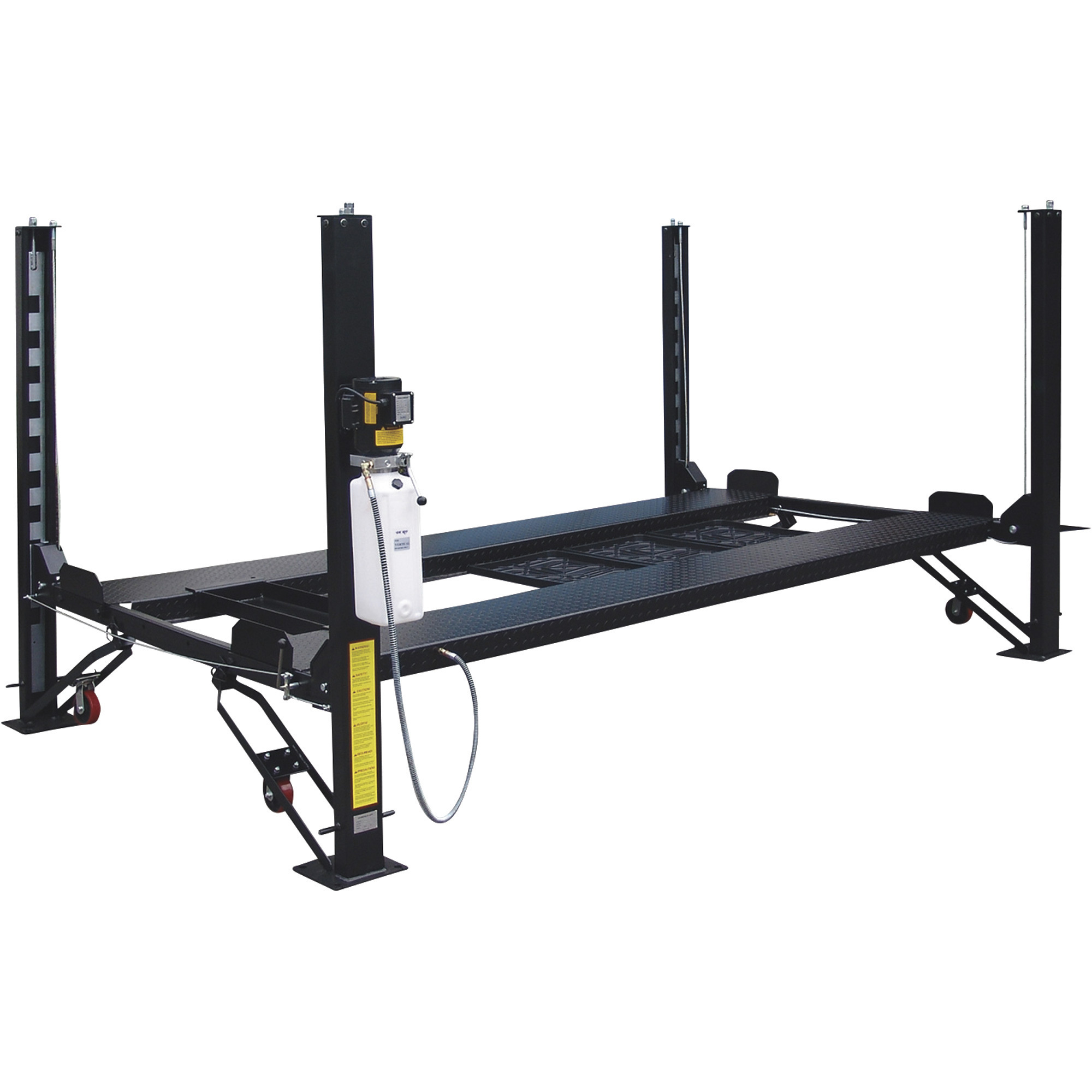

Tuxedo 4-Post Storage Lift with Electric/Hydraulic Motor, 8000-Lb. Capacity, Model# FP8K-DX-XLT

Item# 89792
Tuxedo 4-Post Storage Lift with Electric/Hydraulic Motor, 8000-Lb. Capacity, Model# FP8K-DX-XLT

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Tuxedo 4-Post Storage Lift with Electric/Hydraulic Motor, 8000-Lb. Capacity, Model# FP8K-DX-XLT

Click or Tap image to Zoom

$4830.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • 2 HP, 1-phase, 115V motor
  • Steel ramps
  • Single-point, manual-lock release adjustable locking positions
  • 82 1/4in. max rise
  • 100 seconds to full rise

See full description

Complete Your Solution

  • Tuxedo 4-Post Storage Lift with Electric/Hydraulic Motor, 8000-Lb. Capacity, Model# FP8K-DX-XLT
  • BendPak Rolling Bridge Jack for 4-Post Lifts, 4500-Lb. Capacity, Model# RBJ-4500
  • BendPak Rolling Drain Pan for 4-Post Truck and Car Lifts, Model# DP-30
  • BendPak Sliding Jack Platform for 4-Post Lifts, Model# JP-6
Price for all four:

$8161.00

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

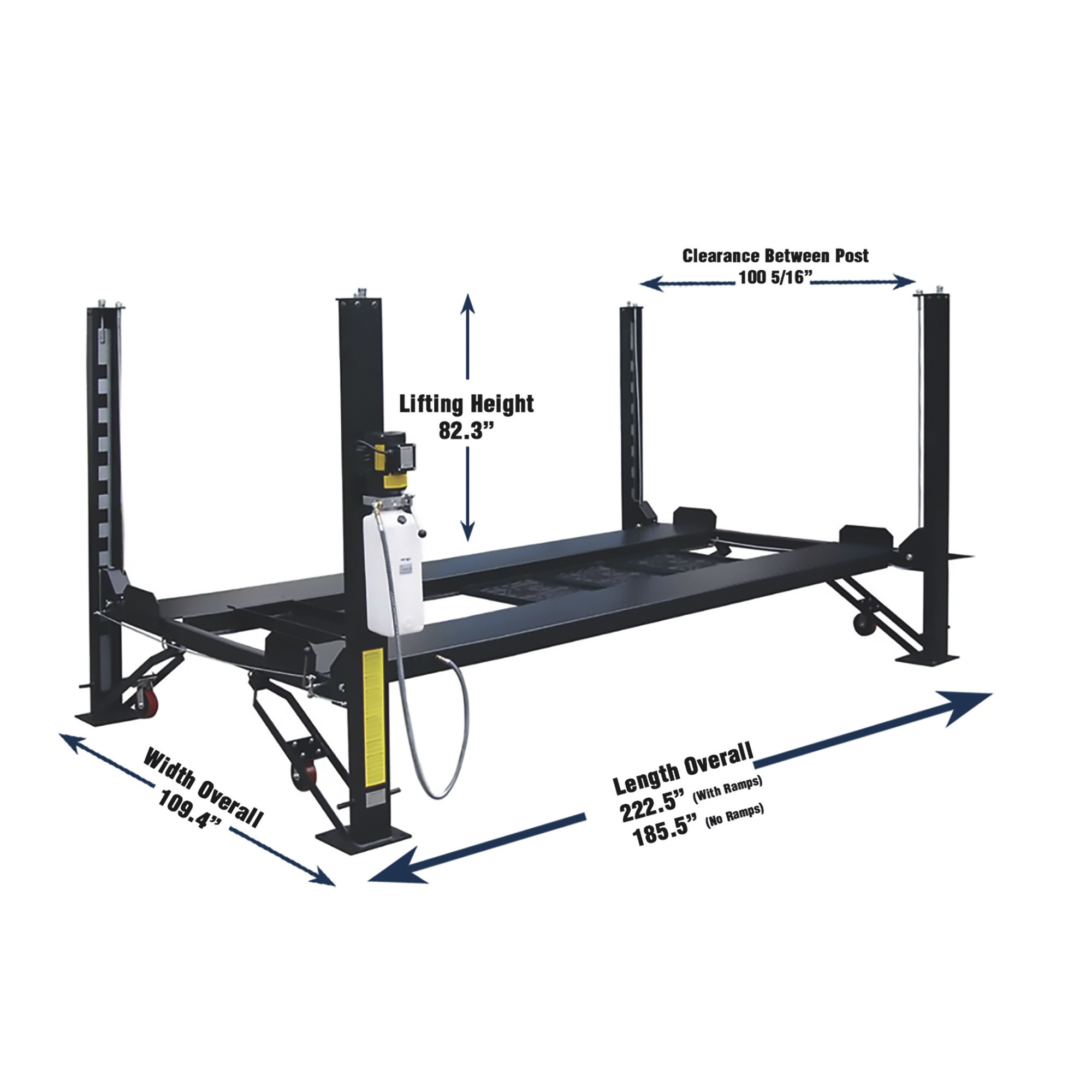

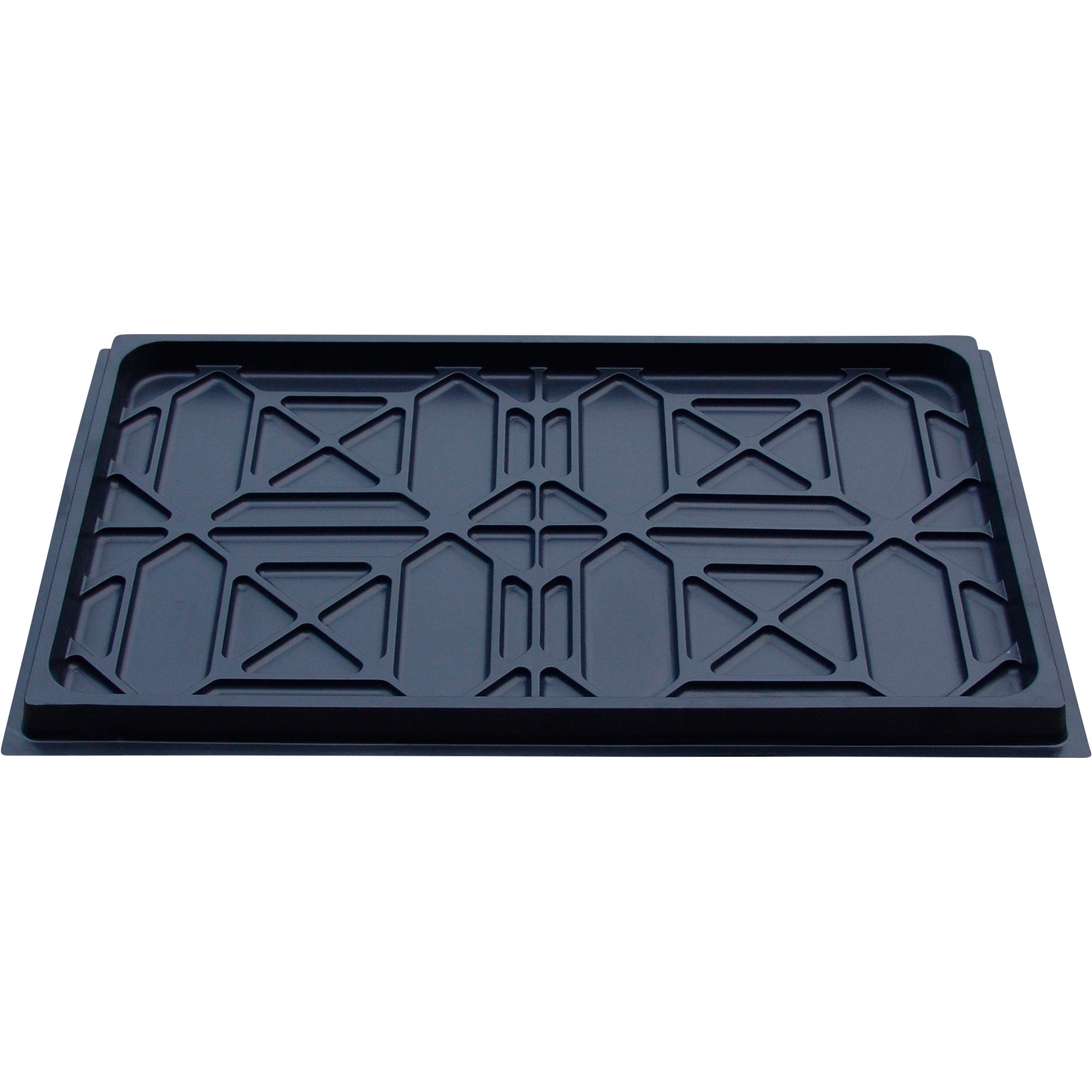

The Tuxedo 4-Post Storage Lift with Electric/Hydraulic Motor features 2 HP, 1-phase, 115V, an internal adjustable ladder lock with a single-point, manual-lock release; non-skid diamond plate runways; and powder-coated steel approach. This heavy-duty unit includes poly casters, 3 drip trays and a jack/tool tray. Max rise: 82 1/4in. Time to full rise: 100 seconds. Runway dimensions: 180 1/2in.L x 18 5/8in.W. Overall: 222 1/2in.L x 109 3/8in.W x 94in.H. Item too large for lift gate. Requires forklift on site for unloading. This item is delivered by LTL enclosed van carriers Monday--Friday. A forklift is required to offload the lift from a dock-height trailer.

What's Included

    (1) 4-post storage lift with electric/hydraulic motor

Downloads

Product Manual

Features + Benefits

  • 2 HP, 1-phase, 115V motor
  • Steel ramps
  • Single-point, manual-lock release adjustable locking positions
  • 82 1/4in. max rise
  • 100 seconds to full rise
  • Runway dimensions: 165 1/2in.L x 18 5/8in.W
  • Item too large for lift gate; Requires forklift on site for unloading

Key Specs

AttributeSpecification

item#

89792

Brand

Tuxedo

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1800.0 LB

Capacity

8,000 lb

Max. Rise

6.85 ft
AttributeSpecification

Horsepower

2 HP

Motor Phase

Single-phase

Volts

115

Locking Position (qty.)

12

Product Weight

1,800 lb

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–10 of 14 Questions
Sort by:

  1. Can i get this package in 220

    1 answer

    1. The lift is not available in a 230 volt single phase power.

      Helpful?

  2. What is the footprint and also what is the difference between the DX and the XLT?

    1 answer

    1. The overall dimensions of this DX-XLT model are 222-1/2in.L x 109-3/8in.W. The max rise is 82-1/4" in 100 seconds. The clearance under the runway is 78".

      The overall dimensions of the standard DX model are 207-5/16in.L x 103-1/2in.W. The max rise is 74-3/4" in 90 seconds. The clearance under the runway is 70".

      Helpful?

  3. Would a front end loader be ok to unload? Is it delivered in one 1800 pound box or multiple lighter boxes? My FEL can only handle 1000 pounds.

    1 answer

    1. The lift is shipped in one package. It measures 182" L x 22" W x 41" H. The weight is 1800 pounds total. It will require a forklift to unload.

      Helpful?

  4. Are the ramps adjustable? Do the slide together?

    1 answer

    1. The ramps are not adjustable. The ramps do not slide together.

      Helpful?

  5. Is there a jack unit available for this lift?

    1 answer

    1. The item number 71522 (model SJ-35) sliding scissor jack is recommended for this lift.

      Helpful?

  6. Can you drive a full size car or small SUV under the lift when it is all the way up?

    1 answer

    1. The height under the runway is 78" and the width between the posts is 100-5/16". A car could be driven under it as long as it does not exceed those dimensions.

      Helpful?

  7. Is the runway wide enough for a dually? About 96” with fenders. I’d put wheel width at 94” but just guessing.

    1 answer

    1. The width between the posts is 100 5/16". The overall width (outside the base plates) is 109 3/8".

      Helpful?

  8. What are the recommended specs for the concrete floor?

    1 answer

    1. This lift is designed to be installed on a minimum of 4-1/4” thick, 3000psi, with steel reinforced concrete.

      Helpful?

  9. Can you mount the ramps on either end.

    1 answer

    1. The drive on ramps are only mounted on the rear of the lift.

      Helpful?

  10. Can you drive on the lift from either end ? Since you can’t move the motor and pump

    1 answer

    1. You would only be able to drive onto the lift from the one end that the ramps are attached to. It would not have ramps on both ends.
