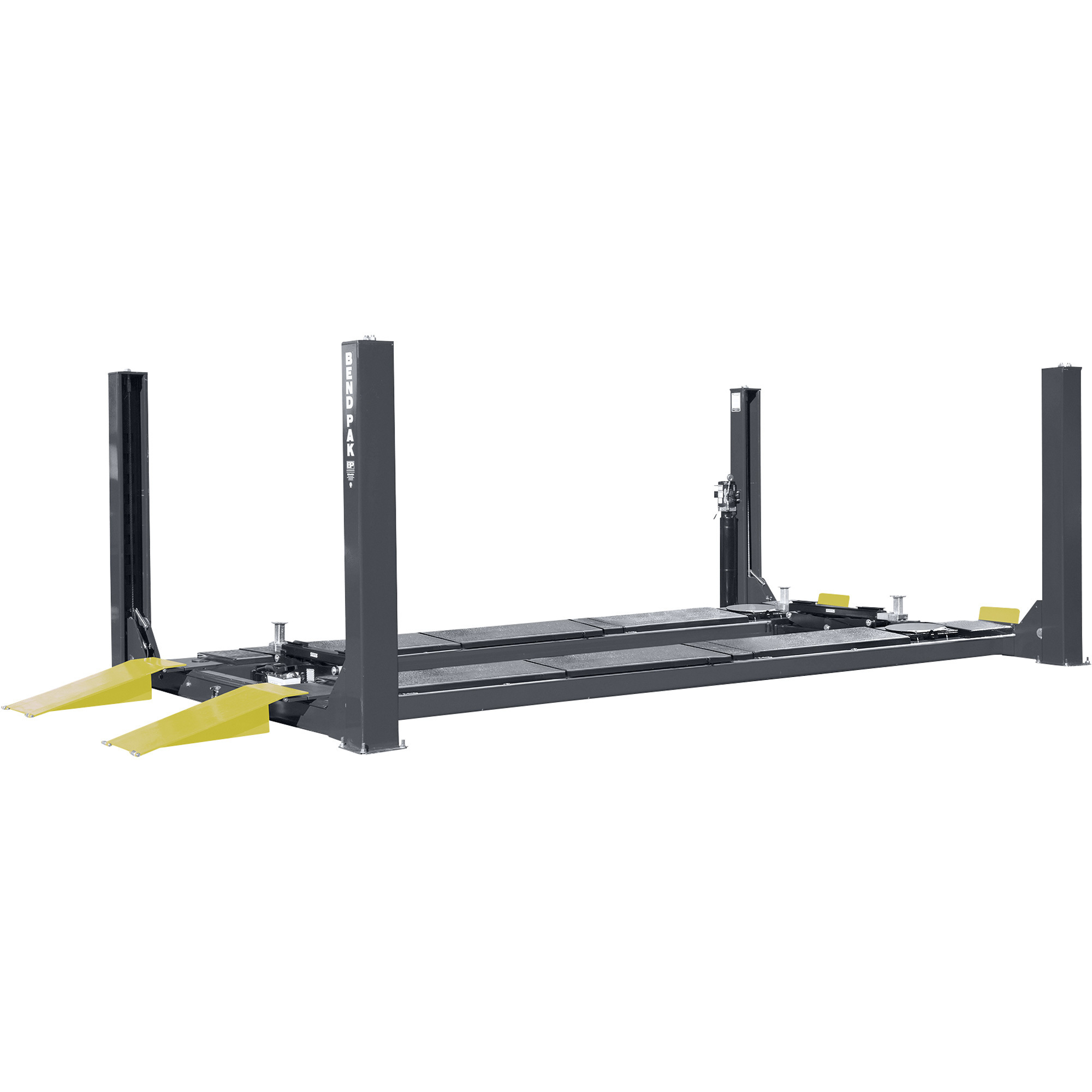

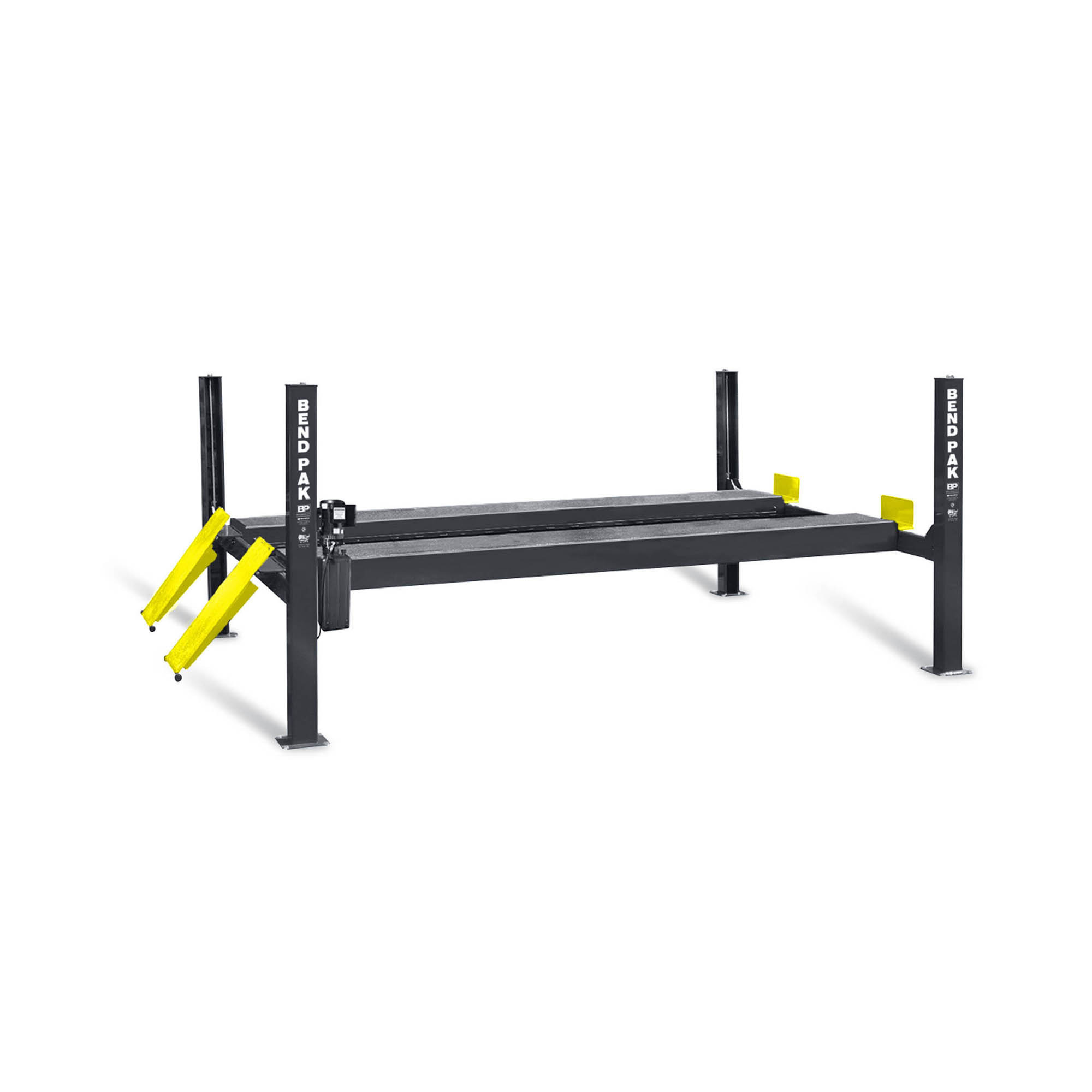

BendPak Alignment Rack with Plates — 18,000-Lb. Capacity, 5.5ft. Max Rise, 5 HP, Model# HDS-18EA

Item# 95328
BendPak Alignment Rack with Plates — 18,000-Lb. Capacity, 5.5ft. Max Rise, 5 HP, Model# HDS-18EA

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BendPak Alignment Rack with Plates — 18,000-Lb. Capacity, 5.5ft. Max Rise, 5 HP, Model# HDS-18EA

Click or Tap image to Zoom

$23,805.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • 18,000-lb. lifting capacity
  • CE Approved and Certified
  • Forklift Required
  • Multi-caster slip plates
  • Spring-loaded automatic safety locks

See full description

Complete Your Solution

  • BendPak Alignment Rack with Plates — 18,000-Lb. Capacity, 5.5ft. Max Rise, 5 HP, Model# HDS-18EA
  • BendPak Rolling Bridge Jack — 9000-Lb. Capacity, For 4-Post Lift, Model# RJ9W
Price for all two:

$27,860.00

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

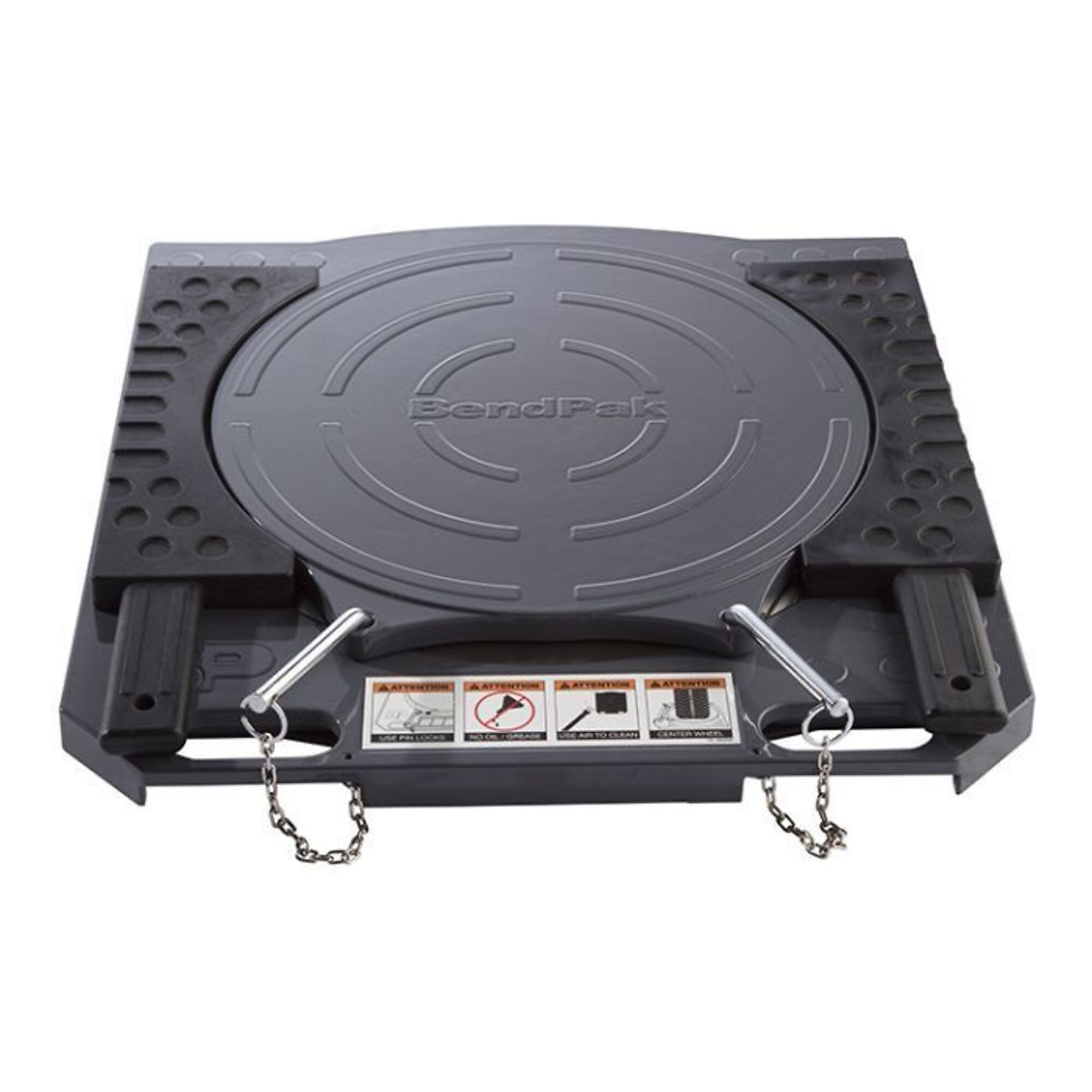

The BendPak Vehicle Alignment Lift with Plates is 100% ALI Certified for your safety. When you need to align truck wheels, from light-duty all-terrain trucks all the way to massive dumpster trucks and smaller flat-beds, this unit's free-floating slip plates and galvanized steel turn plates make the job easy to get done right the first time. It accommodates vehicles up to 18,000 lbs. but still services smaller sports cars and race cars without a problem. If your shop is busy and can't afford the space for multiple lifts, you'll need the extra lifting power to be ready for those larger trucks and SUVs. The HDS18EA offers the same safety features and rugged design as every other car lift we make, from the aircraft-quality steel cables and enhanced cable sheaves to the adjustable locking heights and slack cable secondary lock system. The rear-seated, free-floating slip plates let you perform wheel alignments on heavy trucks while keeping vehicle suspensions relaxed and securely fitted on the slip plates. This is the best way to perform wheel alignments because it eliminates potential flex and loss of pressure in rear tire walls as a result of old-fashioned alignments that require individual wheel jacking. Aluminum-alloy construction turn plates are easily positioned using BendPak's turn plate pockets. Larger and more robust than our previous slip-plate design, they're also lighter in construction and feature dual "popsicle gap stops" for your convenience. Angled steel lock pins conveniently hold the plate in place when you want to use your machine strictly as a maintenance or storage lift. Item too large for lift gate. Requires forklift on site for unloading. This item is delivered by flatbed truck Monday-Friday with 24 hours advance notice. A forklift is required to offload the lift from a dock-height flatbed trailer.

What's Included

    (1) Vehicle alignment lift with plates

Downloads

Product Manual

Features + Benefits

  • 18,000-lb. lifting capacity
  • CE Approved and Certified
  • Forklift Required
  • Multi-caster slip plates
  • Spring-loaded automatic safety locks
  • Super-sized 12in. diameter cable sheaves
  • Four stainless steel lifting cables
  • Grease nipples on every sheave and axle
  • Single hydraulic under-runway cylinder
  • Integrated hydraulic flow restrictor
  • Durable powder-coat finish
  • Push-button pneumatic lock release
  • Secondary lock system on constant guard

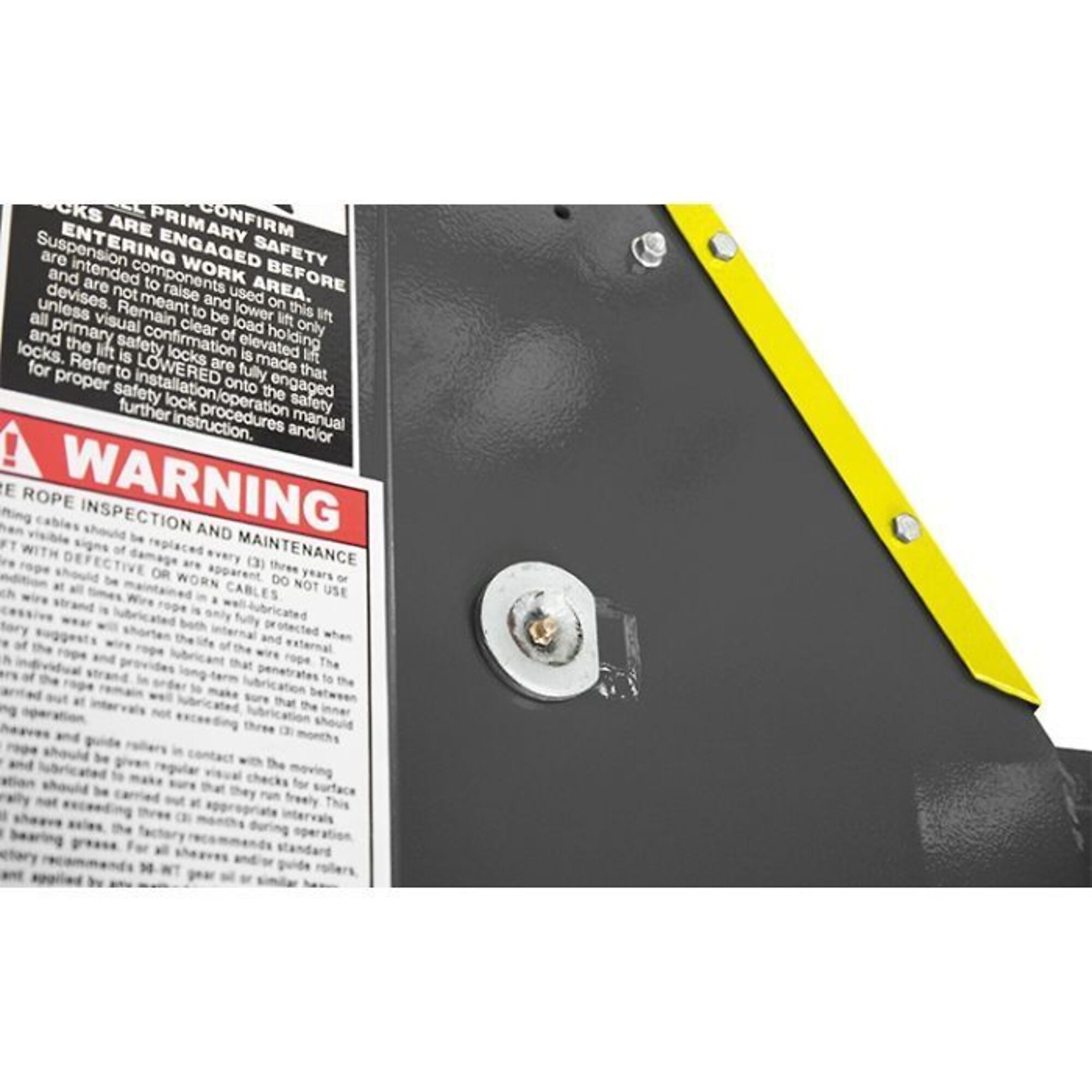

  • Enclosed cables, airlines, safety latches
  • Multiple adjustable locking positions
  • Maintenance-free power system
  • Conveniently located controls
  • 12in. x 12in. base plates
  • Non-skid runways
  • Optional rolling jacks available (not included)

Key Specs

AttributeSpecification

item#

95328

Brand

BendPak

Manufacturer's Warranty

24 months parts/12months labor

Ship Weight

6790.0 LB

Capacity

18,000 lb

Max. Rise

5.5 ft

Horsepower

5 HP

Motor Phase

Single-phase
AttributeSpecification

Volts

220

Lock Spacing

4 in

Locking Position (qty.)

13

Time of Full Rise

75 sec.

Drive-Thru Clearance

109 in

Material

Steel

Product Weight

6,790 lb

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. How long is the runway an how long is the longest truck I can put in it to do alignment with rolling compensation

    1 answer

    1. The length of the runway is 257.5" (6,541 MM). The minimum wheel base at the rated capacity is 145" (3,383 MM). The overall length is 312.75" (7,944 MM).

      Helpful?

  2. I WOULD LIKE MORE INFOR ON THE CONCRETE REQUIREMENT FOR THIS LIFT. IN ADDITION, I WOULD LIKE MORE PHOTOGRAPHS OF THE LIFT, PARTICUALRY THE FRONT.

    1 answer

    1. It would require a 8" minimum thickness and 3000 minimum strength.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

24 months parts/12months labor

Compare with Most Popular in Four-Post Lifts

See All Four-Post Lifts

See All BendPak Four-Post Lifts

Specifications

Specifications
BendPak Alignment Rack with Plates — 18,000-Lb. Capacity, 5.5ft. Max Rise, 5 HP, Model# HDS-18EA
BendPak 4-Post Truck Lift, 27,000-Lb. Capacity, Model# HDS-27
BendPak Heavy-Duty 4-Post Truck Lift, 40,000-Lb. Capacity, Model# HDS-40
BendPak Open-Front Alignment 4-Post Vehicle Lift, 14,000-Lb. Capacity, Model# HDSO14AX
Capacity
Same

18,000 lb

27,000 lb

40,000 lb

14,000 lb

Max. Rise
Same

5.5 ft

5.8 ft

5.8 ft

6.5 ft

Horsepower
Same

5 HP

5 HP

5 HP

3 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

220

220

220/240

220

Lock Spacing
Same

4 in

4 in

4 in

4 in

Locking Position (qty.)
Same

13

13

13

15

Time of Full Rise
Same

75 sec.

75 sec.

75 sec.

60 sec.

Drive-Thru Clearance
Same

109 in

109 in

109 in

98 in

Material
Same

Steel

Steel

Steel

Steel

Product Weight
Same

6,790 lb

-

-

3,586 lb
