Katool 2-Post Asymmetrical Vehicle Lift, 11,000-Lb. Capacity, 3 HP, Model# KT-AS110D

Item# 6349406
"Katool 2-Post Asymmetrical Vehicle Lift, 11,000-Lb. Capacity, 3 HP, Model# KT-AS110D"
Katool 2-Post Asymmetrical Vehicle Lift, 11,000-Lb. Capacity, 3 HP, Model# KT-AS110D

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Katool 2-Post Asymmetrical Vehicle Lift, 11,000-Lb. Capacity, 3 HP, Model# KT-AS110D

Click or Tap image to Zoom

$2899.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • 11000Lbs(5000kg) clearfloor two post car lift.

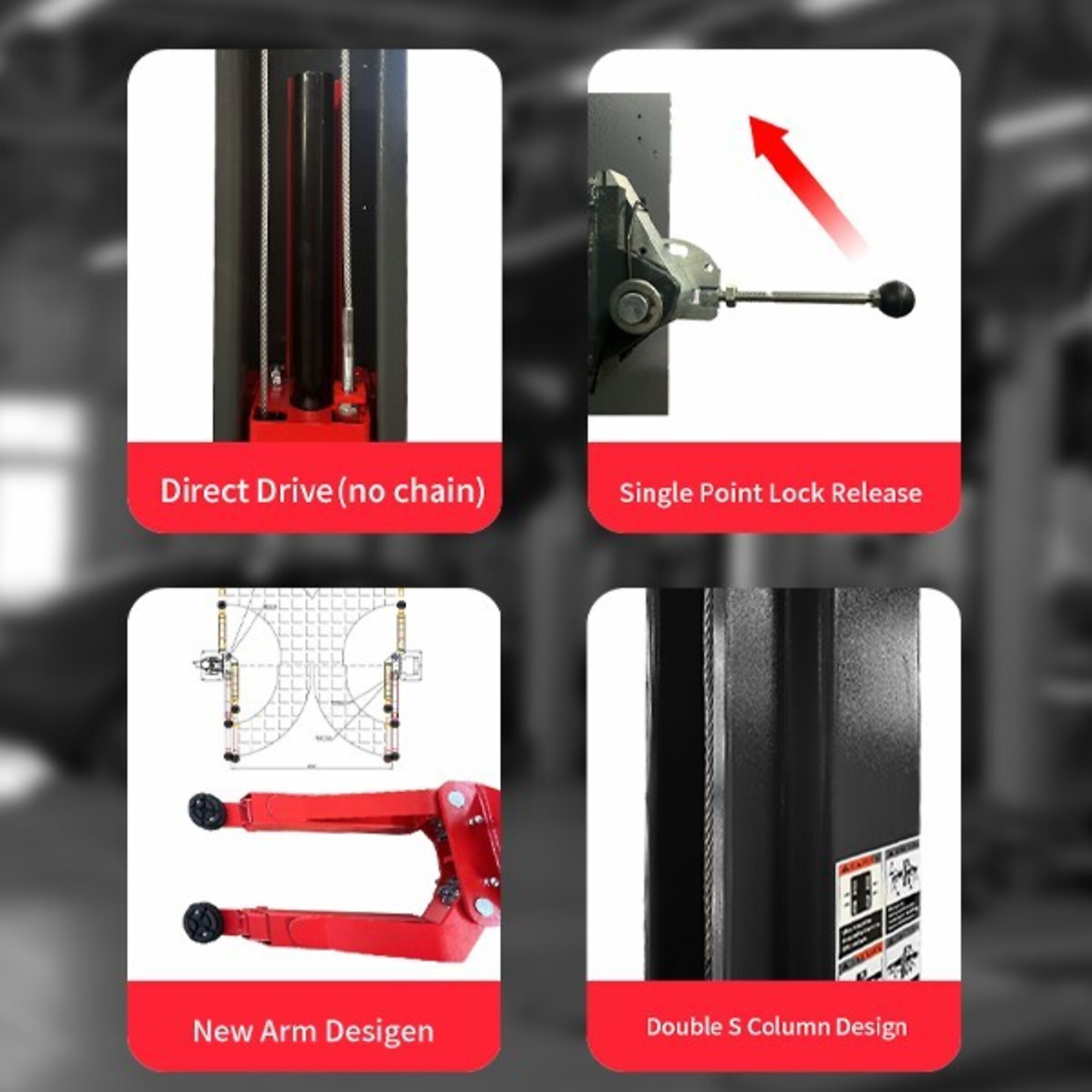

  • Direct drive (no chain), single point lock release.
  • New arm design and double S column design.
  • Max lifting height 70.87"(1800mm), min lifting height 4.25"/110mm.
  • CE Approved and Certified,it has adopted 115% dynamic loading capacity and 150% staic loading capacity tested.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Introducing the KT-AS110D Two Post Asymmetrical Vehicle Lift, a powerhouse designed for automotive excellence. With an 11,000lbs capacity and Single Point Lock Release, it effortlessly handles diverse vehicles. Featuring Direct Drive Cylinders for robust lifting power, its single-sided unlock streamlines operation. Ideal for professional garages and dedicated DIY enthusiasts, the KT-AS110D excels in scenarios like comprehensive repairs and routine maintenance. This lift offers unmatched efficiency with its user-friendly design, ensuring precision and safety in every elevation. Elevate your automotive workspace with the reliability and innovation of the KT-AS110D for an unparalleled lifting experience. Requires a forklift onsite for unloading. This item is delivered Monday-Friday with same day or 24 hours advance contact. A forklift is required to offload the lift from a box truck or a dock-height flatbed trailer.

What's Included

    (8) Anchor Bolts (1) Hydraulic Pump
Play Item Video

Features + Benefits

  • 11000Lbs(5000kg) clearfloor two post car lift.
  • Direct drive (no chain), single point lock release.
  • New arm design and double S column design.
  • Max lifting height 70.87"(1800mm), min lifting height 4.25"/110mm.
  • CE Approved and Certified,it has adopted 115% dynamic loading capacity and 150% staic loading capacity tested.
  • A forklift is required to offload the lift from a box truck or a dock-height flatbed trailer.

Key Specs

AttributeSpecification

item#

6349406

Brand

KATOOL

Manufacturer's Warranty

3 year limited warranty

Ship Weight

1400.0 LB

Capacity

11,000 lb

Max. Rise

6 ft
AttributeSpecification

Horsepower

3 HP

Motor Phase

Single-phase

Volts

220

Locking Position (qty.)

14

Product Weight

1367.0000 lb

Dimensions L x W x H (in.)

18.0 x 134.65 x 141.2 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. Which side of the vehicle is the motor and hydraulic unit located?

    1 answer

    1. The motor and hydraulic unit would be located on the passenger side of the vehicle.

      Helpful?

  2. What is the height to the shut-off bar?

    1 answer

    1. The distance from the floor to the bar will be 135 inches. Maximum lift height is 70.87 inches.

      Helpful?

  3. How long are the arms extended

    1 answer

    1. The arms on this unit extend 49 inches.

      Helpful?

  4. What are the inside width dimensions for clearance?

    1 answer

    1. The inside column width dimension is 109.37 inches and the drive through clearance dimension is 99.61 inches.

      Helpful?

  5. What type of lift pads or extensions for the arms come with this lift? Thanks

    1 answer

    1. The two post lift will come with a telescoping screw round rubber pads. The lowest height of the lifting pad is 4.33 inches (110 MM). The included extended support adapters will raise an additional 3.9 inches to 6 inches.

      Helpful?

  6. Does this unit lock on both sides with just one lock release? Are the cylinders upside down?

    1 answer

    1. The cylinders are upside down. The unit locks on one side (single side lock release).

      Helpful?

Warranty

Manufacturer's Warranty

3 year limited warranty

Compare with Most Popular in Two-Post Lifts

See All Two-Post Lifts

See All KATOOL Two-Post Lifts

Specifications

Specifications
Katool 2-Post Asymmetrical Vehicle Lift, 11,000-Lb. Capacity, 3 HP, Model# KT-AS110D
Tuxedo 2-Post Asymmetric Low-Profile Clear Floor Automotive Lift, 9000-Lb. Capacity, Blue, Model# TP9KACX
Tuxedo 2-Post Clear Floor Electric/Hydraulic Vehicle Lift, 12,000-Lb. Capacity, Model# TP12KC-D
Ideal 2-Post Bi-Symmetric Vehicle Lift, 10,000-Lb. Capacity, Model# TP10KAC-DX
Capacity
Same

11,000 lb

9,000 lb

12,000 lb

10,000 lb

Max. Rise
Same

6 ft

6 ft

6 ft

5.9 ft

Horsepower
Same

3 HP

1 HP

2 HP

1 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

220

220

220

220

Locking Position (qty.)
Same

14

14

1

10

Product Weight
Same

1367.0000 lb

1,370 lb

3,000 lb

1,705 lb

Dimensions L x W x H (in.)
Same

18.0 x 134.65 x 141.2 in

-

-

-
