The minimum pad height is 4".

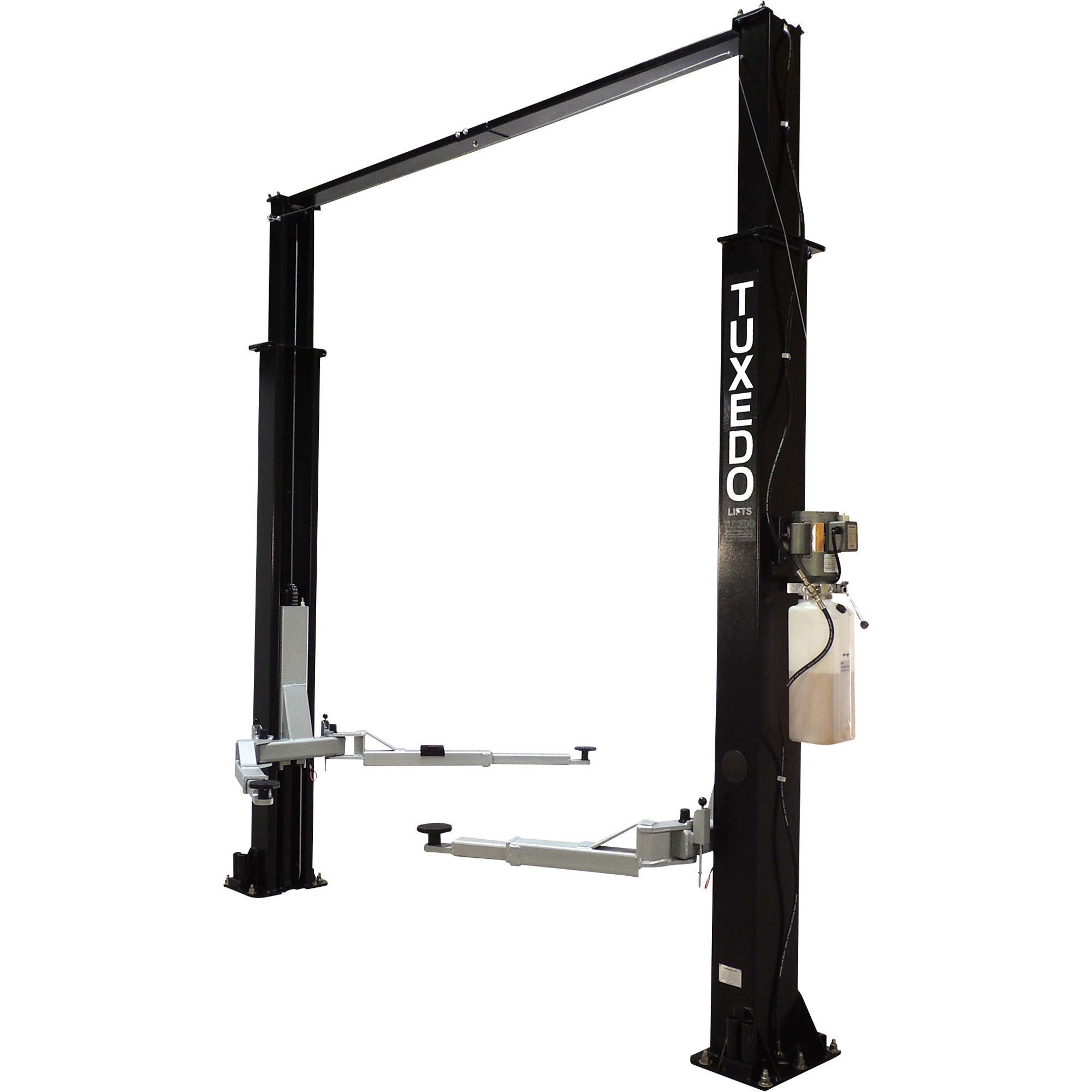

Tuxedo 2-Post Electric/Hydraulic Clear Floor Vehicle Lift, 9,000-Lb. Capacity, Model# TP9KAC-TUX
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$3999.99
- 9,000-lb. capacity

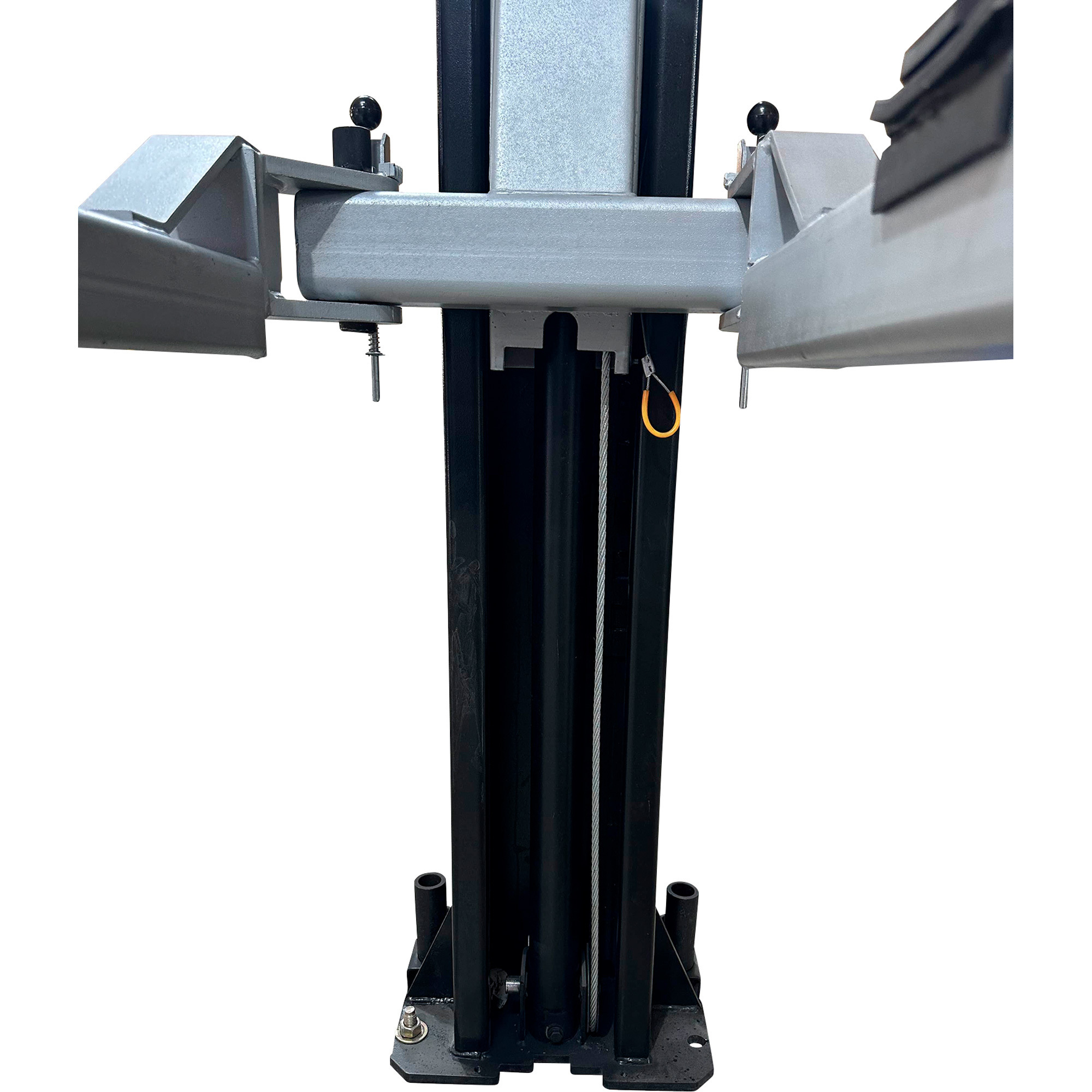

- One-piece column combined with uprights and reliable chain drive cylinders
- Automatic arm restraints, dual point carriage lock releases and overhead shutoff limit wire provide safety
- 2.5 HP, single phase, chain drive electric/hydraulic motor
- Compact 141in. overall width with power unit
See full description
Price for all two:
$4278.99
What's Included
- (1) 2-post service vehicle lift (4) 1 5/16in. stackable height adapters (4) 5in. stackable height adapters (2) Saddle adapters (1) Set of mounting hardware
Downloads
Features + Benefits
- 9,000-lb. capacity
- One-piece column combined with uprights and reliable chain drive cylinders
- Automatic arm restraints, dual point carriage lock releases and overhead shutoff limit wire provide safety
- 2.5 HP, single phase, chain drive electric/hydraulic motor
- Compact 141in. overall width with power unit
- Reaches 72in. max. rise in just 50 seconds
- 142 7/8in. overall height with 93.7in. drive-through clearance

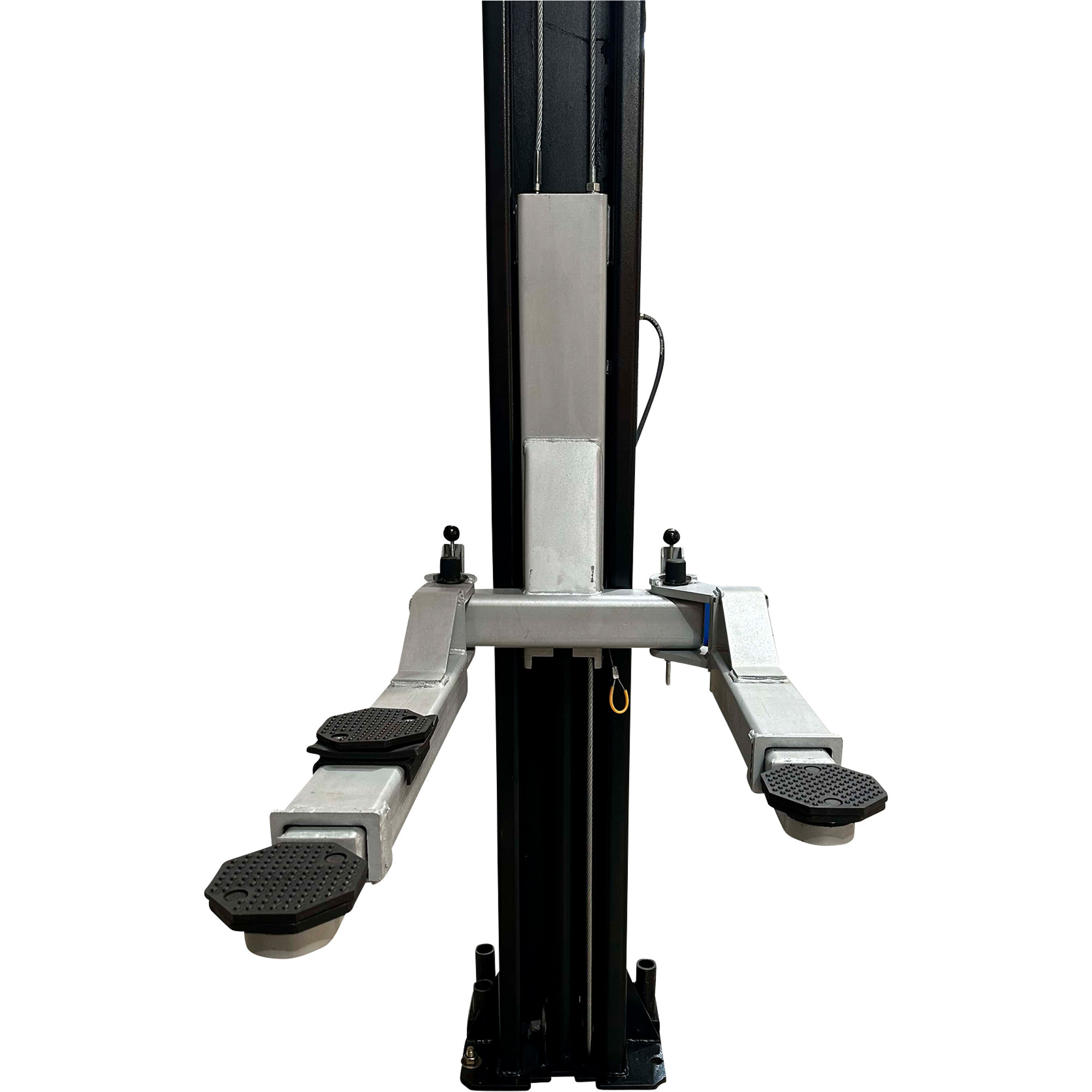

- Includes 4 lifting pads, stackable height adapters and saddle pad adapters for easy adjustments
- Durable powder-coat paint finish
- Item too large for lift gate; Requires forklift on site for unloading
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Two-Post Lifts
See All Tuxedo Two-Post Lifts
Currently Viewing This Product
Specifications
Specifications
Tuxedo 2-Post Electric/Hydraulic Clear Floor Vehicle Lift, 9,000-Lb. Capacity, Model# TP9KAC-TUX
Tuxedo 2-Post Asymmetric Low-Profile Clear Floor Automotive Lift, 9000-Lb. Capacity, Blue, Model# TP9KACX
Tuxedo 2-Post Clear Floor Electric/Hydraulic Vehicle Lift, 12,000-Lb. Capacity, Model# TP12KC-D
Tuxedo 2-Post Electric/Hydraulic Floor Plate Vehicle Lift, 9,000-Lb. Capacity, Model# TP9KF-TUX
Capacity
Same
9,000 lb
9,000 lb
12,000 lb
9,000 lb
Max. Rise
Same
6 ft
6 ft
6 ft
6 ft
Horsepower
Same
2 HP
1 HP
2 HP
2 HP
Motor Phase
Same
Single-phase
Single-phase
Single-phase
Single-phase
Volts
Same
220
220
220
220
Locking Position (qty.)
Same
2
14
1
2
Product Weight
Same
1,390 lb
1,370 lb
3,000 lb
1,295 lb
