Tuxedo 2-Post Electric/Hydraulic Vehicle Lift, 11,000-Lb. Capacity, Model# TP11KC-DX

Item# 88289
"Tuxedo 2-Post Electric/Hydraulic Vehicle Lift, 11,000-Lb. Capacity, Model# TP11KC-DX"
Tuxedo 2-Post Electric/Hydraulic Vehicle Lift, 11,000-Lb. Capacity, Model# TP11KC-DX

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Tuxedo 2-Post Electric/Hydraulic Vehicle Lift, 11,000-Lb. Capacity, Model# TP11KC-DX

Click or Tap image to Zoom

$4770.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only

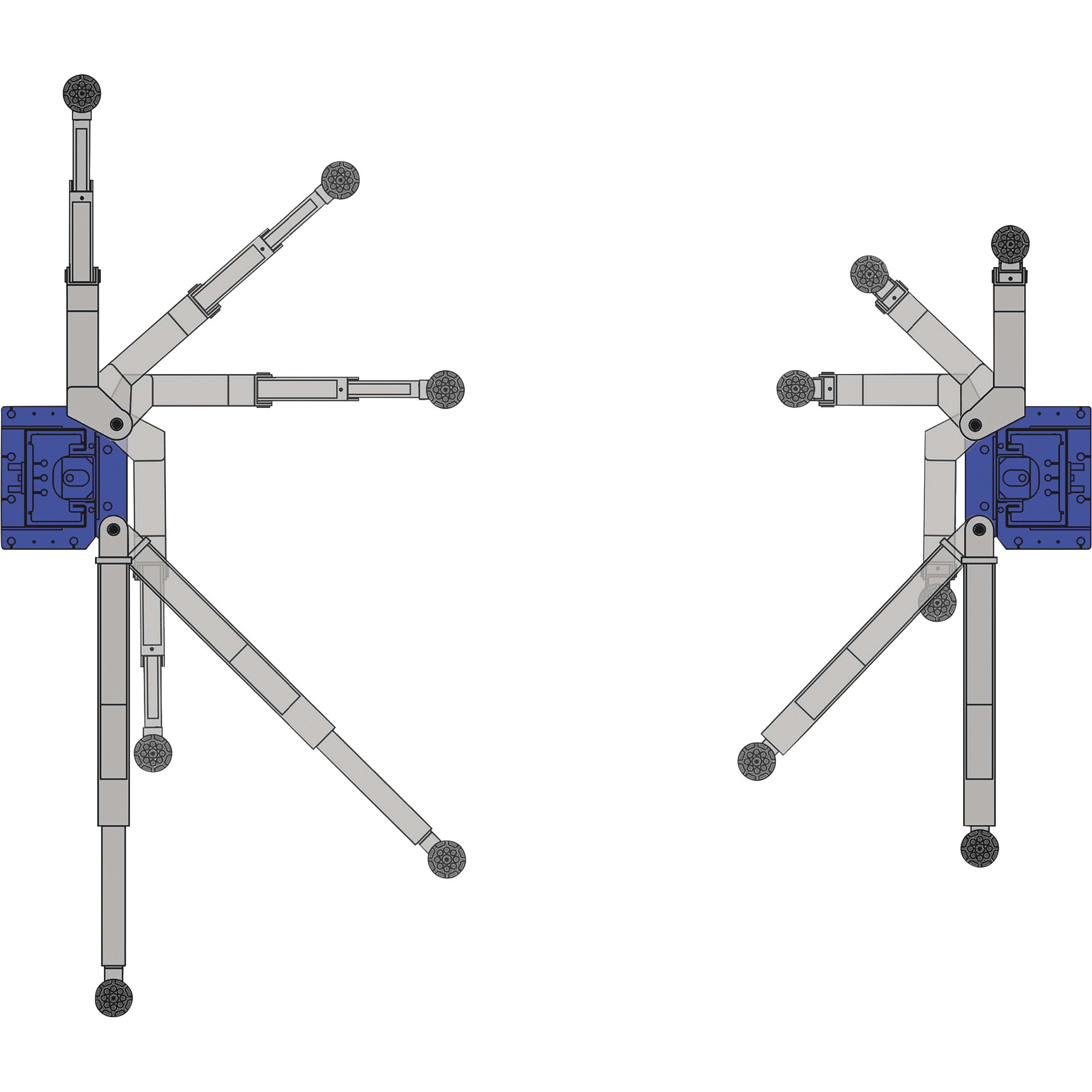

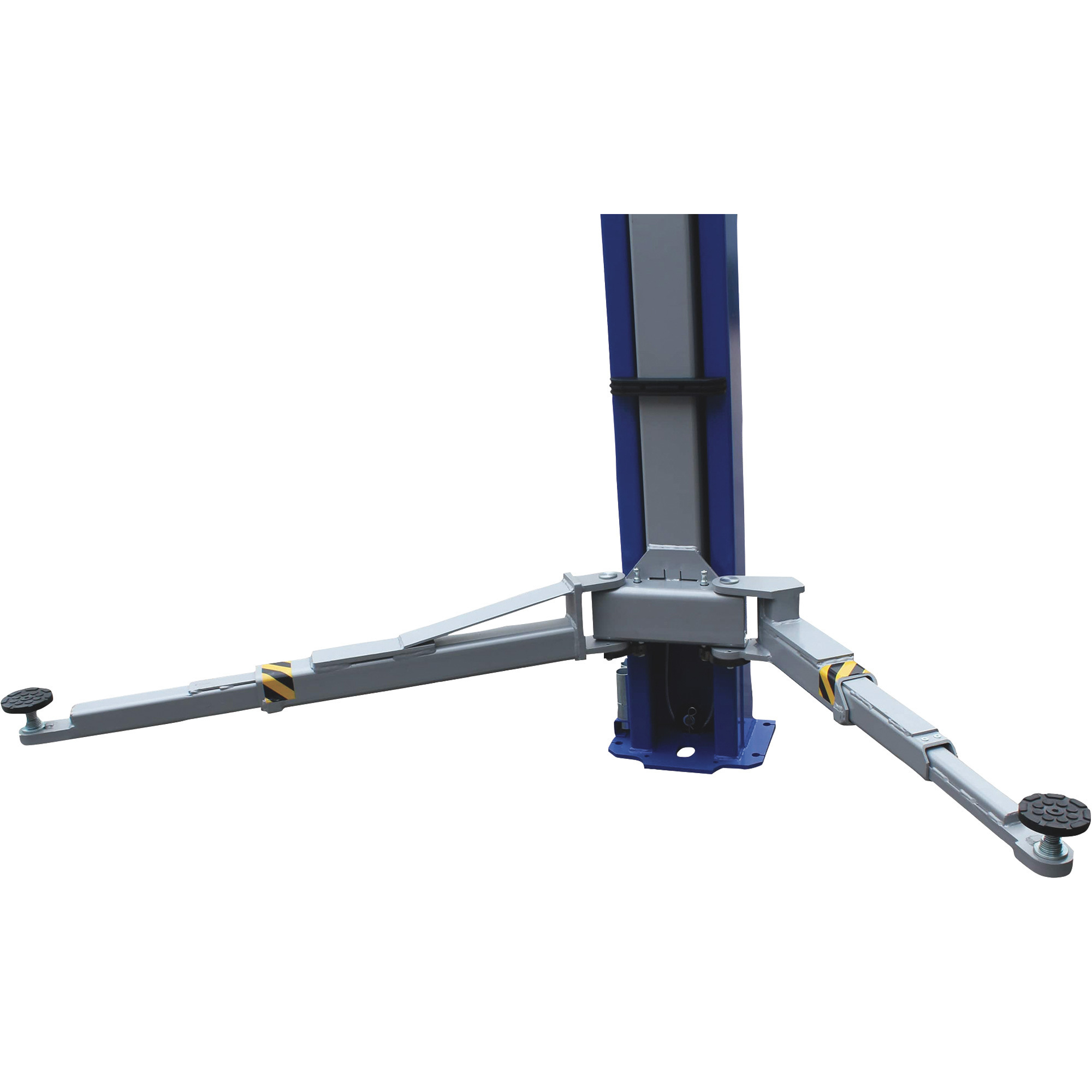

  • User friendly bi-symmetric configurable arms, 3-stage front arms, symmetric columns, single point lock release, low profile arms, rubber door guards and easy to use spin up pads
  • 11,000-lb. lifting capacity to get the job done
  • Dependable Direct Drive 3-stage electric/hydraulic motor
  • Reaches full rise to 71in. in just 50 seconds
  • 12ft. overall lift height

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This 11,000-lb. capacity Tuxedo 2-Post Electric/Hydraulic Vehicle Lift is a versatile, user-friendly lift with bi-symmetric configurable arms and a load of other features that will make it the most useful lift in the garage. Includes spin-up pads with 2in. and 4in. stackable truck adapters. Item too large for lift gate. Requires forklift on site for unloading. This item is delivered by LTL enclosed van carriers Monday--Friday. A forklift is required to offload the lift from a dock-height trailer.

What's Included

    (1) 2-post lift (2) Spin-up pads (2) 2in. truck adapters (2) 4in. truck adapters

Downloads

Product Manual

Features + Benefits

  • User friendly bi-symmetric configurable arms, 3-stage front arms, symmetric columns, single point lock release, low profile arms, rubber door guards and easy to use spin up pads
  • 11,000-lb. lifting capacity to get the job done
  • Dependable Direct Drive 3-stage electric/hydraulic motor
  • Reaches full rise to 71in. in just 50 seconds
  • 12ft. overall lift height
  • Includes spin-up pads with 2in. and 4in. stackable truck adapters
  • Item too large for lift gate; Requires forklift on site for unloading

Key Specs

AttributeSpecification

item#

88289

Brand

Tuxedo

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1705.0 LB

Capacity

11,000 lb

Max. Rise

5.9 ft
AttributeSpecification

Horsepower

1 HP

Motor Phase

Single-phase

Volts

220

Locking Position (qty.)

1

Product Weight

1,705 lb

Reviews

Questions & Answers

5 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. What is the bolt mounting dimensions? Putting radiant heat in the slab and need to know where to avoid to make way for the lift.

    1 answer

    1. The manufacturer does not give out the bolt mounting dimensions.

      Helpful?

  2. what do we need to anchor it to the floor

    1 answer

    1. Concrete shall have compression strength of at least 3,000 PSI and a minimum thickness of 4-1/4” in order to achieve a minimum anchor embedment of 3-1/4”. When using the standard supplied 3/4” x 5-1/2” long anchors, if the top of the anchor exceeds 2-1/4” above the floor grade, you do not have enough embedment.

      Helpful?

  3. Do you have to have a certain amount of concrete to have these installed?

    1 answer

    1. The lift would need to be installed on a concrete floor with a minimum thickness of 4 1/4" and a minimum compressive strength of 3000 PSI.

      Helpful?

  4. how tall will ceiling height requirement be to install in home garage?

    1 answer

    1. The overall height of the lift is 144". The minimum height would be 12 feet.

      Helpful?

  5. Is it ali certified?

    1 answer

    1. This lift is not ALI certified.

      Helpful?

  6. The 71" lift height is w/o adaptors, correct?

    1 answer

    1. The lift height without adaptors is 71 inches.

      Helpful?

  7. Where is this lift made?

    1 answer

    1. This lift is manufactured in China.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Repair Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.
