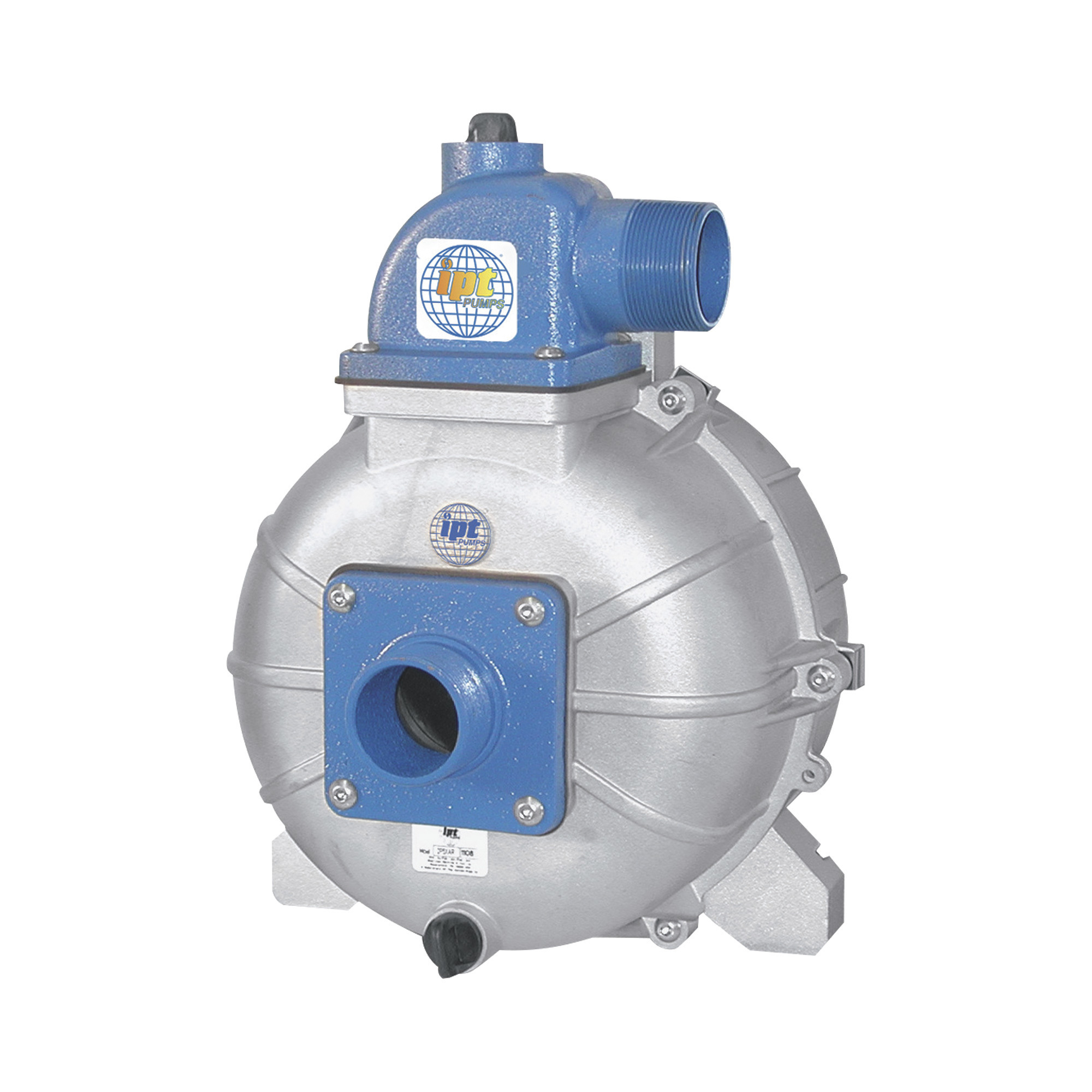

IPT Pumps Replacement High Pressure Pump — 2in. Ports, Aluminum, 120 GPM, 7800 GPH, Model# 2P5X

Item# 109972
IPT Pumps Replacement High Pressure Pump — 2in. Ports, Aluminum, 120 GPM, 7800 GPH, Model# 2P5X

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

IPT Pumps Replacement High Pressure Pump — 2in. Ports, Aluminum, 120 GPM, 7800 GPH, Model# 2P5X

Click or Tap image to Zoom

$519.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Pump Kit for easy pump end replacement
  • Includes all pump components but the engine & roll cage

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The IPT Replacement High Pressure Pump is a robust and efficient solution designed to fit Item#s 10997 and 109970. Engineered to deliver maximum performance, this pump boasts a substantial flow rate of up to 120 gallons per minute (GPM), making it ideal for demanding applications that require high pressure and reliable operation. Constructed from durable aluminum, this 2-inch pump is built to withstand rigorous use and provide long-lasting service. It is specifically designed for use with 206cc engines that feature a 5/8-inch threaded shaft, ensuring compatibility and ease of installation. Manufactured in the U.S.A., the IPT Replacement High Pressure Pump exemplifies superior craftsmanship and dependable performance, making it a valuable addition to your equipment for various high-pressure tasks. Whether for industrial, agricultural, or other heavy-duty applications, this replacement pump ensures efficient and effective water transfer with the reliability you can trust.

What's Included

    (1) Replacement pump

Downloads

Product Manual

Features + Benefits

  • Pump Kit for easy pump end replacement
  • Includes all pump components but the engine & roll cage

Key Specs

AttributeSpecification

item#

109972

Brand

IPT Pumps

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

30.9 LB

Max. Flow

120 GPM
AttributeSpecification

Engine Displacement

0 cc

Port Size

2 in

Self-Priming

Yes

Housing Material

Cast Aluminum

Reviews

Questions & Answers

Questions

1–4 of 4 Questions
Sort by:

  1. Do you have the seal repair kit for this pump

    1 answer

    1. The O ring and seal kit will be part number IP50005. Northern Tool no longer has parts available. To order, please contact our sister company Jacks Small Engines at the following link. https://jackssmallengines.com/

      Helpful?

  2. How do you remove the impeller since there is no bolt or nut to remove so I can pull it off to replace the shaft seal.

    1 answer

    1. The impeller is threaded to the shaft. You will need to hold the fly wheel on the engine and in a downward motion (at 10 o'clock position) with a rubber mallet you will hit the face of the impeller. You may also try placing a screw driver in between the impeller discs to hit as well. Threaded impellers unthread counter clockwise (looking at the impeller).

      Helpful?

  3. spec says 5/8 threaded shaft is it internal threads? on engine

    1 answer

    1. The threads on this pump would be internally. The threads on the shaft of the engine would be external to go inside the pump head.

      Helpful?

  4. Will this pump bolt on to my GX160 Honda Motor?

    1 answer

    1. Yes, this pump will work with a Honda GX160 as long as the engine model has a 5/8 inch threaded shaft.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts/12months labor
