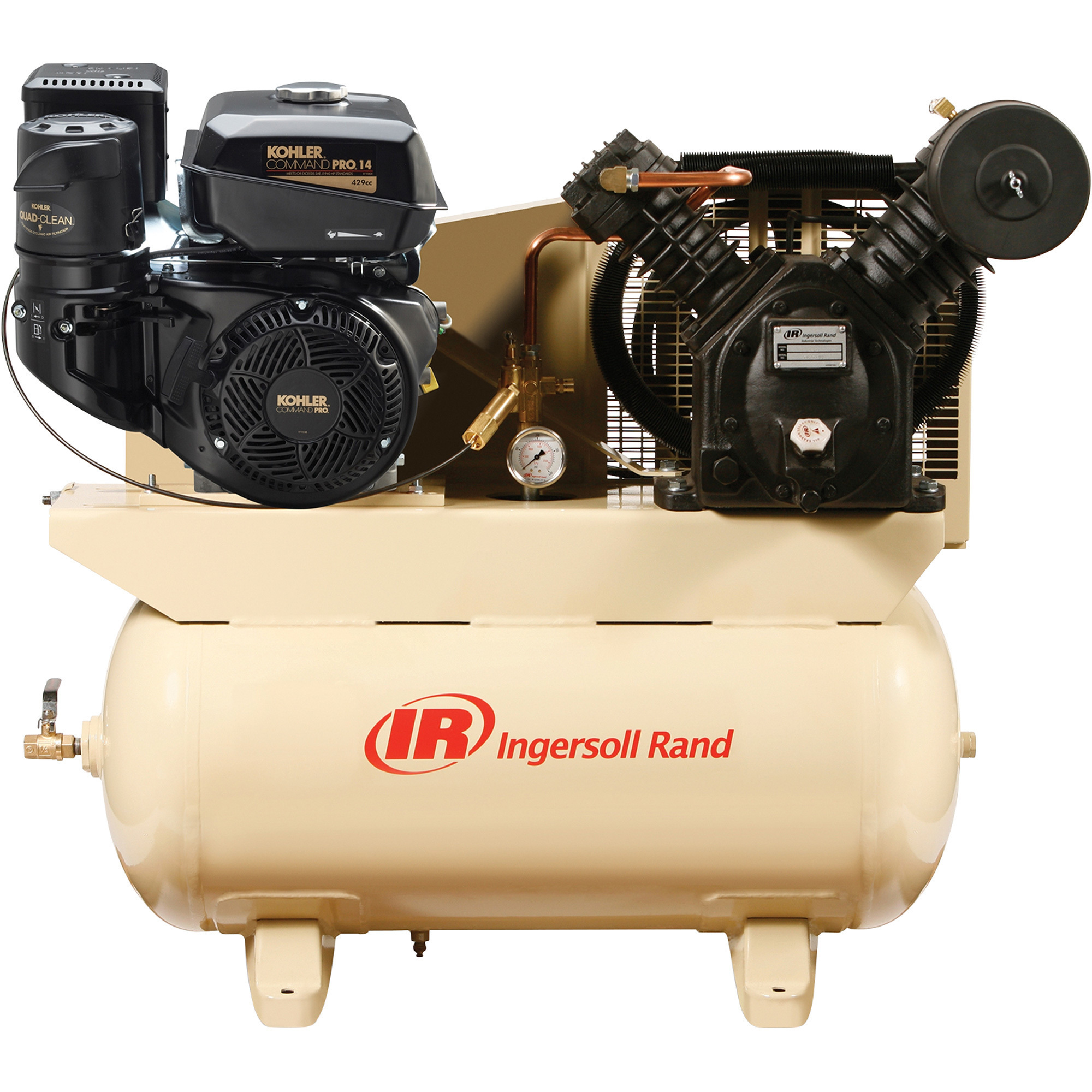

Ingersoll Rand 30-Gallon Gas Air Compressor, 24.3 CFM @ 175 PSI, 14 HP Kohler Engine, Cast Iron, Electric Start, Model# 2475

Item# 1592000
"Ingersoll Rand 30-Gallon Gas Air Compressor, 24.3 CFM @ 175 PSI, 14 HP Kohler Engine, Cast Iron, Electric Start, Model# 2475"
Ingersoll Rand 30-Gallon Gas Air Compressor, 24.3 CFM @ 175 PSI, 14 HP Kohler Engine, Cast Iron, Electric Start, Model# 2475

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ingersoll Rand 30-Gallon Gas Air Compressor, 24.3 CFM @ 175 PSI, 14 HP Kohler Engine, Cast Iron, Electric Start, Model# 2475

Click or Tap image to Zoom

$3839.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not Available
  • Durable cast iron construction, enclosed belt guard and weather-resistant powder-coat paint finish, designed for over 15,000 hours of trouble-free use
  • Delivers maximum power: 24.3 CFM @ 90 PSI, 100% continuous duty, two- stage pump operating up to 175 PSI and a 30-gallon ASME receiver tank provide plenty of punch for the most demanding applications
  • Easy starting 14 HP Kohler engine with electric start and fuel-efficient idle control

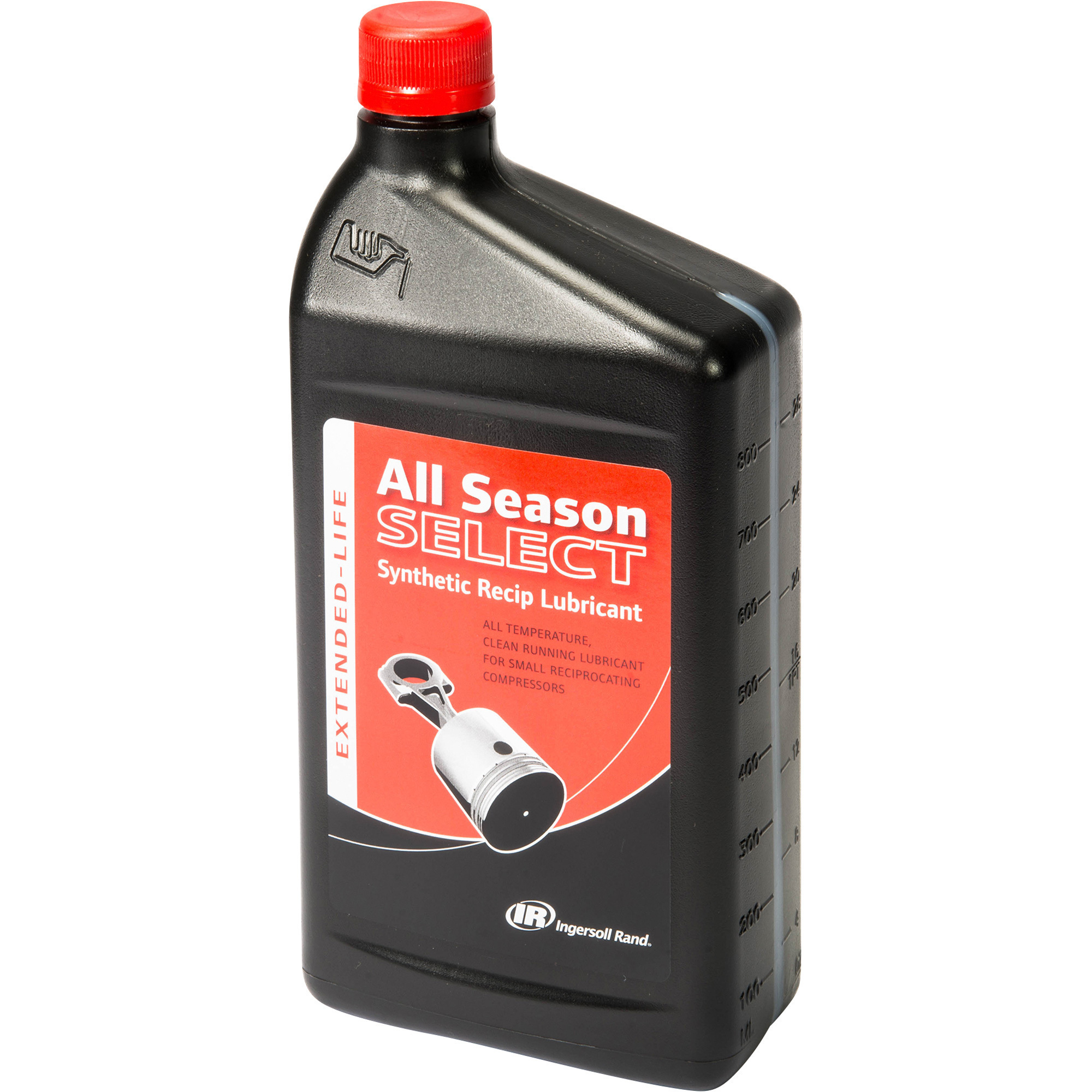

  • All season select synthetic lubricant increases efficiency (sold separately); with 2000 hours of service between change outs, it performs four times longer than petroleum-based lubricants
  • Purchase an 2yr Start Up & Warranty Kit (Item# 6132012), and receive the lubricants & parts you need for start-up and extend your pump's warranty

See full description

Complete Your Solution

  • Ingersoll Rand 30-Gallon Gas Air Compressor, 24.3 CFM @ 175 PSI, 14 HP Kohler Engine, Cast Iron, Electric Start, Model# 2475
  • Klutch Auto-Rewind Air Hose Reel with 3/8in. x 50ft. Rubber Hose, 300 PSI

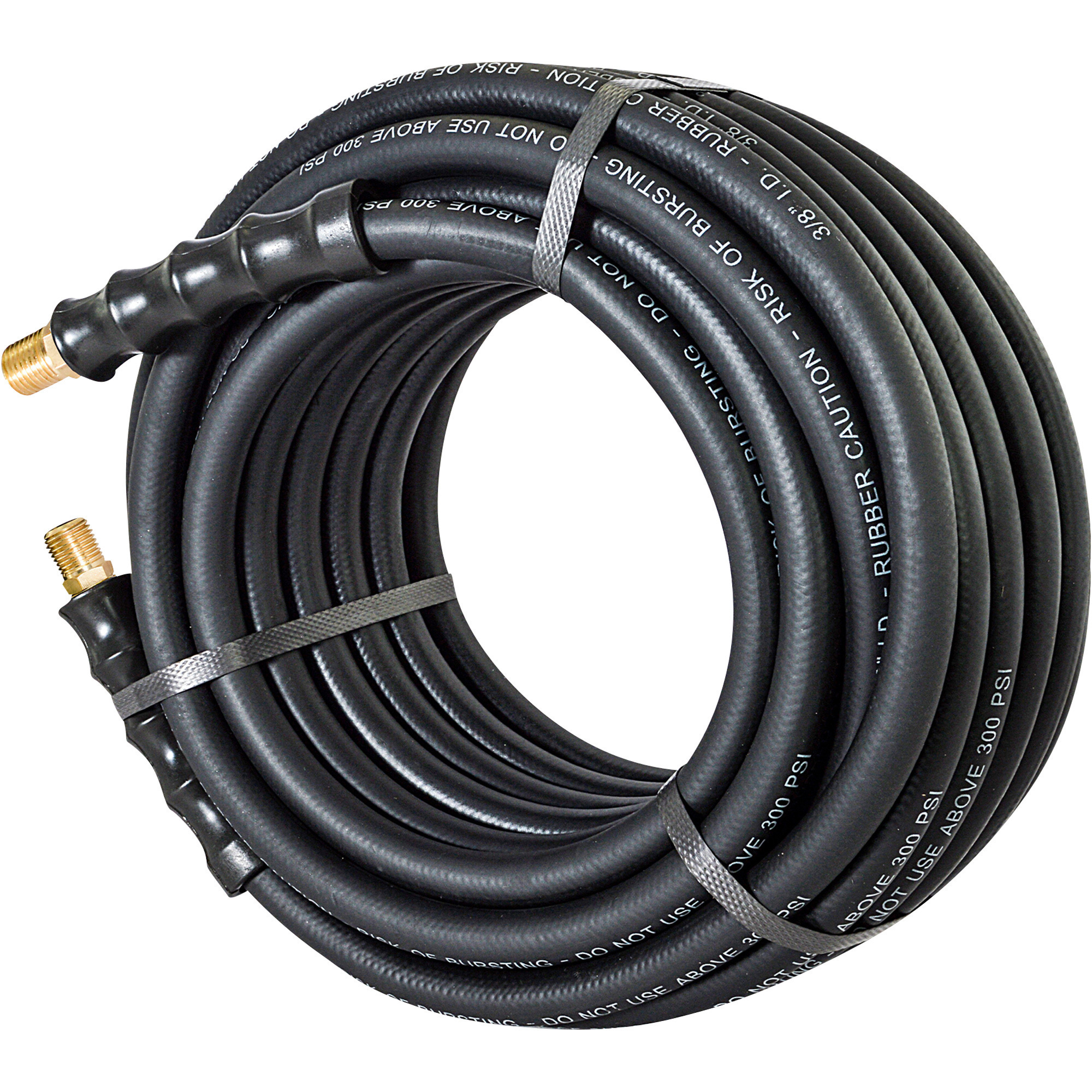

  • Klutch Rubber Air Hose, 3/8in. x 50ft., 300 PSI
Price for all three:

$4002.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Ingersoll Rand 30-gallon gas air compressor provides convenience and power. Built to last, this cast-iron, oil-lube compressor is designed for the toughest 100% continuous-duty applications. Includes alternator, pressure switch and gauge. Warranty on the pump extends to 2 years with the use of appropriate maintenance kit, Item# 6132012.

What's Included

    (1) Air compressor

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Durable cast iron construction, enclosed belt guard and weather-resistant powder-coat paint finish, designed for over 15,000 hours of trouble-free use
  • Delivers maximum power: 24.3 CFM @ 90 PSI, 100% continuous duty, two- stage pump operating up to 175 PSI and a 30-gallon ASME receiver tank provide plenty of punch for the most demanding applications
  • Easy starting 14 HP Kohler engine with electric start and fuel-efficient idle control
  • All season select synthetic lubricant increases efficiency (sold separately); with 2000 hours of service between change outs, it performs four times longer than petroleum-based lubricants
  • Purchase an 2yr Start Up & Warranty Kit (Item# 6132012), and receive the lubricants & parts you need for start-up and extend your pump's warranty
  • 24.3 CFM @ 175 PSI
  • 100% solid cast-iron construction for proven reliability
  • Pump has removable cylinders and finned copper intercooler
  • Overhung crankshaft is precision-balanced to run smoothly and quietly
  • ASME air tank has manual drain
  • Includes alternator for battery charging
  • Extend your pump warranty to 2yrs with the purchase & use of the 2yr Warranty Start Up kit# #6132012 - sold separately

Key Specs

AttributeSpecification

item#

1592000

Brand

Ingersoll Rand

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

470.0 LB

Horsepower

14 HP

Air Tank Size

30 Gal

Engine Brand

Kohler

CFM at 90 PSI

24.3

Max. PSI

175
AttributeSpecification

Stage

2

Duty Cycle

100 %

Fuel Capacity

1.5 Gal

Engine Start Type

Electric and Recoil

Air Outlet Size

3/4 in. NPT

Drain Type

Manual

Tank Orientation

Horizontal

Product Weight

lb

Dimensions L x W x H (in.)

44.0 x 22.0 x 46.0 in

Reviews

Questions & Answers

18 Reviews This action will navigate to reviews.

Questions

1–10 of 12 Questions
Sort by:

  1. When running under load, what are the engine and the pump rpms?

    1 answer

    1. The pump would run at 1500 RPM when under load. The engine would run a 3450 RPM.

      Helpful?

  2. What is the noise level or rating on this air compressor?

    1 answer

    1. The compressor would be rated at 85 DB (decibels).

      Helpful?

  3. What is the actual weight of the compressor

    1 answer

    1. The weight of this air compressor is 430 pounds.

      Helpful?

  4. Can this be started with the key only or do you have to flip the air release to start it? I want to mount it on the top of my box. I would like to move the starter switch but I can’t move the pressure release.

    1 answer

    1. There is a stem on the unloader valve you would flip to release the pressure. You can then manually start it or if the battery is attached you can start it with the key switch. The manufacturer does not offer a remote starter switch.

      Helpful?

  5. Does this compressor meet 462(1)(2) compliance?

    1 answer

    1. The compressor conforms to California Safety order 462 (1) (2).

      Helpful?

  6. What oil weight for the are compressor 14 horse Kohler motor model number 2475F14G

    1 answer

    1. This requires a 4 cycle 10W-30 engine oil.

      Helpful?

  7. Is it equip with a Diesel engine ?

    1 answer

    1. This Ingersoll Rand air compressor is powered by a Kohler gasoline engine.

      Helpful?

  8. what are the dimensions of the feet to bolt it down to my weld rig?

    1 answer

    1. To mount this air compressor, 1/2" bolts are recommended. The bolt holes are 21" center to center long and 13.437" center to center deep.

      Helpful?

  9. how do i connect the battery

    1 answer

    1. The owners manual has a full page description on connecting the battery with diagrams on page 4. The manual is on this product page of the Northern web site in the form of an Adobe PDF file. Just click on the Manual PDF file (red) icon and go to page 4. The instructions are easy to follow.

      Helpful?

  10. what is the scfm at 90 psi?

    I use a small nozzle for soda or glass blasting, but don't want to blast at 175 psi, but need as much cfm as possible at 90. I will trailer mount the compressor.

    Thanks

    1 answer

    1. At 90 PSI you get about 24.3 CFM on this compressor.

      Helpful?
