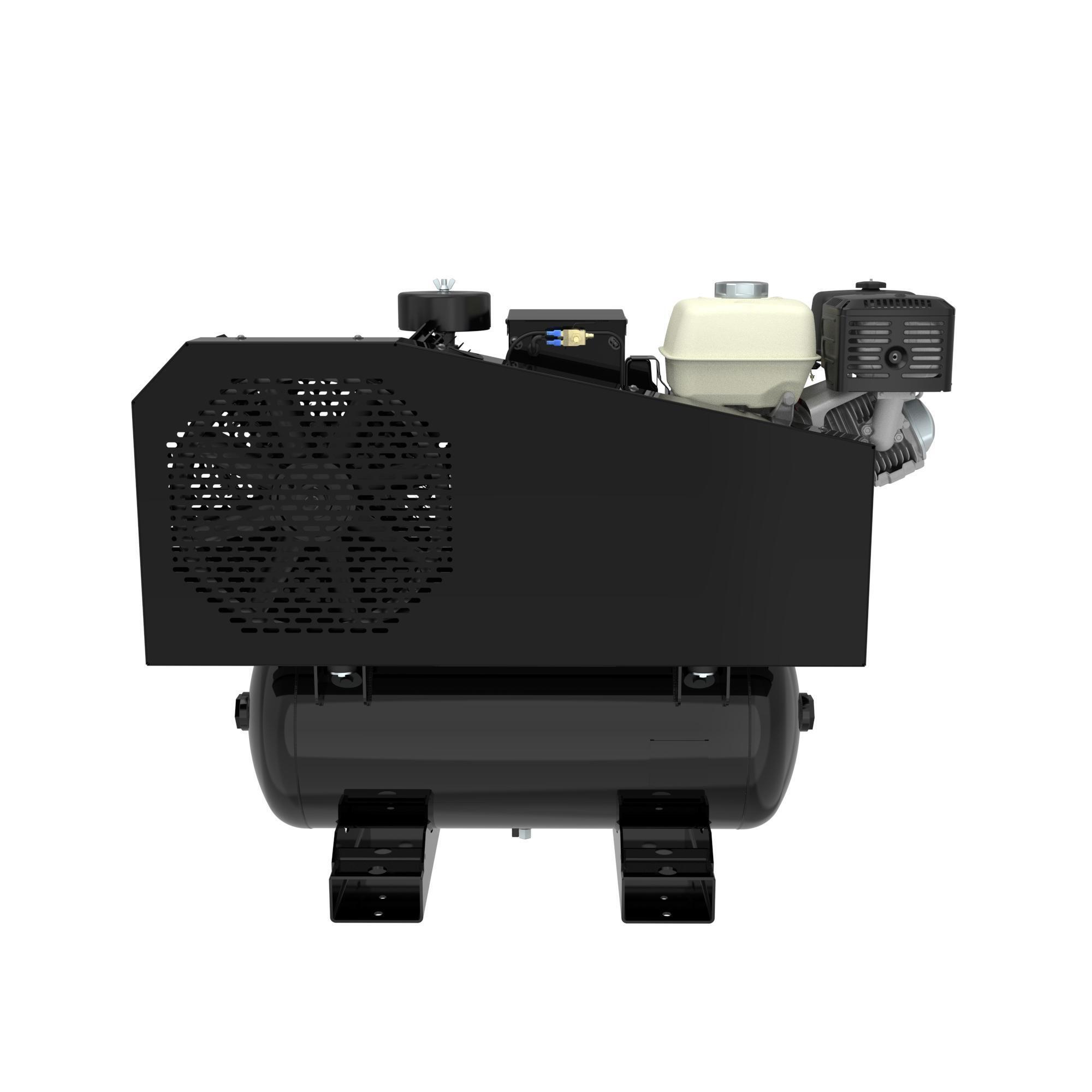

Campbell Hausfeld 3-in-1 Gas-Powered Air Compressor/Generator/Welder, Honda GX390 Engine, 30-Gallon Tank, Model# GR3200

Item# 49822
Campbell Hausfeld 3-in-1 Gas-Powered Air Compressor/Generator/Welder, Honda GX390 Engine, 30-Gallon Tank, Model# GR3200

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Campbell Hausfeld 3-in-1 Gas-Powered Air Compressor/Generator/Welder, Honda GX390 Engine, 30-Gallon Tank, Model# GR3200

Click or Tap image to Zoom

$7399.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Ideal for jobsite needs or severe weather emergencies
  • Honda GX390 OHV gas engine with electric start
  • Compressor output: 14.3 CFM @ 90 PSI; 13.7 CFM @ 175 PSI
  • Generator with 5,000 continuous/6,000 surge Watts
  • 50-200 Amp DC welder

See full description

Complete Your Solution

  • Campbell Hausfeld 3-in-1 Gas-Powered Air Compressor/Generator/Welder, Honda GX390 Engine, 30-Gallon Tank, Model# GR3200
  • Honda Engines, HONDA MAINT. KIT, Pieces (qty.) 4 Model# HONDAKIT5
  • GDI, HOUR METER W/TACHOMETER, Model# N111-0100-1005
Price for all three:

$7475.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Campbell Hausfeld 3in.-1 Air Compressor/Generator/Welder with Honda Engine provides compressed air, electric power and a DC welder for jobsite needs or severe weather emergencies. Ideal for commercial and industrial applications on the jobsite and mobile services, this unit is powered by a reliable Honda GX390 gas engine. The two-stage cast iron air compressor delivers high output and reliability, with a large 30-gallon air tank and a heavy-duty steel belt guard for safety. 5,000 Watt generator has a UL/OSHA compliant control panel and 3 outlets with GFCI protection. 50-200 amp DC welder welds up to 1/2in. steel. 49in.L x 23in.W x 42in.H.

What's Included

    (1) 3-in-1 Air Compressor/Generator/Welder with Honda Engine, Model# GR3200

Downloads

Product Manual

Features + Benefits

  • Ideal for jobsite needs or severe weather emergencies
  • Honda GX390 OHV gas engine with electric start
  • Compressor output: 14.3 CFM @ 90 PSI; 13.7 CFM @ 175 PSI
  • Generator with 5,000 continuous/6,000 surge Watts
  • 50-200 Amp DC welder
  • Two 120V, 20 Amp outlets and one 120V/240V, 30 Amp twistlock outlet
  • Large 30-gallon air tank

Key Specs

AttributeSpecification

item#

49822

Brand

Campbell Hausfeld

Manufacturer's Warranty

1 year limited warranty

Ship Weight

591.0 LB

Air Tank Size

30 Gal

CFM at 90 PSI

14.3

Max. PSI

175
AttributeSpecification

Stage

2

Engine Displacement

390 cc

Pump Material

Cast Iron

Tank Orientation

Horizontal

Product Weight

lb

Dimensions L x W x H (in.)

49.0 x 23.0 x 42.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. Is this a mig welder? Is there anything included for the welder

    1. This is a 50-180 amp DC stick welder only. The welding cable ends are included. Please view cable options item 628510 and 628511.

      Helpful?

    2. The Welder is a 50-180 AMP DC stick welder. The welding cable end are included, but not the complete lead. The cable leads listed below can be adapted to this welder.

      Helpful?

  2. Is it key start and mounting location for battery to start unit ?

    1 answer

    1. Yes, the Campbell Hausfeld Model #GR3200 unit features an electric start with a key switch. This does not have a battery mounting tray.

      Helpful?

  3. Is there a 12v connection?

    1 answer

    1. The generator does not have a 12-volt connection. Included would be 120V and 240V electrical outlets.

      Helpful?

  4. Can the air compressor and generator be used at the same time?

    1 answer

    1. Yes, this item will be able to run the compressor and generator at the same time.

      Helpful?
