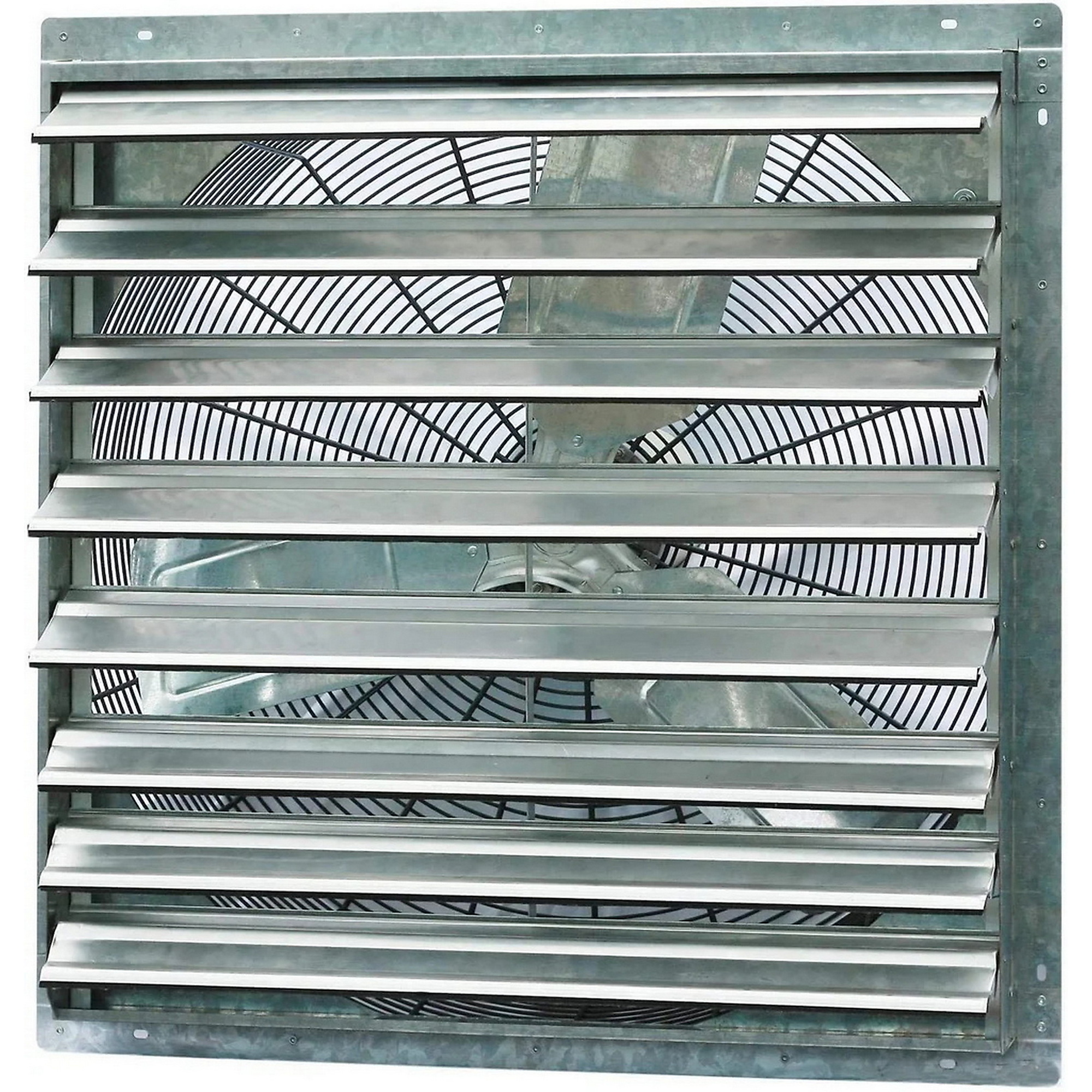

Dr. Infrared Heater iLIVING Shutter Exhaust Fan — 30in., Single Speed, Wall-Mounted, Aluminum Blades, Model# ILG8SF30S

Item# 7188843
Dr. Infrared Heater iLIVING Shutter Exhaust Fan — 30in., Single Speed, Wall-Mounted, Aluminum Blades, Model# ILG8SF30S

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Dr. Infrared Heater iLIVING Shutter Exhaust Fan — 30in., Single Speed, Wall-Mounted, Aluminum Blades, Model# ILG8SF30S

Click or Tap image to Zoom

$392.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 30 Inch Single Speed Shutter Exhaust Fan with automatic shutters
  • UL Listed with permanently lubricated motor
  • Corrosion-resistant with OSHA compliant wire guards
  • Galvanized steel frame with aluminum shutters and fan blades
  • 115 Volts, 1/3 HP, 3.30 Amps, 825 RPM, 5088 CFM

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

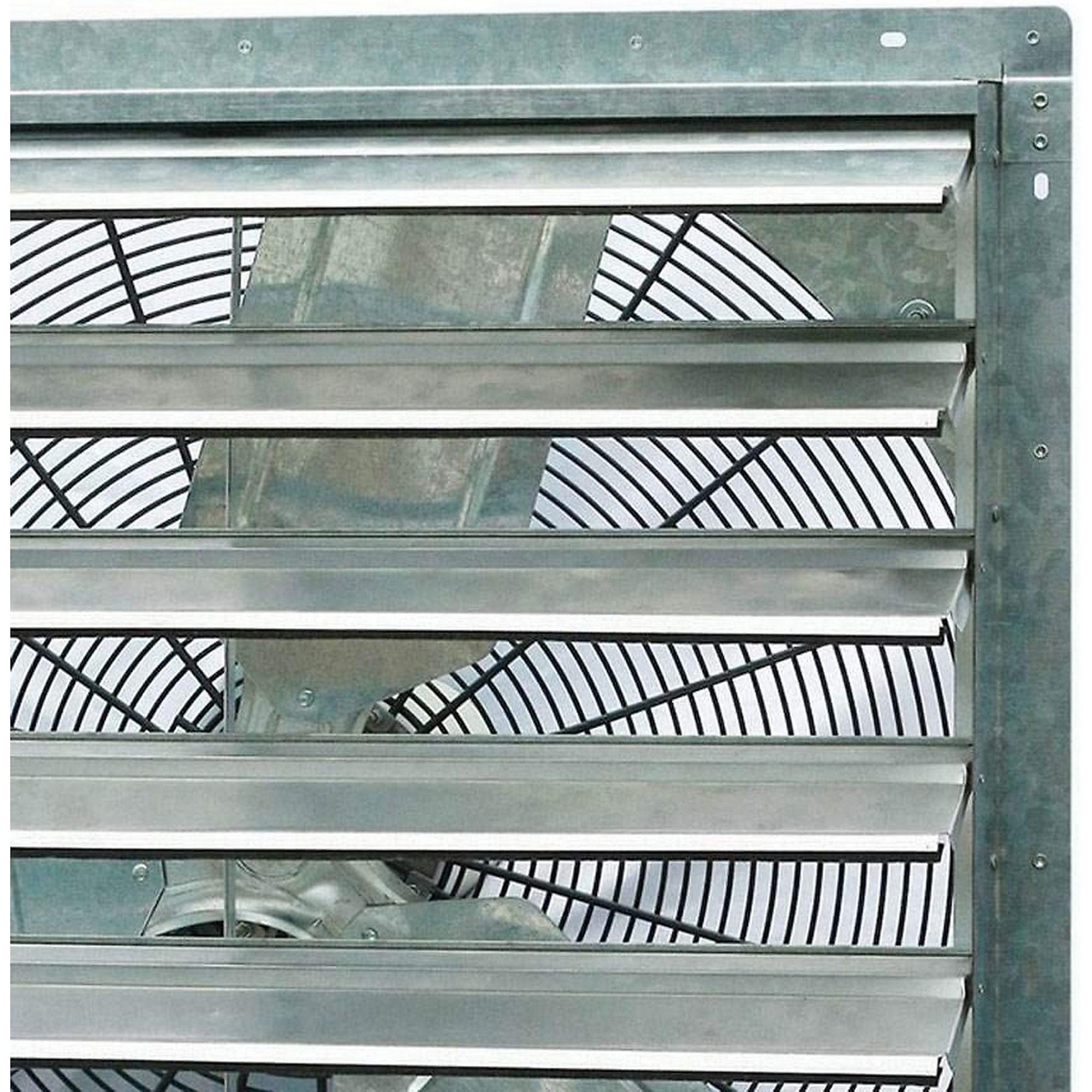

The iLIVING Shutter Exhaust Fan is perfect for removing excess heat, moisture, and unpleasant odors from virtually any commercial location, including restaurants, factories, warehouses, barns, and greenhouses. This fan features aluminum blades, OSHA compliant wire guards, and automatic shutters that open and close in tandem with the operation of the fan. The completely enclosed motor is thermally protected and permanently lubricated. The fan comes fully assembled out of the box; only installation required is the electrical hardwiring. The shutter fan comes in 8 different sizes: 10in., 12in., 16in., 18in., 20in., 24in., 30in., and 36in.; the 18in. shutter fan has both a variable speed model and a single speed model. The iLIVING 30in. and 36in. shutter fans are only available in single speed. For variable speed models, the ILG8SFSC speed controller is sold separately.

What's Included

    (1) Exhaust Fan

Features + Benefits

  • 30 Inch Single Speed Shutter Exhaust Fan with automatic shutters
  • UL Listed with permanently lubricated motor
  • Corrosion-resistant with OSHA compliant wire guards
  • Galvanized steel frame with aluminum shutters and fan blades
  • 115 Volts, 1/3 HP, 3.30 Amps, 825 RPM, 5088 CFM
  • Wattage at 345W

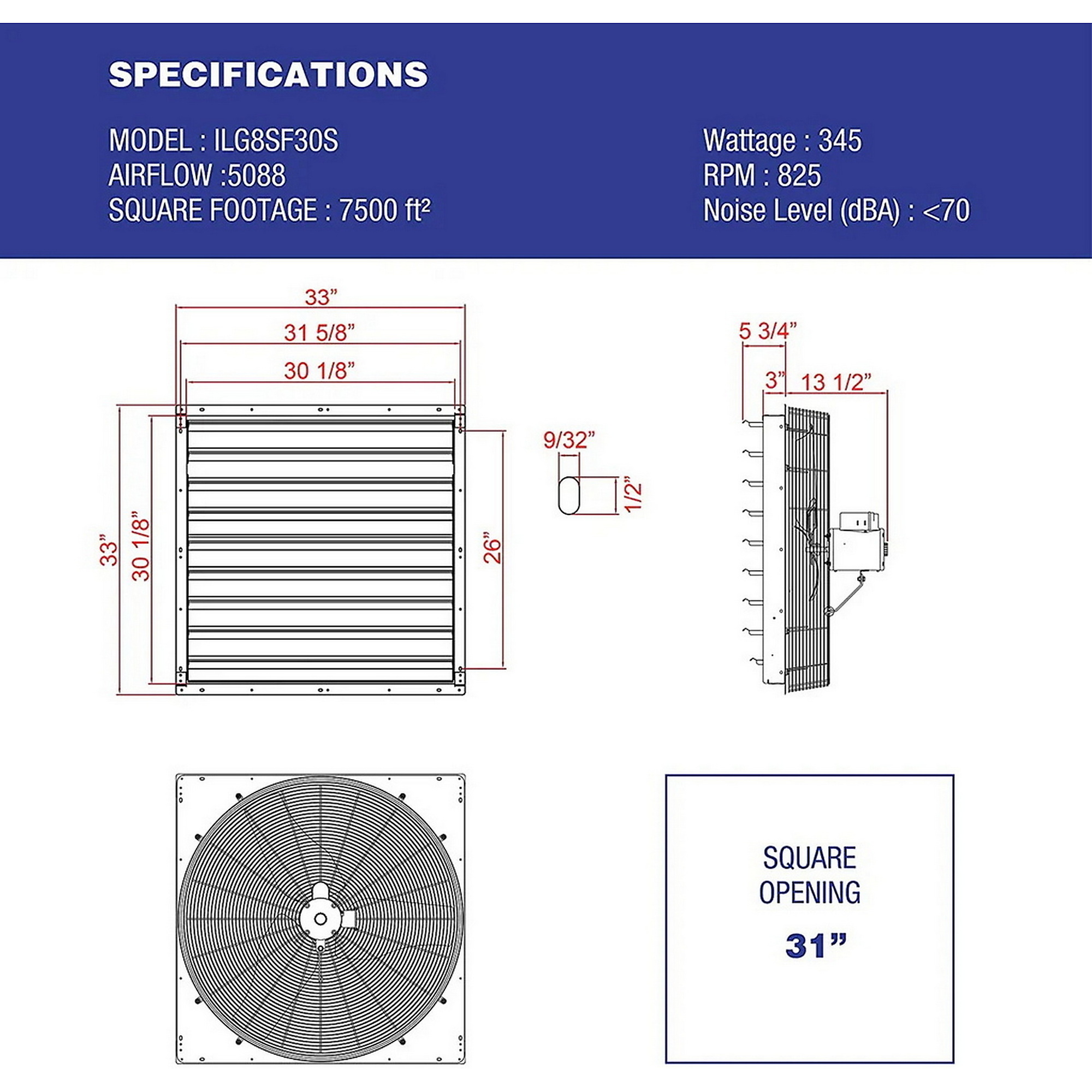

Key Specs

AttributeSpecification

item#

7188843

Brand

Dr. Infrared Heater

Manufacturer's Warranty

1 year limited warranty

Ship Weight

67.6 LB

Drive Type

Direct

Fan Diameter

30 in

Air Delivery

5,088 cfm

Volts

120
AttributeSpecification

Watts

345

Amps

3.3

Speeds (qty.)

1

Max. Fan Speed

825 rpm

Primary Color

Silver

Product Weight

50.3000 lb

Dimensions L x W x H (in.)

5.75 x 33.0 x 33.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
