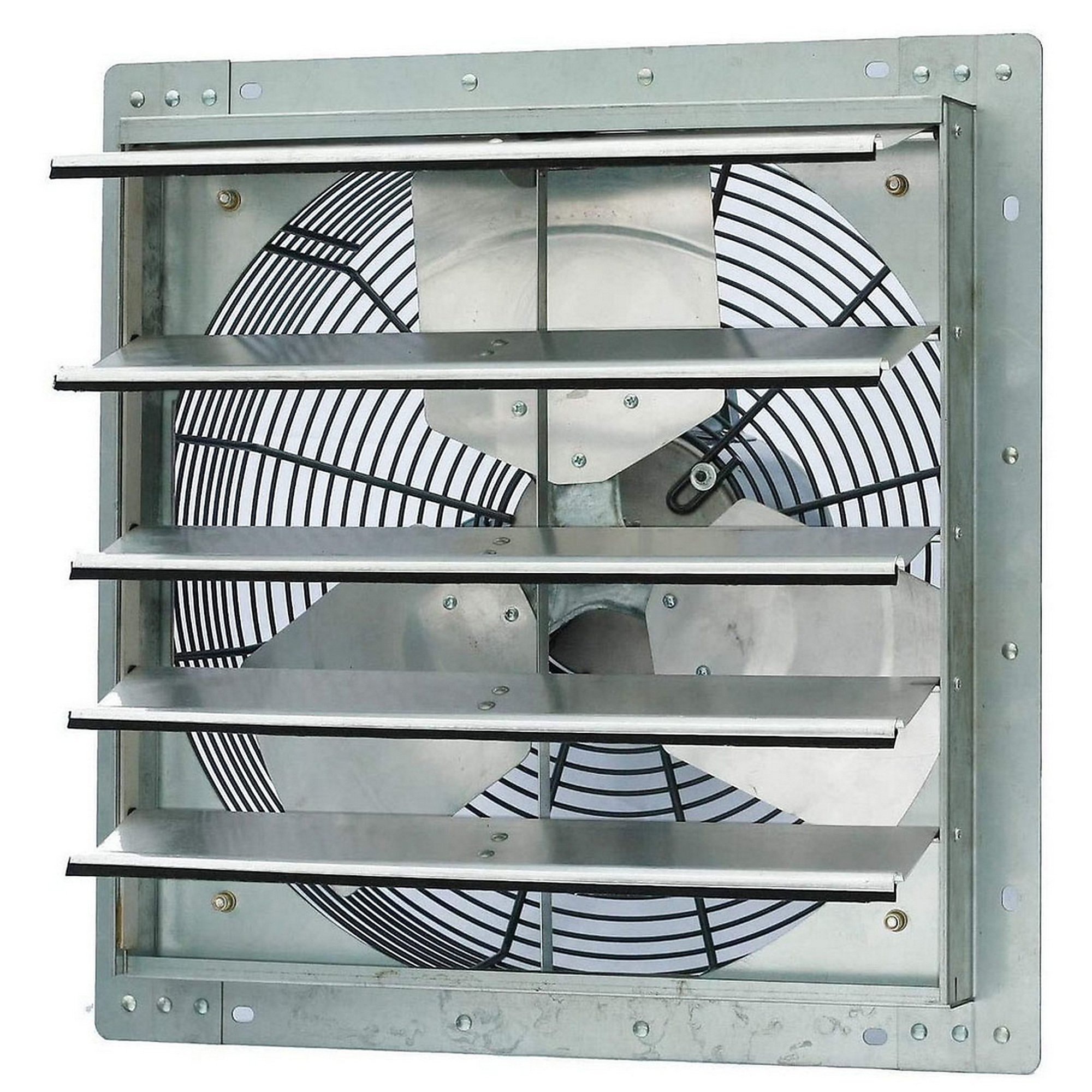

Dr. Infrared Heater iLiving Single Speed Shutter Exhaust Fan — 18in., Wall-Mounted, Aluminum Blades, OSHA Compliant Wire Guards, Model# ILG8SF18S

Item# 7189361
Dr. Infrared Heater iLiving Single Speed Shutter Exhaust Fan — 18in., Wall-Mounted, Aluminum Blades, OSHA Compliant Wire Guards, Model# ILG8SF18S

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Dr. Infrared Heater iLiving Single Speed Shutter Exhaust Fan — 18in., Wall-Mounted, Aluminum Blades, OSHA Compliant Wire Guards, Model# ILG8SF18S

Click or Tap image to Zoom

$237.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 18 Inch Single Speed Shutter Exhaust Fan with automatic shutters
  • UL Listed with permanently lubricated motor
  • Corrosion-resistant with OSHA compliant wire guards
  • Galvanized steel frame with aluminum shutters and fan blades
  • 120 Volts, 1/4 HP, 3.50 Amps, 1725 RPM, 3852 CFM

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The iLIVING Shutter Exhaust Fan is perfect for removing excess heat, moisture, and unpleasant odors from virtually any commercial location, including restaurants, factories, warehouses, barns, and greenhouses. This fan features aluminum blades, OSHA compliant wire guards, and automatic shutters that open and close in tandem with the operation of the fan. The completely enclosed motor is thermally protected and permanently lubricated. The fan comes fully assembled out of the box; only installation required is the electrical hardwiring. The shutter fan comes in 8 different sizes: 10in., 12in., 16in., 18in., 20in., 24in., 30in., and 36in.; the 18in. shutter fan has both a variable speed model and a single speed model. The iLIVING 30in. and 36in. shutter fans are only available in single speed. For variable speed models, the ILG8SFSC speed controller is sold separately.

What's Included

    (1) Exhaust Fan

Features + Benefits

  • 18 Inch Single Speed Shutter Exhaust Fan with automatic shutters
  • UL Listed with permanently lubricated motor
  • Corrosion-resistant with OSHA compliant wire guards
  • Galvanized steel frame with aluminum shutters and fan blades
  • 120 Volts, 1/4 HP, 3.50 Amps, 1725 RPM, 3852 CFM
  • Corrosion-resistant with OSHA compliant wire guards

Key Specs

AttributeSpecification

item#

7189361

Brand

Dr. Infrared Heater

Manufacturer's Warranty

1 year limited warranty

Ship Weight

32.0 LB

Drive Type

Direct

Fan Diameter

18 in

Air Delivery

3,852 cfm

Volts

120
AttributeSpecification

Watts

355

Amps

3.5

Speeds (qty.)

1

Max. Fan Speed

1,725 rpm

Primary Color

Silver

Product Weight

25.4000 lb

Dimensions L x W x H (in.)

5.75 x 21.0 x 21.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
