Product Summary

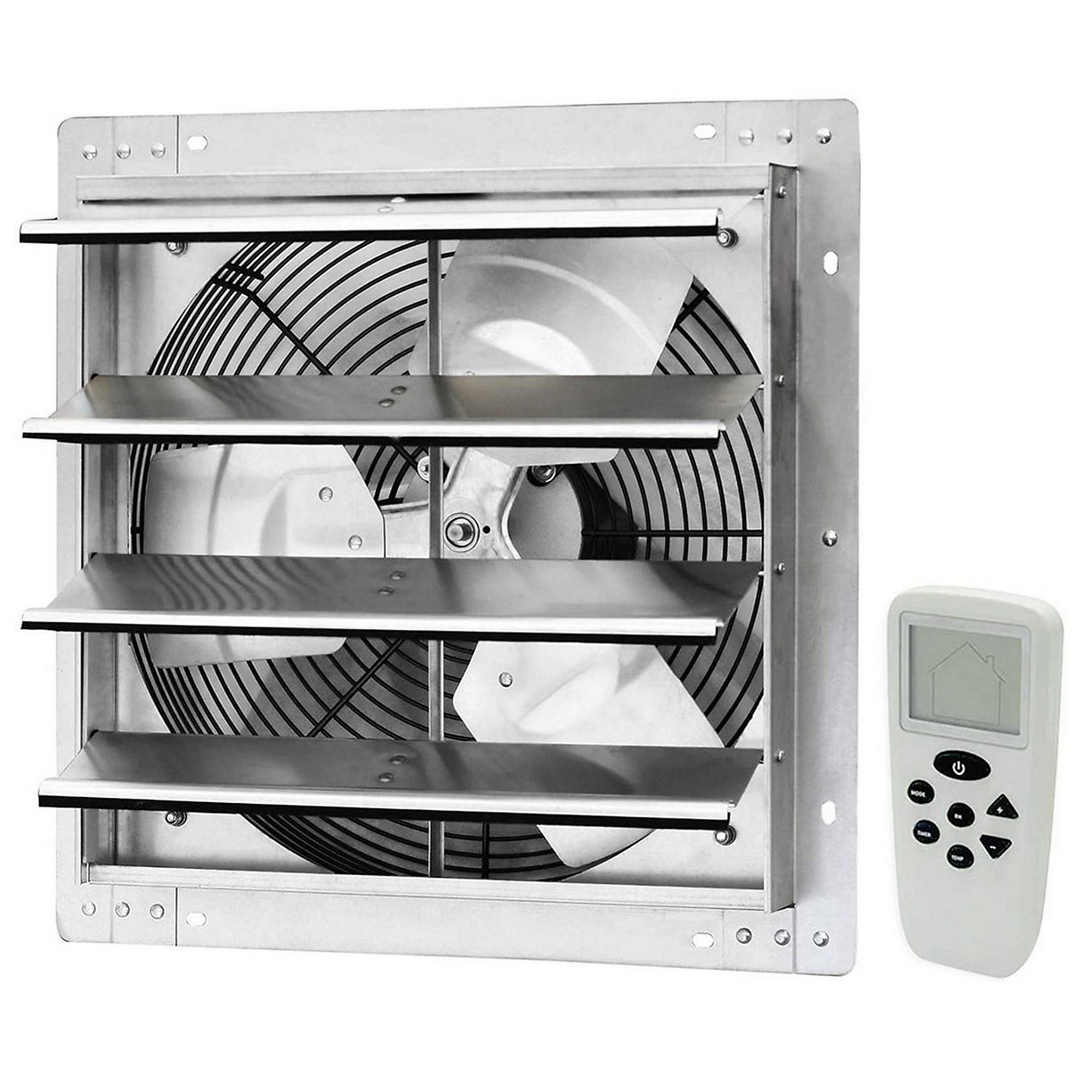

The iLIVING smart remote shutter exhaust fans are equipped with a thermostat, humidistat, variable speed and timer. These fans can be activated with a remote control up to 1,000ft. range. The iLiving exhaust fans are perfect for removing excess heat, moisture, and unpleasant odors from virtually any commercial location, including restaurants, factories, warehouses, barns, and greenhouses. This fan features aluminum blades, OSHA compliant wire guards, and automatic shutters that open and close in tandem with the operation of the fan. The completely enclosed motor is thermally protected and permanently lubricated. The fan comes fully assembled out of the box. The shutter fan comes in 6 different sizes: 10in., 12in., 16in., 18in., 20in., 24in.

What's Included

    (1) Exhaust Fan

Features + Benefits

  • 16 inch exhaust fan with automatic shutters
  • Comes with Thermostat, Humidistat, Variable Speed, and Timer features
  • UL listed with speed controllable, permanently lubricated motor
  • Corrosion-resistant with OSHA compliant wire guards
  • 120 Volts, 1/20 HP, 0.85 amp, 1550rpm, 1280 CFM
  • Wattage at 97W

Key Specs

AttributeSpecification

item#

7188739

Brand

Dr. Infrared Heater

Manufacturer's Warranty

1 year limited warranty

Ship Weight

19.8 LB

Drive Type

Direct

Fan Diameter

16 in

Air Delivery

1,280 cfm
AttributeSpecification

Volts

120

Watts

97

Amps

0.85

Max. Fan Speed

1,550 rpm

Primary Color

Silver

Product Weight

16.5000 lb

Dimensions L x W x H (in.)

19.0 x 5.75 x 19.0 in

Warranty

Manufacturer's Warranty

1 year limited warranty
