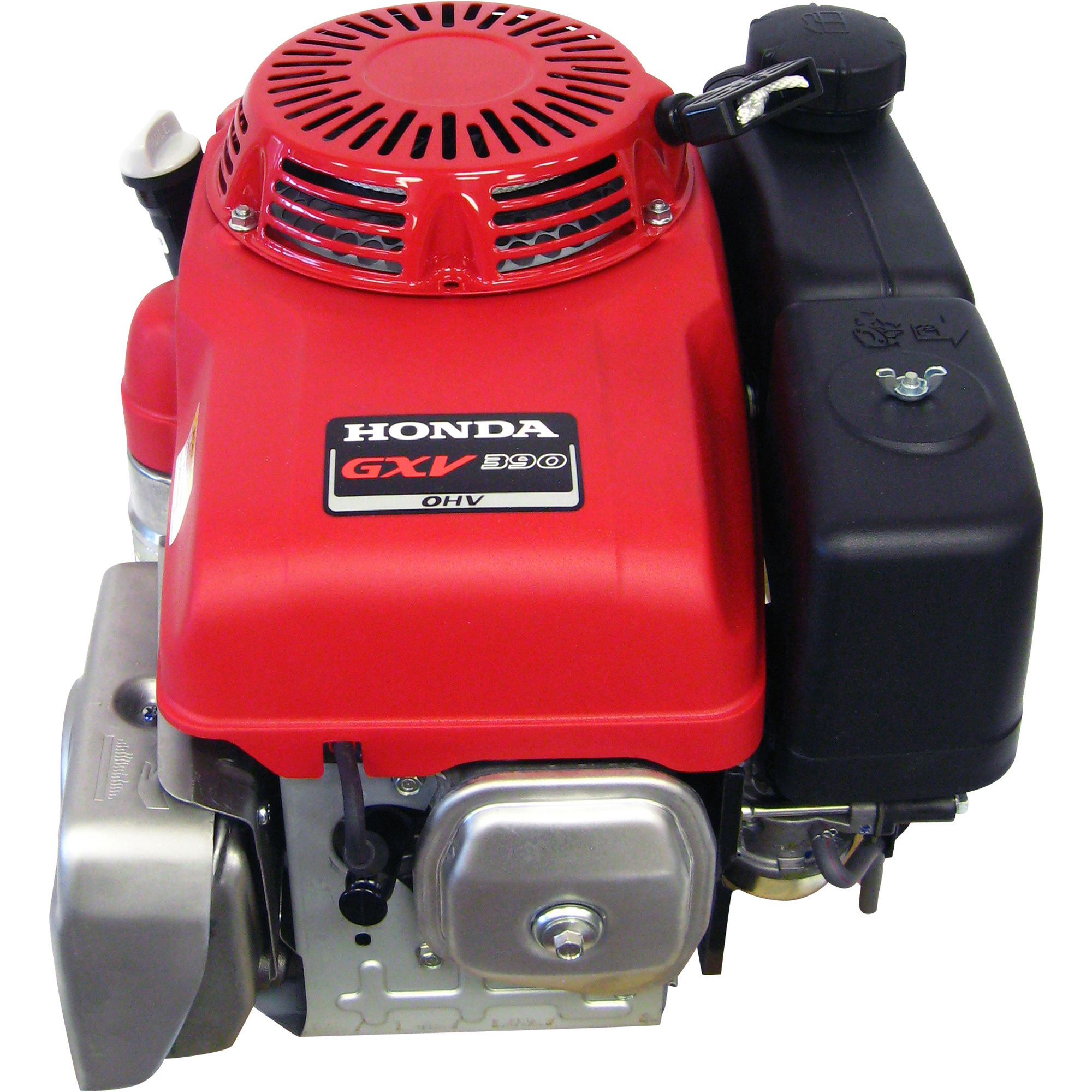

Honda Engines, HONDA ENGINE VERT 389CC E/S, Engine Displacement 389 cc, Engine Type GXV Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GXV390UT1DEXT

Item# 45685
Honda Engines, HONDA ENGINE VERT 389CC E/S, Engine Displacement 389 cc, Engine Type GXV Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GXV390UT1DEXT

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Honda Engines, HONDA ENGINE VERT 389CC E/S, Engine Displacement 389 cc, Engine Type GXV Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GXV390UT1DEXT

Click or Tap image to Zoom

$1169.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Model# GXV390UT1DET; 389cc, GXV Series engine with 1in. dia. x 3.11in.L vertical shaft
  • Overhead valve design for cooler, fuel-efficient operation
  • Electronic ignition system
  • 10in. mounting bolt circle
  • Cast iron cylinder sleeve provides longer service life

See full description

Complete Your Solution

  • Honda Engines, HONDA ENGINE VERT 389CC E/S, Engine Displacement 389 cc, Engine Type GXV Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GXV390UT1DEXT
  • Honda Power Equipment 10W-30 Motor Oil, 1-Qt. Bottle
  • Honda Engines, METER, HONDA, 08174-ZL8-003HE, Model# 08174-ZL8-023HE
  • Drainzit, DRAINZIT OIL CHANGE AID, Model# HON1420-C.DRA
Price for all four:

$1295.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Honda 389cc GXV OHV engine is reliable and durable, thanks to its overhead valve design, which offers, cooler, fuel-efficient operation. The cast iron cylinder sleeve provides longer service life. Vertical-shaft engine provides easy-maintenance features and electronic ignition. Common applications include commercial turf equipment, lawn tractors and riding mowers. Not for sale in CA.

What's Included

    (1) Engine

Downloads

Product Manual

Features + Benefits

  • Model# GXV390UT1DET; 389cc, GXV Series engine with 1in. dia. x 3.11in.L vertical shaft
  • Overhead valve design for cooler, fuel-efficient operation
  • Electronic ignition system
  • 10in. mounting bolt circle
  • Cast iron cylinder sleeve provides longer service life
  • Common applications include commercial turf equipment, lawn tractors and riding mowers
  • Vertical-shaft engine provides easy-maintenance
  • Not for sale in CA

Key Specs

AttributeSpecification

item#

45685

Brand

Honda Engines

Manufacturer's Warranty

3 year limited warranty

Ship Weight

90.0 LB

Engine Displacement

389 cc

Engine Type

GXV Series OHV Commercial-duty

Shaft Diameter

1 in

Shaft Length

3.11 in

Fuel Type

Gasoline

Start Type

Electric and Recoil

Shaft Keyway

0.25 in

Net Torque

17.8 ft-lbs.

Crankshaft

D Type

Cylinders (qty.)

1

Cylinder Bore

Cast Iron

Net Power Output

10.2 HP

Compression Ratio

7.7:1

Fuel Tank

Yes

Fuel Tank Capacity

2.2 qt

Oil Capacity

1.2 qt

Low Oil Shutdown

No
AttributeSpecification

Low Oil Alert

No

Max. RPM

3,600

Shaft Rotation (From PTO Shaft Side)

Counter Clockwise

Governor System

Centrifugal Mechanical

Ignition System

Electronic

Carburetor

Float

Lubrication System

Pressure/splash

Bearing Type

Ball

Auto Compression Release

Yes

Cooling System

Air

Bore

3.2 in

Stroke

2.5 in

Air Cleaner Type

Dual Element

Choke Control

Remote

Throttle Control

Remote

Fuel Filter

Yes

Charging System Amps

3

Muffler Included

Yes

Bolt Circle

10 in

Product Weight

lb

Dimensions L x W x H (in.)

17.0 x 15.0 x 15.87 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. What is the difference between gxv390UT1DEXT and the gxv390UT1DEX3

    1 answer

    1. The main difference is that the GXV390UT1DEX3 has a slightly longer shaft (3.13″ vs. 3.11″) and includes a 3‑Amp charging coil.

      Helpful?

  2. Does this engine have the Electric throttle control under the gas tank?

    1 answer

    1. The electric throttle control is located towards the base of the gas tank, along the backside of the engine.

      Helpful?

  3. Is the center of the crank shaft threaded?

    1 answer

    1. The shaft will have a 7/16-20UNF-2BTAP tapped end.

      Helpful?

  4. does this engine have a heavy duty flywheel

    1 answer

    1. This engine does not have a heavy duty flywheel.

      Helpful?

  5. what is the rated horsepower on this engine

    all these Honda engines show ccs but I don't see HP ratings?

    1 answer

    1. The HP output of this engine is 10.2.

      Helpful?
