Honda Engines, METER, HONDA, 08174-ZL8-003HE, Model# 08174-ZL8-023HE

Item# 61095
"Honda Engines, METER, HONDA, 08174-ZL8-003HE, Model# 08174-ZL8-023HE"
Top Seller
Honda Engines, METER, HONDA, 08174-ZL8-003HE, Model# 08174-ZL8-023HE

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Honda Engines, METER, HONDA, 08174-ZL8-003HE, Model# 08174-ZL8-023HE

Click or Tap image to Zoom

$72.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Records and displays to 9,999.9 hours; 0.1 hour resolution
  • Monitors RPM and hours on any rotating shaft, pulley, or rotating object (maximum 8in. dia.)
  • Fast and easy installation
  • Modern LCD display is always readable, even when equipment power is off
  • Completely potted and sealed to withstand the harshest environments

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

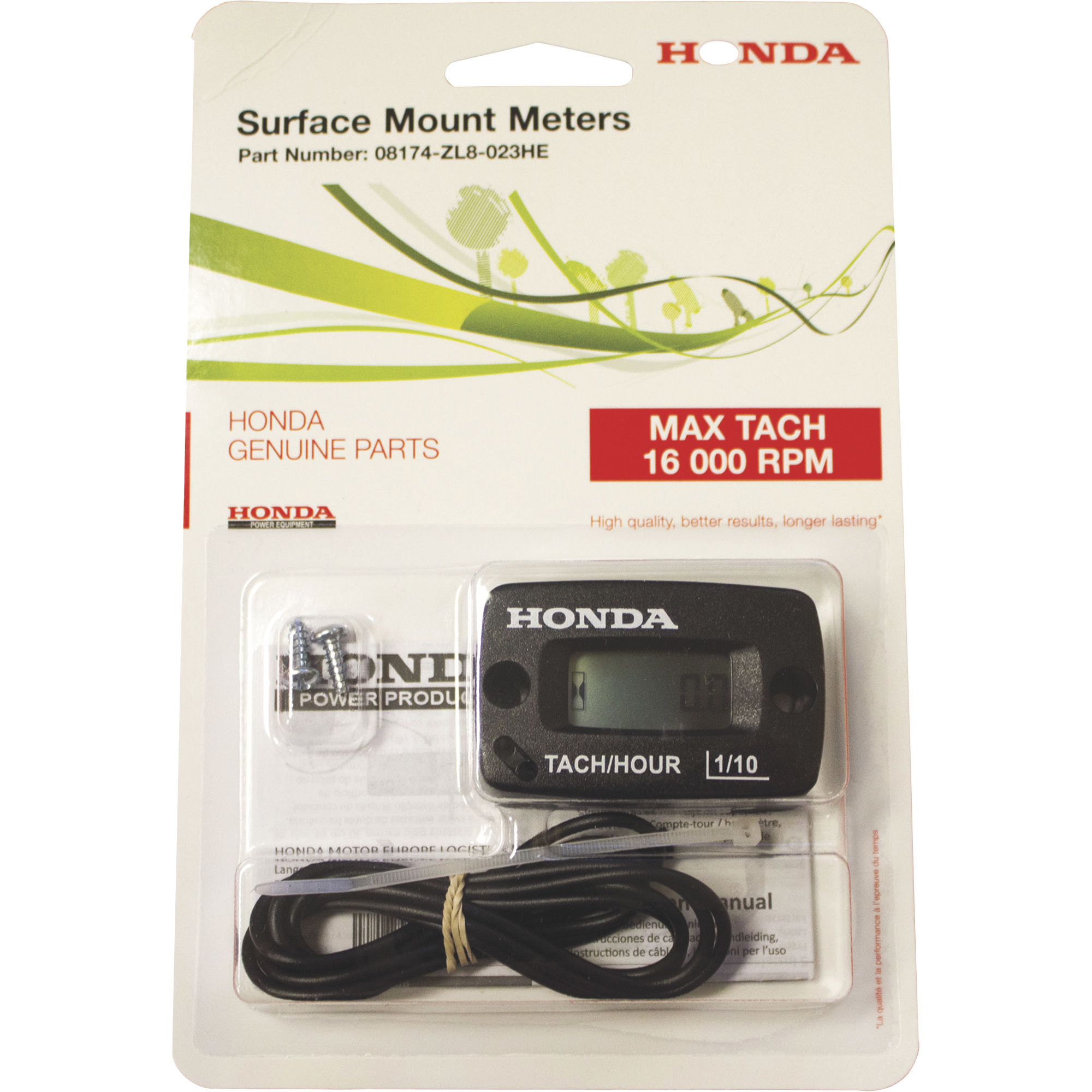

This Honda Surface Mount Hour Meter with Tachometer for gas engine monitoring handles up to 16,000 RPM. Has a Quartz accuracy of +/- 0.02%. Automotive grade LCD display.

What's Included

    (1) Hour meter with tachometer (1) 4ft. piece of wire (1) Tie wrap

Features + Benefits

  • Records and displays to 9,999.9 hours; 0.1 hour resolution
  • Monitors RPM and hours on any rotating shaft, pulley, or rotating object (maximum 8in. dia.)
  • Fast and easy installation
  • Modern LCD display is always readable, even when equipment power is off
  • Completely potted and sealed to withstand the harshest environments
  • Hour glass symbol flashes to indicate counting time
  • Tachometer records up to 16,000 RPM with 1:1 (spark:RPM) firing pattern, or 3,000 RPM with 2:1 (spark:RPM) firing pattern
  • Automatic rollover for more accurate tracking
  • Includes a 4ft. piece of 22 ga. wire, plus a tie wrap

Key Specs

AttributeSpecification

item#

61095

Brand

Honda Engines

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

1.0 LB

Min. Operating Temperature

-40 °F

Max. Operating Temperature

160 °F
AttributeSpecification

Product Type

Hour Meter

Display Unit

Hours

Max. RPM

16,000

Mount Type

Surface

Compatible With

Gas Engine

Product Weight

1 lb

Reviews

Questions & Answers

6 Reviews This action will navigate to reviews.

Questions

1–8 of 8 Questions
Sort by:

  1. can you cut off excess pick up wire

    1 answer

    1. You will need to wrap the wire around the spark plug wire a number of times. After you have reached this amount, then you may remove the excess wire. It is recommended to add additional wraps on the wire until the slack has been taken up. The key is to make sure to have the minimum of wraps around the spark plug wire for the item to properly read the RPM.

      Helpful?

  2. Is the display back-lit?

    1 answer

    1. This meter does not have a light.

      Helpful?

  3. Will this tach work with a 2-stroke engine?

    1 answer

    1. This tachometer has a max tach of 16,000 RPM.

      Helpful?

  4. Does this tack work with a 3 cyl. diesel engine. How large of a flat surface does this item require. Dig or analogue, does it make a difference

    1 answer

    1. This hour meter with tachometer could be used with a diesel engine. The measurements are 2 1/4" L x 1 29/64" H x 5/8" D. The meter would be digital and would be best. You may want to look at item #160585 that is specifically listed for diesel engines. The measurements on it are 2.13" L x 1.49" H x .550" D.

      Helpful?

  5. Will the Honda Surface Mount Hour Meter with Tachometer — Model# 08174-ZL8-023HE work with my Honda EU2200iTAG1? Can you mount it on a bracket inside door panel instead of mounting on the outside?

    1 answer

    1. The tachometer would work with the Honda EU2200iTAG and EU2200oTAG1 inverter generators. You would need to work around to thread the cord out from the spark plug, There is not an option to mount on the inside.

      Helpful?

  6. how does this item determine the hours ??

    1 answer

    1. It would determine the hours when the engine is running and is determined by the revolutions that the engine is turning.

      Helpful?

  7. How does this connect to the motor? I'm used to the ones that wrap a wire around the spark plug cable.

    1 answer

    1. This item will work in the same manner where you wrap the wire around the spark plug cable.

      Helpful?

  8. does the Honda Model# 08174-ZL8-023HEunit have a replaceable battery and is it reset able?

    1 answer

    1. The battery is replaceable and the unit is able to be reset.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts/12months labor
