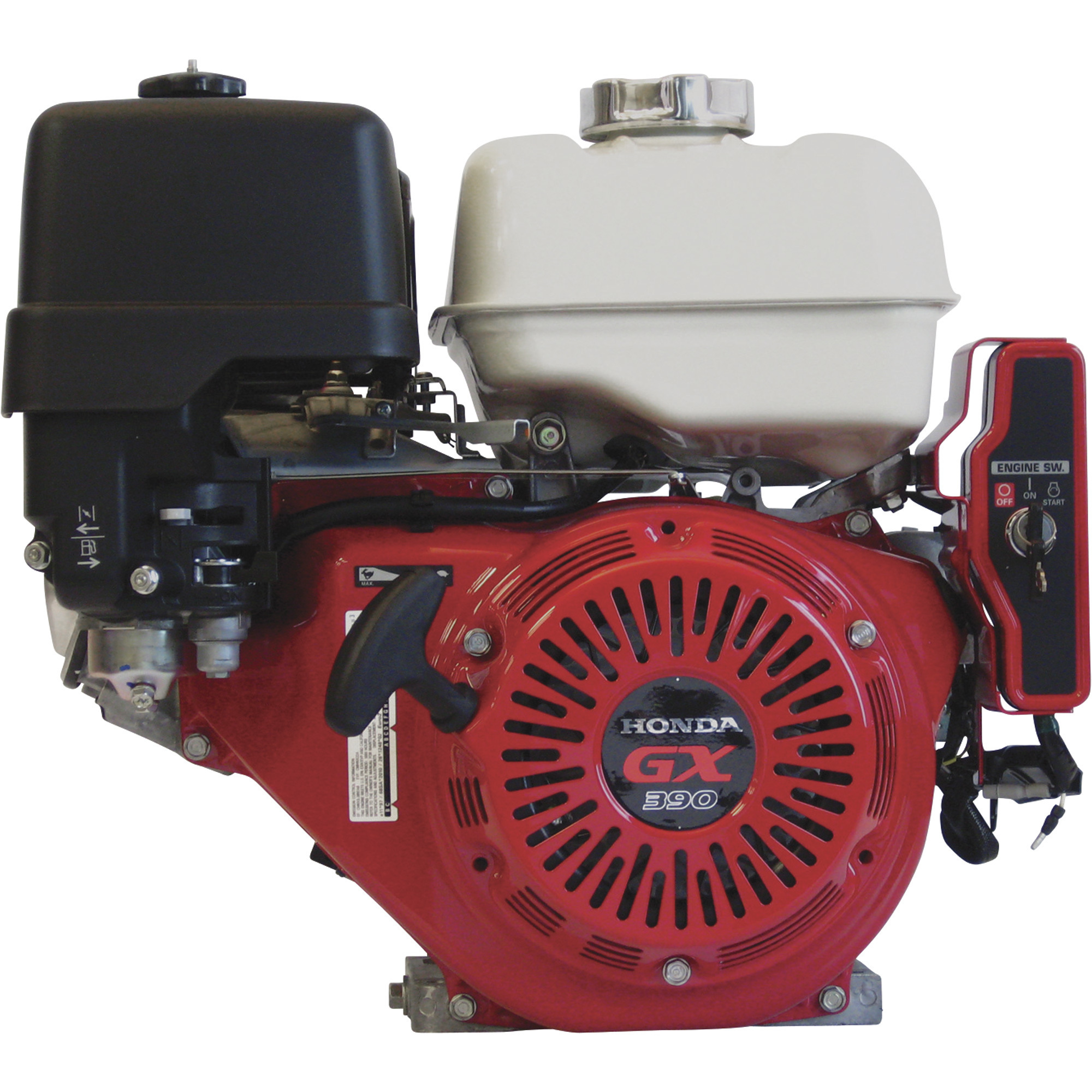

Honda Engines, HONDA 11.7HP OHV EL START, Engine Displacement 389 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX390UT2XQAE2

Item# 606600
"Honda Engines, HONDA 11.7HP OHV EL START, Engine Displacement 389 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX390UT2XQAE2"
Honda Engines, HONDA 11.7HP OHV EL START, Engine Displacement 389 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX390UT2XQAE2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Honda Engines, HONDA 11.7HP OHV EL START, Engine Displacement 389 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX390UT2XQAE2

Click or Tap image to Zoom

$1029.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Honda 389cc GX-series OHV commercial-grade engine, Model# GX390UT2XQAE2
  • Fuel-efficient operation with precision camshaft design and high compression ratio
  • OHV design delivers increased efficiency and optimal power transfer
  • Digital CDI ignition system with variable timing
  • Smooth performance and reduced vibration from precision-balanced crankshaft and reduced piston weight

See full description

Complete Your Solution

  • Honda Engines, HONDA 11.7HP OHV EL START, Engine Displacement 389 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX390UT2XQAE2
  • Honda Power Equipment 10W-30 Motor Oil, 1-Qt. Bottle
  • GDI, HOUR METER W/TACHOMETER, Model# N111-0100-1005
Price for all three:

$1080.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Honda 389cc GX-Series OHV commercial-grade engine is designed for the most demanding commercial applications. Reliable and dependable, it has an OHV design that offers cooler, fuel-efficient operation with cast iron sleeve for longer service life. Easy to start and runs quiet. Meets EPA and CARB emission level standards. Common applications include construction equipment, pressure washers, air compressors, go-karts, log splitters and chipper/shredders. Not for sale in CA.

What's Included

    (1) Engine, Model# GX390UT2XQAE2

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Honda 389cc GX-series OHV commercial-grade engine, Model# GX390UT2XQAE2
  • Fuel-efficient operation with precision camshaft design and high compression ratio
  • OHV design delivers increased efficiency and optimal power transfer
  • Digital CDI ignition system with variable timing
  • Smooth performance and reduced vibration from precision-balanced crankshaft and reduced piston weight
  • Ball bearing-supported crankshaft offers greater stability
  • Aluminum push rods reduce valve clearance and noise level
  • Muffler, breather valve, case cover, air intake system, rigid crankcase, helical-cut gears and lightweight materials are also designed to reduce noise level
  • Oil alert protects engine
  • Carburetor coating and filter help protect fuel from impurities
  • Cast iron cylinder sleeve
  • Reliability from high-quality materials, fit and finish
  • Dual-element air cleaner
  • Easy to use and maintain with simple throttle control, Large fuel tanks, wide-mouth automotive-style fuel cap, dual oil fills and drains, easy-to-use control box and easily accessible spark plug
  • Get quick starts with the heavy-duty recoil starter with ergonomic design and automatic decompression system
  • Double-walled heavy-duty tank with in-tank fuel strainer
  • Battery cables not included
  • Not for sale in CA

Key Specs

AttributeSpecification

item#

606600

Brand

Honda Engines

Manufacturer's Warranty

3 year limited warranty

Ship Weight

90.0 LB

Engine Displacement

389 cc

Engine Type

GX Series OHV Commercial-duty

Shaft Diameter

1 in

Shaft Length

3.48 in

Start Type

Electric and Recoil

Shaft Keyway

0.25 in

Net Torque

19.5 ft-lbs.

Crankshaft

Q-type

PTO Height

5.25 in

Cylinders (qty.)

1

Cylinder Bore

Cast Iron

Net Power Output

11.7 HP

Compression Ratio

8.2:1

Fuel Tank

Yes
AttributeSpecification

Fuel Tank Capacity

6.4 qt

Oil Capacity

1.16 qt

Low Oil Shutdown

Yes

Low Oil Alert

Yes

Shaft Rotation (From PTO Shaft Side)

Counter Clockwise

Governor System

Centrifugal Mechanical

Ignition System

Electronic

Carburetor

Float, External Vent

Lubrication System

Splash

Cooling System

Air

Bore

3.5 in

Stroke

2.5 in

Air Cleaner Type

Dual Element

Choke Control

Manual

Throttle Control

Remote

Fuel Filter

Yes

Charging System Amps

3

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. Dimensions and mounting flange information

    1 answer

    1. The flange mounting pattern is 4” X 4”

      Helpful?

  2. what is the maximum engine RPM?

    1 answer

    1. The recommended operating speed range is from 2000-3600 RPM.

      Helpful?

  3. DOES THE MOTOR REQUIRE A BATTERY?

    1 answer

    1. The engine is electric start with recoil back up. To use the electric start feature, this will require a 12 volt 30 Ah battery.

      Helpful?

  4. what is the crank diamertar and lenth

    1 answer

    1. The crankshaft is 1" diameter and 3.48" in length.

      Helpful?

  5. how much HP does it have?

    1 answer

    1. This Honda engine will be rated at 13 horsepower.

      Helpful?

  6. What is the warranty when we install this on a mud pump we sell?

    1 answer

    1. The engine will have a three year limited warranty through the manufacturer.

      Helpful?

  7. Is there a kit to move the key start to a location about 6 ft away from motor?

    1 answer

    1. There is not a kit available at this time to move the engine's key start to a location that is 6 feet away from the engine.

      Helpful?
