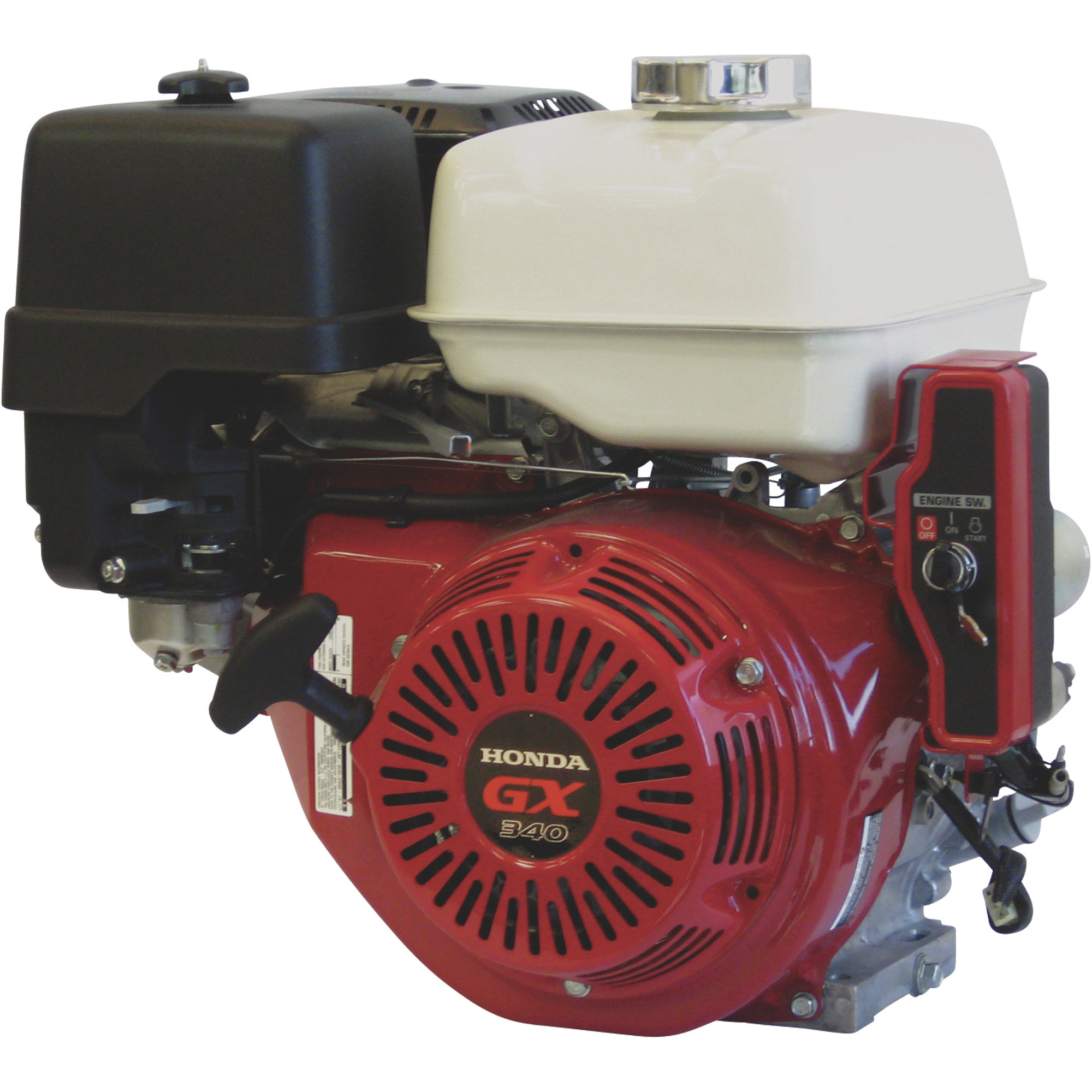

Honda Engines, HONDA 340CC OHV ELEC START, Engine Displacement 389 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX340UT2XQNE2

Item# 60109
Honda Engines, HONDA 340CC OHV ELEC START, Engine Displacement 389 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX340UT2XQNE2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Honda Engines, HONDA 340CC OHV ELEC START, Engine Displacement 389 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX340UT2XQNE2

Click or Tap image to Zoom

$1079.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Model GX340UT2QNE2; Honda 389cc, 10.7 HP air-cooled, 4-stroke engine with 1in. dia. x 3 31/64in.L horizontal shaft
  • OHV overhead valve design
  • Electronic ignition with electric start with key switch/recoil backup featuring automatic decompression for easy starting; 10 Amp charge
  • Flange mount bolt circle 6 1/2in.
  • Mounting base dim. 7.7in.L x 3.39in.-4.06in. W (approx.)

See full description

Complete Your Solution

  • Honda Engines, HONDA 340CC OHV ELEC START, Engine Displacement 389 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX340UT2XQNE2
  • Honda Engines, HONDA MAINT. KIT, Pieces (qty.) 4 Model# HONDAKIT5
  • Oregon Equipment Recoil Starter for Honda Engine - GX340 and GX390 Series, Model# 31-060
  • Honda Power Equipment 10W-30 Motor Oil, 1-Qt. Bottle
Price for all four:

$1210.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Honda 389cc GX 340 Series OHV commercial-grade engine is designed for the most demanding commercial applications. It has set an industry standard for reliability and durability. Overhead Valve design offers cooler, fuel-efficient operation and cast iron cylinder sleeve provides longer service life. The GX is reliable, easy starting and quiet running. Meets EPA and CARB emission levels standards. This legendary engine has earned the reputation as the preferred engine for construction equipment. Common applications include pressure washers, compressors, go-karts, log splitters and chipper/shredders. Not for sale in CA.

What's Included

    (1) Engine, Model# GX340UT2QNE2

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Model GX340UT2QNE2; Honda 389cc, 10.7 HP air-cooled, 4-stroke engine with 1in. dia. x 3 31/64in.L horizontal shaft
  • OHV overhead valve design
  • Electronic ignition with electric start with key switch/recoil backup featuring automatic decompression for easy starting; 10 Amp charge
  • Flange mount bolt circle 6 1/2in.
  • Mounting base dim. 7.7in.L x 3.39in.-4.06in. W (approx.)
  • Cast iron sleeve provides durability
  • Ideal for use with pressure washers, compressors, go-karts, log splitters and chipper/shredders
  • Key switch; Oil Alert®
  • Heavy-duty ball bearing supported crankshaft
  • Double walled heavy-duty tank with in-tank fuel strainer
  • Battery cables not included
  • Not for sale in CA

Key Specs

AttributeSpecification

item#

60109

Brand

Honda Engines

Manufacturer's Warranty

3 year limited warranty

Ship Weight

88.3 LB

Engine Displacement

389 cc

Engine Type

GX Series OHV Commercial-duty

Shaft Diameter

1 in

Shaft Length

3.48 in

Start Type

Electric and Recoil

Shaft Keyway

0.25 in

Net Torque

19.5 ft-lbs.

Crankshaft

Q-type

PTO Height

5.25 in

Cylinders (qty.)

1

Cylinder Bore

Cast Iron

Net Power Output

10.7 HP

Compression Ratio

8.2:1

Fuel Tank

Yes

Fuel Tank Capacity

6.4 qt
AttributeSpecification

Oil Capacity

1.16 qt

Low Oil Shutdown

Yes

Low Oil Alert

Yes

Shaft Rotation (From PTO Shaft Side)

Counter Clockwise

Governor System

Centrifugal Mechanical

Ignition System

Electronic

Carburetor

Float, External Vent

Lubrication System

Splash

Auto Compression Release

Yes

Cooling System

Air

Bore

3.2 in

Stroke

2.5 in

Air Cleaner Type

Dual Element

Choke Control

Manual

Throttle Control

Manual

Fuel Filter

Yes

Charging System Amps

10

Muffler Included

Yes

Reviews

Questions & Answers

9 Reviews This action will navigate to reviews.

Questions

1–8 of 8 Questions
Sort by:

  1. will it work as snowblower replacement engine and where is it made

    1 answer

    1. The engine is not designed to be used in a snow blower application. The engine is manufactured in Thailand.

      Helpful?

  2. Is there a replacement key switch

    1 answer

    1. The replacement ignition switch is part #HC36100ZE1015. This can be purchased with our sister company Jack's Small Engines. Please visit their website www.jackssmallengines.com for pricing and availability.

      Helpful?

  3. the charging system have the power to run lights i want for a mini bike thank you

    1 answer

    1. This charging system will put out 10 amps of 12 Volt DC power that could be used for lights.

      Helpful?

  4. what is the shaft diameter?

    1 answer

    1. The shaft on this Honda engine is 1" (inch) in diameter and the length is 3-31/64". It has a 3/8"-24 tapped end.

      Helpful?

  5. what RPM at idel?

    1 answer

    1. The RPM at idle is 1400 +/-1500 rpm.

      Helpful?

  6. Does Honda make this engine with a remote trottlr

    Hello,
    I was wondering if hondam makes Engine# 60109 with a remote throttle and if there is an extention that you can add so that you can mount the starter switch on anouther area
    Thanks

    1 answer

    1. This engine is only available with recoil, electric or gear reduction. Remote throttle is usually offered on Honda engines that are 610cc or higher.

      Helpful?

  7. I was wondering if you have this same engine, but with a remote Throttle and a Bigger Fuel Tank

    1 answer

    1. At this time, we do not have this engine with a remote throttle and a larger fuel tank.

      Helpful?

  8. GX-340 choke cable

    Hello,
    I have a Honda GX-340 engine mounted on a trailer (inside an enclosed vented box) and am looking to install a choke cable that would enable me to adjust the choke level of the engine from the outside of the box (box exterior about 30 inches from original choke location). I would like to know if Honda makes optinal (extended) choke cables that mount on brackets other than on the engine.
    Thanks in advance for your help!

    1 answer

    1. Honda does not manufacture an optional extended choke cable. Often the choke cable would come from the manufacturer of the product that the engine is going on.

      Helpful?
