The engine is governed. It is able to achieve up to 4000 RPM with the throttle screw adjustment. It is not recommended to use the engine at the higher levels of RPM.

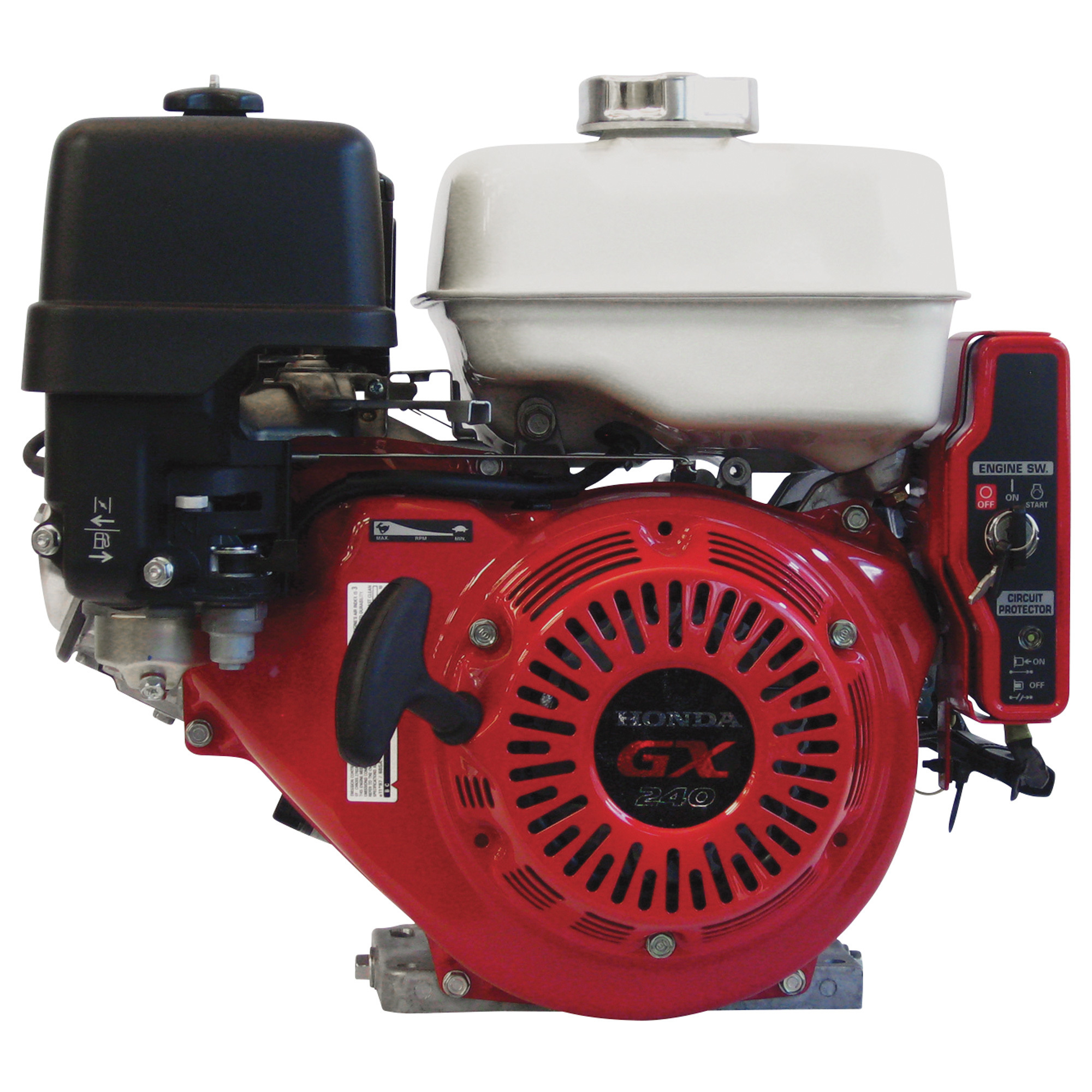

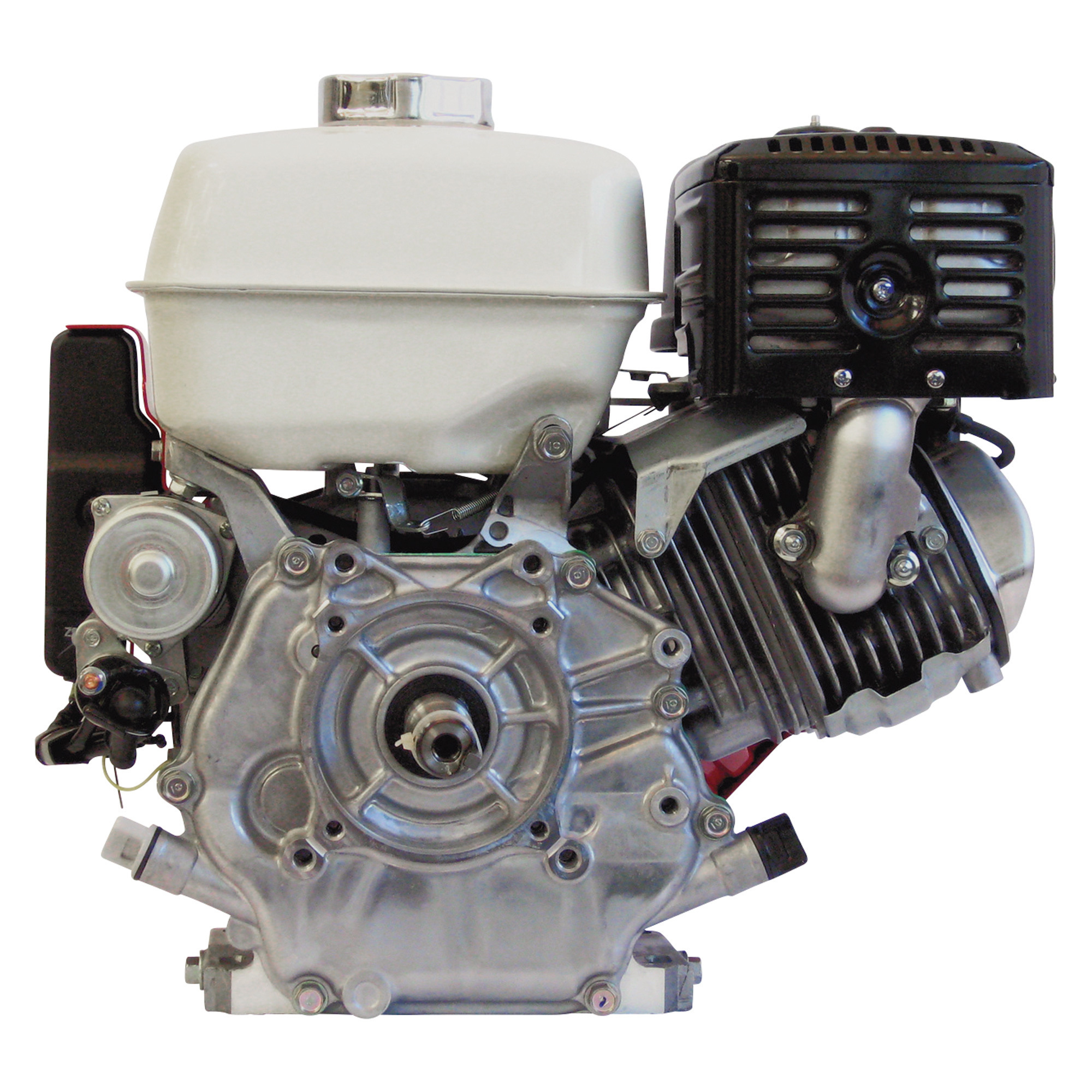

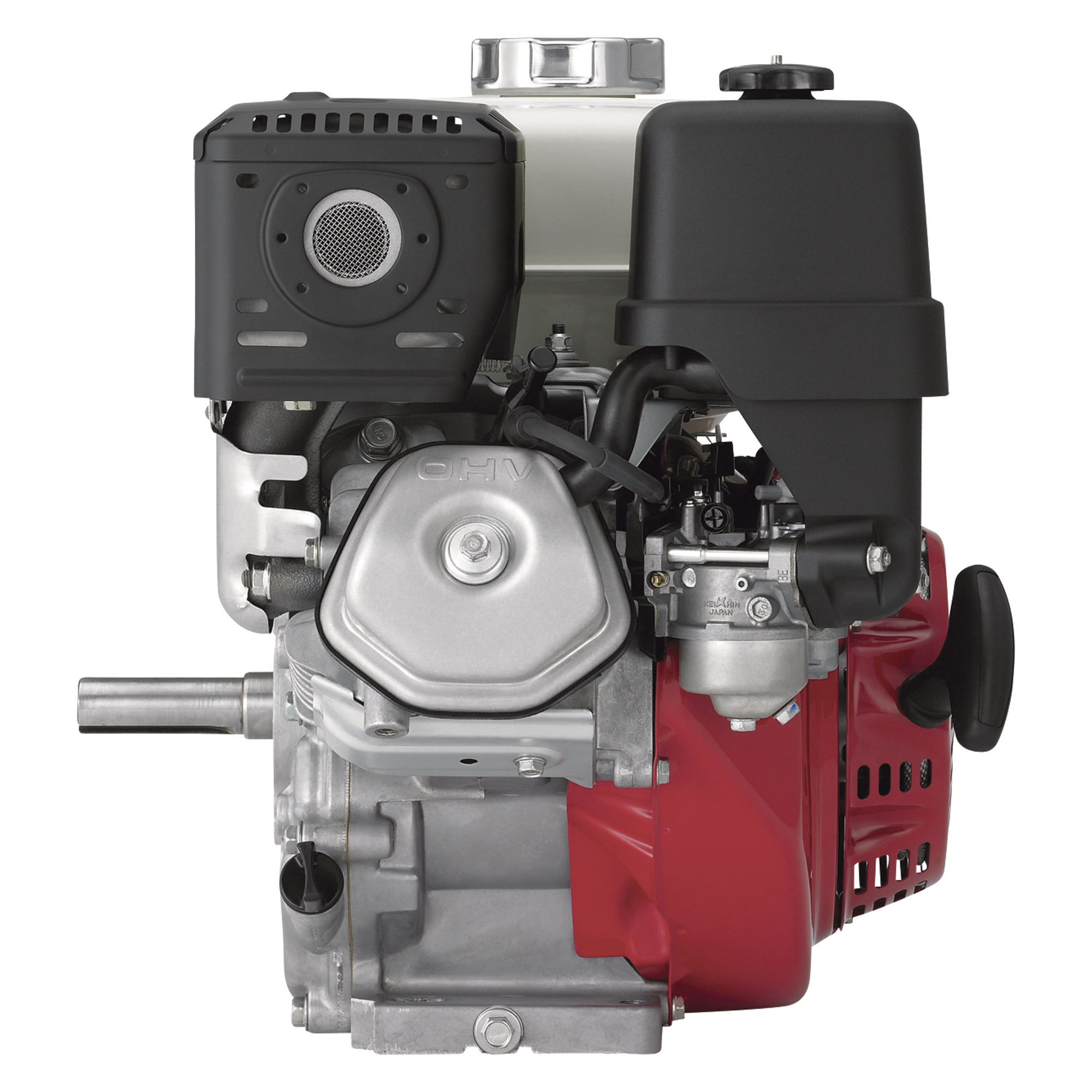

Honda Engines, HONDA 270CC OHV ELEC START, Engine Displacement 270 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX240UT2XQAE2
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$999.99
- Automatic decompression for easy starting
- Heavy-duty ball bearing supported crankshaft
- Double walled heavy-duty tank with in tank fuel strainer
- Does not include battery cables
- Not for sale in CA
See full description
Price for all four:
$1088.96
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Horizontal Engines
See All Honda Engines Horizontal Engines
Currently Viewing This Product
Specifications
Specifications
Honda Engines, HONDA 270CC OHV ELEC START, Engine Displacement 270 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX240UT2XQAE2
Honda Engines, HONDA V-TWIN HORIZ GX690RHXTAF, Engine Displacement 688 cc, Engine Type GX Series OHV V-twin, Shaft Diameter 1-1/8 in, Model# GX690RHXTAF
Honda Engines, V-TWIN HORIZONTAL 630CC RQXA, Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Shaft Diameter 1 in, Model# GX630RHXQXA
Honda Engines, HONDA V-TWIN HORIZ 630CC HXQZB3 Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Shaft Diameter 1 in, Model# GX630RHXQZB3
Engine Displacement
Same
270 cc
688 cc
688 cc
688 cc
Engine Type
Same
GX Series OHV Commercial-duty
GX Series OHV V-twin
GX Series OHV V-twin Commercial-duty
GX Series OHV V-twin Commercial-duty
Shaft Diameter
Same
1 in
1-1/8 in
1 in
1 in
Shaft Length
Same
3.48 in
3.5 in
2.9 in
2.9 in
Start Type
Same
Electric and Recoil
Electric
Electric
Electric
Shaft Keyway
Same
0.25 in
0.25 in
0.25 in
0.25 in
Net Torque
Same
13.5 ft-lbs.
35.6 ft-lbs.
35.6 ft-lbs.
35.6 ft-lbs.
Crankshaft
Same
Q-type
T-type
Q-type
Q-type
PTO Height
Same
5.25 in
-
5.25 in
5.25 in
Cylinders (qty.)
Same
1
2
2
2
Cylinder Bore
Same
Cast Iron
Integrated
Integrated
Cast Iron
Net Power Output
Same
7.9 HP
22.1 HP
20.8 HP
20.8 HP
Compression Ratio
Same
8.5:1
9.3:1
9.3:1
9.3:1
Fuel Tank
Same
Yes
No
No
No
Fuel Tank Capacity
Same
5.6 qt
-
-
-
Oil Capacity
Same
1.16 qt
2 qt
2 qt
2.1 qt
Low Oil Shutdown
Same
Yes
No
-
Oil Alert
Low Oil Alert
Same
Yes
Yes
Yes
Yes
Shaft Rotation (From PTO Shaft Side)
Same
Counter Clockwise
Counter Clockwise
Counter Clockwise
Counter Clockwise
Governor System
Same
Centrifugal Mechanical
Mechanical
Mechanical
Mechanical
Ignition System
Same
Electronic
Electrical, Digital CDI W/variable Ignition Timing
Electonic, Digital CDI W/variable Ignition Timing
Electrical, Digital CDI W/variable Ignition Timing
Carburetor
Same
Float, External Vent
(2) Barrel, Fuel Cut Solenoid, Inner Vent
2-barrel, Fuel Cut Solenoid, Inner Vent
2 Barrel, Fuel-cut Solenoid, Inner Vent
Lubrication System
Same
Splash
Full Pressure
Full Pressure
Forced Lubrication
Auto Compression Release
Same
Yes
-
-
Yes
Cooling System
Same
Air
Air
Air
Air
Bore
Same
2.9 in
3.1 in
3.1 in
3.1 in
Stroke
Same
2.3 in
2.8 in
2.8 in
2.8 in
Air Cleaner Type
Same
Dual Element
Dual Element
Dual Element
Dual Element
Choke Control
Same
Manual
Manual
Remote
Manual
Throttle Control
Same
Remote
Manual
Remote
Manual
Fuel Filter
Same
Yes
-
-
Yes
Charging System Amps
Same
3
20
3
17
Muffler Included
Same
Yes
No
No
No
Bearing Type
Same
-
Ball
-
Ball
