Heavy-Duty Hydraulic Power Unit, AC 220V Single Phase, 16 Quart Oil Reservoir

Item# 7195154
Heavy-Duty Hydraulic Power Unit, AC 220V Single Phase, 16 Quart Oil Reservoir

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Heavy-Duty Hydraulic Power Unit, AC 220V Single Phase, 16 Quart Oil Reservoir

Click or Tap image to Zoom

$319.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • SMOOTH SINGLE-ACTING OPERATION – Provides stable, controlled lifting with consistent performance and features a large 16-quart oil reservoir.
  • BUILT-IN SAFETY VALVE – Automatically relieves excess pressure to prevent overload and protect equipment.
  • PRE-ASSEMBLED & EASY SETUP – Ready to use – just add oil, connect power/lines. SAE #6 port fits most systems.
  • HEAVY-DUTY CONSTRUCTION – Steel tank with strong sealing minimizes leaks and resists rust for long-term use.
  • VERSATILE APPLICATIONS – Ideal for dump trailers, lift gates, log splitters, presses, pallet jacks, and more.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

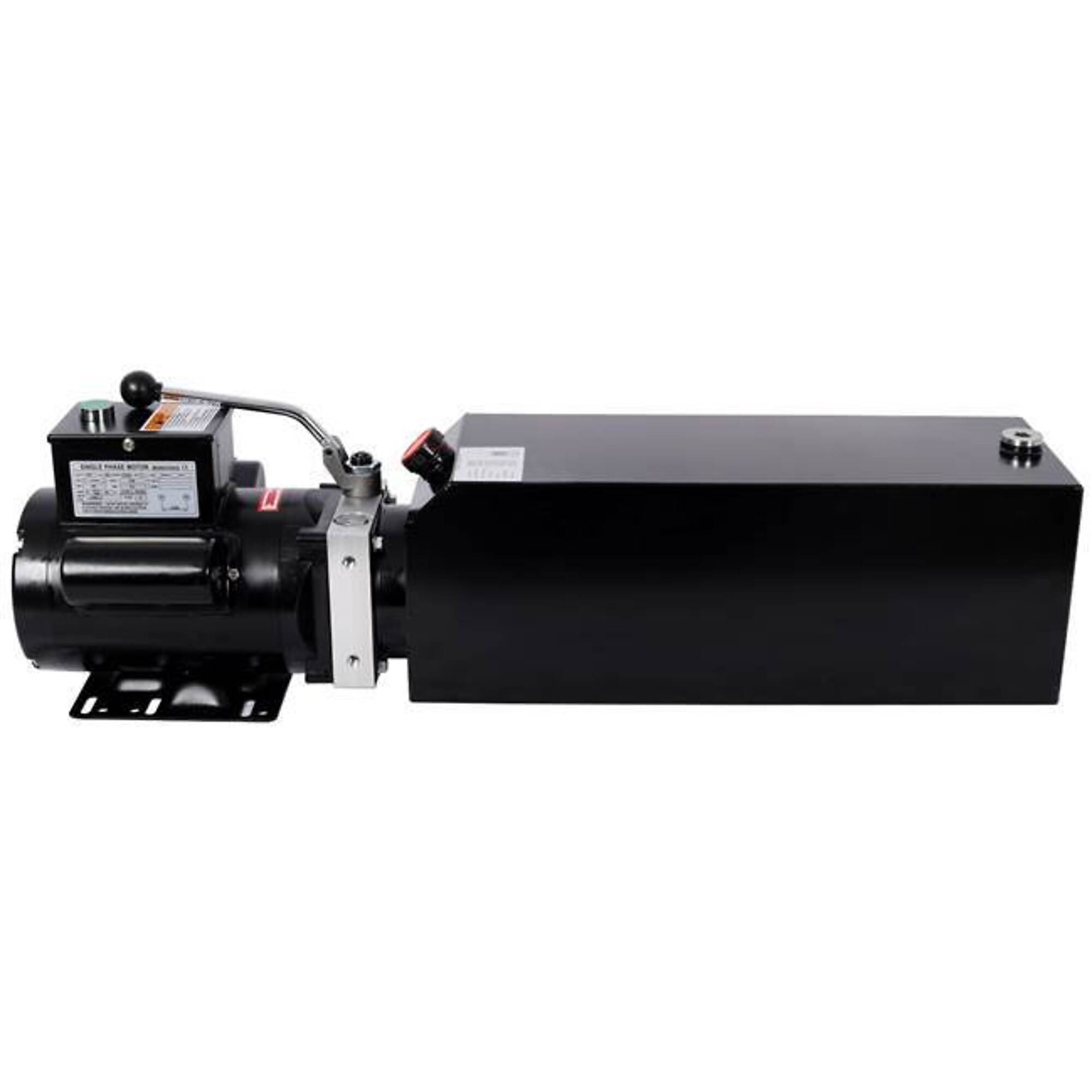

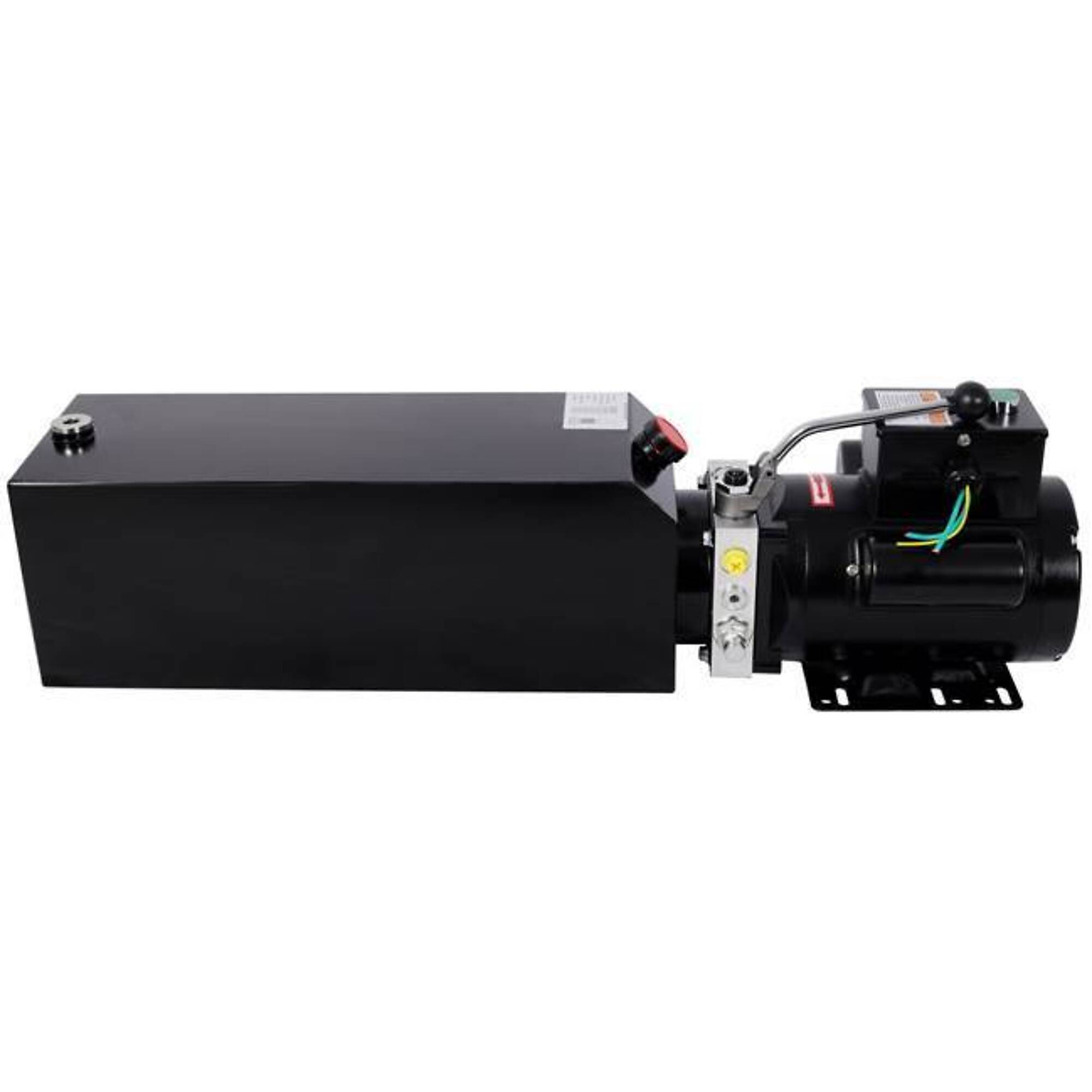

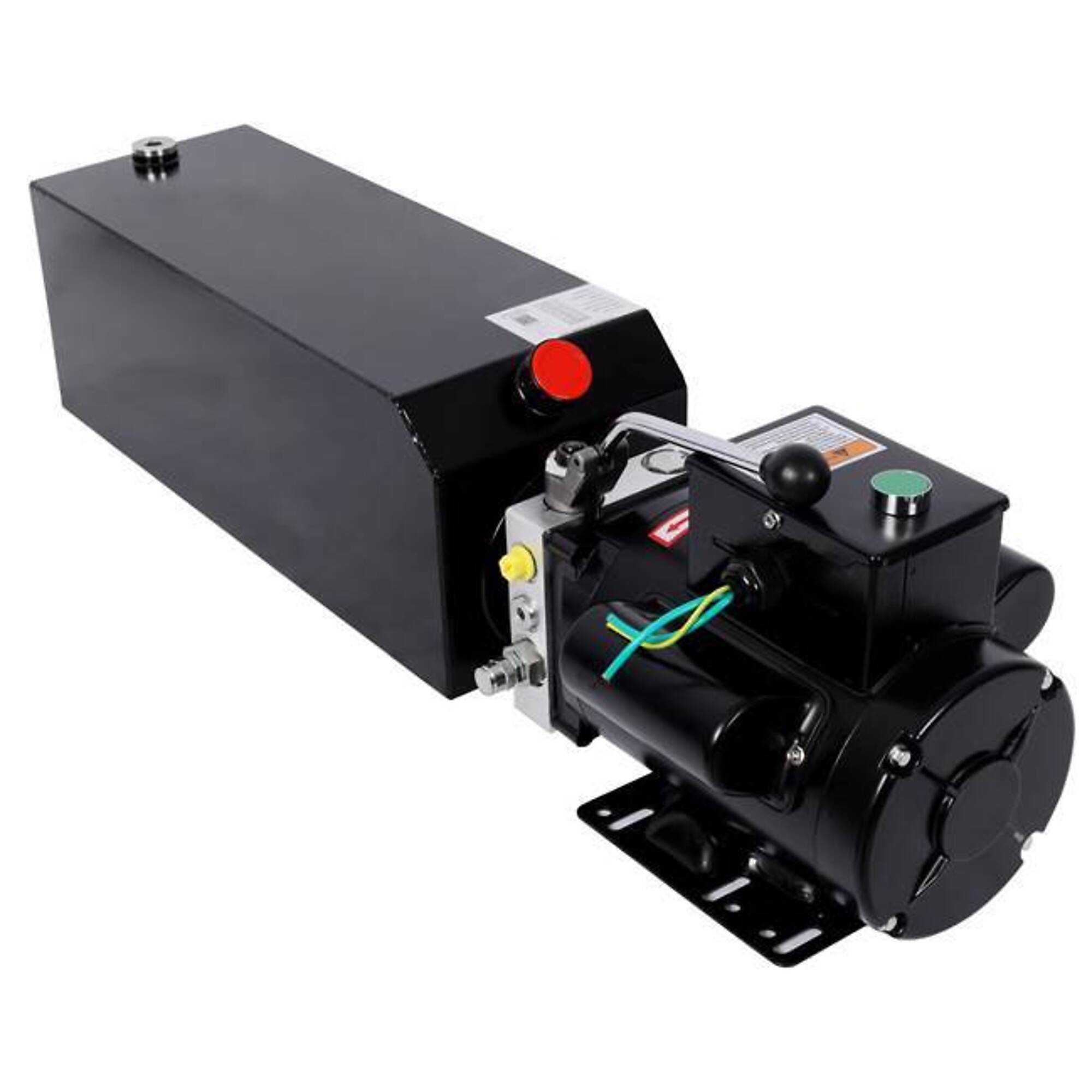

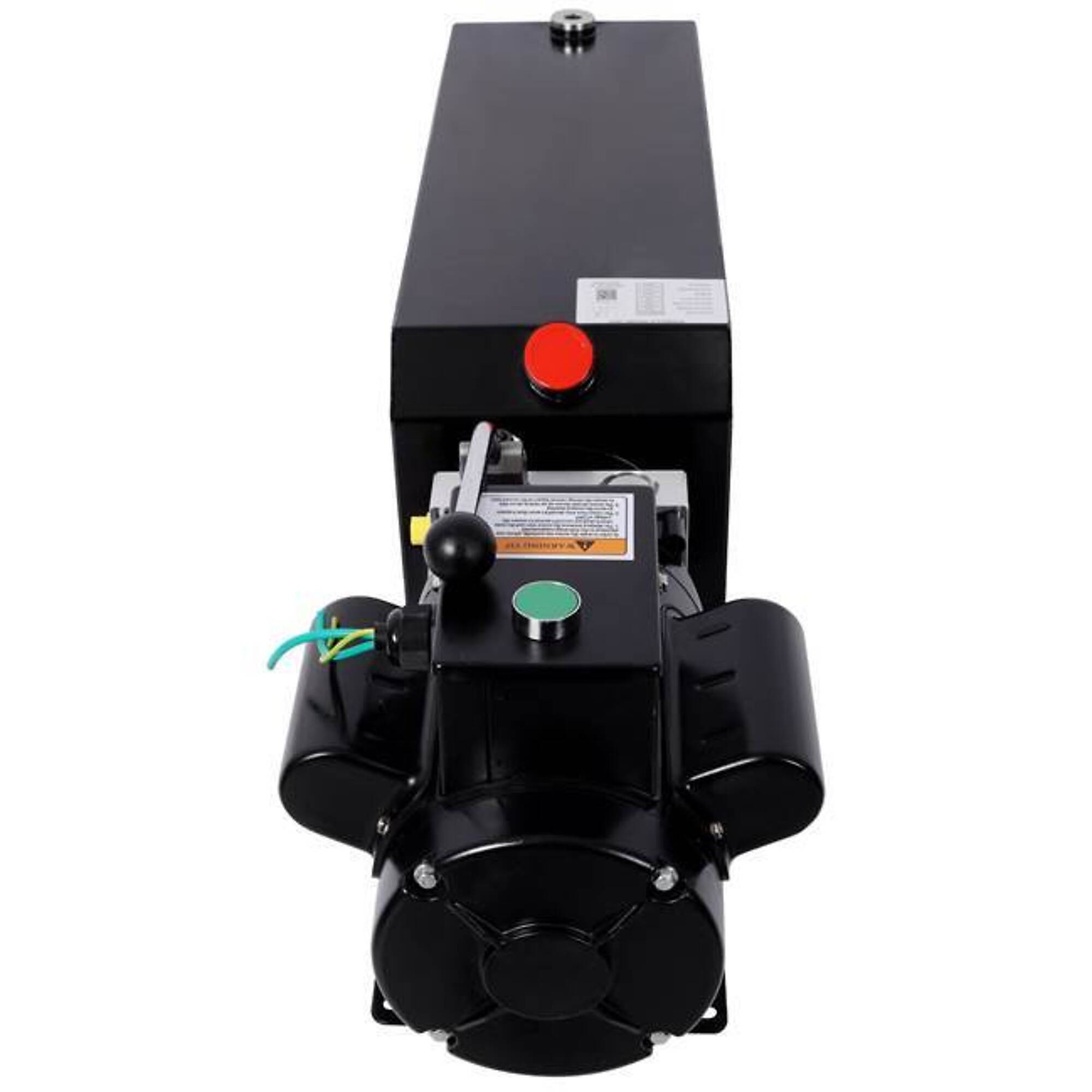

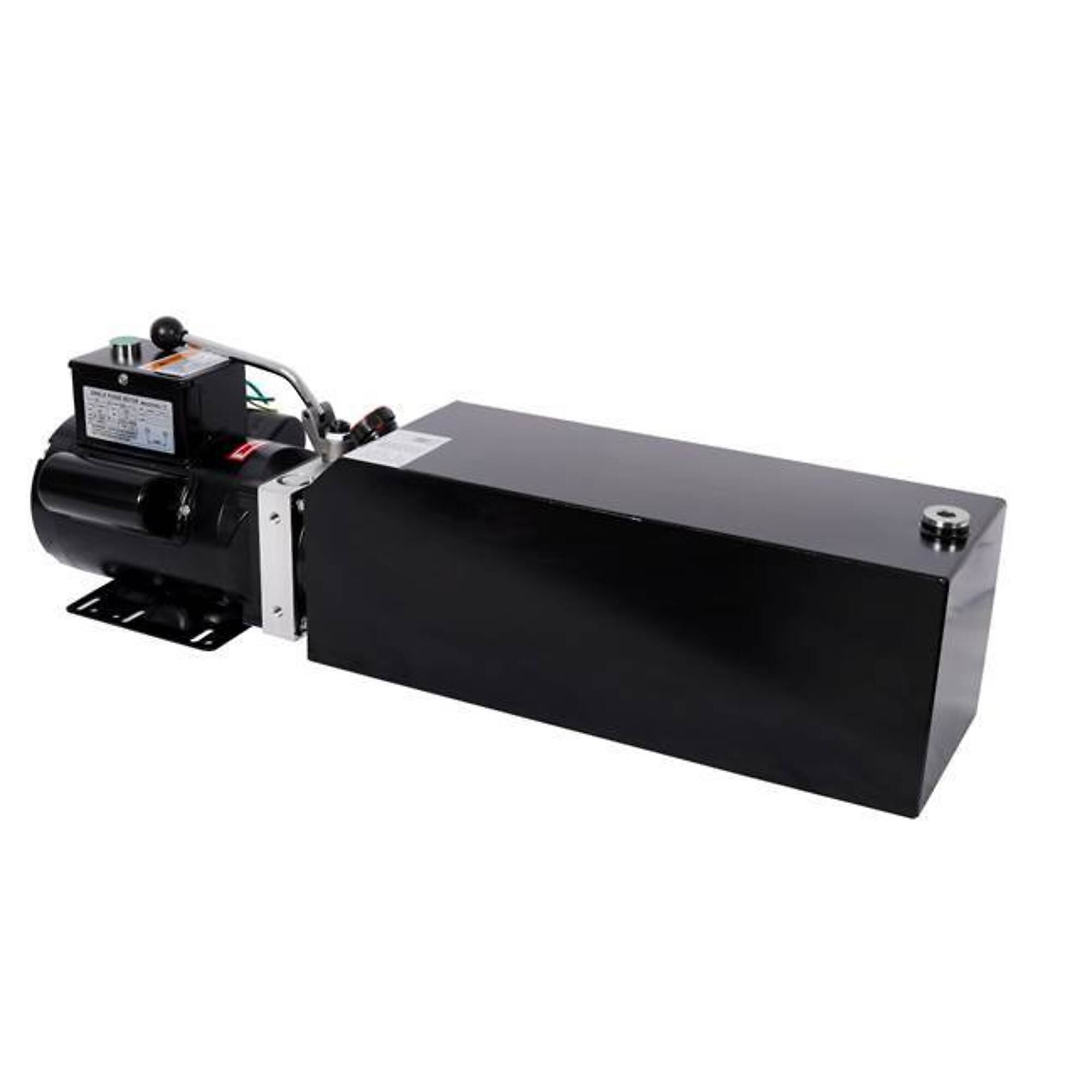

The BAC-W465P310702 Hydraulic Power Unit is designed to deliver reliable, high-performance operation for a wide range of lifting and pressing applications. Featuring a single-acting design, it provides smooth and consistent lifting, while the built-in safety relief valve automatically protects against overload by releasing excess pressure. The unit comes pre-assembled for quick, hassle-free setup – simply add hydraulic oil, connect the power and lines, and it’s ready to use. Constructed with a durable, rust-resistant steel tank and high-quality sealing, it minimizes oil leakage and ensures long-lasting performance under heavy-duty conditions. Powered by a 3 HP AC motor (220V/60Hz) with a 3420 RPM speed, it delivers up to 2950 PSI of pressure and a 2.1 cc/rev flow rate, making it ideal for use with dump trailers, lift gates, log splitters, pallet jacks, presses, and other hydraulic equipment. Features a 16-quart oil reservoir.

What's Included

    (1) Power Unit

Features + Benefits

  • SMOOTH SINGLE-ACTING OPERATION – Provides stable, controlled lifting with consistent performance and features a large 16-quart oil reservoir.
  • BUILT-IN SAFETY VALVE – Automatically relieves excess pressure to prevent overload and protect equipment.
  • PRE-ASSEMBLED & EASY SETUP – Ready to use – just add oil, connect power/lines. SAE #6 port fits most systems.
  • HEAVY-DUTY CONSTRUCTION – Steel tank with strong sealing minimizes leaks and resists rust for long-term use.
  • VERSATILE APPLICATIONS – Ideal for dump trailers, lift gates, log splitters, presses, pallet jacks, and more.
  • POWERFUL MOTOR – 3 HP AC motor (220V/60Hz) with 3420 RPM for efficient performance.
  • HIGH OUTPUT PERFORMANCE – Delivers up to 2950 PSI with 2.1 cc/rev flow for demanding jobs.
  • 12 months limited parts warranty

Key Specs

AttributeSpecification

item#

7195154

Brand

TMB

Manufacturer's Warranty

1 year limited warranty

Ship Weight

58.3 LB

Max. PSI

2,950

Max. RPM

3,420

Power Source

Wired

Port Outlet Size

3/8 in
AttributeSpecification

Thread Type

SAE

Reservoir Capacity

4 Gal

Phase

AC

Horsepower

3

Action

Single Acting

Product Weight

51.5000 lb

Dimensions L x W x H (in.)

34.2 x 7.0 x 7.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
