This HeatStar High-Intensity Infrared Natural Gas Heater can be converted to run on propane with part#00289A, purchased separately from the manufacturer. Northern Tool + Equipment also offers this unit already set up for propane, Item#29131 in the link below.

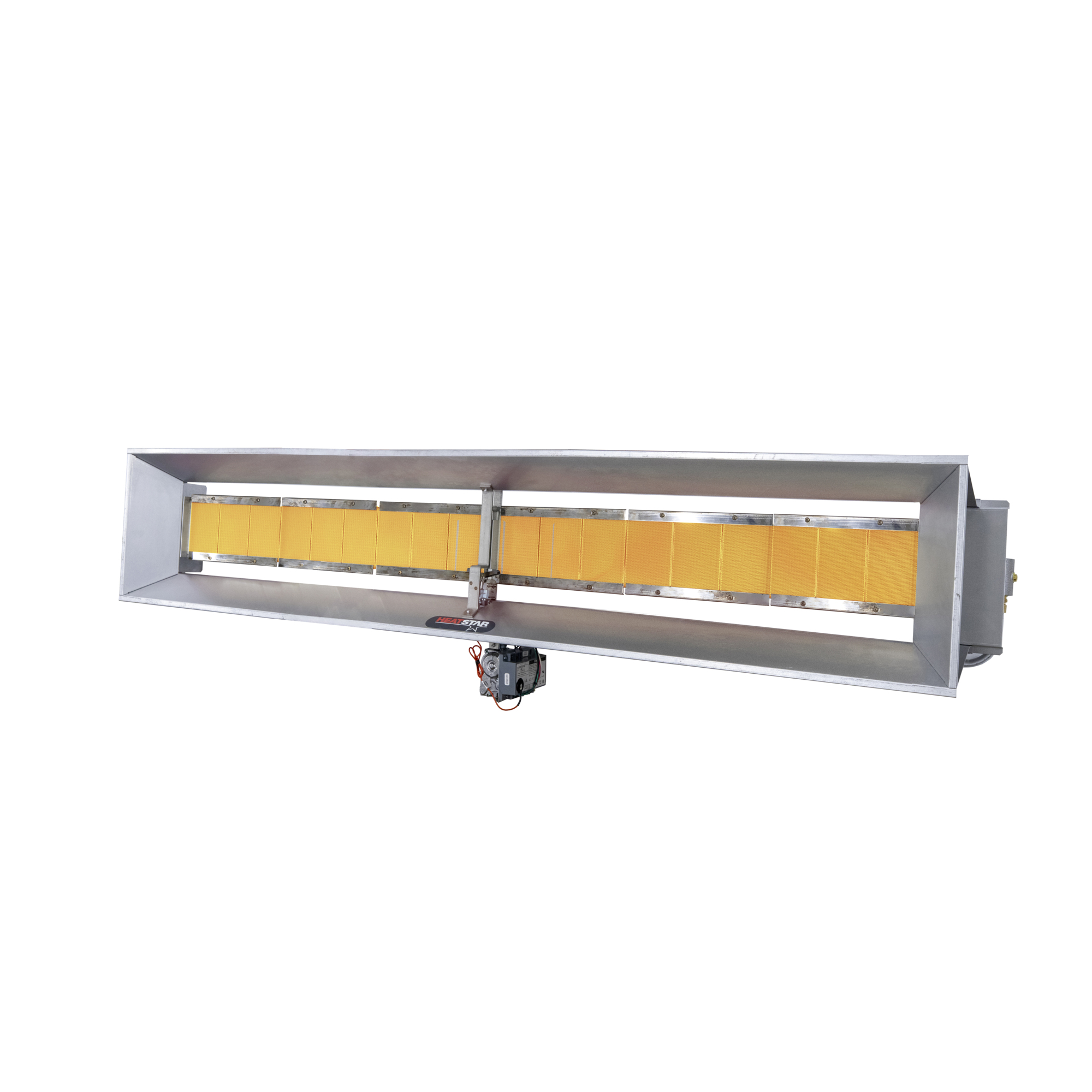

HeatStar Natural Gas High-Intensity Radiant Spark Ignition Overhead Heater
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
From
$619.99
Save up to $450.00
Choose Options for complete product description, reviews and purchasing.
Heat Output
- No direct venting required
- Additional burner orifices enables the installer to increase or decrease the heat output
- Spark ignition heaters ship with 40VA transformer
- Millivolt control heaters shipped with thermostat
- Noncorrosive materials are used throughout heater construction
See full description
Features + Benefits
- No direct venting required
- Additional burner orifices enables the installer to increase or decrease the heat output
- Spark ignition heaters ship with 40VA transformer
- Millivolt control heaters shipped with thermostat
- Noncorrosive materials are used throughout heater construction
-
Is a conversion kit available for this to run on LP..?
-
Helpful?
-
Yes, there is a conversion kit available for this heater, the part number is 00289A.
Helpful?
-
-
How can I reduce the distance from the top of the heater to the ceiling?
My flat wood patio ceiling is 11 feet from the ground. If I mount the heater 34" below the ceiling per the owners manual, it would be less than 8 feet above the ground. Can I shield the ceiling from the heat by some approved method. Other brands only have an 18" distance from top to ceiling whereas this model requires 34".
-
Thank you for your inquiry. The clearances are based on certifications by the CSA. You can use a heat shield on the ceiling, but must comply with the clearances in the owners manual.
Helpful?
-
This heater requires a minimum of 34" from the top to combustibles (wood, insulation, etc.). You can use a heat shield to reduce this distance. Check with local building/heating codes to comply with heat shield requirements.
Helpful?
-
-
Ceiling to floor requirement
Hello, I need to find out if this or another unit can be installed 9 feet from above the floor as that is my ceiling clearance. Thank you! Julie
-
The clearance from the bottom is 68" from any combustibles. Typical installations are mounted at 10-12 feet.
Helpful?
-
The typical mounting height for this unit is 10 to 12 feet. The clearance from the bottom is 68" from any combustibles.
Helpful?
-
-
Do you sell a propane conversion for this heater?
"HeatStar High-Intensity Natural Gas Heater - 40,000 BTU, Model# F140628"
-
A conversion kit is not available for the unit, however replacement parts can be purchased to convert the unit.
Helpful?
-
We do not offer a propane conversion kit for this welder. We do have the same heater as above in a propane version that I will list below.
Helpful?
-
-
No Direct Venting required
Yet, "Vent Free"...."No". Does that mean it has to be vented, or not?
-
Thank you for your inquiry. The heater itself does not have a direct vent. However, proper ventilation is required to run the heater.
Helpful?
-
Direct venting is not required. It is not vent free because it is not designed to operate in an enclosed room with no ventilation. There must be some ventilation: This can include fans, exhaust fans, wind, and/or natural ventilation (open space like a patio).
Helpful?
-
-
Clearances
What is the minimum mounting height and what are the clearances to combustibles?
-
Thank you for your inquiry. You must have 8 feet of clearance for the heater as well as 4 feet from combustibles.
Helpful?
-
This item has a minimum mounting height of 8 feet and requires combustible clearance of 4 feet.
Helpful?
-
-
Is the heater a thermol couple with pilot or is it a no pilot igniter for the burner gas
-
This HeatStar High-Intensity Infrared Natural Gas Heater has a thermocouple with pilot.
Helpful?
-
Thank you for your inquiry. The heater does have a thermocouple with pilot.
Helpful?
-
-
Is this Heater Weather Proof?
We are looking for a heater to mount on our open air deck. Want to make sure it can be left out in the rain and weather.
-
This Overhead heater must be removed from the outside elements due to the nature of the tiles and the exposed pilot light.
Helpful?
-
This infrared natural gas heater is not weatherproof. It cannot be installed outdoors. Click the links below to view outdoor natural gas heaters.
Helpful?
-
-
Whats min clearance needed from vehicles to avoid paint damage.
1 answer-
The minimum required clearances to combustibles will be 40" from the top, 30" from the sides, 30" from the back and 118" below the heater.
Helpful?
-
-
I use this for patio heater in California. It is not directly exposed to rain but to humidity and dew in morning. We want to cover when not in use. Do you have a cover for this unit to reduce exposure to outdoors??
1 answer-
The heater is for indoor use only. There is no cover available for it.
Helpful?
-
