Thank you for your inquiry. The clearances are based on certifications by the CSA. You can use a heat shield on the ceiling, but must comply with the clearances in the owners manual.

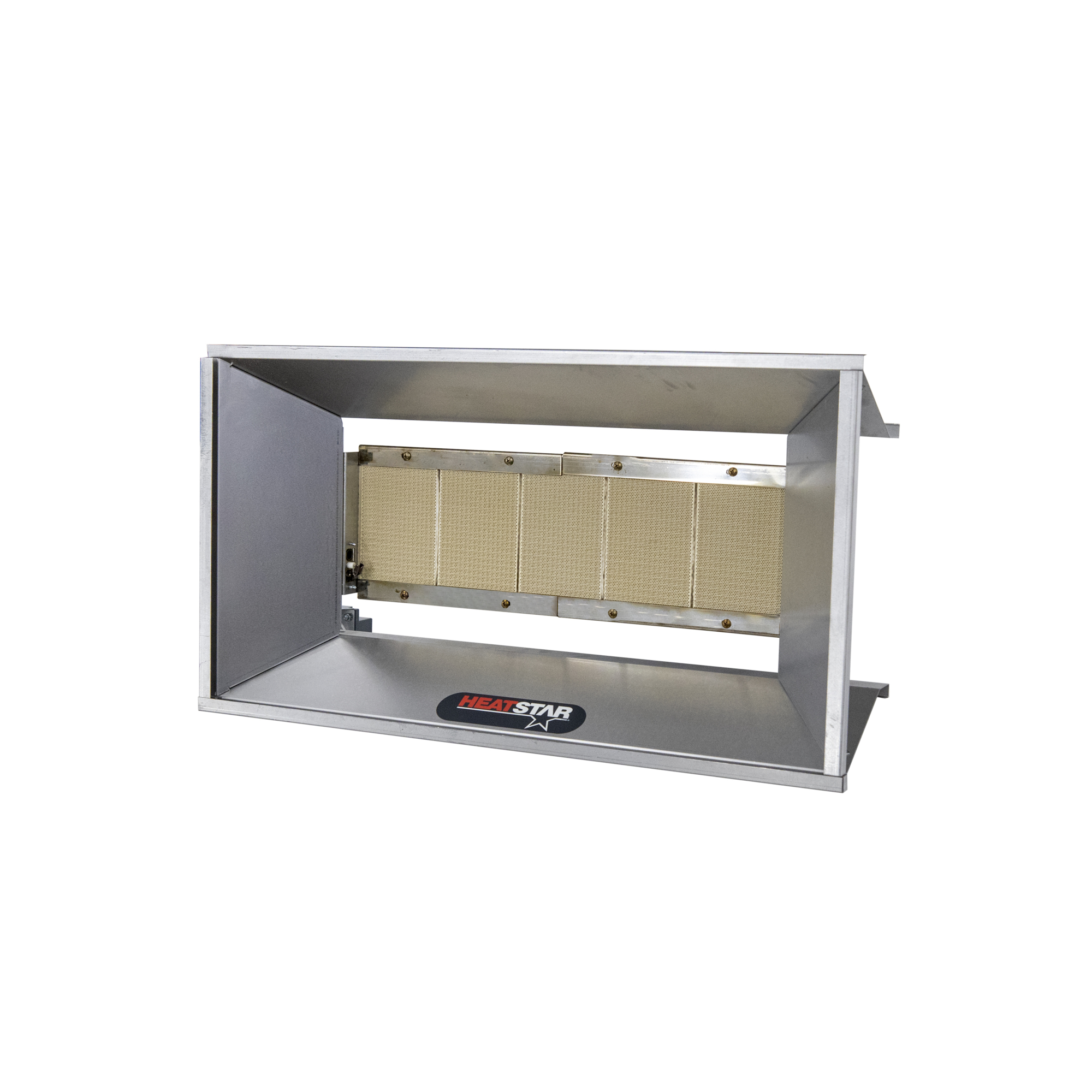

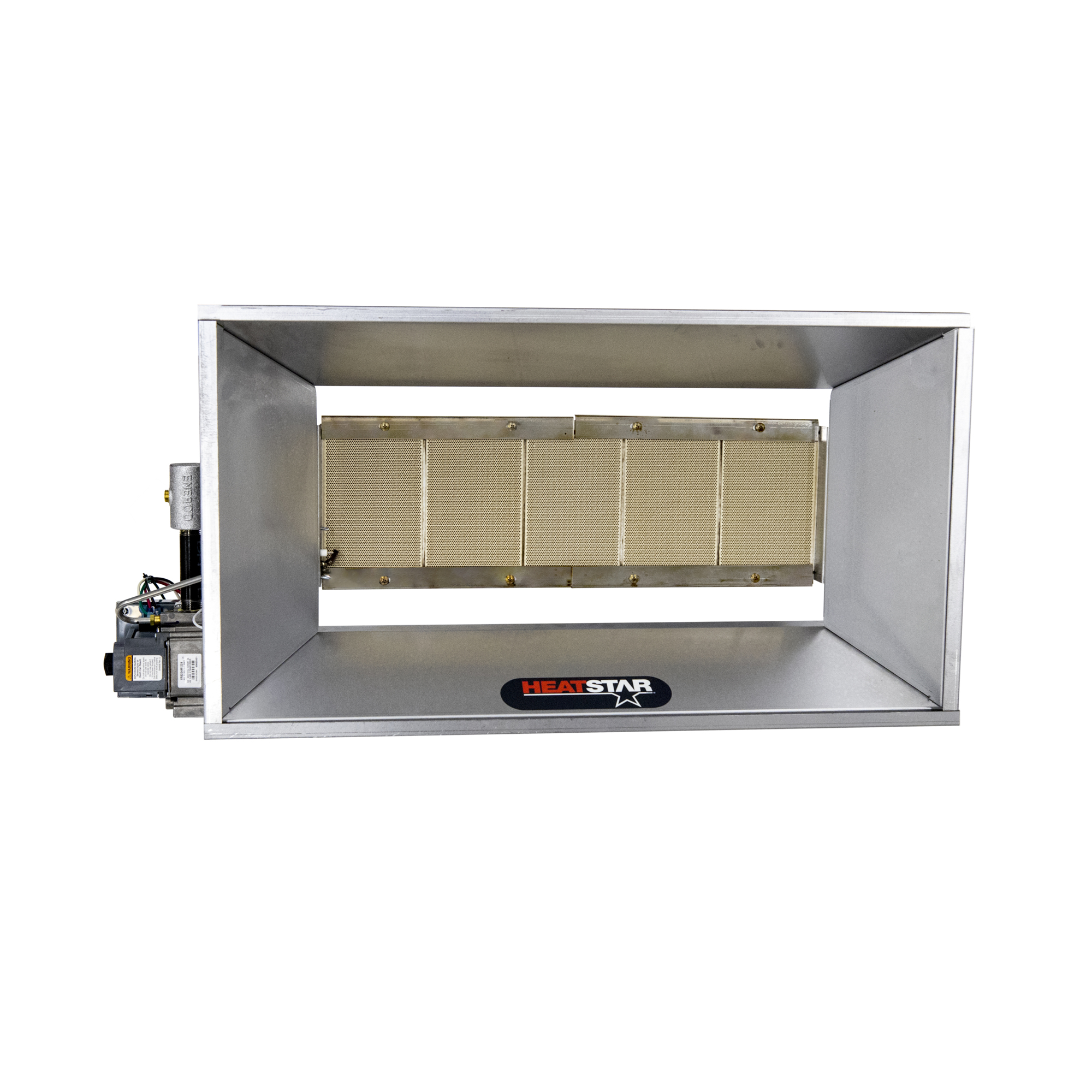

HeatStar High-Intensity Natural Gas Heater, 40,000 BTU, Model# F140629
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$619.99
- No direct venting required
- Requires fresh air intake venting
- Additional burner orifices enables the installer to increase or decrease the heat output
- Spark ignition heaters ship with 40VA transformer
- Noncorrosive materials are used throughout heater construction
See full description
Price for all four:
$700.96
-
How can I reduce the distance from the top of the heater to the ceiling?
My flat wood patio ceiling is 11 feet from the ground. If I mount the heater 34" below the ceiling per the owners manual, it would be less than 8 feet above the ground. Can I shield the ceiling from the heat by some approved method. Other brands only have an 18" distance from top to ceiling whereas this model requires 34".
-
Helpful?
-
This heater requires a minimum of 34" from the top to combustibles (wood, insulation, etc.). You can use a heat shield to reduce this distance. Check with local building/heating codes to comply with heat shield requirements.
Helpful?
-
-
Ceiling to floor requirement
Hello, I need to find out if this or another unit can be installed 9 feet from above the floor as that is my ceiling clearance. Thank you! Julie
-
The clearance from the bottom is 68" from any combustibles. Typical installations are mounted at 10-12 feet.
Helpful?
-
The typical mounting height for this unit is 10 to 12 feet. The clearance from the bottom is 68" from any combustibles.
Helpful?
-
-
Do you sell a propane conversion for this heater?
"HeatStar High-Intensity Natural Gas Heater - 40,000 BTU, Model# F140628"
-
A conversion kit is not available for the unit, however replacement parts can be purchased to convert the unit.
Helpful?
-
We do not offer a propane conversion kit for this welder. We do have the same heater as above in a propane version that I will list below.
Helpful?
-
-
Can this be mounted outdoors in a pergola ?
1 answer-
The heater is for indoor installation only.
Helpful?
-
-
Do you sell a mounting bracket for this device?
1 answer-
We do not sell the mounting bracket through Northern Tool. To order the mounting bracket part number MHF114581, please contact our sister company Jacks Small Engine at the following link https://www.jackssmallengines.com/.
Helpful?
-
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Overhead Natural Gas Garage Heaters
See All HeatStar Overhead Natural Gas Garage Heaters
Currently Viewing This Product
Specifications
Specifications
HeatStar High-Intensity Natural Gas Heater, 40,000 BTU, Model# F140629
Mr. Heater Big Maxx Natural Gas Garage/Workshop Unit Heater, 50,000 BTU, LP Conversion Kit, Model# F260550
Mr. Heater Big Maxx Natural Gas Garage/Workshop Unit Heater, 80,000 BTU, Model# MHU80NG
HeatStar High-Intensity Infrared Natural Gas Heater, 60,000 BTU, Model# F180629
Heat Output
Same
40,000 Btu/hour
50,000 Btu/hour
80,000 Btu/hour
60,000 Btu/hour
Heat Type
Same
Radiant
Forced Air
Forced Air
Infrared
Blower Included
Same
No
Yes
Yes
No
Amps
Same
0.48
-
-
2.81
Thermostat Included
Same
No
No
No
No
Product Weight
Same
lb
59.0800 lb
88.0000 lb
lb
Dimensions L x W x H (in.)
Same
x 19.25 x 12.0 in
24.0 x 25.5 x 13.0 in
30.31 x 22.04 x 27.55 in
45.25 x 19.25 x 12.0 in
Heating Capability
Same
-
1,667 ft²
2,000 ft²
-
Needs Direct Venting
Same
-
Yes
-
-
Blower CFM
Same
-
550 cfm
950 cfm
-
Volts
Same
-
120
120
-
