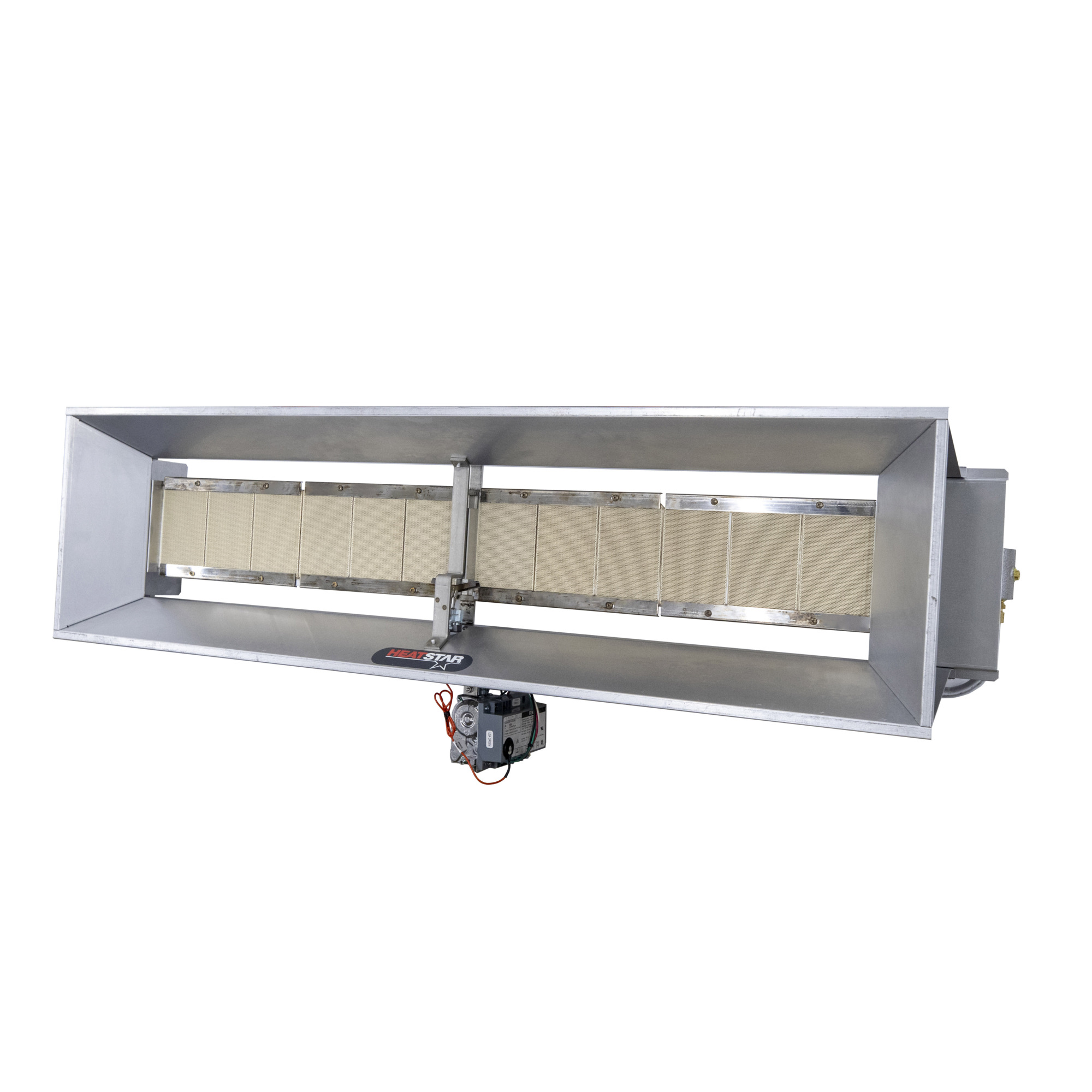

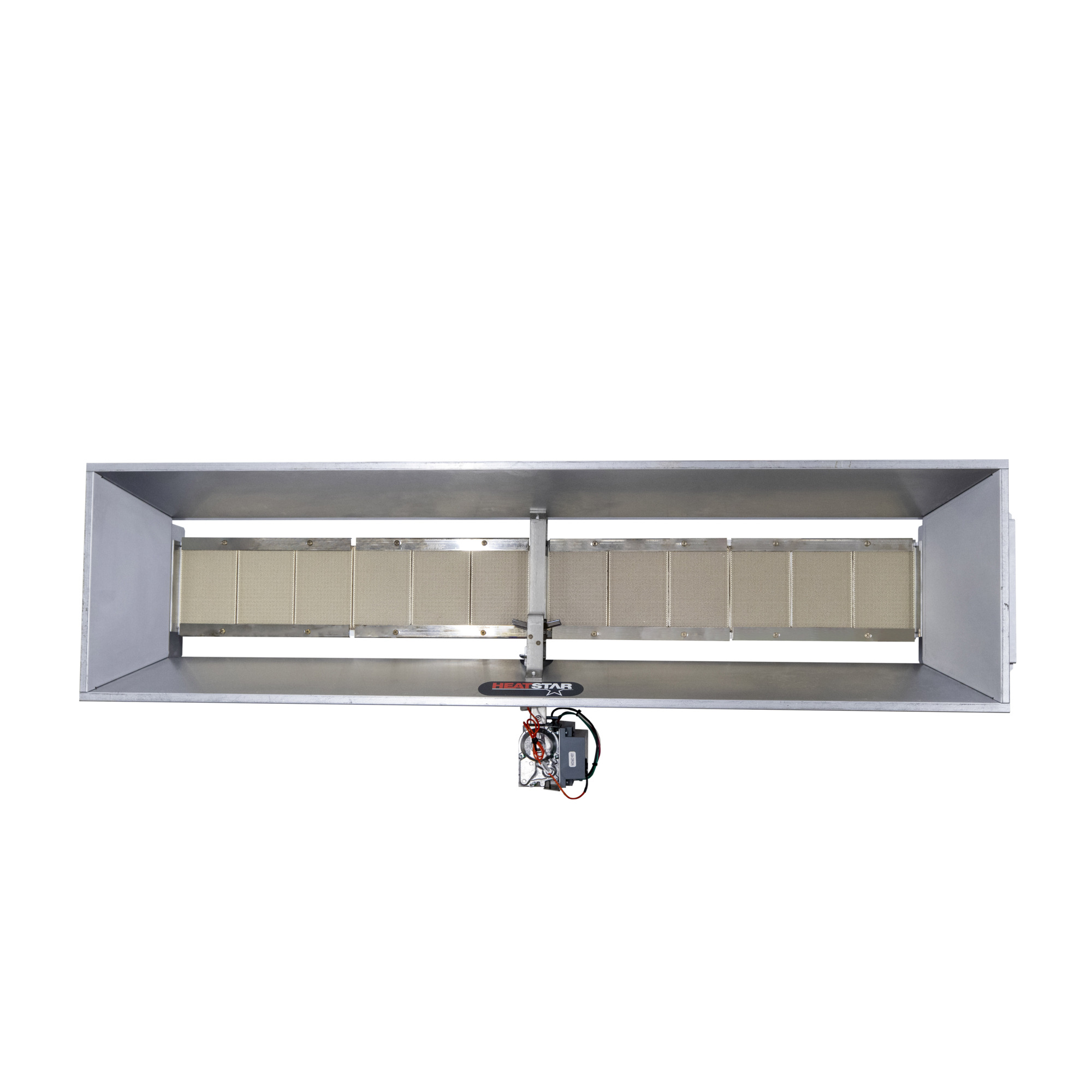

HeatStar High-Intensity Infrared Natural Gas Heater, 100,000 BTU, Model# F191830

Item# 29132
"HeatStar High-Intensity Infrared Natural Gas Heater, 100,000 BTU, Model# F191830"
HeatStar High-Intensity Infrared Natural Gas Heater, 100,000 BTU, Model# F191830

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

HeatStar High-Intensity Infrared Natural Gas Heater, 100,000 BTU, Model# F191830

Click or Tap image to Zoom

$943.99

  • Shipping:

    Factory shipped

  • Store Pickup:

  • No direct venting required
  • Additional burner orfices enables the installer to increase or decrease the heat output
  • Spark ignition heaters ship with 40VA transformer
  • Millivolt control heaters shipped with thermostat
  • Noncorrosive materials are used throughout heater construction

See full description

Complete Your Solution

  • HeatStar High-Intensity Infrared Natural Gas Heater, 100,000 BTU, Model# F191830
  • SunStar Heating Products 24 Volt Thermostat, Model# 30562000
  • Mr. Heater Universal Gas Connection Kit, Model# F271239
Price for all three:

$999.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This HeatStar High-Intensity Infrared Natural Gas Heater provides quiet, clean heat for pole barns, factories, warehouses, loading docks and more. U.S.A.

What's Included

    (1) Heater

Downloads

Product Manual

Features + Benefits

  • No direct venting required
  • Additional burner orfices enables the installer to increase or decrease the heat output
  • Spark ignition heaters ship with 40VA transformer
  • Millivolt control heaters shipped with thermostat
  • Noncorrosive materials are used throughout heater construction

Key Specs

AttributeSpecification

item#

29132

Brand

HeatStar

Manufacturer's Warranty

1 year limited warranty

Ship Weight

56.0 LB

Heat Output

100,000 Btu/hour

Heat Type

Infrared
AttributeSpecification

Blower Included

No

Amps

1.095

Thermostat Included

No

Product Weight

lb

Dimensions L x W x H (in.)

60.5 x 21.5 x 11.0 in

Reviews

Questions & Answers

1071 Reviews This action will navigate to reviews.

Questions

1–8 of 8 Questions
Sort by:

  1. Clearances

    What is the minimum mounting height and what are the clearances to combustibles?

    1. Thank you for your inquiry. You must have 8 feet of clearance for the heater as well as 4 feet from combustibles.

      Helpful?

    2. This item has a minimum mounting height of 8 feet and requires combustible clearance of 4 feet.

      Helpful?

  2. Is the heater a thermol couple with pilot or is it a no pilot igniter for the burner gas

    1. This HeatStar High-Intensity Infrared Natural Gas Heater has a thermocouple with pilot.

      Helpful?

    2. Thank you for your inquiry. The heater does have a thermocouple with pilot.

      Helpful?

  3. Whats min clearance needed from vehicles to avoid paint damage.

    1 answer

    1. The minimum required clearances to combustibles will be 40" from the top, 30" from the sides, 30" from the back and 118" below the heater.

      Helpful?

  4. Do you have brackets for wall mounting this heater ?

    1 answer

    1. This heater cannot be wall mounted. It would need to be hung with rods or angle iron brackets from the ceiling.

      Helpful?

  5. Looking to install in my 24x15 pavilion that I close up in the Fall and Winter. I understand there’s a thermostat but being outside I’m betting the heat will just be cranking full all the time.  Is there a low, medium or high setting as well?

    1 answer

    1. The heater does not have multiple heat settings. The heater does require a thermostat to regulate the temperature.

      Helpful?

  6. will propane work in this heater?

    1 answer

    1. This heater can only be run on natural gas. See item #19133 for the 100,000 BTU heater for propane.

      Helpful?

  7. What the Sq. FEAT DOES IT HEAT

    1 answer

    1. This heater would heat approximately 1200 square feet.

      Helpful?

  8. What’s the minimum I haft to hang below ceiling , I have metal on ceiling

    1 answer

    1. The minimum clearance from the top of the heater to combustibles is 30".

      Helpful?
