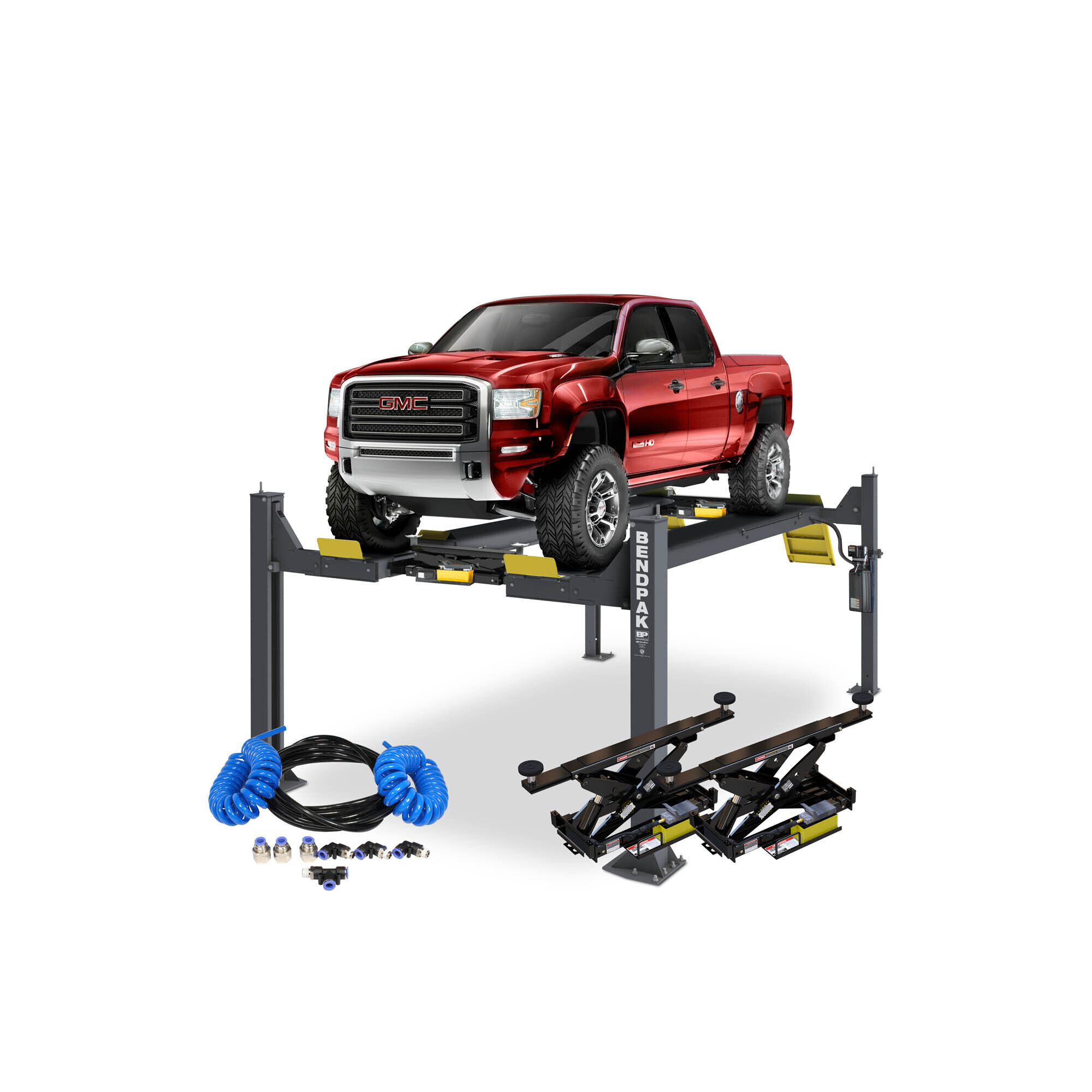

BendPak Open-Front Alignment Kit — 14,000-Lb. Capacity, Adjustable Height, Built-In Lubrication, Model# HDSO-14AX

Item# 6762938
BendPak Open-Front Alignment Kit — 14,000-Lb. Capacity, Adjustable Height, Built-In Lubrication, Model# HDSO-14AX

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BendPak Open-Front Alignment Kit — 14,000-Lb. Capacity, Adjustable Height, Built-In Lubrication, Model# HDSO-14AX

Click or Tap image to Zoom

$18,695.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Package Deal: (1) HDSO-14AX + (2) RJ7W + (1) Airline Kit
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
  • Heavy?duty turn plates and integrated rear slip?plates included
  • Multi?position turn plate pockets
  • Automatic leveling system

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

"The HDSO14AX is an open-front, 14,000-lb. capacity alignment lift. The “open” design makes it easier to access the front turn plates and undercarriage, and features front turn plates and rear slip plates built right into the runways. Wheels respond to adjustments with no resistance. We engineered the HDSO14AX alignment lift without a front crossbar, so operators can easily enter and exit from beneath the vehicle. Now the process of front-end adjustment becomes quick and trouble-free. This is a must for busy alignment bays. Additionally, for precise front-lift leveling, nothing beats our patented, adjustable front outrigger tubes. The infinitely adjustable pitch compensates for excessive loads and sloped floors. Slip plates Rear-facing multi-caster slip plates and front-facing turn plates permit precise, free-floating alignment. Turn plates This alignment lift features two recessed turn plate pockets that let you freely position the corrosion-resistant, galvanized turn plates. Dual-hub cable sheaves BendPak alignment lifts include strong, durable and oversized 10.5” diameter cable sheaves within the runway and cross tubes, as well as 2.25” diameter sheave axles. These powerful components keep your car lift running for many years, far past the point other brands’ lifts have already given out or required expensive parts replacements. Heavy-duty aircraft cable BendPak runs four aircraft-quality steel cables (that measure in at a robust 1/2” diameter, 6 x 25), within the columns. They are literally the ultimate standard for high-quality cable construction and safe lifting. Adjustable height locking positions Alignments are often done by different mechanics in a busy shop. The multiple locking heights allow different people to work on the HDSO14AX alignment lift at the height appropriate for them. Since it’s an open-front design, getting under is easy no matter how tall they are. Built-in lubrication Grease fittings are an essential component to every car lift we make. They keep the cable sheaves lubricated, so you don’t have to worry about productivity and safety in our design"

What's Included

    (3) 1 Four Post 2 Rolling Jacks

Features + Benefits

  • Package Deal: (1) HDSO-14AX + (2) RJ7W + (1) Airline Kit
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
  • Heavy?duty turn plates and integrated rear slip?plates included
  • Multi?position turn plate pockets
  • Automatic leveling system
  • Multiple auto-leveling locking positions
  • ALI Certified

Key Specs

AttributeSpecification

item#

6762938

Brand

BendPak

Manufacturer's Warranty

5 year limited warranty

Ship Weight

4616.0 LB

Capacity

14,000 lb

Max. Rise

6 ft

Horsepower

3 HP

Motor Phase

Single-phase
AttributeSpecification

Volts

220

Lock Spacing

4 in

Locking Position (qty.)

15

Time of Full Rise

85 sec.

Drive-Thru Clearance

98 in

Material

Steel

Product Weight

3670.0000 lb

Dimensions L x W x H (in.)

244.5 x 143.25 x 106.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty

Compare with Most Popular in Four-Post Lifts

See All Four-Post Lifts

See All BendPak Four-Post Lifts

Specifications

Specifications
BendPak Open-Front Alignment Kit — 14,000-Lb. Capacity, Adjustable Height, Built-In Lubrication, Model# HDSO-14AX
BendPak Open-Front Alignment 4-Post Vehicle Lift, 14,000-Lb. Capacity, Model# HDSO14AX
BendPak 4-Post Car Lift, 9000-Lb. Capacity, Model# HD-9
BendPak 4-Post Extended Truck Lift, 40,000-Lb. Capacity, Model# HDS-40X
Capacity
Same

14,000 lb

14,000 lb

9,000 lb

40,000 lb

Max. Rise
Same

6 ft

6.5 ft

6 ft

5.8 ft

Horsepower
Same

3 HP

3 HP

3 HP

5 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

220

220

220

220

Lock Spacing
Same

4 in

4 in

4 in

4 in

Locking Position (qty.)
Same

15

15

14

13

Time of Full Rise
Same

85 sec.

60 sec.

50 sec.

75 sec.

Drive-Thru Clearance
Same

98 in

98 in

86.5 in

109 in

Material
Same

Steel

Steel

Steel

Steel

Product Weight
Same

3670.0000 lb

3,586 lb

-

-

Dimensions L x W x H (in.)
Same

244.5 x 143.25 x 106.0 in

-

-

-
