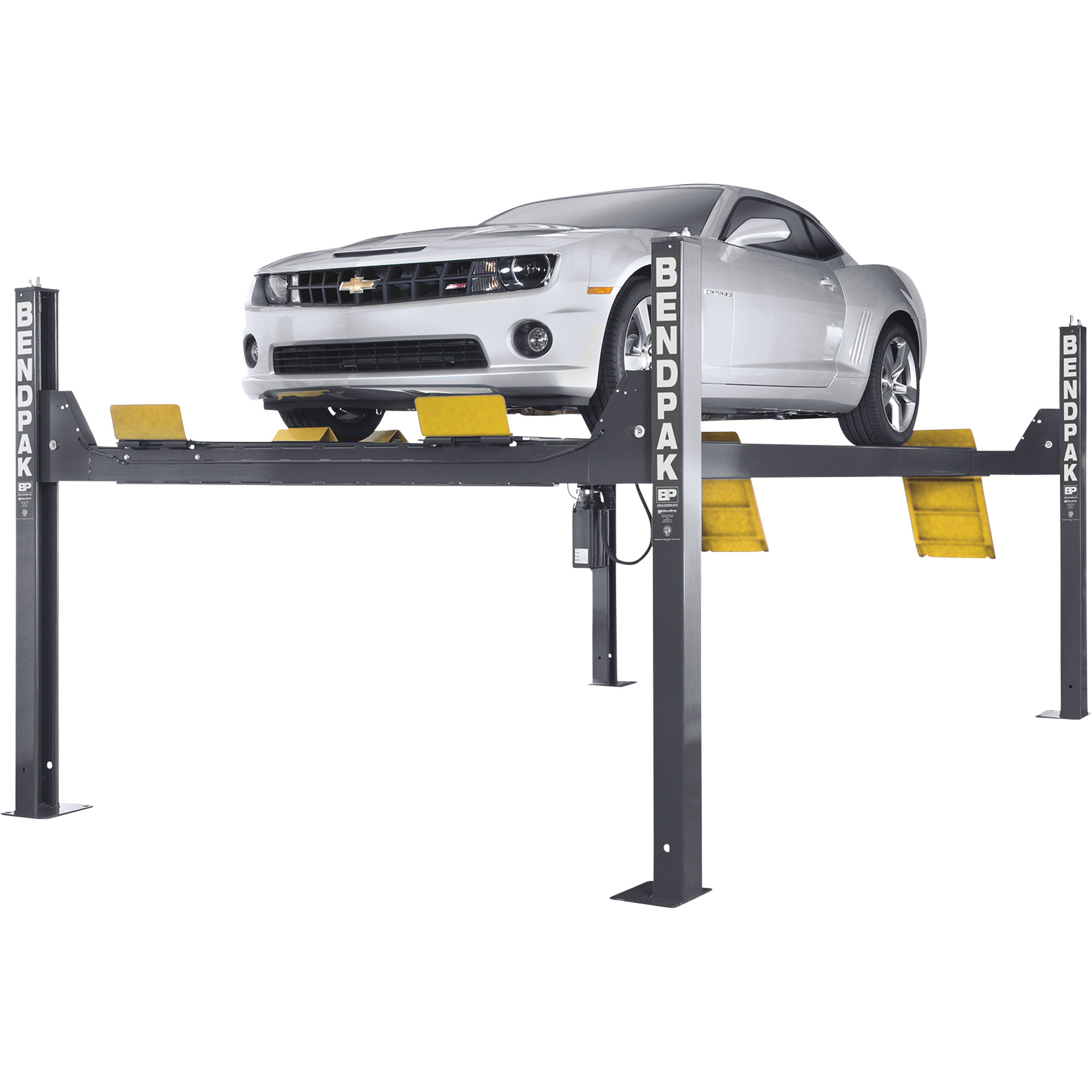

BendPak 4-Post Truck and Car Lift, 14,000-Lb. Capacity, Model# HDS-14

Item# 177790

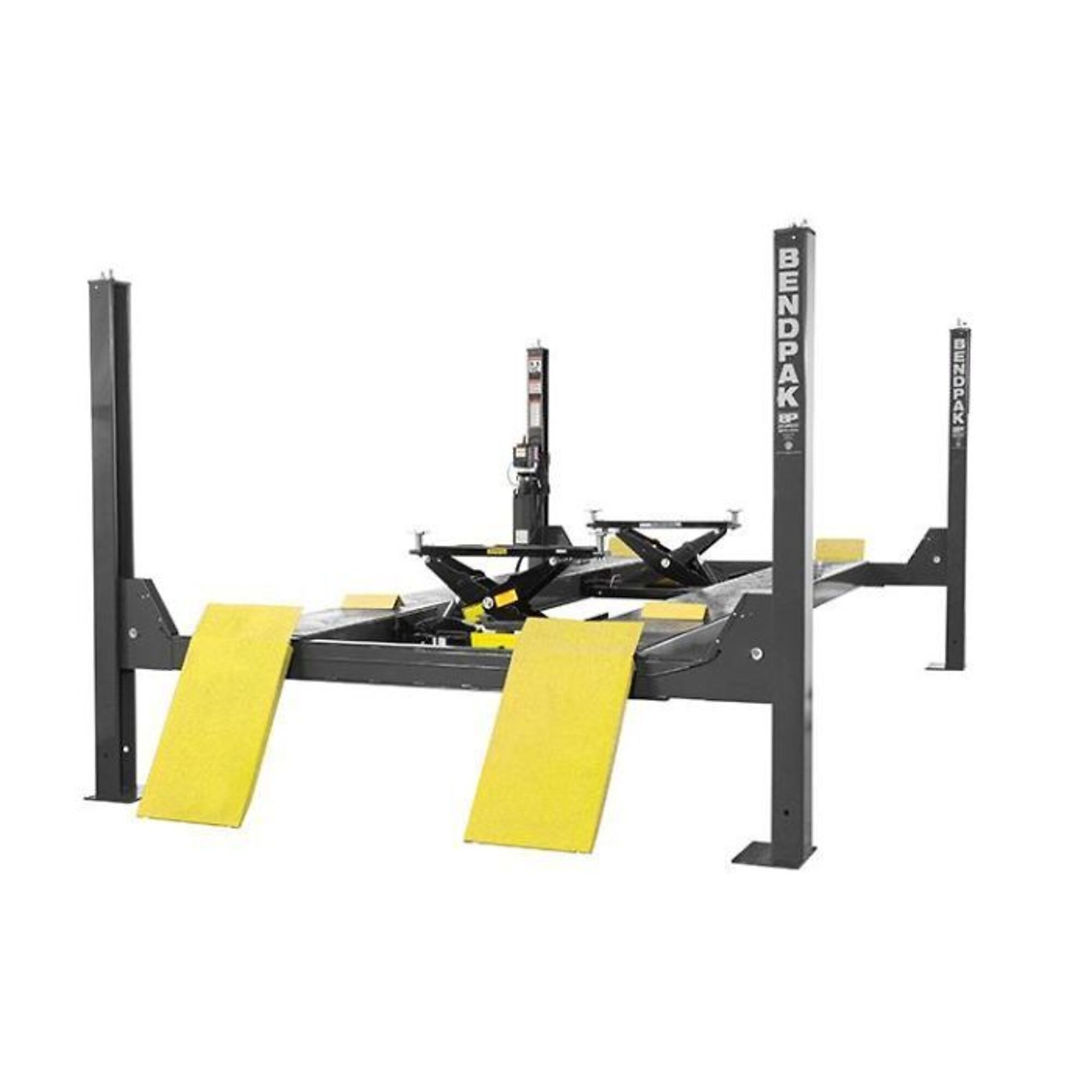

BendPak 4-Post Truck and Car Lift, 14,000-Lb. Capacity, Model# HDS-14

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BendPak 4-Post Truck and Car Lift, 14,000-Lb. Capacity, Model# HDS-14

Click or Tap image to Zoom

$8120.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Rail-kit for optional accessories
  • Electric/hydraulic power system that powers a single hydraulic cylinder mounted under the runway
  • Heavy-duty 1/2in. aircraft cables
  • Forklift Required
  • Rugged 1 3/8in. roller axles

See full description

Complete Your Solution

  • BendPak 4-Post Truck and Car Lift, 14,000-Lb. Capacity, Model# HDS-14
  • BendPak Rolling Drain Pan for 4-Post Truck and Car Lifts, Model# DP-30
  • BendPak Sliding Jack Platform for 4-Post Lifts, Model# JP-6

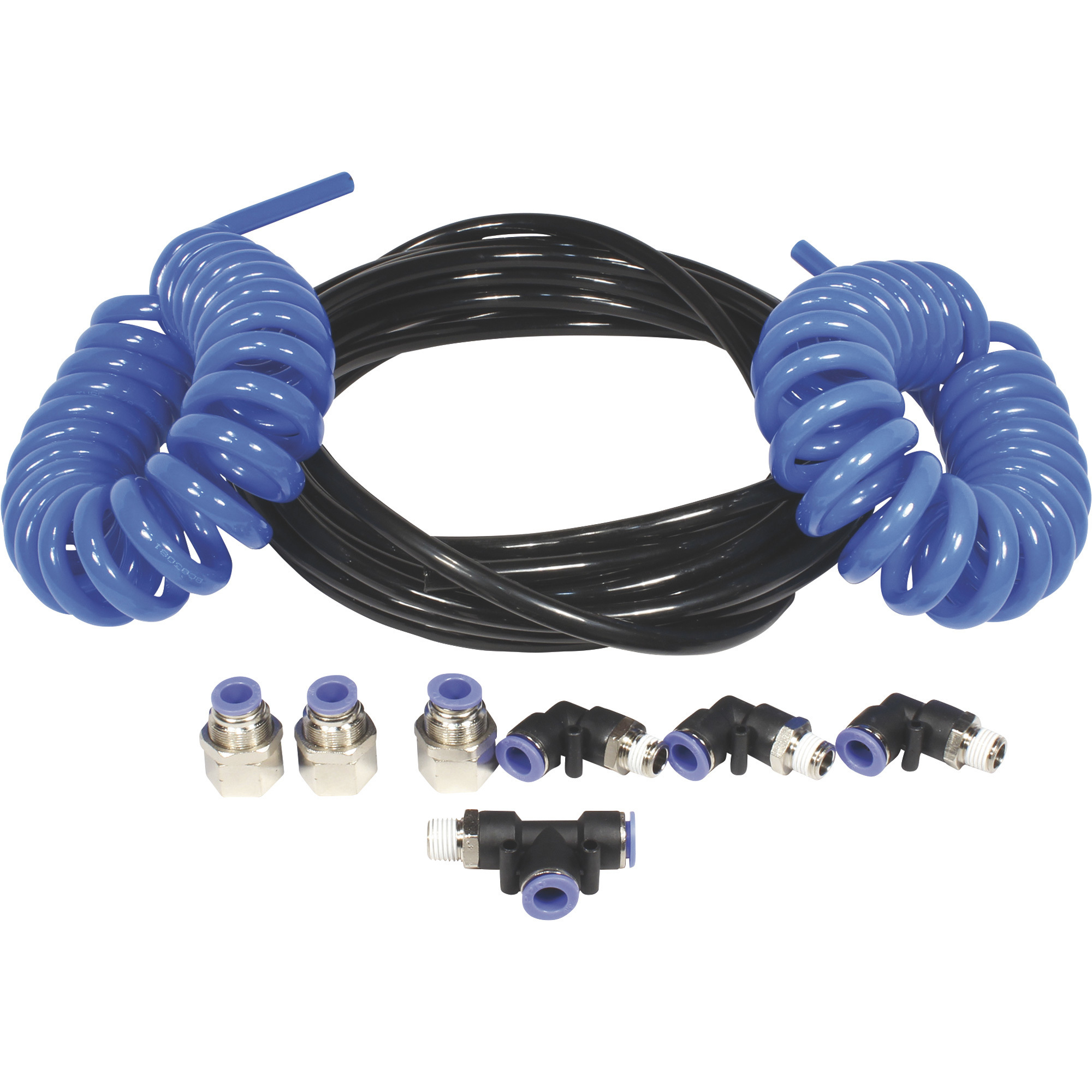

  • BendPak Integrated Rolling Bridge Airline Kit for 4-Post Car Lifts, Model# AK-14
Price for all four:

$9231.00

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

BendPak's tradition of building professional-quality lift systems continues with this 14,000-lb. capacity 4-post lift. Item too large for lift gate. Requires forklift on site for unloading. This item is delivered by flatbed truck Monday-Friday with 24 hours advance notice. A forklift is required to offload the lift from a dock-height flatbed trailer.

What's Included

    (1) 4-post truck and car lift system

Downloads

Product Manual

Features + Benefits

  • Rail-kit for optional accessories
  • Electric/hydraulic power system that powers a single hydraulic cylinder mounted under the runway
  • Heavy-duty 1/2in. aircraft cables
  • Forklift Required
  • Rugged 1 3/8in. roller axles
  • Multi-position safety locks and internal "anti-sway" slider blocks on each column
  • Nonskid ramp surface
  • Push-button safety release
  • Adjustable runways for different tread widths
  • Automatic leveling system
  • Integrated rear slip plates
  • Item too large for lift gate; Requires forklift on site for unloading
  • Oversized self-lubricating cable rollers

Key Specs

AttributeSpecification

item#

177790

Brand

BendPak

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

2668.0 LB

Capacity

14,000 lb

Max. Rise

6.4 ft

Horsepower

3 HP
AttributeSpecification

Motor Phase

Single-phase

Volts

220

Lock Spacing

4 in

Locking Position (qty.)

15

Time of Full Rise

60 sec.

Drive-Thru Clearance

98.25 in

Material

Steel

Reviews

Questions & Answers

Questions

1–8 of 8 Questions
Sort by:

  1. What is your recommended type and length of anchors to install the HDS14x 14000lb lift?

    1 answer

    1. The anchor bolt specifications are 4.75 inches long x 0.75 inches in diameter. The torque of the anchor bolts will need to be 85-95 foot pounds. The torque can be no less than 80 and no more than 95 foot pounds.

      Helpful?

  2. what is the max wheelbase?

    1 answer

    1. The maximum wheel base would be 140".

      Helpful?

  3. HOW WIDE AND HOW LONG

    1 answer

    1. This lift has an overall width of 130 inches and an overall length of 241 inches.

      Helpful?

  4. Is this lift Made In USA or Imported?

    1 answer

    1. This item is made in the United States of America.

      Helpful?

  5. correct caster for this lift

    1 answer

    1. A caster kit for this 14,000 lb. capacity lift is not available. The highest capacity lift BendPak makes a caster kit for is their 9000 lb. model. Click the links below to view that 9000 lb. lift and its caster kit.

      Helpful?

  6. The picture of this lift shows a front and rear lifts between the main rails are they included? These lifts allow you to lift the front or rear wheels

    The picture of this lift shows a front and rear lifts between the main rails are they included? These lifts allow you to lift the front or rear wheels off of the lift.

    1 answer

    1. The pictured lifts that allow you to lift the front or rear wheels are not included with the BendPak 4 post lift.

      Helpful?

  7. Can this lift be used outside?

    1 answer

    1. You can use this lift outdoors but any warranty issues due to the elements would not be covered.

      Helpful?

  8. Does this lift come with the jacks

    1 answer

    1. This lift does not come with the jacks. Jacks that are compatible with this lift are available (#177794) See Below.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

See All Lift Accessories

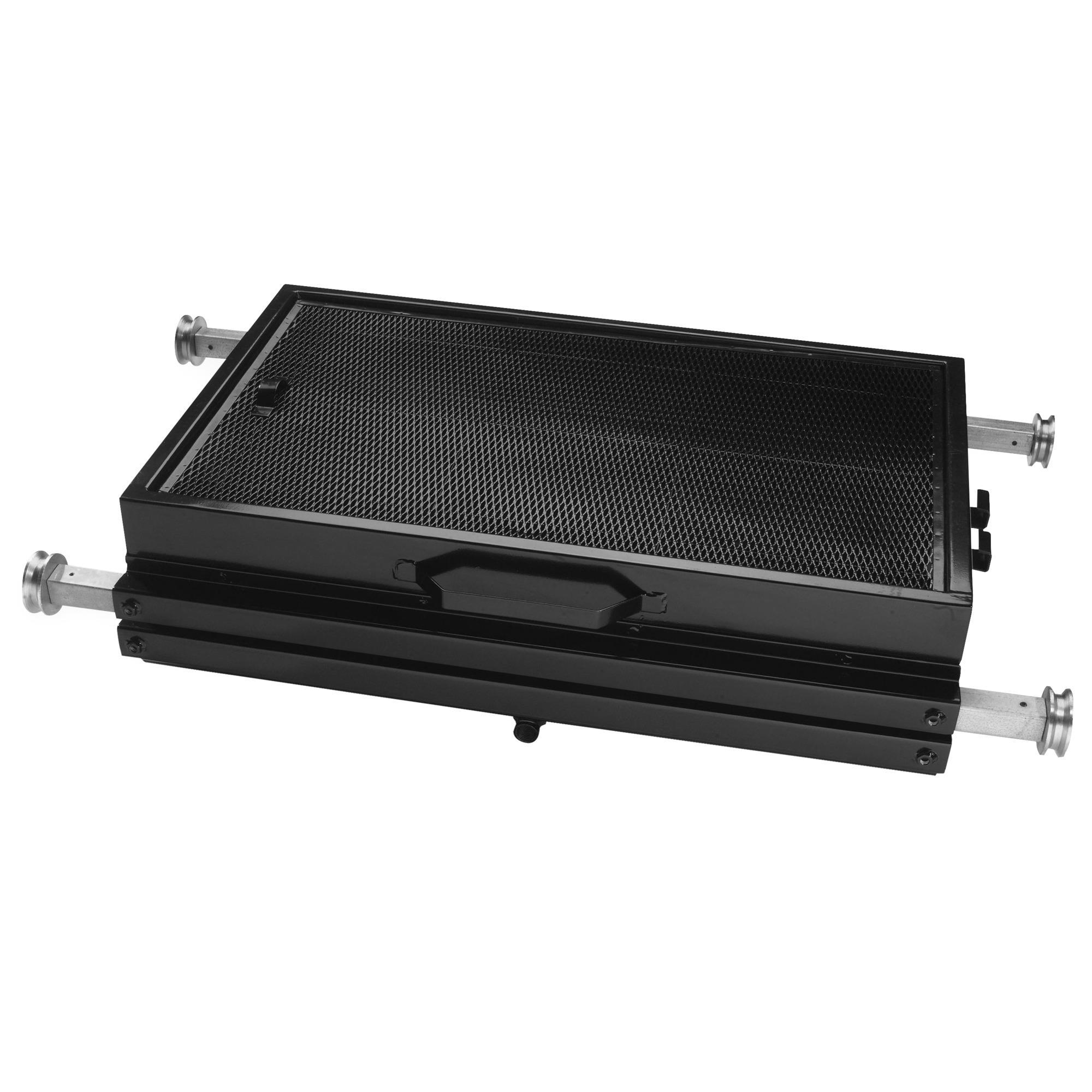

BendPak Rolling Drain Pan for 4-Post Truck and Car Lifts, Model# DP-30
4.0 out of 5 stars. 2 reviews

BendPak Rolling Drain Pan for 4-Post Truck and Car Lifts, Model# DP-30

Item # 144625

$525.00
See All Lift Accessories

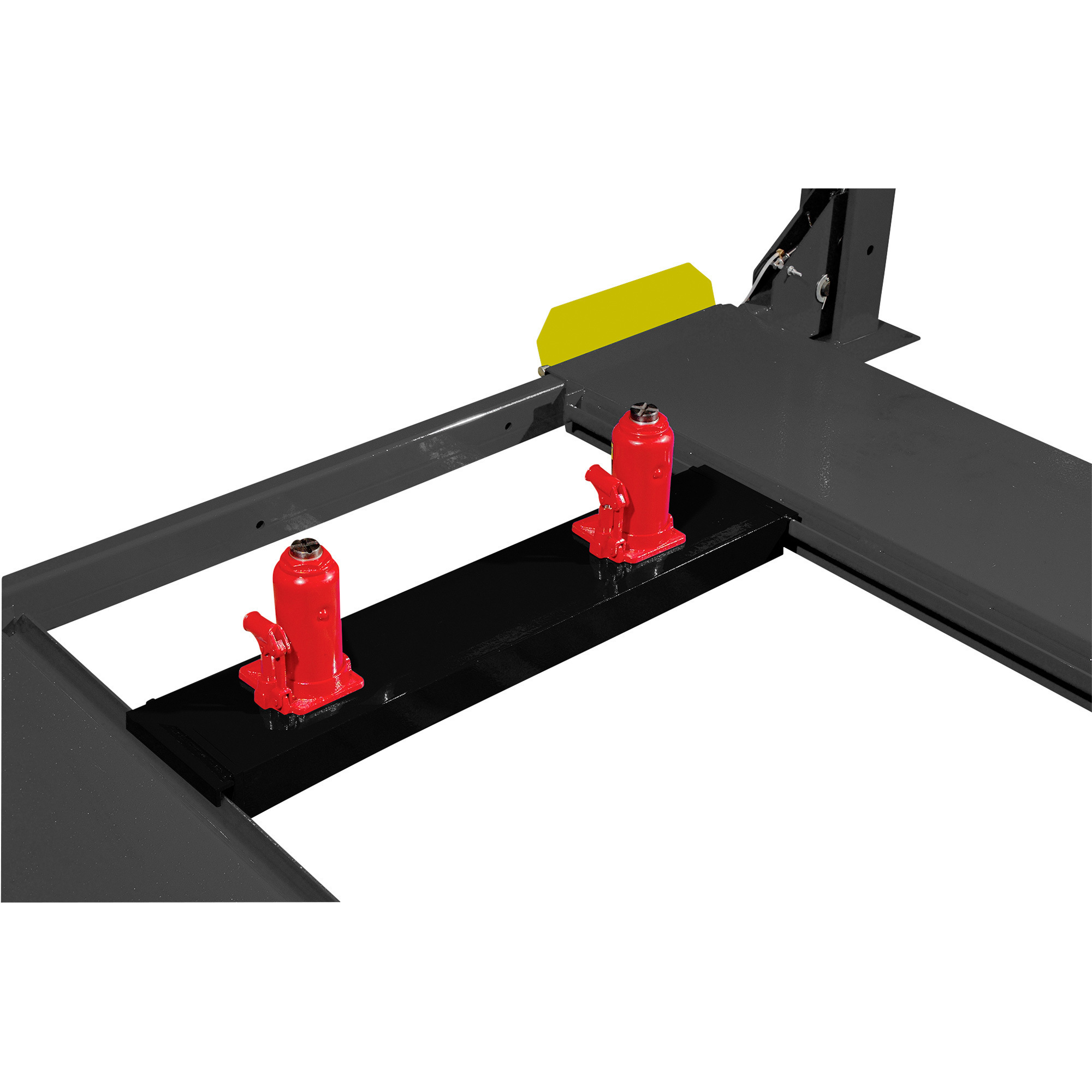

BendPak Sliding Jack Platform for 4-Post Lifts, Model# JP-6
4.2 out of 5 stars. 6 reviews

BendPak Sliding Jack Platform for 4-Post Lifts, Model# JP-6

Item # 144631

$456.00

Warranty

Manufacturer's Warranty

12 months parts/12months labor

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Repair Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.

Compare with Most Popular in Four-Post Lifts

See All Four-Post Lifts

See All BendPak Four-Post Lifts

Specifications

Specifications
BendPak 4-Post Truck and Car Lift, 14,000-Lb. Capacity, Model# HDS-14
BendPak Compact 4-Post Car Lift, 7000-Lb. Capacity, Model# HD-7P
BendPak 4-Post Compact Car Lift, 7000-Lb. Capacity, Model# HD-7W
Tuxedo 4-Post Storage Lift with Electric/Hydraulic Motor, 8000-Lb. Capacity, Model# FP8K-DX-XLT
Capacity
Same

14,000 lb

7,000 lb

7,000 lb

8,000 lb

Max. Rise
Same

6.4 ft

7 ft

7 ft

6.85 ft

Horsepower
Same

3 HP

3 HP

3 HP

2 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

220

220

220

115

Lock Spacing
Same

4 in

-

4 in

-

Locking Position (qty.)
Same

15

17

17

12

Time of Full Rise
Same

60 sec.

60 sec.

60 sec.

-

Drive-Thru Clearance
Same

98.25 in

76.5 in

86.5 in

-

Material
Same

Steel

Steel

Steel

-

Product Weight
Same

-

-

-

1,800 lb

See All Four-Post Lifts

See All BendPak Four-Post Lifts
