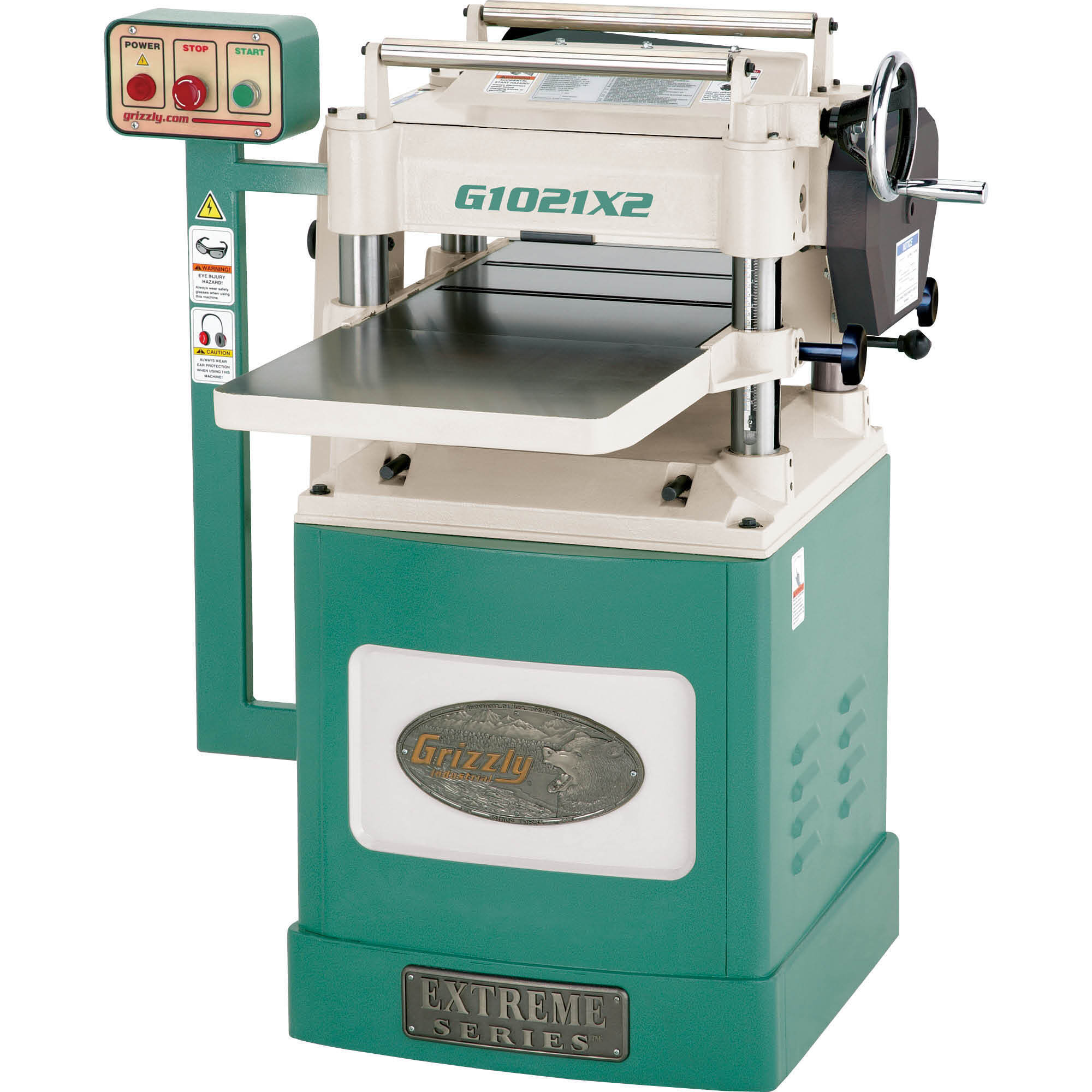

Grizzly G1021X2 - 15" 3 HP Extreme Series Planer w/ Helical Cutterhead

Item# 7511680
New
Grizzly G1021X2 - 15" 3 HP Extreme Series Planer w/ Helical Cutterhead

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Grizzly G1021X2 - 15" 3 HP Extreme Series Planer w/ Helical Cutterhead

Click or Tap image to Zoom

  • Extra-Large Ball Bearing Return Rollers
  • Cabinet-Style Stand

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

One of our all-time best-selling machines, this 15in. planer has the most important features woodworkers look for, such as a helical cutterhead with indexable carbide inserts, precision-ground cast-iron infeed and outfeed tables, extra-large ball bearing return rollers, large side-mounted hand wheel, cabinet-style stand, pedestal-mounted control panel, magnetic switch with thermal overload protection, internally mounted 3-HP motor, and powder coated paint for years of protection and good looks. All this makes for a machine beyond comparison and without rival! Made in and ISO 9001 factory Certified to CSA UL standards SPECIFICATIONS
  • Motor: 3 HP, 230V, single-phase, 12A
  • Maximum stock width: 15in.
  • Maximum stock thickness: 6-1/8in.
  • Minimum stock thickness: 3/16in.
  • Minimum stock length: 6in.
  • Maximum cutting depth: 1/8in.
  • Cutterhead diameter: 3in.

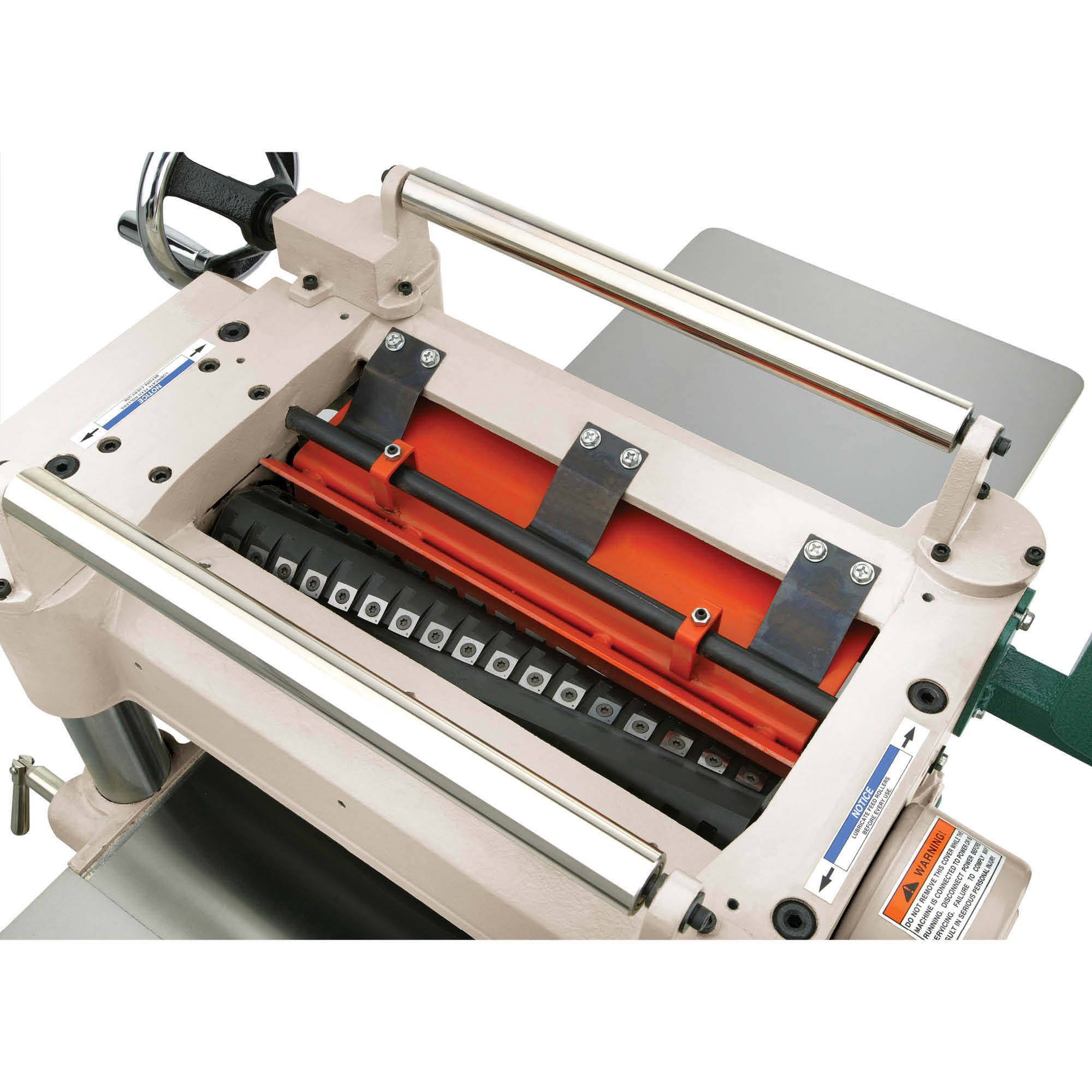

  • Cutterhead type: 4-row helical, 52in.serts
  • Insert size type: 15mm x 15mm x 2.5mm, indexable carbide
  • Cutterhead speed: 5000 RPM
  • Feed rate: 16 FPM 28 FPM
  • Table size with extensions: 15in. x 48in.
  • Dust port size: 4in.
  • Footprint: 21-1/2in. x 22-1/2in.
  • Overall dimensions: 37in. W x 48in. D x 44in. H
  • Approx. shipping weight: 553 lbs.

    • What's Included

      (1) Planers

    Features + Benefits

    • Extra-Large Ball Bearing Return Rollers
    • Cabinet-Style Stand

    Key Specs

    AttributeSpecification

    item#

    		7511680

    Brand

    		Grizzly

    Manufacturer's Warranty

    		1 year limited warranty

    Ship Weight

    		553.0 LB

    Product Type

    		Planers

    Max. Cutting Depth

    		0.125 in

    Max. Cutting Width

    		15 in

    Cutters (qty.)

    		4

    Knives (qty.)

    		52
    AttributeSpecification

    Max. RPM

    		3,450

    Cutterhead Speed

    		5,000 rpm

    Material

    		Iron Carbide

    Volts

    		230

    Amps

    		12

    Helical Head

    		Yes

    Product Weight

    		553.0000 lb

    Dimensions L x W x H (in.)

    		48.0 x 37.0 x 44.0 in

    Reviews

    Questions & Answers

    84 Reviews This action will navigate to reviews.

    Questions

    1–10 of 14 Questions
    Sort by:

    1. Good morning, I work in a VERY small shop and I don’t like the way the control panel “sticks out” on the side. Would it be possible to mount the control box directly to the side and get rid of the protruding “conduit trough”?

      1 answer
      Originally posted on grizzly.com

      1. Thank you for reaching out with your question. It may be possible to reroute the wires out of the support arm and create a custom placement, but this would involve removing all the wires, threading them through the arm, and then correctly reinstalling them. We are unable to provide assistance with modifying any Grizzly equipment.
        As alternatives, you might consider the G1021Z straight-bladed planer, which has a 32” width instead of 37”, or the G0891 helical cutterhead fixed table planer, which is 25” wide.


        Amber

    2. How long is the power cord on the G1021X2 planer

      1 answer
      Originally posted on grizzly.com

      1. Thanks for your question. The power cord length is 10'.

    3. Can I replace the power cord with a longer one? Also where I want to put this there is a 50 amp plug if I change the power cord for a longer one can I put a 50 amp plug on it? I need to keep the 50 amp outlet there for another tool.

      1 answer
      Originally posted on grizzly.com

      1. We appreciate you asking. You can use a longer cord (max 50 feet, but shorter is better), but this machine is not designed to run on a 50 amp circuit. You'll need to have a proper 20 amp circuit for this machine.

    4. What is difference between this and the g0454Z?

      1 answer
      Originally posted on grizzly.com

      1. Thank you for contacting us. These have several differences as this is a 15 inch planer and the G0454Z is a 20 inch planer. We suggest looking at the comparison charts (linked at the bottom of Grizzly.com) to view a side by side comparison of these two models.

    5. Is there any advantage between the spiral vs helical cutter head

      1 answer
      Originally posted on grizzly.com

      1. Thank you for reaching out. While the spiral cutterhead is similar in performance, the helical cutterhead is quieter and more efficient.

    6. I purchased this planer and it is so quiet while running! But the initial start up is kinda loud, almost startling. Is that normal?

      1 answer
      Originally posted on grizzly.com

      1. Thank you for reaching out. The planer may produce some noise upon startup, which is normal. However, if an unusual noise persists, please reach out directly to our Product Support team for assistance.

    7. Can this run on a 15 amp 230v circuit given that the max motor load is 12 amp?

      1 answer
      Originally posted on grizzly.com

      1. Thank you for reaching out. The 20A circuit rating is designed to handle the initial inrush of current. In many cases, a 15A circuit would suffice; however, since most electrical panels don't have a 15A breaker available, a 20A breaker is used instead.

    8. What is the Country of manufacture for this planer?

      1 answer
      Originally posted on grizzly.com

      1. We appreciate the question. Our G1021X2 15" Planer w/ Helical Cutterhead is manufactured in Taiwan.

    9. Is there a "reset" button for the motor?

      1 answer
      Originally posted on grizzly.com

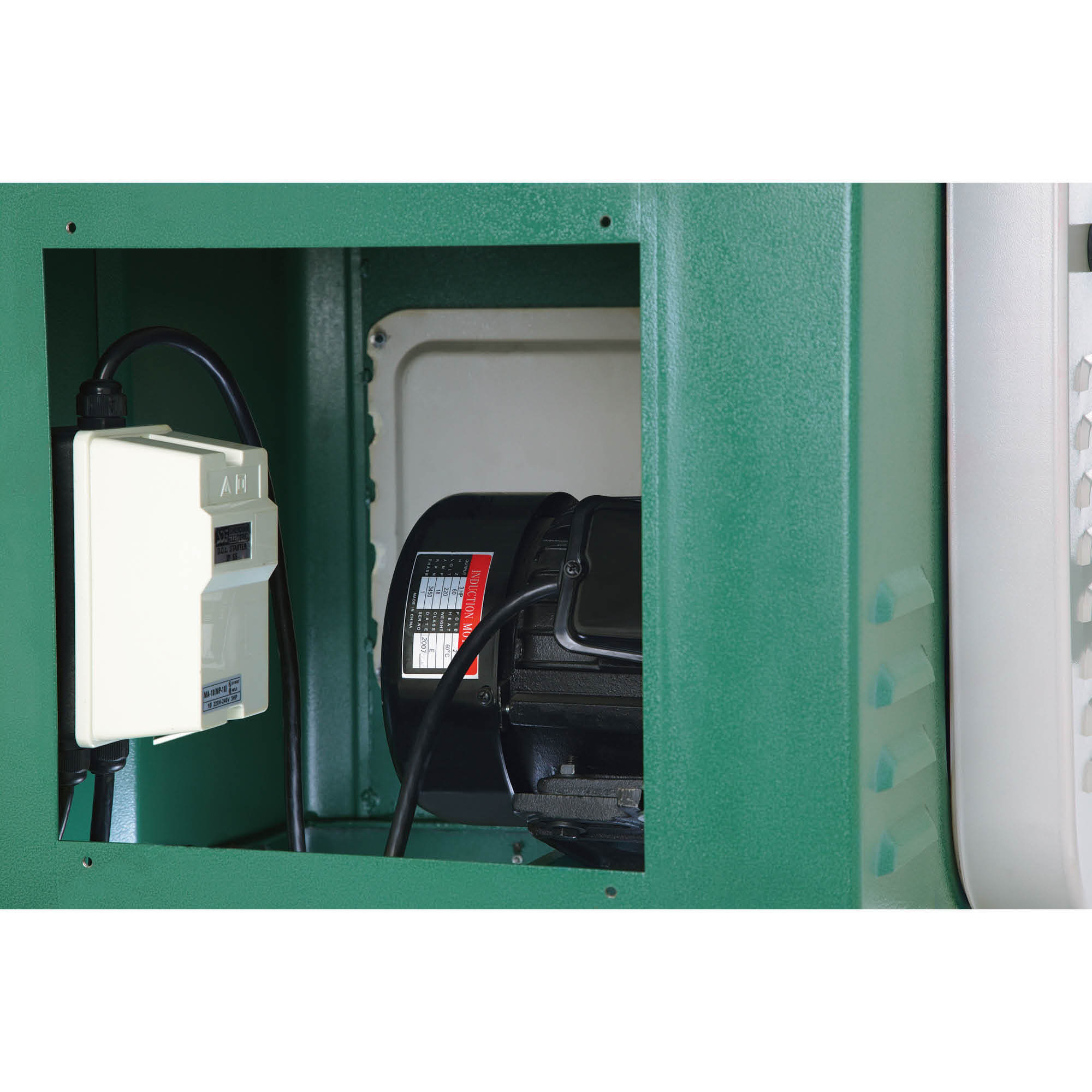

      1. We appreciate your inquiry. The planer features a magnetic switch accompanied by an overload relay. It includes a reset function for instances when it draws excessive amperage.

    10. Does this come with a Byrd head or is it the grizzly helical?

      1 answer
      Originally posted on grizzly.com

      1. Thank you for reaching out. This includes the factory Grizzly helical head.

    Warranty

    Manufacturer's Warranty

    1 year limited warranty
