Powermatic Wood Planer, 15 HP, 3PH, 230V/460V, Helical Head, Model# WP2510

Item# 84830
Powermatic Wood Planer, 15 HP, 3PH, 230V/460V, Helical Head, Model# WP2510

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Powermatic Wood Planer, 15 HP, 3PH, 230V/460V, Helical Head, Model# WP2510

Click or Tap image to Zoom

$21,334.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only

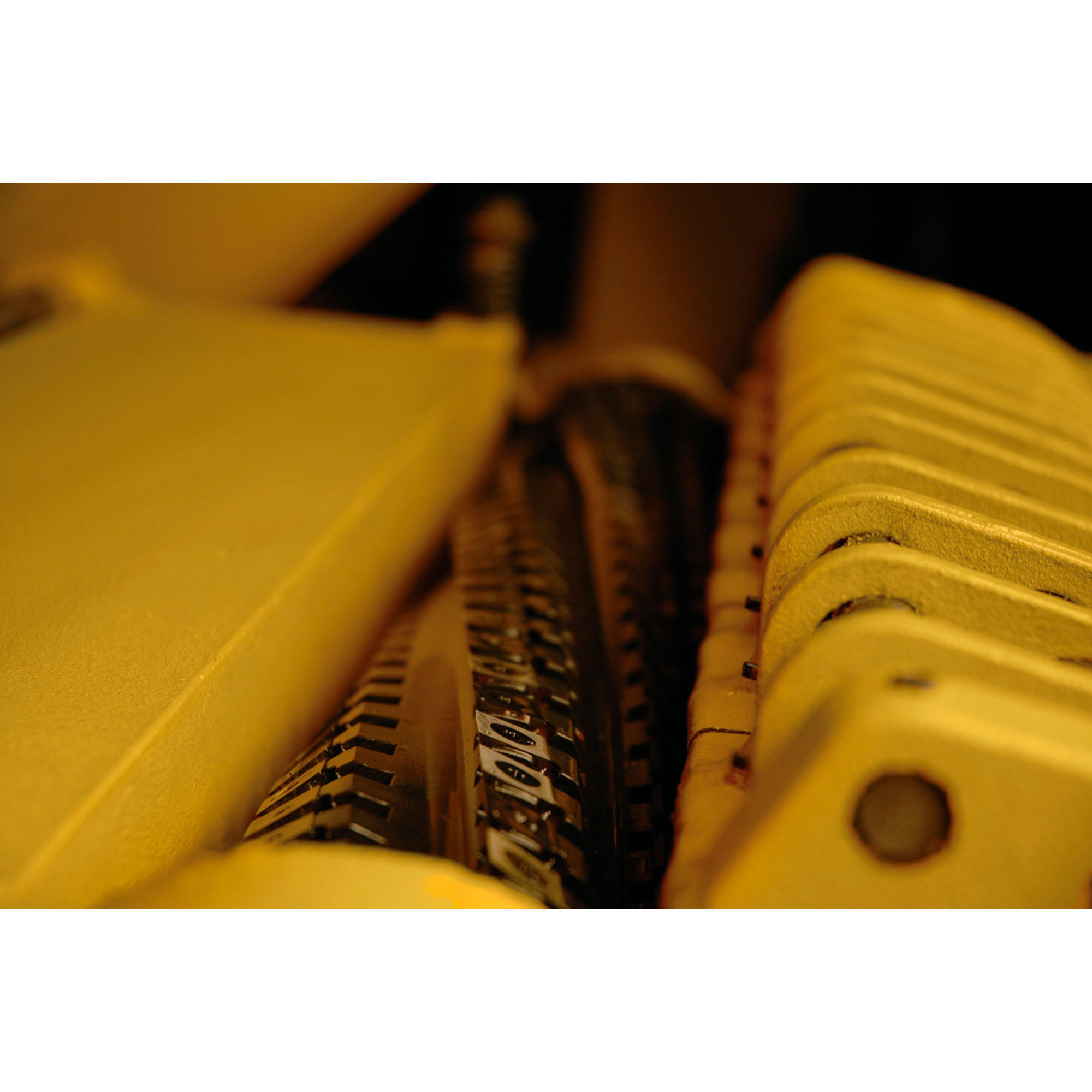

  • Solid steel helical insert head with four-sided carbide insert tooling, eliminates need for adjustment after changing knives, reduces sound levels
  • Digital readout and simple PC controller make quick and easy table height set ups
  • Segmented serrated infeed roll with segmented chip breakers has 1/4in. independent yield, for planing multiple height stock
  • Massive gear box maintains positive feed by using a large chain drive with automatic chain tensioners, to power infeed and outfeed rollers
  • 3in. diameter infeed and outfeed rollers are supported by four large needle bearings for long life

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Powermatic® WP2510 Planer has a solid steel helical cutterhead with four-sided carbide knife inserts that require no adjustments when changing. With a digital readout and simple PC controller, setting up table heights is quick and easy. The frame is machined from heavy cast iron and has extra wide side panels that offer rigid bed support and ensure accurate alignment. The planer's segmented, serrated infeed roll with segmented chip breakers has an independent yield of 1/4. Its automatically adjusting, chain drive gear box powers the 3in. diameter infeed rollers, solid pressure bar and dual outfeed rollers for precise feeding of stock. The 3-speed feed selector gives woodworkers flexibility by changing feed rates quickly and easily. The WP2510 Planer has a large 32 3/16in. x 26in. precision-ground table which contains two adjustable table rollers for smooth feeding of uneven stock. The planer has a Quick-Set micro-adjustable lever that easily raises and lowers the table rollers from 0 to 0.05in. The hood features a built-in 5in. diameter dust chute.

What's Included

    (1) Powermatic Planer, 15 HP, 3PH, 230V/460V, Helical Head, Model# WP2510

Downloads

Product Manual

Features + Benefits

  • Solid steel helical insert head with four-sided carbide insert tooling, eliminates need for adjustment after changing knives, reduces sound levels
  • Digital readout and simple PC controller make quick and easy table height set ups
  • Segmented serrated infeed roll with segmented chip breakers has 1/4in. independent yield, for planing multiple height stock
  • Massive gear box maintains positive feed by using a large chain drive with automatic chain tensioners, to power infeed and outfeed rollers
  • 3in. diameter infeed and outfeed rollers are supported by four large needle bearings for long life
  • Quick-Set micro-adjustable lever easily raises and lowers table rollers from 0in. to 0.050in. at a touch
  • Frame machined from heavy cast iron and extra wide side panels with gibs, offers rigid bed support and accurate alignment
  • Solid pressure bar has wide foot for long wear and can be adjusted on both ends for precise feeding
  • 3 speed feed selector allows you to quickly change feed rates
  • Large 32 3/16in. x 26in. precision-ground table contains two adjustable table rollers for smooth feeding of uneven stock
  • Dust hood features built-in 5in. dust chute for efficient dust collection
  • Helical head with four sided inserts
  • Dust hood with 5in. diameter dust port
  • Segmented infeed rollers
  • Segmented chip breakers
  • Tool kit with pneumatic screwdriver for removing the cutterhead insert blades

Key Specs

AttributeSpecification

item#

84830

Brand

Powermatic

Manufacturer's Warranty

5 year limited warranty

Ship Weight

1585.0 LB

Product Type

Planers

Max. Cutting Depth

0.25 in
AttributeSpecification

Knives (qty.)

174

Cutterhead Speed

5,000 rpm

Amps

2

Helical Head

Yes

Product Weight

lb

Dimensions L x W x H (in.)

42.0 x 53.5 x 60.0 in

Reviews

Questions & Answers

Questions

  1. What is the cutting width?

    1 answer

    1. Per the manufacturer, the cutting information is as follows:

      Maximum Cutting Width - 25"
      Maximum Cutting Thickness - 9"
      Full Width Cutting Depth - 1/8"
      Maximum Cutting Depth - 1/4"
      Minimum Planing Length - 10"

      Helpful?

Warranty

Manufacturer's Warranty

5 year limited warranty
