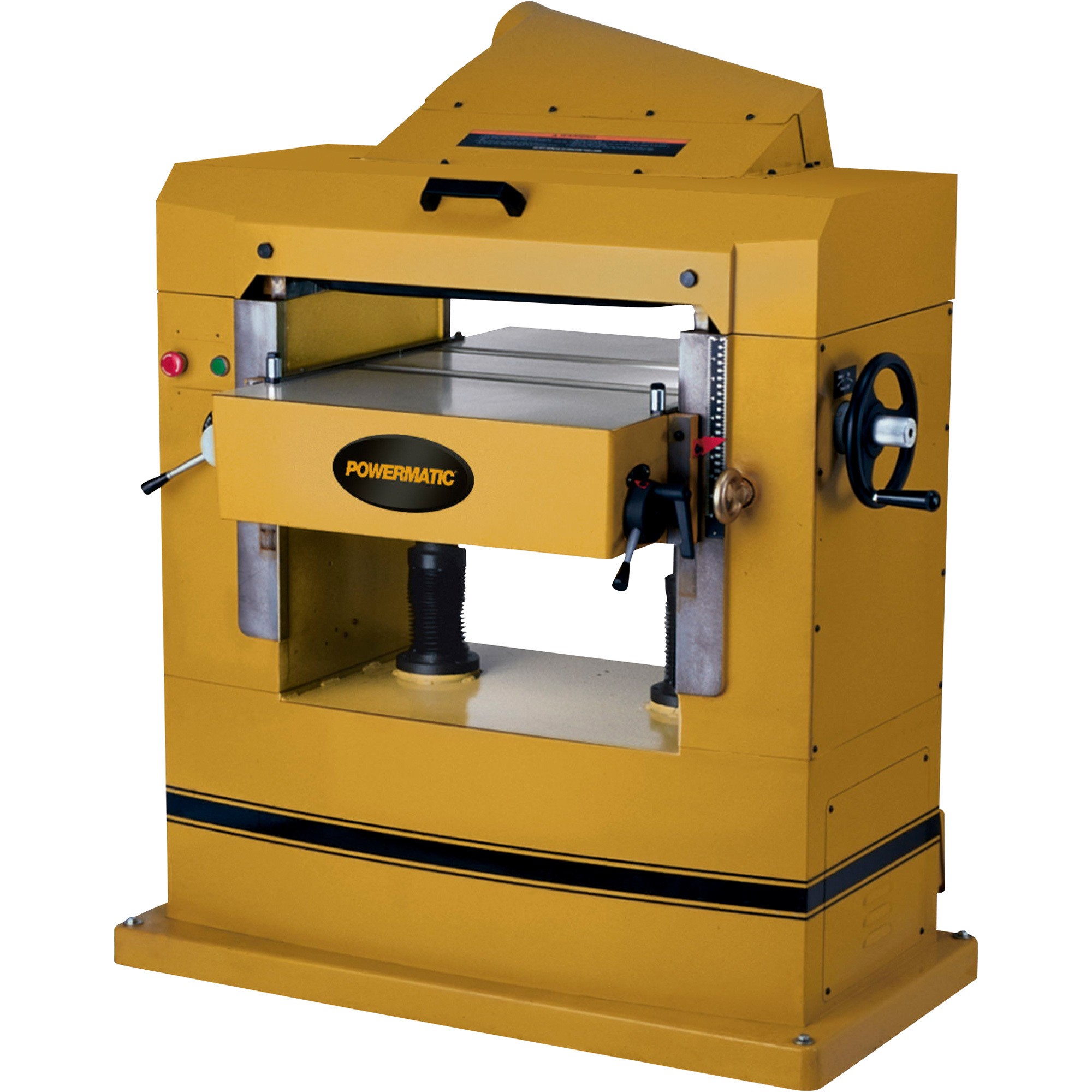

Powermatic Wood Planer with Helical Cutterhead, 150-Knife, 2-Speed, 7.5 HP, 1 PH, 230V, Model# 201

Item# 84799
"Powermatic Wood Planer with Helical Cutterhead, 150-Knife, 2-Speed, 7.5 HP, 1 PH, 230V, Model# 201"
Powermatic Wood Planer with Helical Cutterhead, 150-Knife, 2-Speed, 7.5 HP, 1 PH, 230V, Model# 201

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Powermatic Wood Planer with Helical Cutterhead, 150-Knife, 2-Speed, 7.5 HP, 1 PH, 230V, Model# 201

Click or Tap image to Zoom

$12,536.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Helical cutterhead with knife inserts for smoother, quieter cutting, finer finish than conventional systems
  • Cast iron 1300-lb. construction for solid performance without vibration
  • 2 feed speeds, 20/30 fpm, accommodate rough and fine finish work
  • Segmented infeed roller with sectional chipbreaker allows multiple board planing
  • Roller bearing-mounted feed rollers for long life

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Powermatic Wood Planer with Helical Cutterhead, 150-Knife, 2-Speed, 7.5 HP, 1 PH, 230V, Model# 201
  • Radians Earplug Neckband, NRR 25dB, Orange, Model# RB2120
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
  • 3M Sanding/Drywall/Fiberglass Respirator with Valve, N95, NIOSH Approved, Model# 8511HA1-A
Price for all four:

$12,564.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Powermatic Planer with Helical Cutterhead is a heavy-duty 1300-lb. cast iron unit that offers rock solid rigidity and accurate planing. The hinged top allows easy access to the rollers and knives, and has a 5in. dust port for easy attachment to any dust collection system. The cutterhead is a helical design with 150 four-sided knife inserts that produce a superior finish and much quieter operation than conventional cutterheads. The inserts are installed without further adjustments. The anti-kickback fingers and pressure bar are located close to the cutterhead for an exceptional finish. Infeed and outfeed rollers are fitted with roller bearings for long life. The sectional infeed roller and chip breaker are specially designed to allow multiple boards to be planed at the same time. The adjustable bed rollers facilitate both rough and finish planing. The solid steel outfeed roller is machined with small serrations to ensure a smooth finish yet provide positive feeding. The 2-speed gearbox with machined detents is quickly changed up front when switching from rough to finish work. The massive, ribbed cast iron table is ground finished and rises smoothly via the hand wheel. With a hefty 7 1/2 horsepower motor, the 201HH Planer is perfect for the small to medium shop with continuous planing requirements. Comes standard with a dust collection port, adjustable foot pads and tool kit.

What's Included

    (1) Powermatic Planer with Helical Cutterhead, 150-Knife, 2-Speed, 7.5 HP, 1 PH, 230V, Model# 201

Features + Benefits

  • Helical cutterhead with knife inserts for smoother, quieter cutting, finer finish than conventional systems
  • Cast iron 1300-lb. construction for solid performance without vibration
  • 2 feed speeds, 20/30 fpm, accommodate rough and fine finish work
  • Segmented infeed roller with sectional chipbreaker allows multiple board planing
  • Roller bearing-mounted feed rollers for long life
  • Adjustable bed rollers allow smooth feeding of rough or finished workpieces
  • Oversized cast iron table travels on 2 large lead screws for heavy-duty support
  • Dust chute with 5in. port for dust collection
  • Adjustable foot pads
  • Tool kit

Key Specs

AttributeSpecification

item#

84799

Brand

Powermatic

Manufacturer's Warranty

5 year limited warranty

Ship Weight

1350.0 LB

Product Type

Planers

Max. Cutting Depth

0.188 in

Knives (qty.)

150
AttributeSpecification

Cutterhead Speed

4,800 rpm

Volts

230

Amps

50

Helical Head

Yes

Product Weight

lb

Dimensions L x W x H (in.)

42.0 x 49.0 x 59.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. What is maximum width that is possible to plane ?

    1 answer

    1. The maximum planing width is 22". Maximum planing thickness is 9.25". Maximum planing depth is 3/16". Maximum planing length is 10".

      Helpful?

  2. Where is power attic manufactured?

    1 answer

    1. This item is manufactured in Taiwan.

      Helpful?
