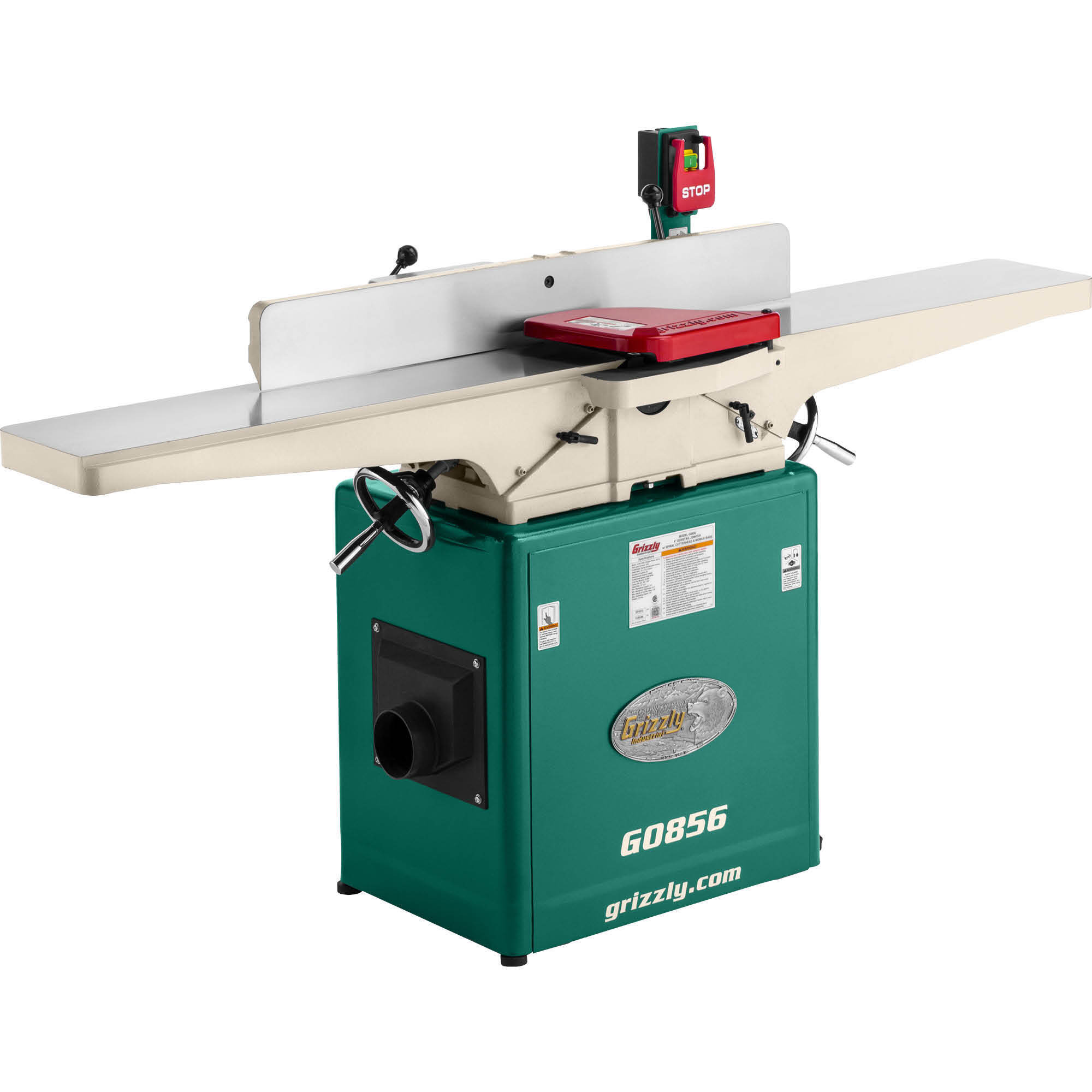

Grizzly G0856 - 8" x 72" Jointer w/ Helical Cutterhead & Mobile Base

Item# 7511698
New
Grizzly G0856 - 8" x 72" Jointer w/ Helical Cutterhead & Mobile Base

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Grizzly G0856 - 8" x 72" Jointer w/ Helical Cutterhead & Mobile Base

Click or Tap image to Zoom

$2229.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Beds Slide on Dovetailed Ways
  • Handwheel-Adjusted Tables with Depth Gauge

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

With an extra-long, 72in. bed with rabbeting table, pedestal-mounted magnetic switch, built-in mobile base, heavy-duty cast-iron hand wheels, and Taiwanese-built quality, you’d be hard-pressed to find an 8in. jointer offering so much for so little. Equipped with a 4-row helical cutterhead with 36in.dexable carbide inserts that can each be rotated three times to expose a new, sharp edge, you'll get a smoother finish, and quieter operation, without replacing our sharpening a single knife! Step up from any 6in. model you might be considering to this larger capacity helical cutterhead 8in. jointer and rest easy knowing you made a great choice! Made in an ISO 9001 factory Certified to CSA UL standards SPECIFICATIONS:

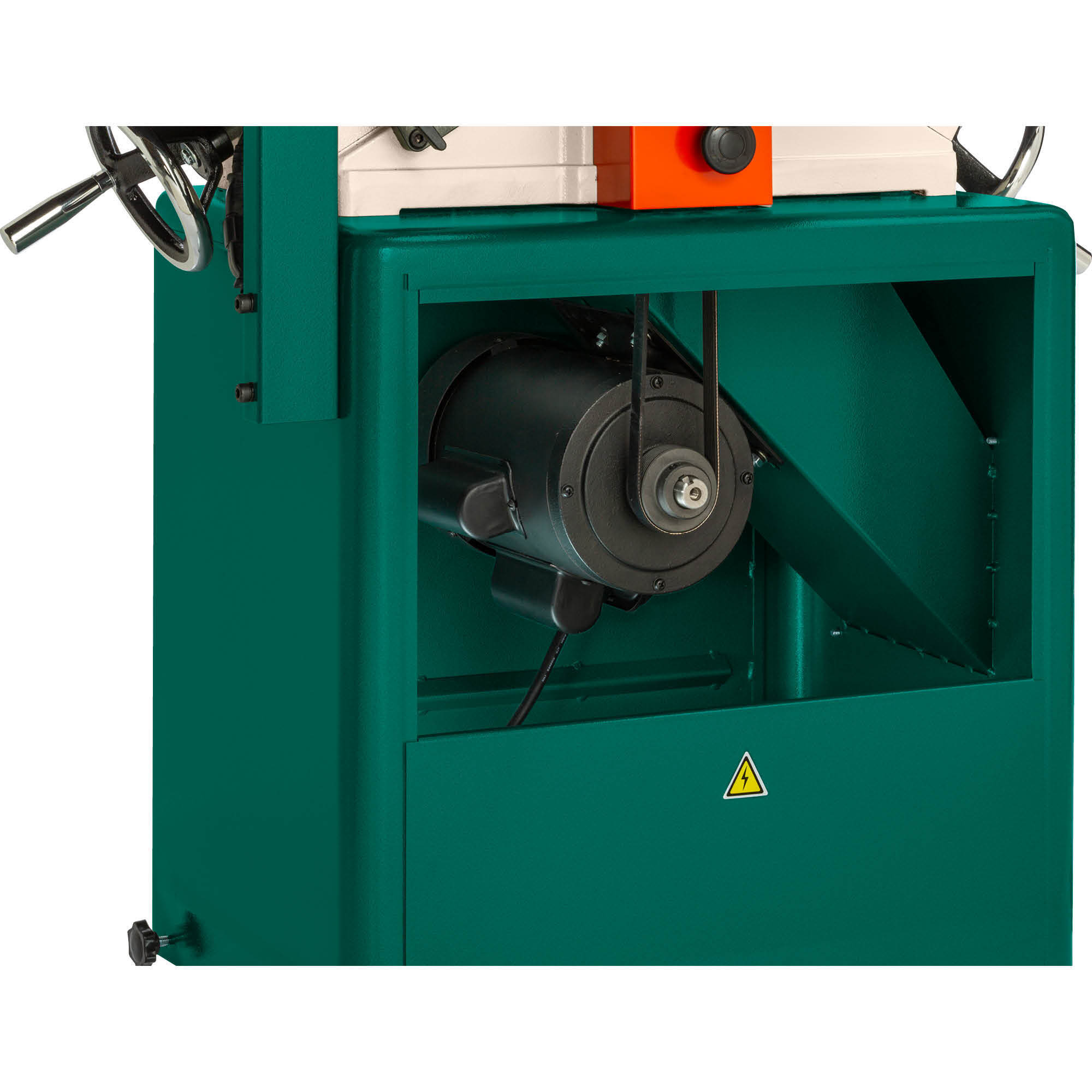

  • Motor: 3 HP, 230V, single-phase, 12A
  • Maximum width of cut: 8in.
  • Maximum depth of cut: 1/8in.
  • Maximum rabbeting depth: 1/2in.
  • Cutterhead diameter: 3-1/16in.

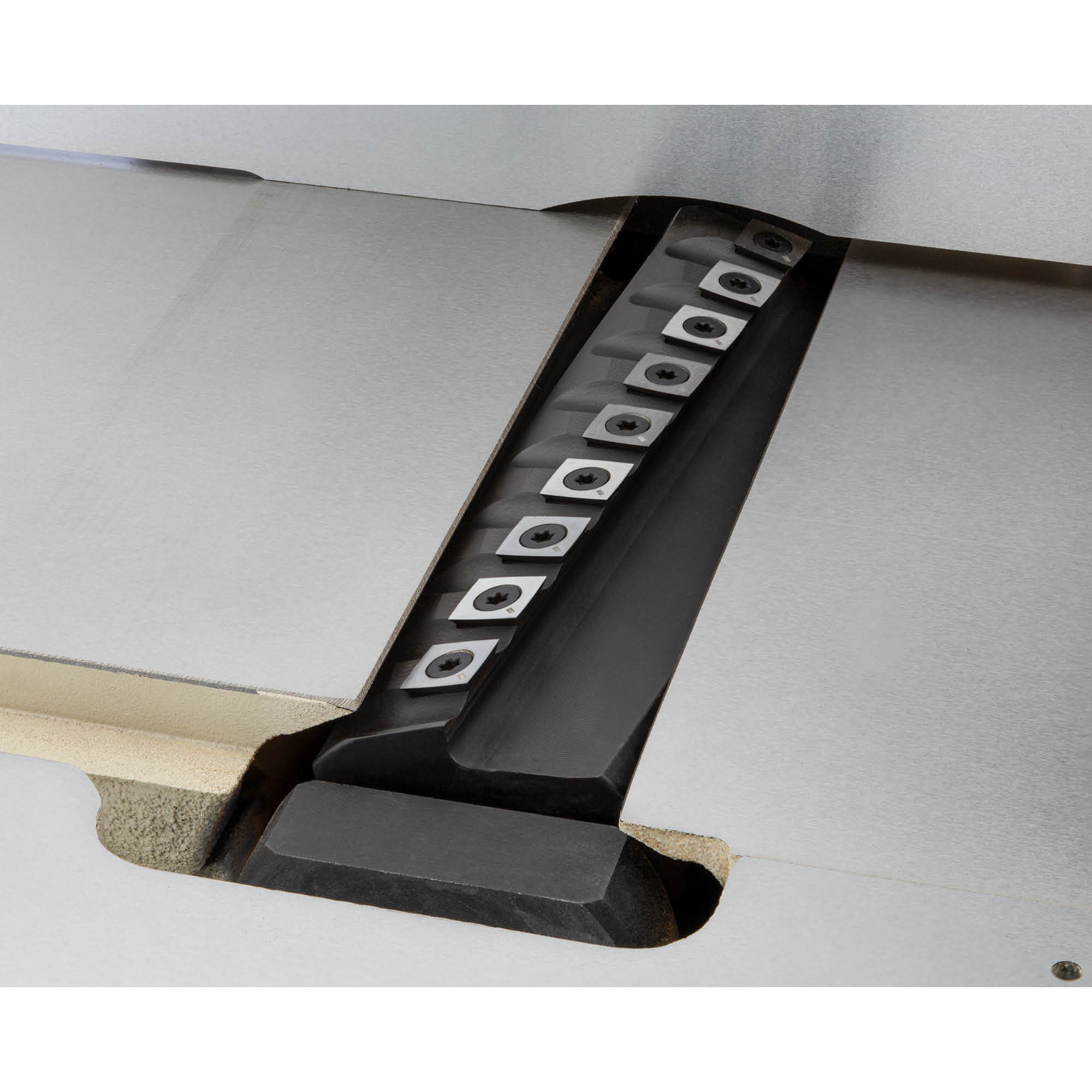

  • Cutterhead type: 4-row helical with 36in.serts
  • Insert size type: 15 x 15 x 2.5mm, indexable carbide
  • Cutterhead speed: 5500 RPM
  • Table size: 9in. x 72in.
  • Fence size: 38in. L x 4-5/8in. H
  • Minimum stock length: 10in.
  • Minimum stock thickness: 1/2in.

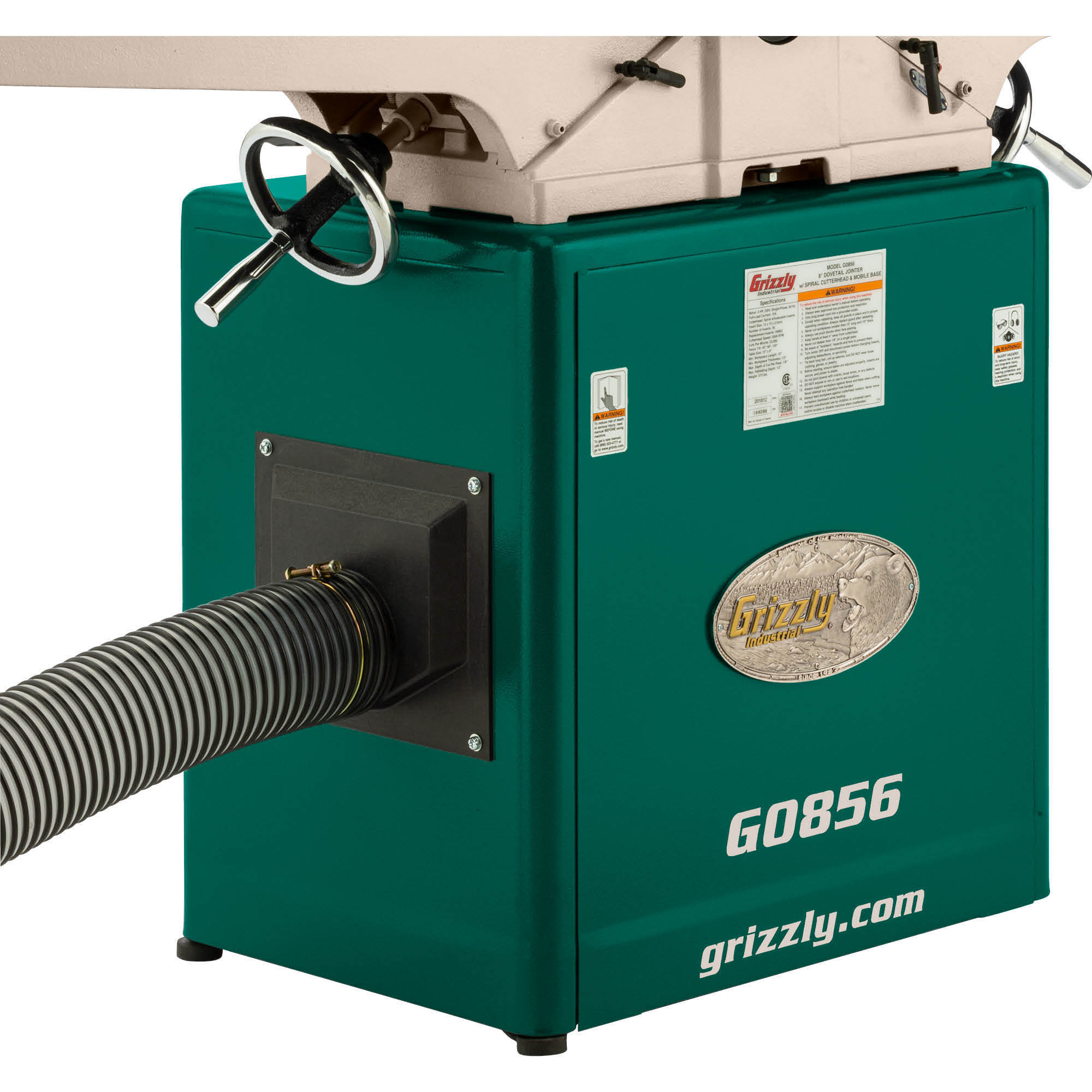

  • Dust port size: 4in.
  • Footprint: 17in. x 23-1/2in.
  • Overall dimensions: 72-1/2in. W x 25-1/2in. D x 42in. H
  • Approx. shipping weight: 450 lbs.

    • What's Included

      (1) Jointers

    Features + Benefits

    • Beds Slide on Dovetailed Ways
    • Handwheel-Adjusted Tables with Depth Gauge

    Key Specs

    AttributeSpecification

    item#

    		7511698

    Brand

    		Grizzly

    Manufacturer's Warranty

    		1 year limited warranty

    Ship Weight

    		476.0 LB

    Product Type

    		Jointers

    Max. Cutting Depth

    		0.125 in

    Max. Cutting Width

    		8 in

    Cutters (qty.)

    		4

    Knives (qty.)

    		36
    AttributeSpecification

    Max. RPM

    		3,450

    Cutterhead Speed

    		5,500 rpm

    Material

    		Iron Carbide

    Volts

    		230

    Amps

    		12

    Helical Head

    		Yes

    Product Weight

    		450.0000 lb

    Dimensions L x W x H (in.)

    		25.5 x 72.5 x 42.0 in

    Reviews

    Questions & Answers

    8 Reviews This action will navigate to reviews.

    Questions

    1–8 of 8 Questions
    Sort by:

    1. Is the fence made of aluminum?

      1 answer
      Originally posted on grizzly.com

      1. Thanks for your inquiry. The fence is made of precision-ground cast iron.

    2. Is this the 120 volt

      1 answer
      Originally posted on grizzly.com

      1. We appreciate your question. The G0856 has a 3 HP motor that operates on 230V, single phase power. You can learn more about this machine by navigating to "Product Links" and selecting the "Specification Sheet."

    3. If I purchase the optional T28000 base, do I need to remove the casters that come with the unit. If so, are they easily removed?

      1 answer
      Originally posted on grizzly.com

      1. Thank you for reaching out. The casters on the G0856 Jointer can be easily removed by loosening the nuts and bolts.

    4. Is there a way to convert the dust port to 6''?

      1 answer
      Originally posted on grizzly.com

      1. Thank you for reaching out. We currently do not offer a method to convert the dust port to a 6" size. You would need to source an alternative port, as we do not supply one in that size.

    5. Is this unit on casters? Do I need a 220 line run for power?

      1 answer
      Originally posted on grizzly.com

      1. We appreciate your question. The stand of this jointer does not come equipped with casters. However, we provide an optional mobile base that is compatible, and T28000 is a suitable fit. The machine operates on 230V, requiring a minimum circuit size of 20A. The full load rating is 12A.

    6. Can you tell me more about the mobile base? I have seen an earlier review that the wheels do not rotate.

      1 answer
      Originally posted on grizzly.com

      1. Thank you for reaching out to us. The jointer has a built-in mobile base with internally-mounted, non-directional casters. For increased maneuverability, we recommend using the T28000 Mobile Base.

    7. Does it come with a twist lock plug or other 250v plug?

      1 answer
      Originally posted on grizzly.com

      1. Thank you for your question. This includes a 6-20 Plug.

    8. A few shipping questions: is this shipped on a pallet? Are the base and top boxed together or seperate? Is lift gate service available for getting the unit off of the truck and onto the curb? Also not sure how to move this to my garage. Suggestions,?

      1 answer
      Originally posted on grizzly.com

      1. We appreciate you reaching out with your inquiry. The G0856 Jointer is packaged in two separate wooden crates, with the first crate weighing 335lbs and measuring 74" x 25" x 15". The stand is enclosed in a cardboard box measuring 26" x 18" x 27" and weighing 115lbs. While it is not the standard practice to ship this on a pallet, we can accommodate this request if necessary.

        It's worth noting that most of our customers find it convenient to use a forklift or pallet jack to move the machine upon delivery.

        For those looking for additional service options, a liftgate service is available and can be added during the checkout process. However, please be aware that the carrier is not responsible for moving the delivery into the garage.

        If inside delivery is preferred, we can explore this option further. To provide a detailed quote and confirm availability, we kindly request the customer to contact our Customer Service Department at (800) 523-4777 to make this specific request.

    Warranty

    Manufacturer's Warranty

    1 year limited warranty
