GPRO Modular Mechanical Fuel Meter — 2–40 GPM, Gallon Registration, Leak-Free Magnetic Drive, Model# QM-40-G8N

Item# 107937
GPRO Modular Mechanical Fuel Meter — 2–40 GPM, Gallon Registration, Leak-Free Magnetic Drive, Model# QM-40-G8N

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

GPRO Modular Mechanical Fuel Meter — 2–40 GPM, Gallon Registration, Leak-Free Magnetic Drive, Model# QM-40-G8N

Click or Tap image to Zoom

$369.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Highly accurate readings to within +/- 1/2% across the effective 2 to 40 GPM flow range of the meter
  • Oval gear technology and frictionless, seal-free magnetic drive elevates performance and eliminates drive shaft leaks and threaded pipe leaks
  • Quick-fit modular technology utilizes simple 4-bolt connections for easy installation

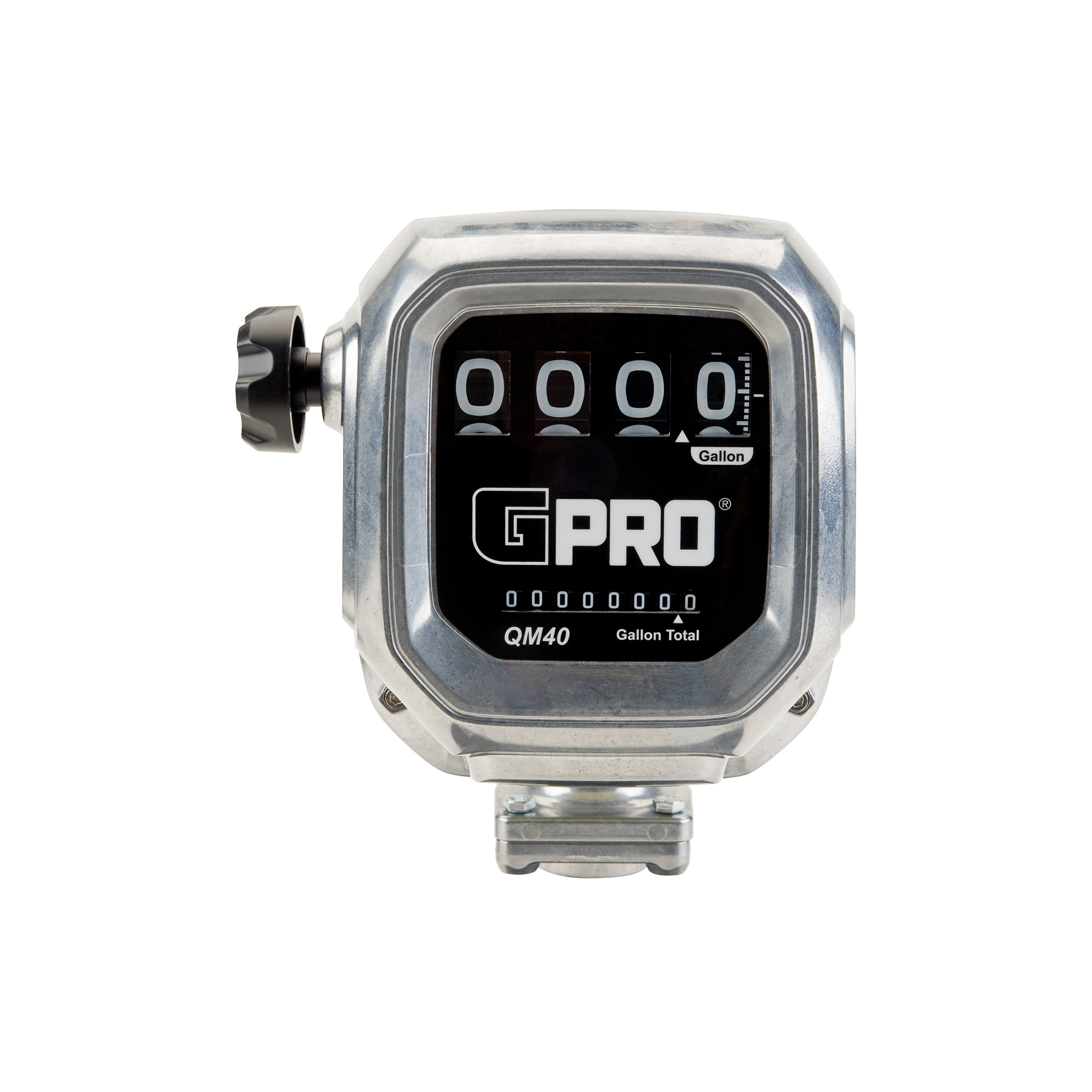

  • Easy-to-read four digit display with quick and easy twist knob reset
  • Maximum batch total of 999.9 gallons with a maximum cumulative total of 9,999,999.9 gallons

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The GPI® QM40 Series Quick-Fit Modular Mechanical Fuel Meter is a highly accurate meter that easily attaches to GPI® modular transfer pumps, GPRO modular pumps and GPI Quick-Fit filter adapters. The meter features gallon registration, uses oval gear technology, utilizes leak-free magnetic drive, and can mount in multiple directions based on your application. For use with gasoline, diesel and kerosene. UL and CUL listed. 4-year limited warranty.

What's Included

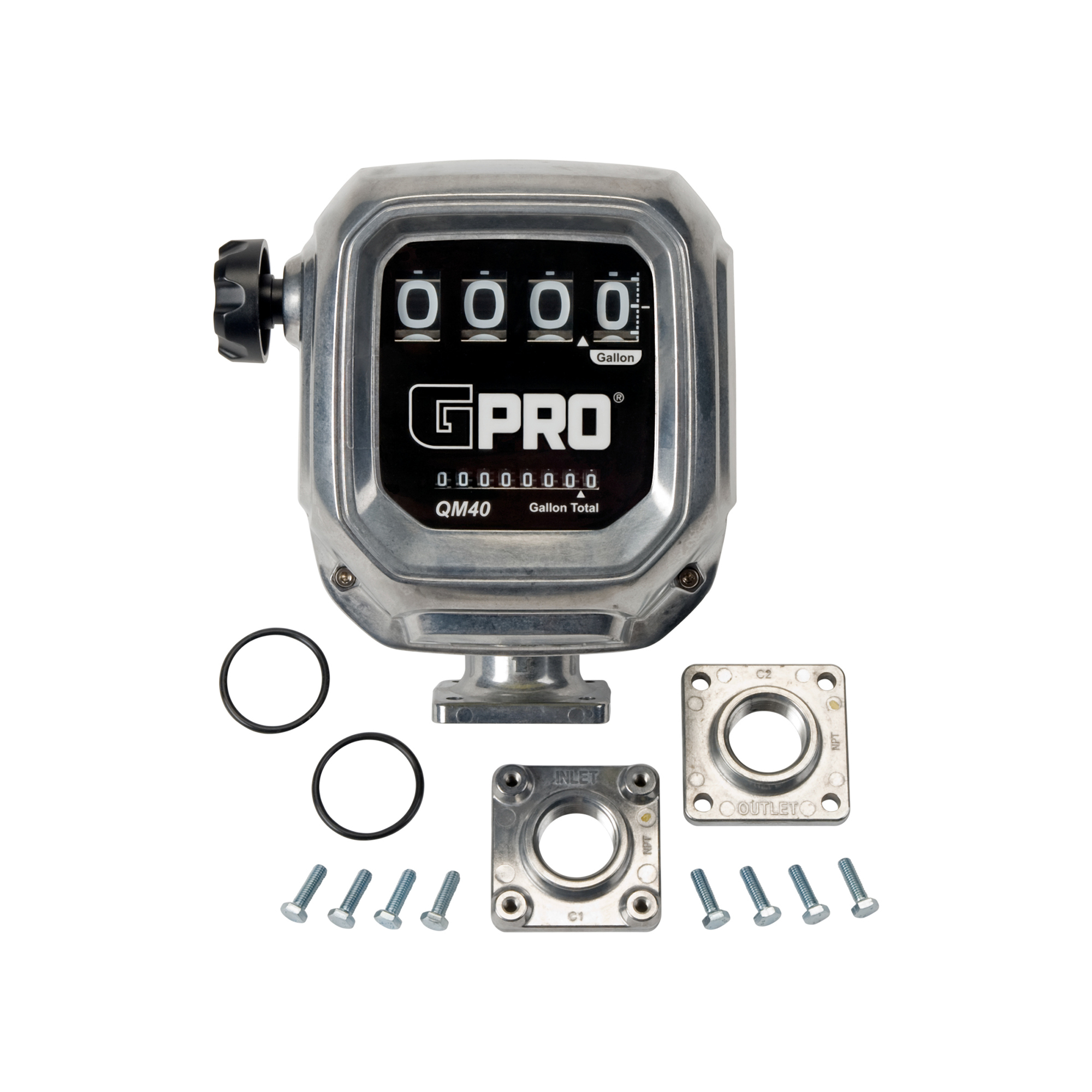

    (1) Mechanical fuel meter

Features + Benefits

  • Highly accurate readings to within +/- 1/2% across the effective 2 to 40 GPM flow range of the meter
  • Oval gear technology and frictionless, seal-free magnetic drive elevates performance and eliminates drive shaft leaks and threaded pipe leaks
  • Quick-fit modular technology utilizes simple 4-bolt connections for easy installation
  • Easy-to-read four digit display with quick and easy twist knob reset
  • Maximum batch total of 999.9 gallons with a maximum cumulative total of 9,999,999.9 gallons
  • Mount connections in multiple directions are available based on your application and direction of flow to enable maximum versatility
  • Eco-friendly no-leak flange and O-ring
  • Compatible for use with gasoline (up to 15% alcohol blends such as E15), diesel fuel (up to 20% biodiesel blends such as B20) and kerosene
  • Corrosion-resistant diecast aluminum housing and cover fittings
  • Tough PPS (polyphenylene sulfide) rotors
  • Stainless steel shafts and strainer
  • NBR (Nitrile Butadiene Rubber) seals
  • 1in. NPT (female) inlet/outlet threads
  • Optional pulser accessory is compatible with most fuel management systems

Key Specs

AttributeSpecification

item#

107937

Brand

GPRO

Manufacturer's Warranty

Lifetime Limited Warranty

Ship Weight

8.5 LB

Min. Flow Rate

2 GPM

Max. Flow Rate

40 GPM

Max. PSI

50
AttributeSpecification

Product Type

Fuel Meters

Inlet Port

1 in. NPT

Outlet Port

1 in. NPT

Min. Temperature

-40 °F

Max. Temperature

125 °F

Product Weight

8.5 lb
