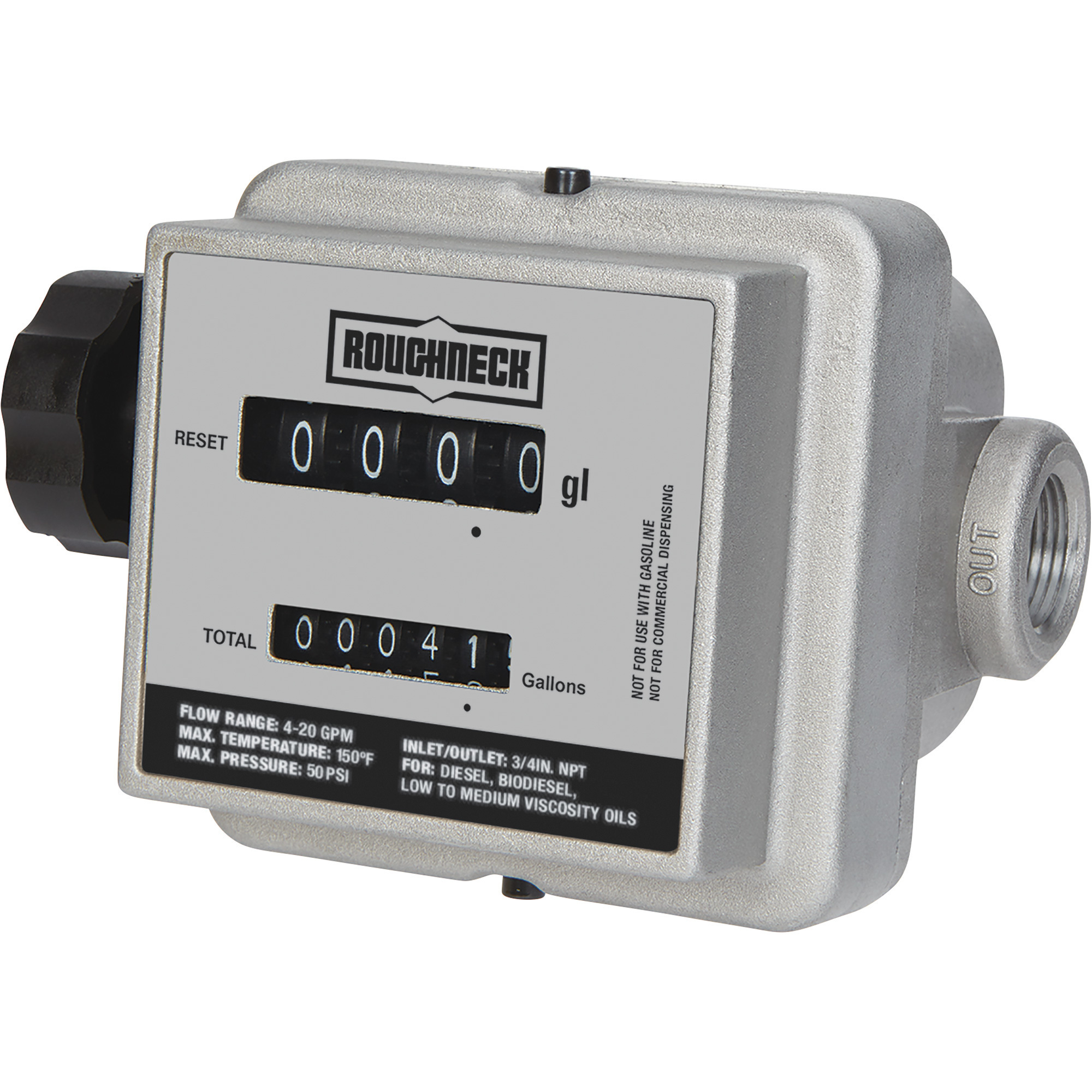

Roughneck Mechanical Fuel Meter, 4–20 GPM, 3/4in. Inlet/Outlet

Item# 67165
"Roughneck Mechanical Fuel Meter, 4–20 GPM, 3/4in. Inlet/Outlet"
Roughneck Mechanical Fuel Meter, 4–20 GPM, 3/4in. Inlet/Outlet

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Roughneck Mechanical Fuel Meter, 4–20 GPM, 3/4in. Inlet/Outlet

Click or Tap image to Zoom

$139.99

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    1 in stock at Fredericksburg VA - Pickup in under 1 hr

  • 4–20 GPM capability
  • 3/4in. NPT inlet/outlet
  • Accurate to ±2%
  • Compact design for easy installation
  • 3-port design can be installed inline or at 90° angle

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Roughneck Mechanical Fuel Meter features a 3-port design that can be installed inline or at a 90° angle. Its nutating disc mechanism offers a high tolerance to fuel contamination. Strong aluminum die-cast construction delivers years of service.

What's Included

    (1) Mechanical fuel meter

Features + Benefits

  • 4–20 GPM capability
  • 3/4in. NPT inlet/outlet
  • Accurate to ±2%
  • Compact design for easy installation
  • 3-port design can be installed inline or at 90° angle
  • Nutating disc mechanism has high tolerance to fuel contamination
  • 50 PSI max. working pressure
  • Can be used with diesel, biodiesel and light oils
  • Not for use with gasoline
  • 150°F max. temperature
  • Strong aluminum die-cast construction
  • 4 digit max. resettable batch total: 999.9 gallons
  • For use with electric fuel pumps or gravity flow (with a minimum gravity head of 4ft.)

Key Specs

AttributeSpecification

item#

67165

Brand

Roughneck

Manufacturer's Warranty

1 year limited warranty

Ship Weight

3.06 LB

Min. Flow Rate

4 GPM

Max. Flow Rate

20 GPM

Max. PSI

50

Operating PSI

50
AttributeSpecification

Product Type

Fuel Meters

Inlet Port

3/4 in. NPT

Outlet Port

3/4 in. NPT

Min. Temperature

14 °F

Max. Temperature

150 °F

Product Weight

lb

Dimensions L x W x H (in.)

5.625 x 4.25 x 5.125 in

Reviews

Questions & Answers

6 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. Is there a way to calibrate meter as mine is showing it pumping 300 gallons into a 60 gallon tank

    1 answer

    1. To calibrate this fuel meter, zero out the meter and dispense into a small jug or container that has gallon markings. Once you have reached the 1-gallon mark stop dispensing. There is an adjustment screw on the top back of the unit. Rotate the screw counterclockwise to calibrate if the meter is reading more than what is being dispensed, and clockwise if the meter is reading less than what is dispensed.

      Helpful?

  2. Can it be used with bleach

    1 answer

    1. This meter is not approved for use with bleach. It it is designed for use with diesel, biodiesel and light oils.

      Helpful?

  3. can it be used for lpg

    1 answer

    1. This should not be used with LPG.

      Helpful?

  4. can I use this for water?

    1 answer

    1. This meter can be used with diesel, biodiesel, and light oils only.

      Helpful?

  5. Will this meter conveniently connect to the roughneck 15 GPM 120 Volt pump?

    Will it require any additional fittings? Where is the in port located?

    1 answer

    1. This is approved for diesel, biodiesel and light oils only, and has side connections that are compatible with 3/4 inch connections. Please view item #67163 for a model suitable for the Roughneck 15 gallon per minute 120 volt pumps.

      Helpful?

  6. Are these suitable for motor oil up to 5w30?

    1 answer

    1. This Roughneck mechanical fuel meter can not be used with 5W30 engine oil.

      Helpful?

  7. Are these repairable

    1 answer

    1. This Roughneck mechanical fuel meter would not be repairable. Replacement parts are not available.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
