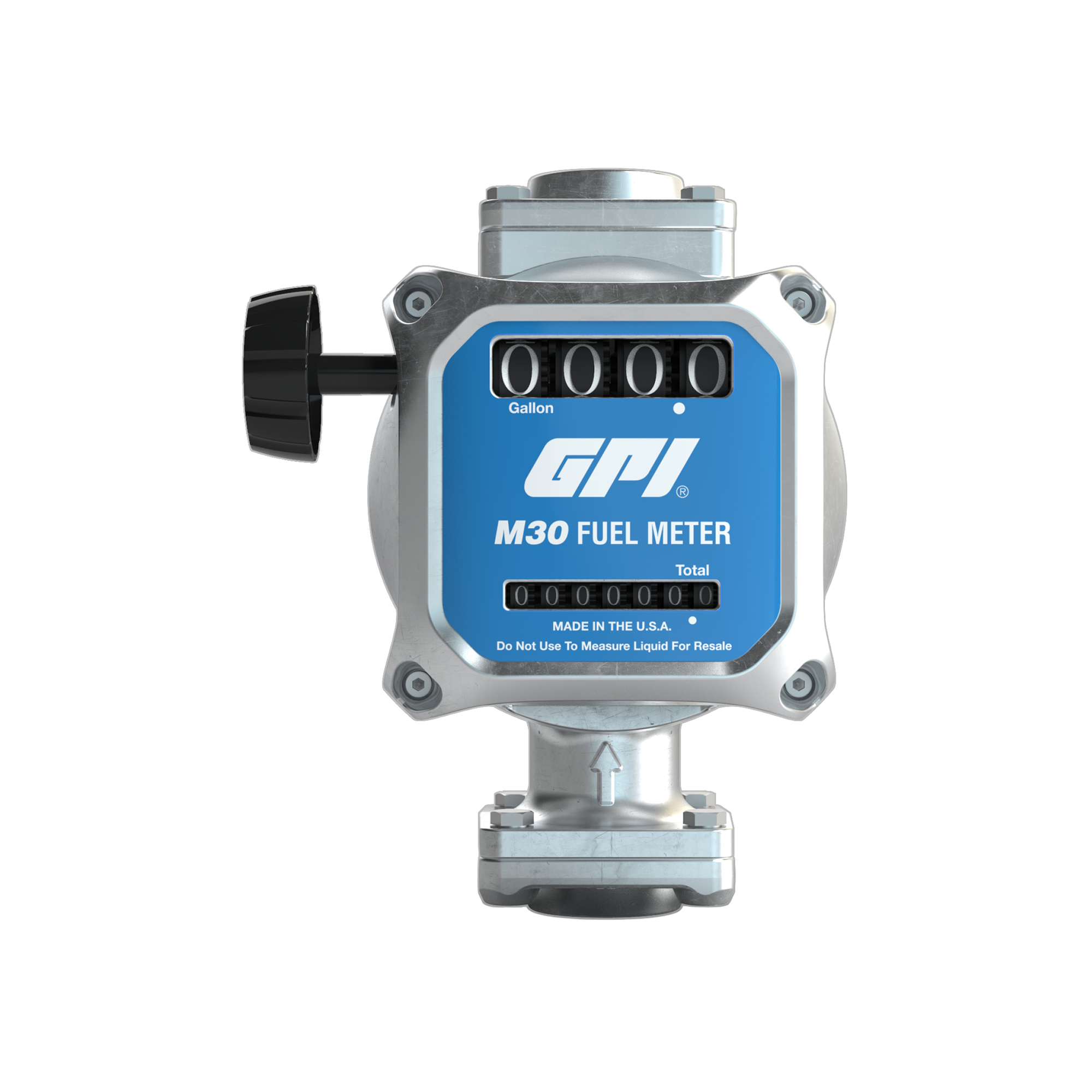

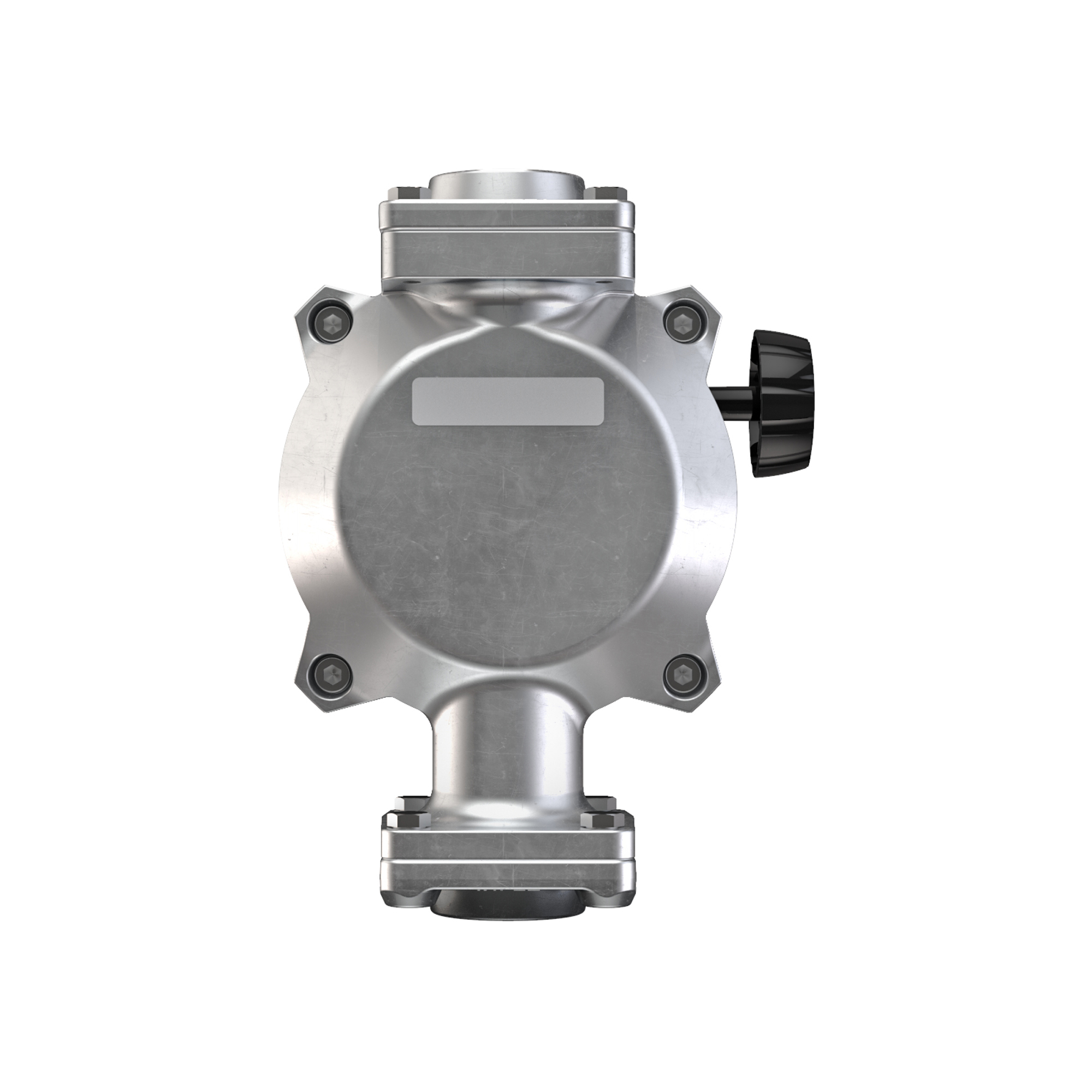

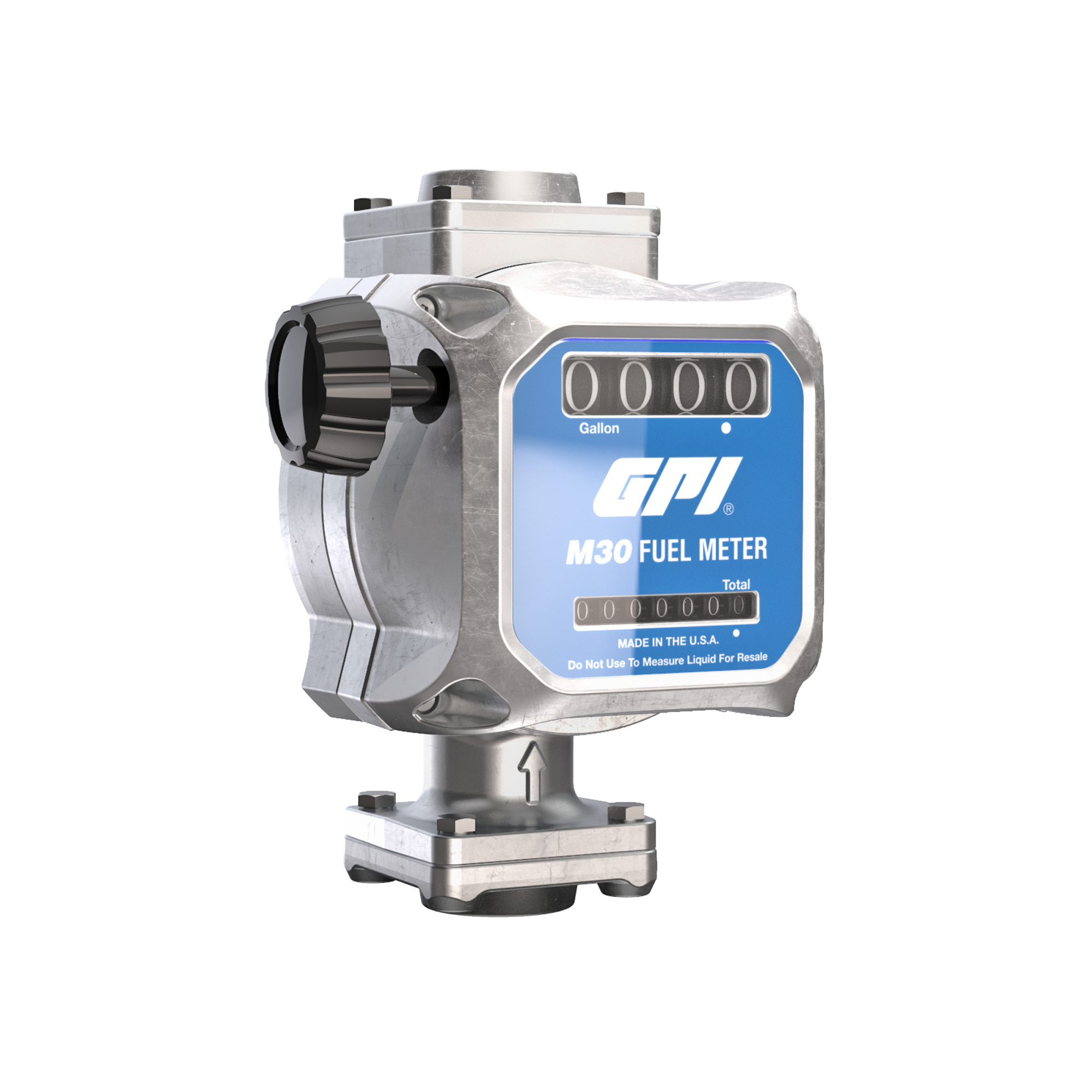

GPI Modular Mechanical Fuel Meter — 5–30 GPM, Quick-Fit, Model# M30-G6N

Item# 5988206
GPI Modular Mechanical Fuel Meter — 5–30 GPM, Quick-Fit, Model# M30-G6N

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

GPI Modular Mechanical Fuel Meter — 5–30 GPM, Quick-Fit, Model# M30-G6N

Click or Tap image to Zoom

$259.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Features simple four-bolt connections that allow the meter to be mounted in multiple directions
  • Unsurpassed accuracy. Within a +/-2% accuracy across a flow range from 5 to 30 GPM
  • Durable aluminum housing; magnetic drive replaces the driveshaft and seal, eliminating driveshaft leaks
  • Twist knob reset; batch total and cumulative total display

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The GPI M30 mechanical fuel meter is designed for the field measurement of thin viscosity petroleum fuel only and intended for use with pump systems in 5 to 30 GPM (19 to 114 L/min) flow range. This meter translates flow data from a nutating disk into calibrated units. Pump and meter combinations available. The M30 easily attaches to the new modular fuel transfer pumps with the Quick-Fit modular feature (simple four-bolt connections). This quick-fit modular fuel meter is easy to install, easy to use, and easy to maintain.

What's Included

    (1) M30-G6N mechanical fuel meter with gallon register, 3/4 in NPT inlet/outlet, owners manual.

Features + Benefits

  • Features simple four-bolt connections that allow the meter to be mounted in multiple directions
  • Unsurpassed accuracy. Within a +/-2% accuracy across a flow range from 5 to 30 GPM
  • Durable aluminum housing; magnetic drive replaces the driveshaft and seal, eliminating driveshaft leaks
  • Twist knob reset; batch total and cumulative total display

Key Specs

AttributeSpecification

item#

5988206

Brand

GPI

Manufacturer's Warranty

Lifetime Limited Warranty

Ship Weight

5.0 LB

Min. Flow Rate

5 GPM

Max. Flow Rate

30 GPM

Max. PSI

50
AttributeSpecification

Operating PSI

50

Product Type

Fuel Meters

Inlet Port

3/4 in. NPT

Outlet Port

3/4 in. NPT

Max. Temperature

125 °F

Product Weight

5.0000 lb

Dimensions L x W x H (in.)

5.91 x 5.21 x 7.88 in
