The height from the bottom of the bung adapter to the top of the pump is 9 inches.

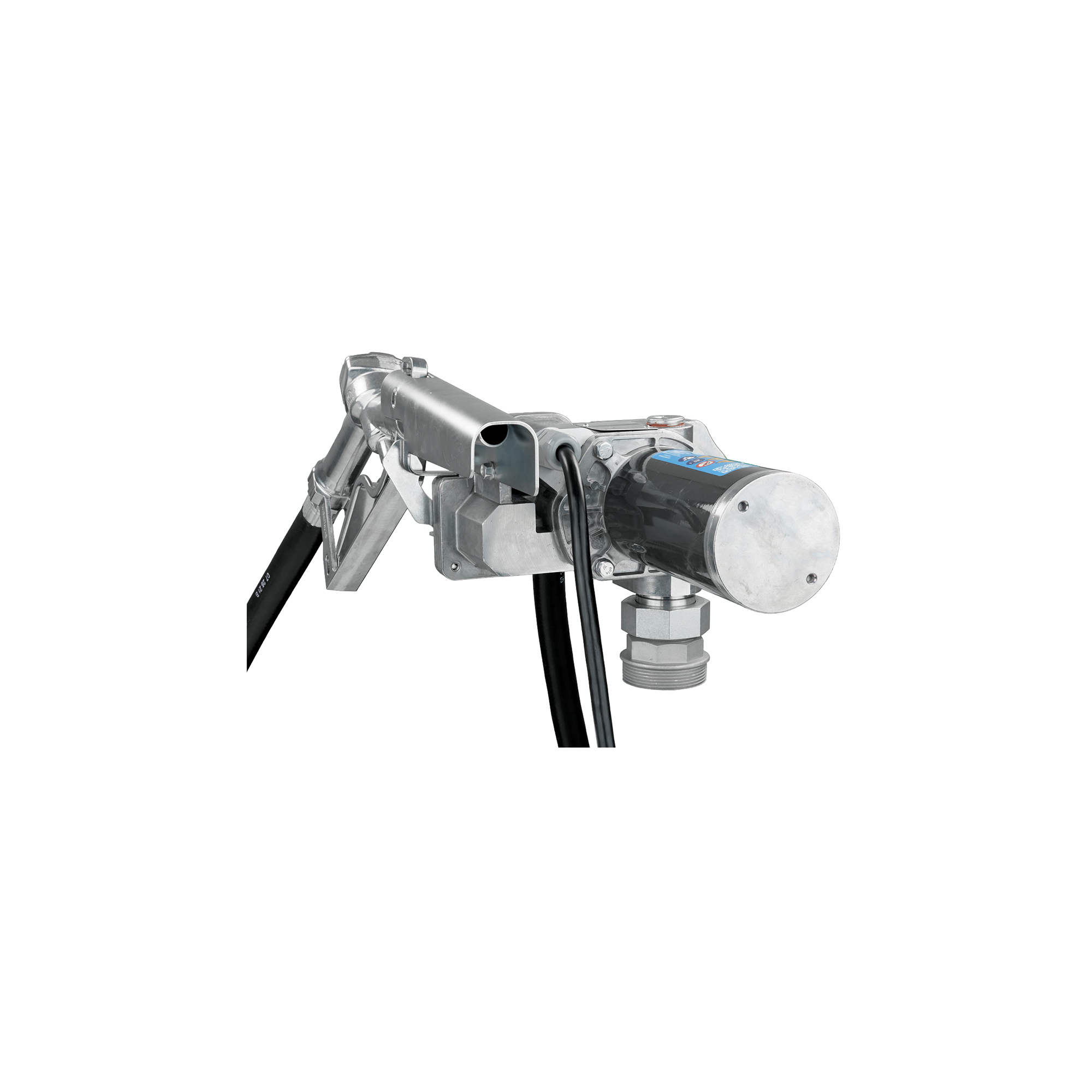

GPI 15 GPM 12V Fuel Transfer Pump with Manual Nozzle
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$479.99
- Designed for permanent mounting on vented storage tanks
- Includes manual unleaded nozzle, 3/4in. x 12ft. hose, 18ft. 12/2 AWG power cord and two-piece adjustable suction pipe (15in. to 40in)
- For use with gasoline (up to 15% alcohol blends such as E15), diesel fuel (up to 20% bio-diesel blends such as B20) and kerosene
- Low profile design
- Received a Gold Medal Performance award for delivering 3 times more operating hours than comparable pumps
See full description
Price for all two:
$619.98
What's Included
- (1) Fuel transfer pump model# M-150S-MU with spin collar and nozzle cover (1) 3/4in. manual unleaded nozzle (1) Fuel hose (1) Adjustable suction pipe (1) Power cord (1) Strain relief connector (1) 30 amp fuse (1) Hardware kit (1) Union ring gasket
Downloads
Award-Winning Performance
Top-Notch Components
- The 12V motor is the heart and soul of this pump, generating 1/5 HP that pumps out fast flow rates up to 15 GPM
- The rotary gear design is cast in aluminum that is not only incredibly lightweight and corrosion-resistant, but amazingly durable as well, logging up to 3 times as many operating hours as comparable models
- Comes ready to perform, with a manual unleaded nozzle, 3/4in. x 12ft. hose, 18ft. 12/2 AWG power cord, and adjustable 15in.-40in. 2-piece suction pipe all included
Safe and Convenient
- Circuit breaker motor protection provides short circuit and overload protection for individual motor loads, automatically shutting the motor down in problem situations, helping to extend motor life
- The convenient spin collar design not only makes installation on a vented storage tank a breeze, but it also offers the versatility to mount the pump at a variety of different angles to fit the needs of your space
- A lockable nozzle cover keeps your pump protected and helps to prevent fuel theft when the pump is left unattended
Transfer Fuel With Confidence
The GPI Advantage
- This GPI DC Powered Fuel Transfer Pump features quality components that are built for lasting performance
- Professionals and do-it-yourselfers alike put their complete confidence in the quality and workmanship of GPI products
- Should you ever need service or support, help is a phone call or e-mail away
Guaranteed Satisfaction
- Shop in complete confidence, knowing that Northern Tool + Equipment protects your investment and is ready to provide you with the assistance and helpful resources you need
- GPI stands behind this product with a 2-year limited warranty
Features + Benefits
- Designed for permanent mounting on vented storage tanks
- Includes manual unleaded nozzle, 3/4in. x 12ft. hose, 18ft. 12/2 AWG power cord and two-piece adjustable suction pipe (15in. to 40in)
- For use with gasoline (up to 15% alcohol blends such as E15), diesel fuel (up to 20% bio-diesel blends such as B20) and kerosene
- Low profile design
- Received a Gold Medal Performance award for delivering 3 times more operating hours than comparable pumps
- Longer pump life offers greater value for the dollar
- Convenient spin collar for easy installation and versatile pump mounting
- Circuit breaker motor protection extends motor life
- Aluminum body provides corrosion and tarnish resistance
- Lockable nozzle cover protects your investment and deters theft
- Pre-installed power cord greatly reduces installation time
- Combine this M150S-MU pump with GPI Model 01A31GM digital flow fuel meter (Item# 10930) or Model FM-200-G6N mechanical fuel meter (both sold separately) to create your own fueling system
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All DC Powered Fuel Pumps
See All GPI DC Powered Fuel Pumps
Currently Viewing This Product
Specifications
Specifications
GPI 15 GPM 12V Fuel Transfer Pump with Manual Nozzle
GPI 18 GPM Fuel Transfer Pump — 12V, Manual Nozzle, Model# M-180S-ML
Roughneck Heavy-Duty Fuel Transfer Pump, 20 GPM, 12 Volt DC, Auto Nozzle, Gasoline Compatible
Western Global 12 Volt DC, 15 GPM Pump Kit, Model# M150SAUK
GPM
Same
15
18
20
15 GPM
Nozzle Type
Same
Manual
Manual
Automatic
Automatic
Max. Total Head
Same
25 ft
25 ft
25 ft
-
Amps
Same
18
20
25
18
Watts
Same
216
250
200
150
Inlet Port
Same
1 in
1 in
1 in
1 in
Outlet Port
Same
3/4 in
1 in
1 in
3/4 in
Inlet Port (in.)
Same
1
1
1
1 FNPT
Discharge
Same
19.5 ft
19.5 ft
14 ft
12 ft
Self-Priming
Same
Yes
Yes
Yes
Yes
Hose Length
Same
12 ft
12 ft
14 ft
12 ft
Outlet Port (in.)
Same
3/4
1
1
3/4 FNPT
Speed
Same
1,900 rpm
2,000 rpm
3,200 rpm
1,900 rpm
Discharge (ft.)
Same
19.5
19.5
14
12
Duty Cycle
Same
30 min
30 min
30 min
30 min
Bypass Valve
Same
Yes
Yes
Yes
Yes
Hose (in. x ft.)
Same
3/4 x 12
1 x 12
1 x 14
3/4 x 12
Horsepower
Same
0.2 HP
0.25 HP
0.3 HP
0.5 HP
Product Weight
Same
lb
lb
lb
-
Dimensions L x W x H (in.)
Same
19.0 x 16.0 x 9.0 in
19.0 x 16.0 x 9.0 in
8.0 x 10.0 x 14.0 in
18 x 18 x 12 in
Speed (RPM)
Same
1,900
2,000
3,200
1,900
Max. Suction Lift
Same
-
-
6.5 ft
4.8 ft
Volts
Same
-
-
-
12
