GPI 15 GPM 12V Fuel Transfer Pump with Auto Unleaded Nozzle

Item# 360563
GPI 15 GPM 12V Fuel Transfer Pump with Auto Unleaded Nozzle
GPI 15 GPM 12V Fuel Transfer Pump with Auto Unleaded Nozzle

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

GPI 15 GPM 12V Fuel Transfer Pump with Auto Unleaded Nozzle

Click or Tap image to Zoom

$529.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Call Store for Availability
  • Designed for permanent mounting on vented storage tanks
  • Includes automatic unleaded nozzle, 3/4in. x 12ft. hose, 18ft. 12/2 AWG power cord and two-piece adjustable suction pipe (15in. to 40in)
  • For use with gasoline (up to 15% alcohol blends such as E15), diesel fuel (up to 20% bio-diesel blends such as B20) and kerosene
  • Low profile design
  • Received a Gold Medal Performance award for delivering 3 times more operating hours than comparable pumps

See full description

Complete Your Solution

  • GPI 15 GPM 12V Fuel Transfer Pump with Auto Unleaded Nozzle
  • Roughneck Mechanical Fuel Meter, 4–20 GPM, 3/4in. Inlet/Outlet
Price for all two:

$669.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This GPI® DC Powered Fuel Transfer Pump is a rugged pump featuring a rotary gear design that is made from durable and lightweight cast aluminum. The 12V DC motor generates 1/5 HP to deliver flow rates up to 15 GPM. Provides longer run times and award-winning performance year after year. Ideal for use in agricultural, automotive and construction applications with low viscosity petroleum fuels. Motor is cULus listed.

What's Included

    (1) Fuel transfer pump model# M-150S-AU with spin collar and lockable nozzle cover (1) 3/4in. automatic unleaded nozzle (1) Fuel hose (1) Adjustable suction pipe (1) Power cord (1) Strain relief connector (1) 30 amp fuse (1) Hardware kit (1) Union ring gasket

Downloads

Product Manual

Features + Benefits

  • Designed for permanent mounting on vented storage tanks
  • Includes automatic unleaded nozzle, 3/4in. x 12ft. hose, 18ft. 12/2 AWG power cord and two-piece adjustable suction pipe (15in. to 40in)
  • For use with gasoline (up to 15% alcohol blends such as E15), diesel fuel (up to 20% bio-diesel blends such as B20) and kerosene
  • Low profile design
  • Received a Gold Medal Performance award for delivering 3 times more operating hours than comparable pumps
  • Longer pump life offers greater value for the dollar
  • Convenient spin collar for easy installation and versatile pump mounting
  • Circuit breaker motor protection extends motor life
  • Aluminum body provides corrosion and tarnish resistance
  • Lockable nozzle cover protects your investment and deters theft
  • Pre-installed power cord greatly reduces installation time
  • Combine this M-150S-AU pump with GPI Model 01A31GM digital flow fuel meter (Item# 10930) or Model FM-200-G6N mechanical fuel meter (both sold separately) to create your own fueling system

Key Specs

AttributeSpecification

item#

360563

Brand

GPI

Manufacturer's Warranty

Lifetime Limited Warranty

Ship Weight

25.0 LB

GPM

15

Nozzle Type

Automatic

Max. Total Head

23 ft

Amps

18

Watts

216

Inlet Port

1 in

Outlet Port

1 in

Inlet Port (in.)

1 in. NPT

Discharge

18.2 ft
AttributeSpecification

Self-Priming

Yes

Hose Length

12 ft

Outlet Port (in.)

1 in. NPT

Speed

1,900 rpm

Discharge (ft.)

18.2

Duty Cycle

30 min

Bypass Valve

Yes

Hose (in. x ft.)

3/4 x 12

Horsepower

0.2 HP

Product Weight

lb

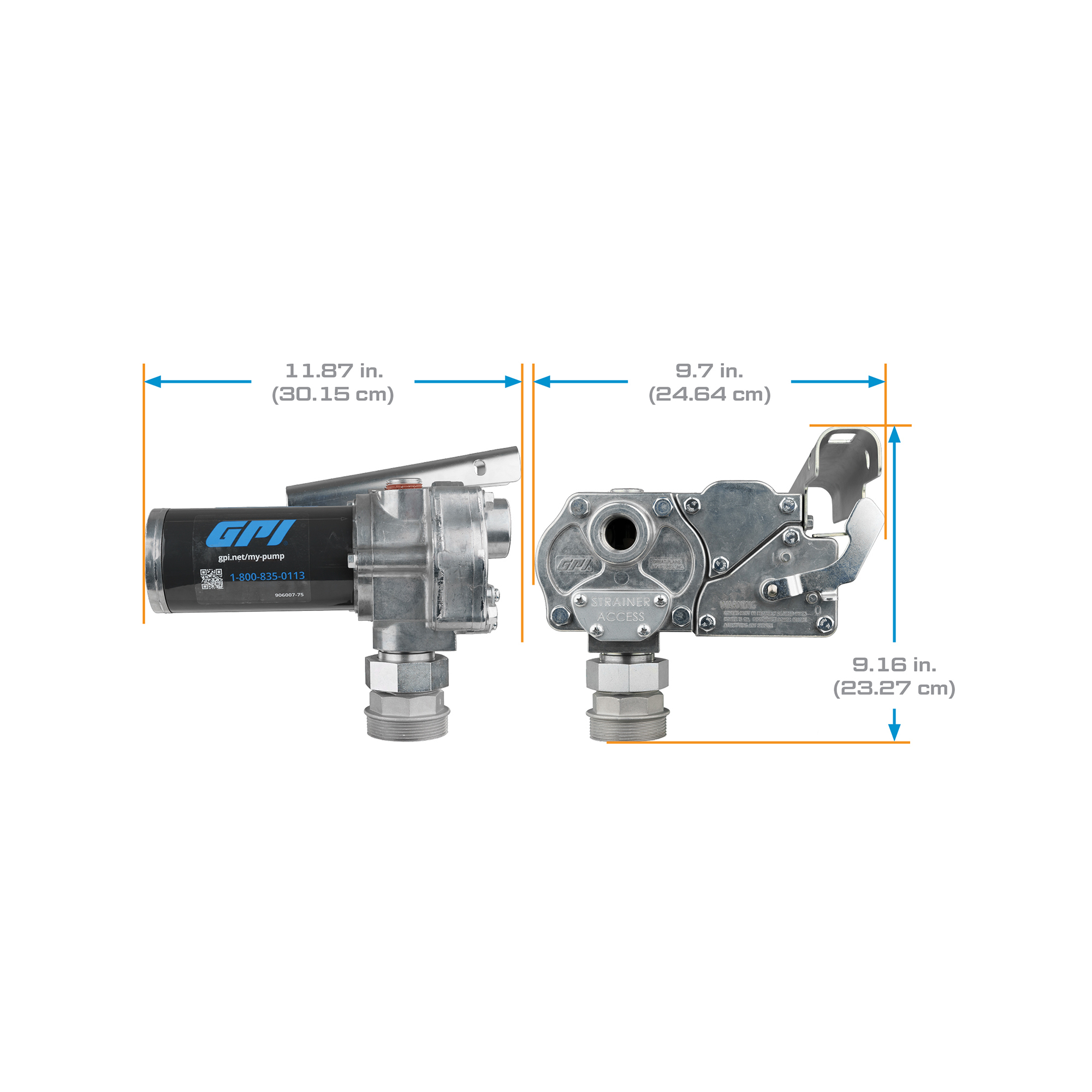

Dimensions L x W x H (in.)

19.0 x 16.0 x 9.0 in

Speed (RPM)

1,900

Reviews

Questions & Answers

24 Reviews This action will navigate to reviews.

Questions

1–10 of 12 Questions
Sort by:

  1. Will it pump 100’ of hose down hill?

    1 answer

    1. The pump would be able to pump 100 feet downhill.

      Helpful?

  2. how long is the pick up tube

    1 answer

    1. The transfer pump would include 2 adjustable suction pipes. It can be adjusted from 15" to 40".

      Helpful?

  3. is this pump considered explosion proof

    1 answer

    1. The fuel pump would be considered explosion proof.

      Helpful?

  4. What is the height of the tallest point of this pump once installed on tank?  Need to know if it will fit under hard tonneau cover

    1 answer

    1. The highest point from the bottom of the bung to the top of the nozzle holder would be 9.2".

      Helpful?

  5. Need Much longer hose (110'). Any issues with this?

    1 answer

    1. This pump would not be able to pump 110 feet. It has a maximum total head of 23 feet.

      Helpful?

  6. Is the pick-up tube metal or plastic??

    1 answer

    1. The suction/pickup tube for this transfer pump is plastic.

      Helpful?

  7. Does the automatic nozzle work with diesel ?

    1 answer

    1. The automatic nozzle will work with diesel.

      Helpful?

  8. can the pick up tube be extended longer than 40" s ?

    1 answer

    1. The pick up tube could not be extended longer than the 40".

      Helpful?

  9. Will this pump thread into a standard 55-gal barrel bung?

    1 answer

    1. If the barrel has a standard 2" NPT bung, this pump will thread into it.

      Helpful?

  10. Can a fuel filter be hooked up to this or does it cause too much head pressure?

    1 answer

    1. Please view item #67098 for a compatible fuel filter.

      Helpful?
