This pump would draw 240 watts.

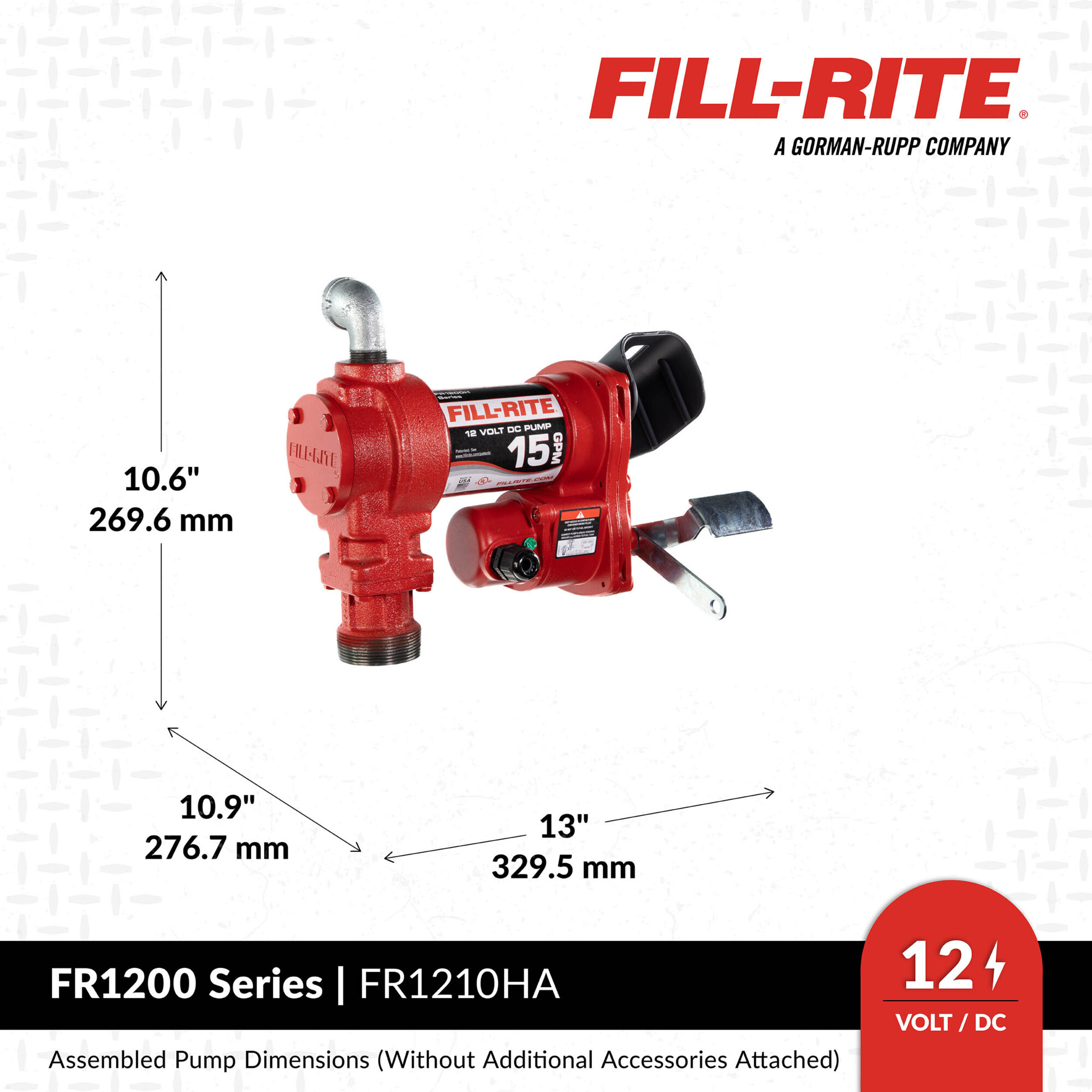

Fill-Rite 12V DC Fuel Transfer Pump Kit, 15 GPM, 3/4in. Automatic Nozzle, 3/4in. x 12ft. Hose, Model# FR1210HA
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$559.99
- Durable cast iron construction withstands heavy everyday use and extreme weather exposure
- Adjustable electrical junction box rotates 180° for added flexibility while wiring and improved installation in tight spaces
- Thermally-protected 1/4 HP, 12V motor prevents overheating for longer pump life
- Built-in strainer filters out particulates and prevents fuel contamination from damaging equipment
- Reliable on/off switch lever with cast metal stopping arm prevents premature failure from repeated use
See full description
Price for all two:
$624.98
What's Included
- (1) 12V fuel pump (1) Automatic unleaded nozzle (1) Discharge hose (1) Suction pipe (1) Ground wire (1) Battery cable.
Features + Benefits
- Durable cast iron construction withstands heavy everyday use and extreme weather exposure
- Adjustable electrical junction box rotates 180° for added flexibility while wiring and improved installation in tight spaces
- Thermally-protected 1/4 HP, 12V motor prevents overheating for longer pump life
- Built-in strainer filters out particulates and prevents fuel contamination from damaging equipment
- Reliable on/off switch lever with cast metal stopping arm prevents premature failure from repeated use
- 2in. threaded base for tank mounting
- Pumps 15 gallons per minute
- Includes 3/4in. automatic unleaded nozzle, 3/4in. x 12ft. discharge hose, 20in.-34 1/2in. steel suction pipe, 5ft.m 12-gauge ground wire and 18ft., 12-gauge 2-wire battery cable
- For use with diesel, gasoline, kerosene, E15, and biodiesel up to B20
- UL and cUL certified to ensure quality
- Limited lifetime warranty
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All DC Powered Fuel Pumps
See All Fill-Rite DC Powered Fuel Pumps
Currently Viewing This Product
Specifications
Specifications
Fill-Rite 12V DC Fuel Transfer Pump Kit, 15 GPM, 3/4in. Automatic Nozzle, 3/4in. x 12ft. Hose, Model# FR1210HA
Fill-Rite 12/24V DC Ultra-High-Flow Fuel Transfer Pump with Automatic Nozzle and Hose, 25 GPM, Model# NX25-DDCNB-AA
Fill-Rite 12V DC Fuel Transfer Pump Kit, 20 GPM, 1in. Manual Nozzle, 1in. x 12ft. Hose, Model# FR4210H
GPM
Same
15
25
20
Volts
Same
12
-
12
Nozzle Type
Same
Automatic
Automatic
Manual
Max. Suction Lift
Same
8 ft
-
8 ft
Amps
Same
20
29
-
Inlet Port
Same
1 in
1-1/4 in
1 in
Outlet Port
Same
3/4 in
1 in
1 in
Discharge
Same
16 ft
18 ft
37 ft
Self-Priming
Same
Yes
Yes
Yes
Hose Length
Same
12 ft
18 ft
12 ft
Duty Cycle
Same
30 min
-
30 min
Bypass Valve
Same
Yes
Yes
Yes
Horsepower
Same
0.25 HP
0.3 HP
-
Product Weight
Same
18.9000 lb
lb
19.1000 lb
Dimensions L x W x H (in.)
Same
15.5 x 10.0 x 6.5 in
22.0 x 20.0 x 11.0 in
12.0 x 10.0 x 14.0 in
Max. Total Head
Same
-
48 ft
-
Inlet Port (in.)
Same
-
1 1/4 NPT
-
Outlet Port (in.)
Same
-
1 NPT
-
Speed
Same
-
3,500 rpm
-
Discharge (ft.)
Same
-
18
-
Hose (in. x ft.)
Same
-
1 x 18
-
Speed (RPM)
Same
-
400–3,500
-
