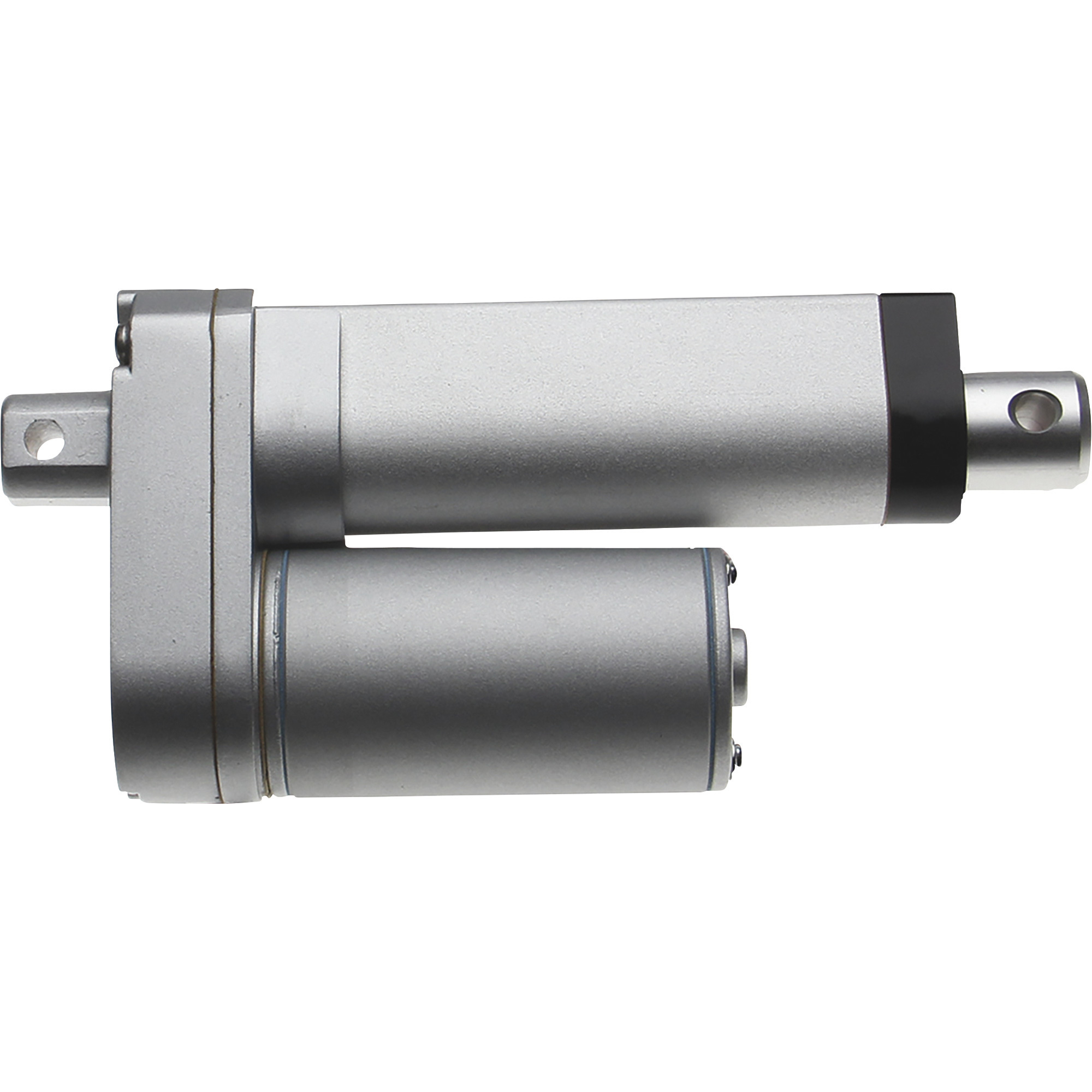

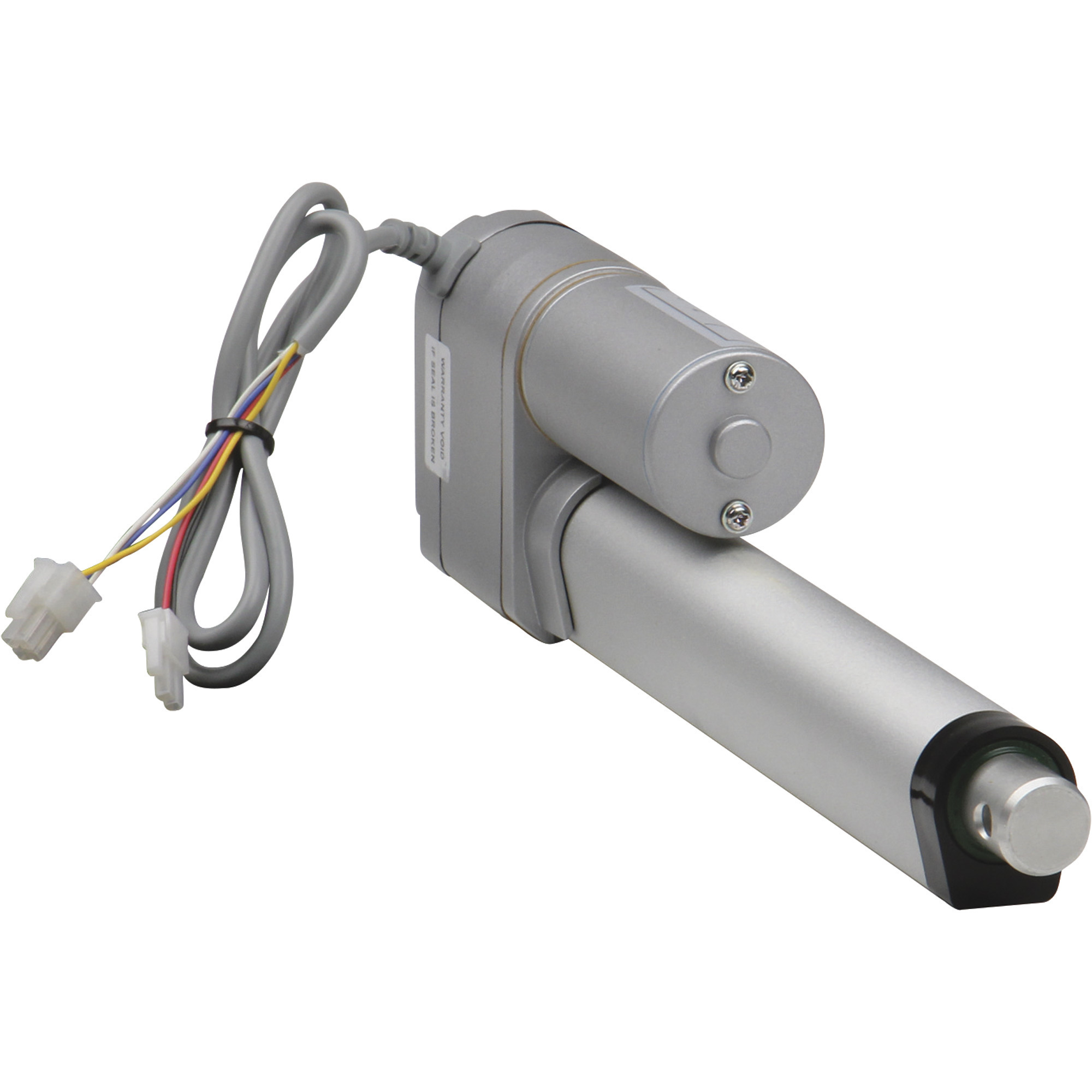

Glideforce 110-Lb. Capacity Linear Actuator, 5.90in. Stroke, Model# LACT6P

Item# 27324
"Glideforce 110-Lb. Capacity Linear Actuator, 5.90in. Stroke, Model# LACT6P"
Glideforce 110-Lb. Capacity Linear Actuator, 5.90in. Stroke, Model# LACT6P

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Glideforce 110-Lb. Capacity Linear Actuator, 5.90in. Stroke, Model# LACT6P

Click or Tap image to Zoom

$159.99

Buy 6 or more at $157.59 ea.

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 6in. nominal/5.90in. actual stroke
  • 12V motor
  • 20:1 reduction gearbox
  • 110-lb. dynamic load rating
  • Extension speed is 0.39in./sec. at max. load

See full description

Complete Your Solution

  • Glideforce 110-Lb. Capacity Linear Actuator, 5.90in. Stroke, Model# LACT6P
  • Glideforce 7-Channel Wireless Remote Control, Model# VERSA7
  • Glideforce Programmable Controller Kit, Controls One LD-ACME Linear Actuator, Model# LA-CONTROLLER
  • Glideforce Programmable Controller Kit, Controls Two LD-ACME Linear Actuators, Model# Dual Actuator
Price for all four:

$519.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Glideforce LD-ACME model linear actuator features an all-metal housing and is water-resistant and sealed against dust for rugged durability. 12V motor has 20:1 reduction gearbox that gives actuator a dynamic load rating of 110 lbs. and is rated to hold up to 500 lbs. when not moving. Use to raise and lower power equipment attachments, auto hoods and trunks, position solar panels, television lifts and many other applications around the home and farm. Unit can be controlled with a double pole, double throw switch or with the built-in position sensor and optional linear actuator programmable controller.

What's Included

    (1) Linear actuator

Downloads

Product Manual Product Manual2

Features + Benefits

  • 6in. nominal/5.90in. actual stroke
  • 12V motor
  • 20:1 reduction gearbox
  • 110-lb. dynamic load rating
  • Extension speed is 0.39in./sec. at max. load
  • Extension speed is 0.57in./sec. at no load
  • 25% duty cycle
  • 3.2 Amps at full load
  • 0.6 Amps at no load
  • IP65 enclosure
  • Nonadjustable end stop limit switches simplify installation and wiring
  • ACME drive for smooth, quiet operation
  • 1/4in. mounting pin holes
  • 11.69in. retracted length
  • 0.787in. shaft diameter
  • 12 1/4in.L x 1 1/2in.W x 3in.H overall
  • Can be controlled with a double pole, double throw switch
  • Can be controlled with built-in position sensor and optional linear actuator programmable controller

Key Specs

AttributeSpecification

item#

27324

Brand

Concentric

Manufacturer's Warranty

1 year limited warranty

Ship Weight

2.9 LB

Stroke Length

6 in

Dynamic Load Capacity

110 lb
AttributeSpecification

Static Load Capacity

500 lb

Product Type

Linear Actuator

Gear Ratio

20:1

Length Retracted

11.68 in

Volts

12

Frame Material

Multiple

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. Is there a minimum temperature this will operate in?

    1 answer

    1. The working temperature range for this item is: -13F [-25C] +149F [+65C].

      Helpful?

  2. does it stop retracting when you let go of the switch at different lenths and then continue or does it extend/ retract from stopping point

    1 answer

    1. This will have preset limit switches at each end of the stroke to prevent damage from over extending or retracting. What happens after the movement button is release depends on the switch being used. If a momentary switch is used it will stop moving when the button is released such as with our item #27329. This can also be connected to a control box that will stop at programmed positions such as with our item #27313.
