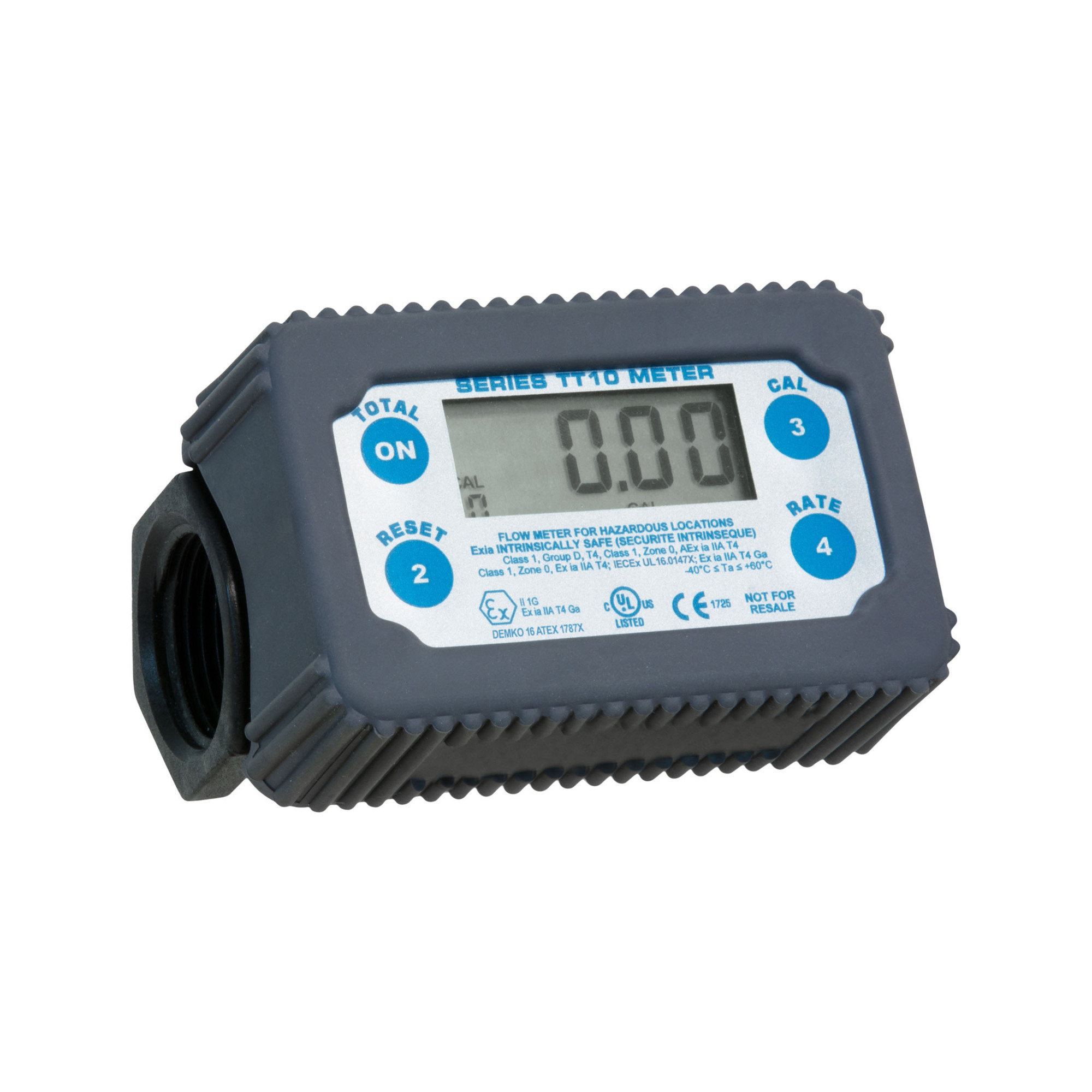

Fill-Rite Digital Turbine Fuel Meter,1in. Inlet/Outlet, 2 to 35 GPM, Polymer, Model# TT10PN

Item# 99209
Fill-Rite Digital Turbine Fuel Meter,1in. Inlet/Outlet, 2 to 35 GPM, Polymer, Model# TT10PN

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Fill-Rite Digital Turbine Fuel Meter,1in. Inlet/Outlet, 2 to 35 GPM, Polymer, Model# TT10PN

Click or Tap image to Zoom

$249.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not Available
  • Engineered polymer construction
  • Easy-to-use design with easy-to-read digital display is accurate to within 1%
  • Measures gallons, liters, quarts, pints, and ounces for versatility
  • Compatible for use with DEF/Ad Blue, anti-freeze, de-icing fluid, non-potable water, and other chemicals
  • 50 PSI maximum operating pressure

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Fill-Rite Digital Turbine Fuel Meter has factory presets for use with 20 fluids and UL/ATEX listing on the entire meter for convenience. Compatible for use with DEF/Ad Blue, anti-freeze, de-icing fluid, non-potable water, and other chemicals. Accurately measure gallons, liters, quarts pints and even ounces to +/- 1%. Install it where you need it, even at the end of the hose. Has 1in. NPT inlet and outlet ports. Engineered polymer construction.

What's Included

    (1) Digital fuel meter

Features + Benefits

  • Engineered polymer construction
  • Easy-to-use design with easy-to-read digital display is accurate to within 1%
  • Measures gallons, liters, quarts, pints, and ounces for versatility
  • Compatible for use with DEF/Ad Blue, anti-freeze, de-icing fluid, non-potable water, and other chemicals
  • 50 PSI maximum operating pressure
  • Operational from 2 to 35 GPM flow rates
  • 1in. inlet and 1in. outlet ports
  • Operates efficiently in temperatures from -40°F to +176°F
  • Intrinsically safe electronics and near global regulatory approvals provide peace-of-mind
  • Factory presets for use with 20 fluids and UL/ATEX listing on the entire meter
  • Rubber boot helps protect the meter and electronics from impact damage
  • Replaceable AA batteries keep the meter running and downtime to a minimum

Key Specs

AttributeSpecification

item#

99209

Brand

Fill-Rite

Manufacturer's Warranty

2 year limited warranty

Ship Weight

1.0 LB

Min. Flow Rate

2 GPM

Max. Flow Rate

35 GPM

Max. PSI

50

Operating PSI

50
AttributeSpecification

Product Type

Fuel Meters

Inlet Port

1 in. NPT

Outlet Port

1 in. NPT

Min. Temperature

-40 °F

Max. Temperature

176 °F

Product Weight

lb

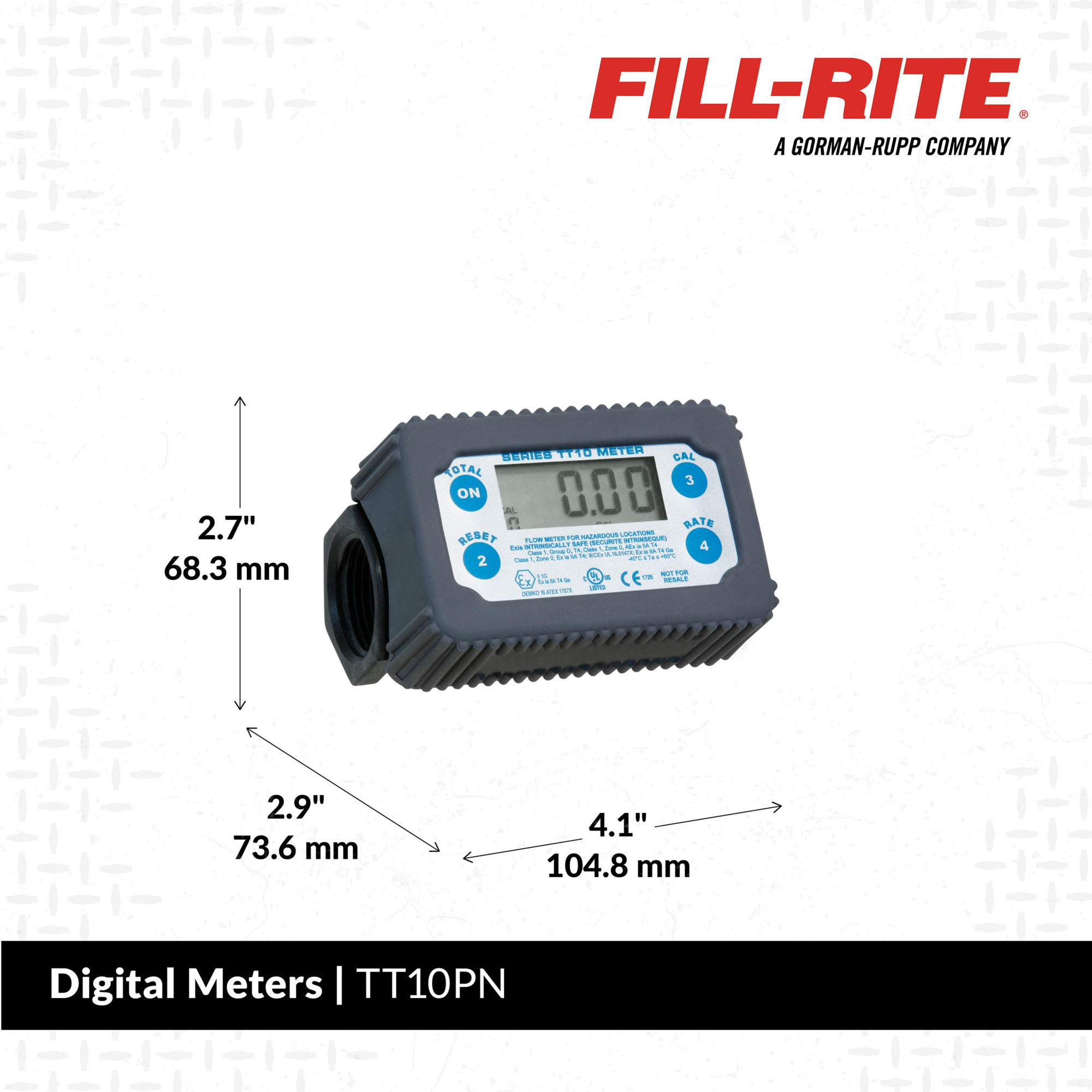

Dimensions L x W x H (in.)

6.5 x 3.25 x 9.0 in

Reviews

Questions & Answers

8 Reviews This action will navigate to reviews.

Questions

  1. What is the specific wetted material of construction for this material? We are looking for something compatible with a mildly corrosive low-viscosity amine. Is the polymer corrosion resistant? Material cannot contain any aluminum.

    1 answer

    1. The fuel meter is not recommended to be used with amine. The seal is made of nitrile. The turbine and impeller are made of stainless steel. The body is made of polypropylene.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
