Fill-Rite Digital Flow Meter, Model# FR820

Item# 109572
Fill-Rite Digital Flow Meter, Model# FR820

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Fill-Rite Digital Flow Meter, Model# FR820

Click or Tap image to Zoom

$339.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Designed with nutating disc technology that is capable of moving rust and small debris that jam and cause damage to other meters.
  • Rugged polypropylene body resists corrosion in demanding chemical and industrial applications.
  • Measures fluids within +/- 1% accuracy, ensuring your record-keeping is precise as possible.
  • In-line design allows for installation at the pump or at the end of the discharge hose, with an LCD display that rotates 360° for your convenience.
  • Track fluids in any user-created unit in addition to preset measurements like gallons, litres, ounces, pints, and quarts.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This electronic polymer meter is designed for agriculture chemicals but is useful in many applications. The chemically resistant materials meet the most versatile applications, one meter for many uses. Powered by two AA batteries provides long life with no external power requirements. Applications include pesticides, fertilizers, water, crop oil, mineral spirits, anti-freeze, and many others. Features 2 to 20 GPM with left to right flow, 1in. NPT Threads and 20 preset calibration points. For Use with Water and Petroleum Based Liquids. Not For Use with liquids with a flash point of 100° F (37.8° C) or less.

What's Included

    (1) One Digital Meter

Features + Benefits

  • Designed with nutating disc technology that is capable of moving rust and small debris that jam and cause damage to other meters.
  • Rugged polypropylene body resists corrosion in demanding chemical and industrial applications.
  • Measures fluids within +/- 1% accuracy, ensuring your record-keeping is precise as possible.
  • In-line design allows for installation at the pump or at the end of the discharge hose, with an LCD display that rotates 360° for your convenience.
  • Track fluids in any user-created unit in addition to preset measurements like gallons, litres, ounces, pints, and quarts.
  • One-step field calibration for numerous fluids makes installation quick, saving you time and eliminating frustration.
  • One-step field calibration for numerous fluids makes installation quick

Key Specs

AttributeSpecification

item#

109572

Brand

Fill-Rite

Manufacturer's Warranty

2 year limited warranty

Ship Weight

3.0 LB

Min. Flow Rate

2 GPM

Max. Flow Rate

20 GPM

Max. PSI

125

Product Type

Fuel Meters
AttributeSpecification

Inlet Port

1 in. NPT

Outlet Port

1 in. NPT

Min. Temperature

0 °F

Max. Temperature

130 °F

Display

Digital

Product Weight

1.3000 lb

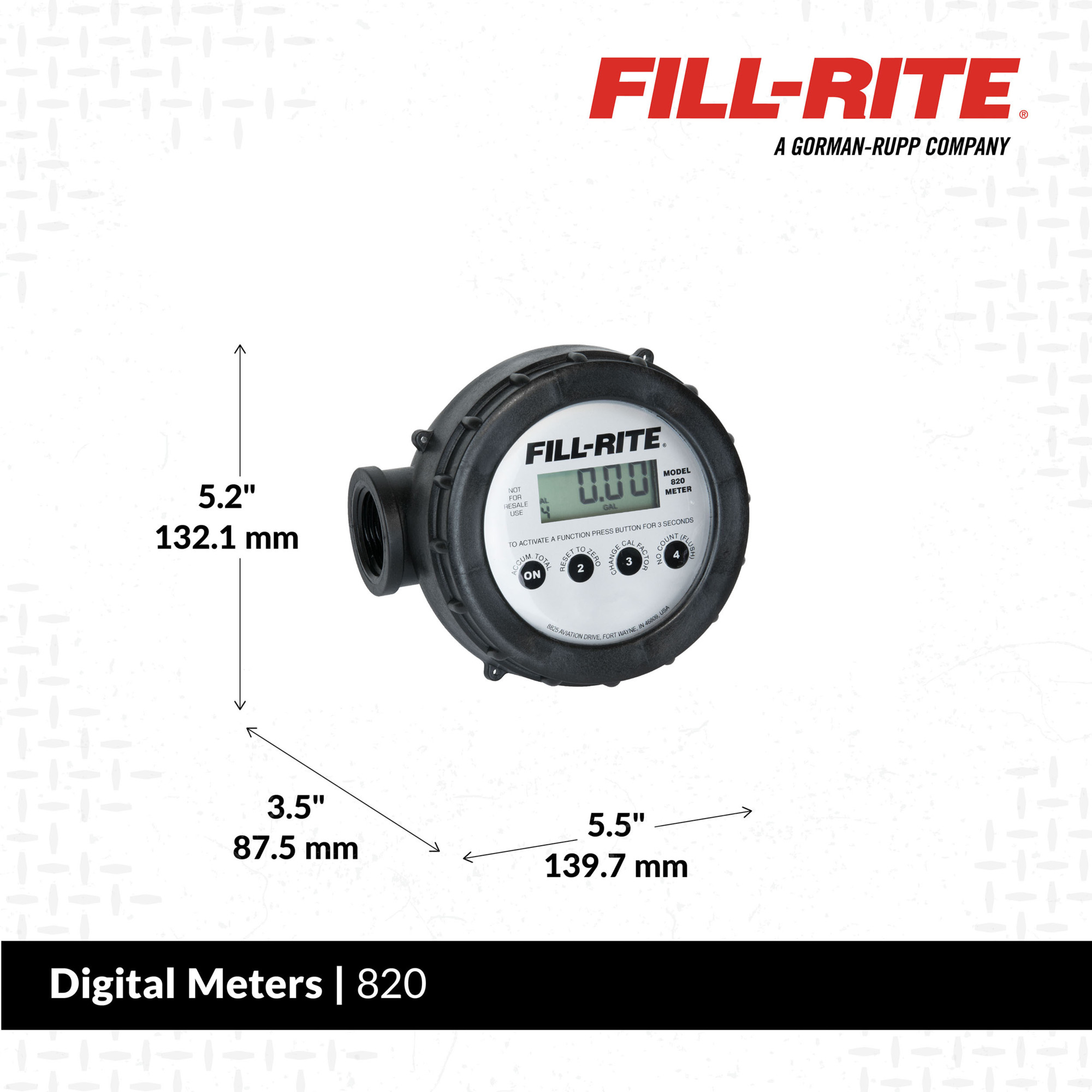

Dimensions L x W x H (in.)

3.5 x 5.0 x 5.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
