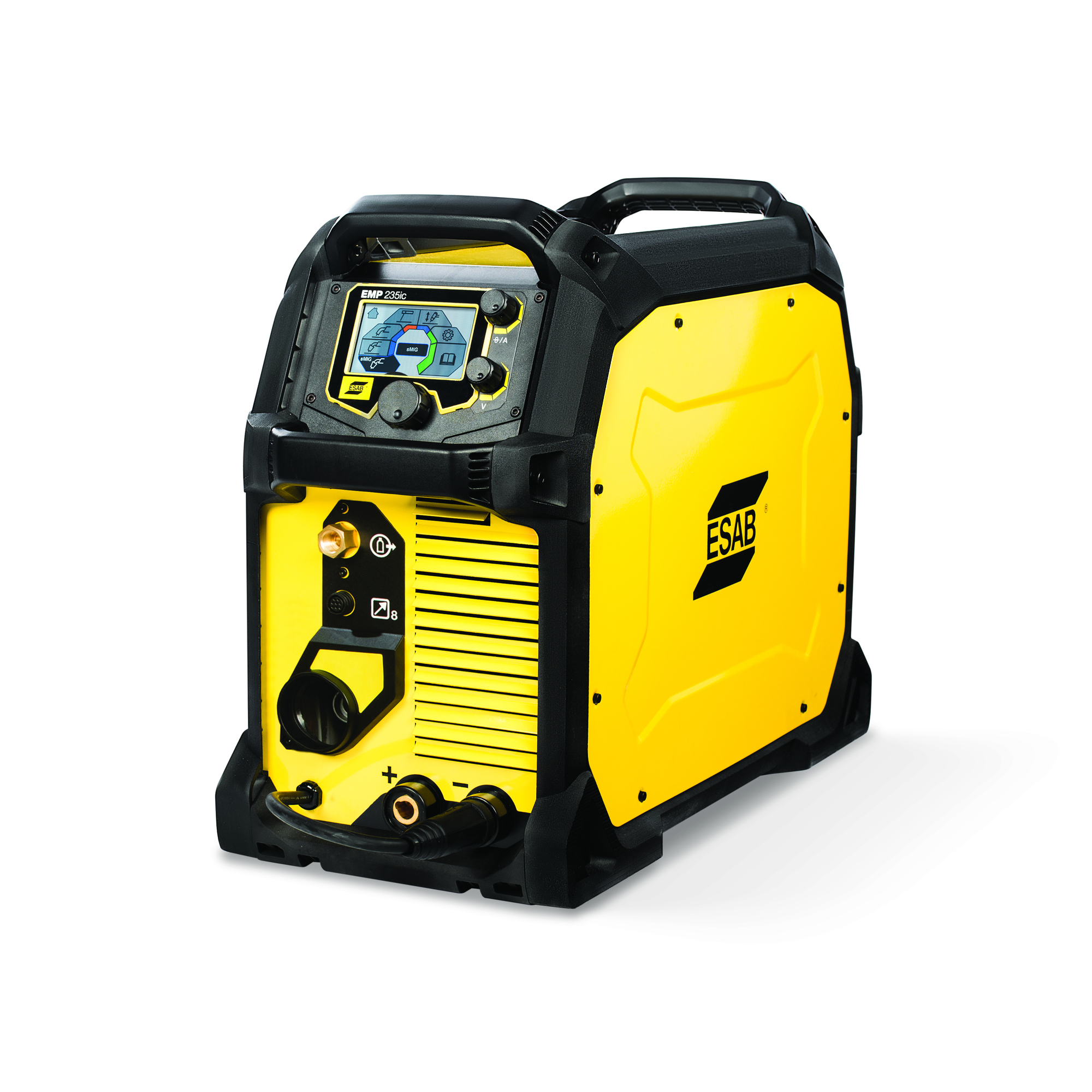

ESAB Rebel EMP 235ic Dual Voltage 120V/230V, 250 Amp, Inverter MIG Welder/Multiprocess Welder, Flux Core Welder, Stick Welder, TIG Welder, Model# 0558012704

Item# 5880861
ESAB Rebel EMP 235ic Dual Voltage 120V/230V, 250 Amp, Inverter MIG Welder/Multiprocess Welder, Flux Core Welder, Stick Welder, TIG Welder, Model# 0558012704

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

ESAB Rebel EMP 235ic Dual Voltage 120V/230V, 250 Amp, Inverter MIG Welder/Multiprocess Welder, Flux Core Welder, Stick Welder, TIG Welder, Model# 0558012704

Click or Tap image to Zoom

$3859.32

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Exlcusive sMIG Technology - innovative "smart-MIG" feature continuously learns and adapts to the operator's welding technique to provide a stable arc and superior, repeatable welds; increases productivity for the experienced welder, and reduces training time for novice welders
  • Innovative Color LCD display has larger display screen and higher pixel density to provide a more clear view of the TFT screen than other light industrial welders; loaded with exclusive features: on-demand availability of the user's manual, listing of spare parts - all in multiple languages
  • Power to Perform - have the confidence with Rebel 235ic to run the full range of .035 in. wire- short arc and spray transfer. Also up to .045 in solid wire and up to .052 in. cored wire. Plus, rods up to 5/32 in. and TIG rods up to 3/16 in.
  • 110V and 230V dual input voltage
  • Trigger lock

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • ESAB Rebel EMP 235ic Dual Voltage 120V/230V, 250 Amp, Inverter MIG Welder/Multiprocess Welder, Flux Core Welder, Stick Welder, TIG Welder, Model# 0558012704
  • Klutch Steel Welding Table with Tool Kit, 36in.L x 24in.W x 33-1/4in.H
  • Klutch Mobile Welding Workstation with 26-Pc. Metal Fit-Up Kit, 40in.L x 24in.W x 36in.H, 600-Lb. Capacity
  • Klutch 2-Tier Welding Cart with Locking Cabinet, 31-1/2in.L x 16-1/8in.W x 28in.H
Price for all four:

$4559.29

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The ESAB Rebel EMP 235ic Welding Machine offers 110V/230V flexibility and some of the most innovative welding technology available. This true multiprocess system is designed for MIG Flux-cored STICK and TIG welding. Built in wire feeder is 48 and 12in. spool compatible. Weighing only 53lbs with a rated output 235A 40% Duty Cycle (MIG) 210A 40% Duty Cycle (STICK) 240A 40% Duty Cycle (TIG).

What's Included

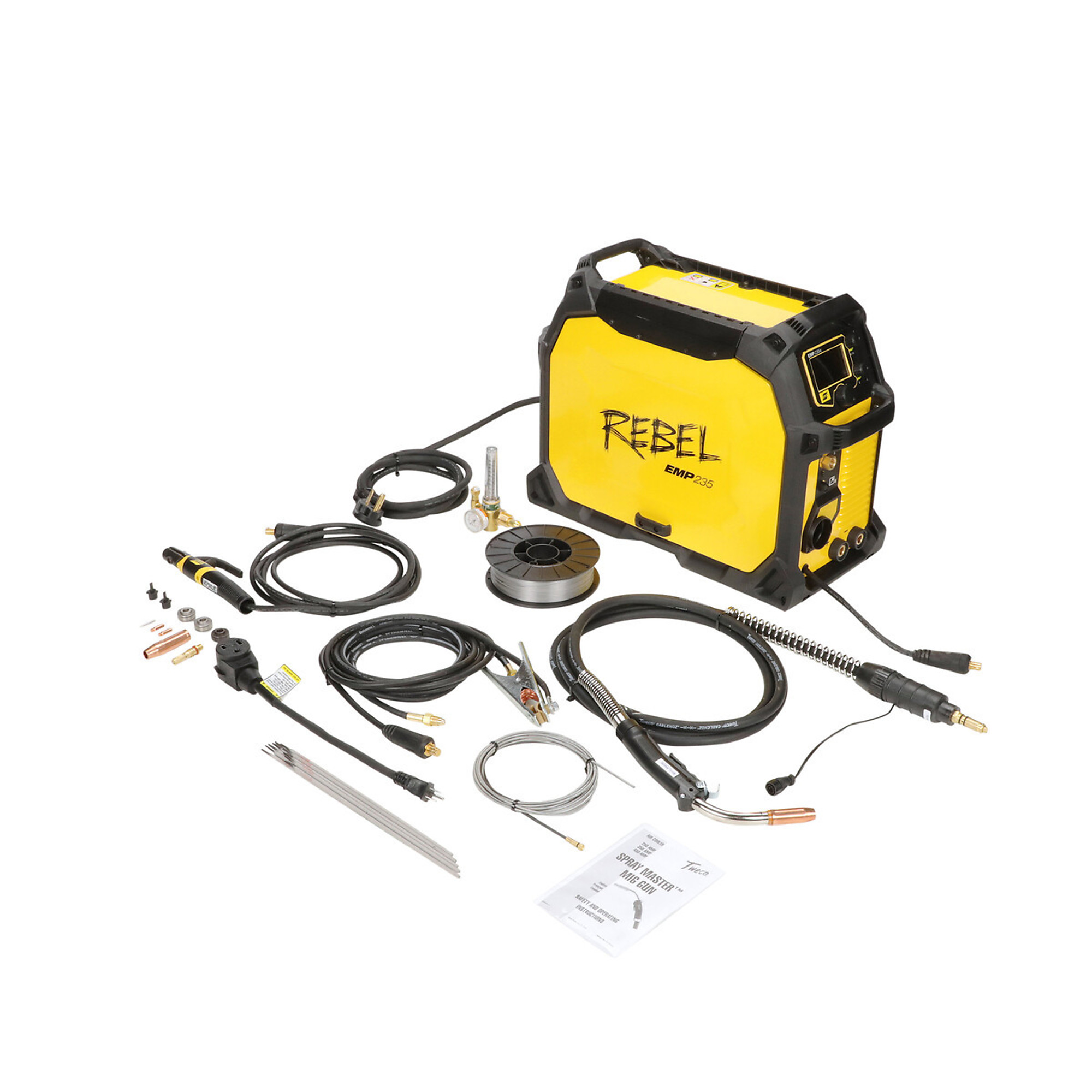

    (1) Power supply | 15' 250A MIG gun | 10' 200A electrode holder | 10' ground clamp with leads | Argon flow gauge regulator with 12.5' gas hose | 7018 Stick Electrodes, qty 10 | 70S-6 .035 10-lb spool of wire | Spare nozzle, diffuser, 2 contact tips | Drive ro

Downloads

Product Manual Product Manual2

Features + Benefits

  • Exlcusive sMIG Technology - innovative "smart-MIG" feature continuously learns and adapts to the operator's welding technique to provide a stable arc and superior, repeatable welds; increases productivity for the experienced welder, and reduces training time for novice welders
  • Innovative Color LCD display has larger display screen and higher pixel density to provide a more clear view of the TFT screen than other light industrial welders; loaded with exclusive features: on-demand availability of the user's manual, listing of spare parts - all in multiple languages
  • Power to Perform - have the confidence with Rebel 235ic to run the full range of .035 in. wire- short arc and spray transfer. Also up to .045 in solid wire and up to .052 in. cored wire. Plus, rods up to 5/32 in. and TIG rods up to 3/16 in.
  • 110V and 230V dual input voltage
  • Trigger lock
  • Short arc and Spray transfer capab
  • 4", 8" and 12" spool capable
  • Hot start and Arc Force (Stick mode only
  • Voltage trim, Inductance, Burn back, Pre-flow/Post-Flow Adjustment Capable (MIG mode only)
  • Lift arc (TIG mode only)

Key Specs

AttributeSpecification

item#

5880861

Brand

ESAB

Manufacturer's Warranty

3 year limited warranty

Ship Weight

53.0 LB

Volts

120/230

Max. Amps

250

Power Type

DC

Multi-process

Yes

Spool Gun Included

No

Welding Processes

Flux-Core, MIG, Stick, TIG

Max. Weld Thickness

0.5 in

Max. Welding Wire Diameter

0.052 in

Duty Cycle

CC: Stick - 120 VAC - 85 Amps At 23.4 V - 40% Duty Cycle | CC: Stick - 230 VAC - 210 Amps At 28.4 V - 40% Duty Cycle | CC: TIG - 120 VAC - 130 Amps At 15.2 V - 40% Duty Cycle | CC: TIG - 230 VAC -
AttributeSpecification

Weldable Materials

Mild Steel, Steel, Aluminum

Min. Amps

5

Wire Feed Speed Control

Yes

Cart Included

Yes

Mig Ready

Yes

Power Cord Length

10 ft

Clamp Cable Length

6.5 ft

Electrode Cable Length

13 ft

Regulator and Gas Hose Included

Yes

Shielding Gas Required

Yes

Product Weight

83.0000 lb

Dimensions L x W x H (in.)

26.5 x 19.5 x 11.5 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. how many amp s is this welder

    1 answer

    1. The welder has a maximum of 250 amps.

      Helpful?

  2. Does Northern tool know where this is made?

    1 answer

    1. The ESAB welder is made in China.

      Helpful?
