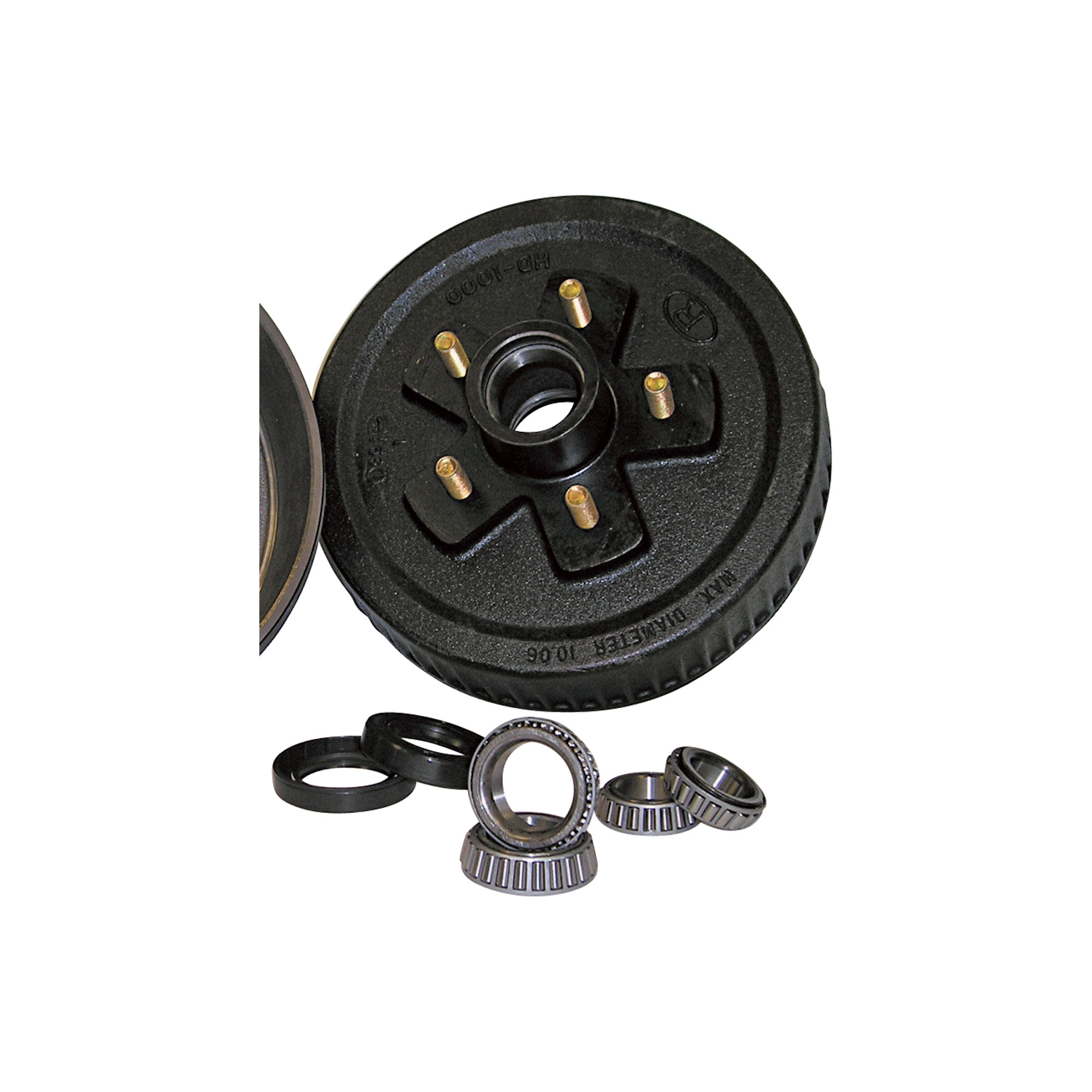

Dexter 5-Studded Brake Drum, 10in., Model# 86754

Item# 21506
"Dexter 5-Studded Brake Drum, 10in., Model# 86754"
Top Seller
Dexter 5-Studded Brake Drum, 10in., Model# 86754

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Dexter 5-Studded Brake Drum, 10in., Model# 86754

Click or Tap image to Zoom

$154.99

  • Shipping:

    Available now

  • Store Pickup:

    Call Store for Availability
  • One-piece design includes hub and brake drum
  • 1 3/8in. inner bearing
  • 1 1/16in. outer bearing
  • 1.72in. seal

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Dexter 5-Studded Brake Drum fits on 3500-lb. capacity axles.

What's Included

    (1) Brake drum

Features + Benefits

  • One-piece design includes hub and brake drum
  • 1 3/8in. inner bearing
  • 1 1/16in. outer bearing
  • 1.72in. seal

Key Specs

AttributeSpecification

item#

21506

Brand

Dexter

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

21.0 LB

Drum Size

10 in
AttributeSpecification

Fits Axle Capacity

3,500 lb

Included (qty.)

Single

Brake Type

Drum Brake Hubs

Inner Bearing Size

1.375 in

Outer Bearing Size

1.063 in

Reviews

Questions & Answers

18 Reviews This action will navigate to reviews.

Questions

1–10 of 12 Questions
Sort by:

  1. How many are included

    1. One

      Helpful?

    2. This item is sold as a single brake drum with bearings and seals included.

      Helpful?

  2. Are the bearings and seals included with the hub/drum assembly?

    1. Yes, both inner and outer bearing plus inner seal.

      Helpful?

    2. Yes, the bearings and seals are included.

      Helpful?

  3. Will this fit a stock 1955 Chevy 210

    1 answer

    1. The brake drum is designed for 3500 pound capacity axles. It would not be compatible with a 1955 Chevy.

      Helpful?

  4. Is one of the drums/hubs fitted with left hand threaded studs? And, does each drum come with new inner and outer races, bearings, seals and dust caps?

    1 answer

    1. Per the manufacturer, there is no way to tell if it has left hand or right hand threaded studs. It would come with new inner and outer races, bearings, seals and dust caps.

      Helpful?

  5. What are the replacement numbers for the inner and outer bearings and seal?

    1 answer

    1. The inner bearing is model number L68149. The other bearing is model number L44649.

      Helpful?

  6. Do the bearings come installed in this drum?

    1 answer

    1. The drum comes with the seal and bearings installed.

      Helpful?

  7. Do these brakes work with a surge actuator (no electronics)? Or do they require electronic activation?

    1 answer

    1. The hub does not include the brakes. The drum hub is used in combination with either hydraulic activated drum brakes that use a surge actuator or electric brakes that are activated by connecting the brakes to a brake controller on the tow vehicle.

      Helpful?

  8. What is the stud spacing of this product?

    1 answer

    1. This will have a 4-1/2" bolt circle. The spacing of the studs, center to center, is 2.645".

      Helpful?

  9. Is this drum a 10 x 2 1/4?

    1 answer

    1. The inside diameter will be 10" x 1.5".

      Helpful?

  10. Is this a replacement for a Dexter 8-247 10" unit.

    Is this a replacement for a Dexter 8-247 10" unit.

    1 answer

    1. This brake drum has the same size bearings, drum diameter and stud pattern as the Dexter 8-247 drum. You may need to check with Dexter to verify additional spec compatibility.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts/12months labor
