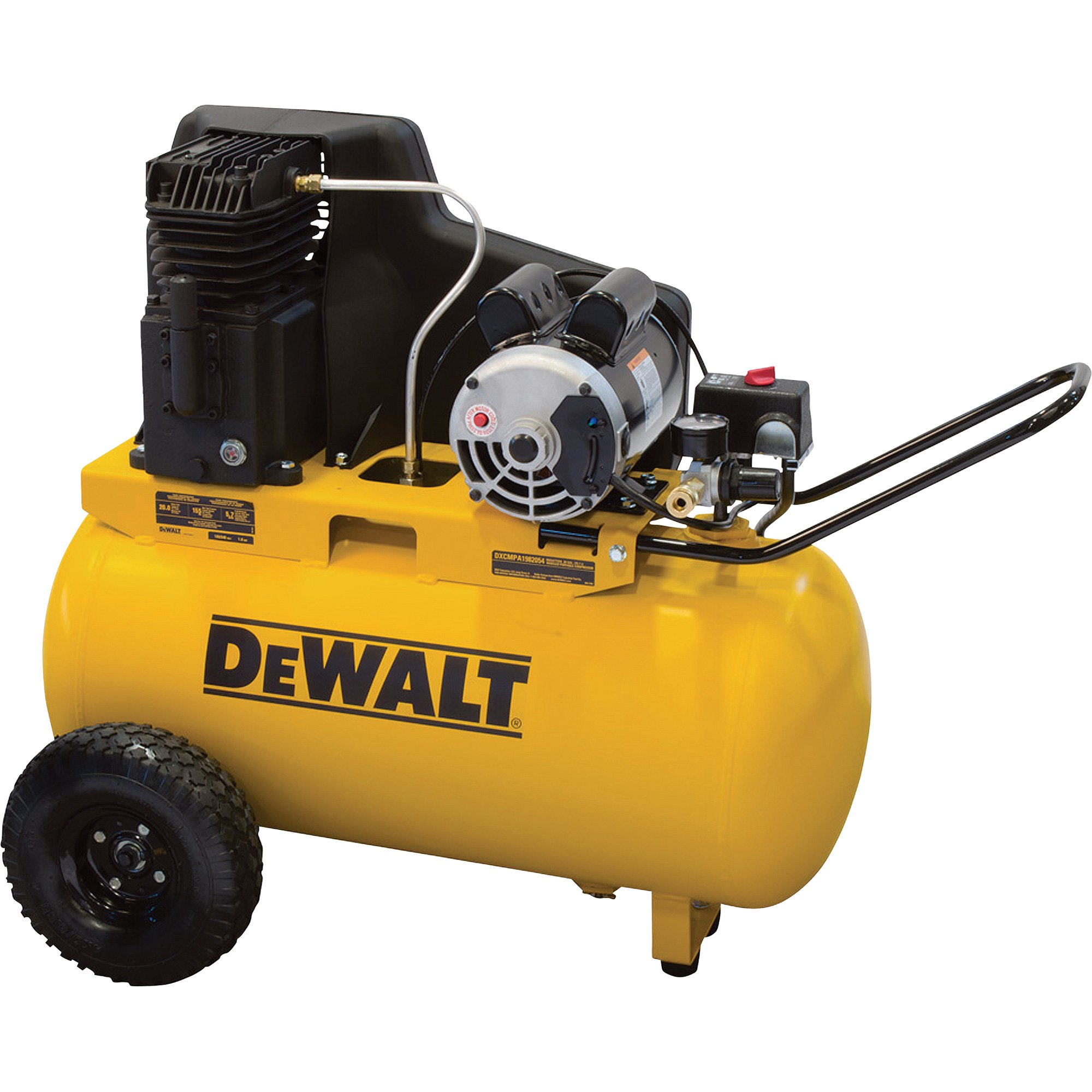

DEWALT Portable Electric Air Compressor — 1.9 HP, 20-Gallon Horizontal, 5.7 CFM, Model# DXCMPA1982054

Item# 42929
DEWALT Portable Electric Air Compressor — 1.9 HP, 20-Gallon Horizontal, 5.7 CFM, Model# DXCMPA1982054

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

DEWALT Portable Electric Air Compressor — 1.9 HP, 20-Gallon Horizontal, 5.7 CFM, Model# DXCMPA1982054

Click or Tap image to Zoom

  • 1.9 HP 120/240V dual voltage induction motor
  • 5.7 CFM @ 90 PSI; 7 CFM @ 40 PSI
  • Heavy-duty 1.9 HP dual voltage induction motor is wired for 120V and may be converted to 240V
  • Twin cylinder cast iron, oil-lubricated single-stage pump for durable performance
  • Thermally stable cast iron cylinder body

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

DEWALT portable 20-gallon electric air compressor has a 20-gallon horizontal ASME tank with attached pneumatic tires and handle for maximum portability on the jobsite. Heavy-duty 1.9 HP dual voltage induction motor is wired for 120V and may be converted to 240V. Cast iron twin cylinder oil-lubricated pump features one-piece cast iron crankcase, thermally stable cast iron cylinder body with aluminum head and valve plate to dissipate heat. Also has ball bearing and 12in. cast iron balanced flywheel. Delivers 155 PSI for ideal tool performance. Equipped with quick-set regulator, tank and working pressure gauges, and on/off switch. Oil level sight glass. Made in U.S.A.

What's Included

  • (1) 1.9 HP, 20-gallon horizontal electric air compressor with tires and handle

Features + Benefits

  • 1.9 HP 120/240V dual voltage induction motor
  • 5.7 CFM @ 90 PSI; 7 CFM @ 40 PSI
  • Heavy-duty 1.9 HP dual voltage induction motor is wired for 120V and may be converted to 240V
  • Twin cylinder cast iron, oil-lubricated single-stage pump for durable performance
  • Thermally stable cast iron cylinder body
  • Aluminum head and valve plate to dissipate heat
  • Automotive-style ball bearings
  • Oil level sight glass for easy maintenance checks
  • 12in. cast iron flywheel
  • 20-gallon horizontal ASME tank with attached pneumatic tires and handle for easy portability
  • Delivers 155 PSI for ideal tool performance
  • Quick-set regulator, tank and working pressure gauges
  • On/off switch
  • 34 1/4in.L x 22 3/4in.W x 34 1/2in.H

Key Specs

AttributeSpecification

item#

42929

Brand

DEWALT

Manufacturer's Warranty

12 months parts / 12 months labor

Ship Weight

166.0 LB

Horsepower

1.9 HP

Air Tank Size

20 Gal

Volts

120/240

CFM at 90 PSI

5.7
AttributeSpecification

Max. PSI

155

Pump Drive

Belt

CFM at 40 PSI

7.0

Noise Level

77.5 dB

Oil Required

Yes

Tank Orientation

Horizontal

Dimensions L x W x H (in.)

34.25 x 22.75 x 34.5 in
