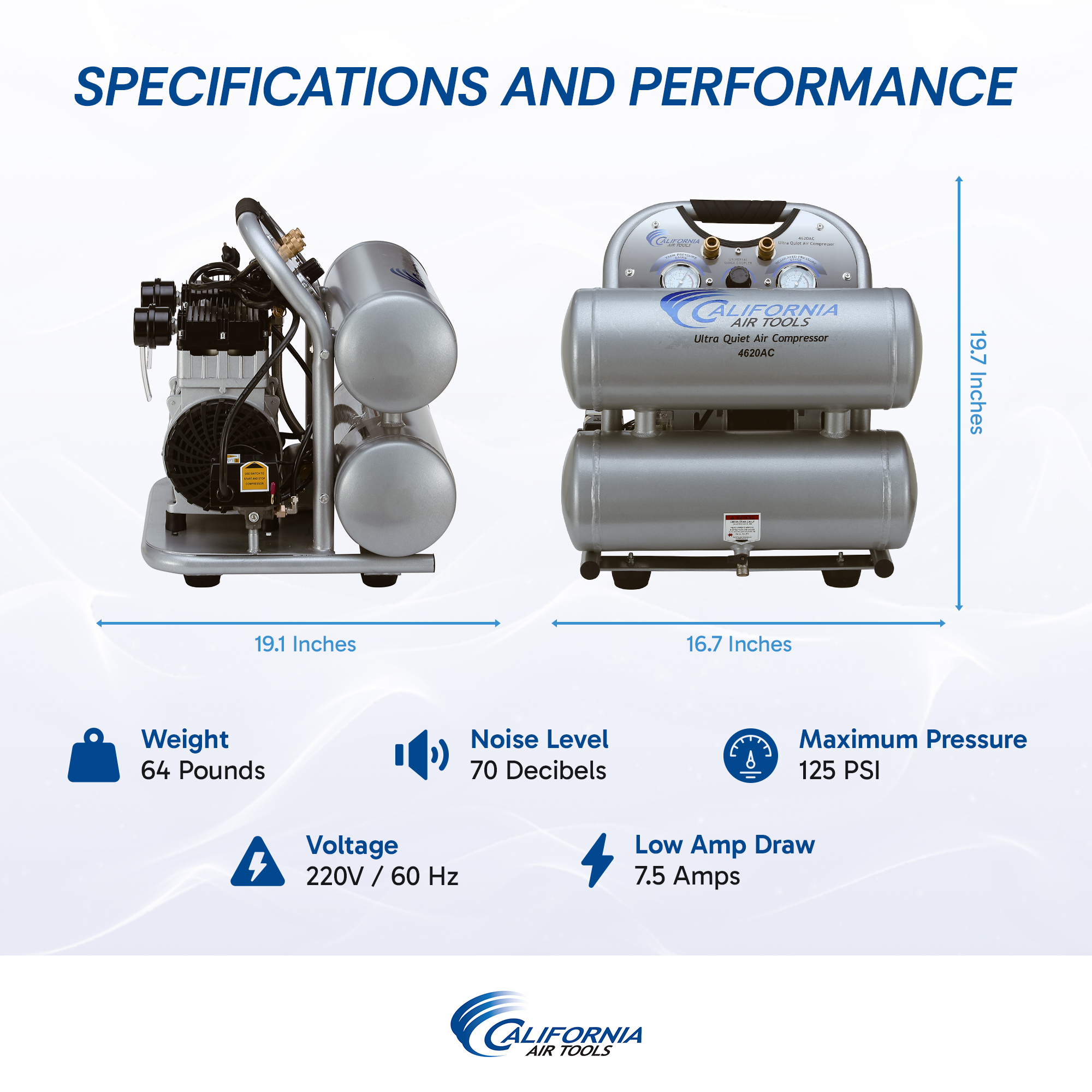

California Air Tools Ultra-Quiet Oil-Free Air Compressor, Horizontal, 2.0 HP, 4.6-Galllon Twin Air Tanks, 7.5 Amps, 1680 RPM

Item# 114713
"California Air Tools Ultra-Quiet Oil-Free Air Compressor, Horizontal, 2.0 HP, 4.6-Galllon Twin Air Tanks, 7.5 Amps, 1680 RPM"
California Air Tools Ultra-Quiet Oil-Free Air Compressor, Horizontal, 2.0 HP, 4.6-Galllon Twin Air Tanks, 7.5 Amps, 1680 RPM

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

California Air Tools Ultra-Quiet Oil-Free Air Compressor, Horizontal, 2.0 HP, 4.6-Galllon Twin Air Tanks, 7.5 Amps, 1680 RPM

Click or Tap image to Zoom

$532.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Ultra quiet at only 70 decibels
  • Large oil-free dual piston pump for cleaner air, better tool operation, less maintenance and longer life
  • Powerful 2.0 HP motor with operation speed of only 1680 RPMs for less noise, vibration and wear
  • 4.6-gallon, rust-free, aluminum twin air tanks weigh only 64 lbs. for easy transportation
  • Tested for minimum pump life of 3000 hours

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The California Air Tools 4620AC-22060 (220 volts 60 hertz) Ultra Quiet Oil-Free Air Compressor is designed to be one of the quietest 2.0 Hp air compressors in the industry having only 70 decibels of sound. The Powerful 'New' 2.0 HP (220v 60hz) motor operates at only 1680 RPM creating less noise and less wear. The 'New' SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times. The Oil-Free Dual Piston Pump System is engineered for high performance and durability. The CAT-4620AC-22060 Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours compared to other comparable air compressors with life cycles of 500 hours or less. The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump). The Easy Start Valve feature allows for a easier start up using less starting amps. The Easy Start Valve releases a small amount of air from the pump at start up to produce a no-load condition allowing the motor to spin freely. This no-load start up requires less amps for an easier start up in cold temperatures. The large 4.6 Gallon Aluminum Air Tank is only 67.2 pounds making it very easy to move around the jobsite. Designed for the person looking for Power, Air Flow, Less Service and Maintenance with at Least 30% Less Noise.

What's Included

    (1) Air compressor with 4.6-gallon twin air tanks

Downloads

Product Manual

Features + Benefits

  • Ultra quiet at only 70 decibels
  • Large oil-free dual piston pump for cleaner air, better tool operation, less maintenance and longer life
  • Powerful 2.0 HP motor with operation speed of only 1680 RPMs for less noise, vibration and wear
  • 4.6-gallon, rust-free, aluminum twin air tanks weigh only 64 lbs. for easy transportation
  • Tested for minimum pump life of 3000 hours
  • Thermal overload protector to prevent overheating
  • Takes only 60 seconds to fill the tank
  • 6.40 CFM @ 40 PSI, 5.30 CFM @ 90 PSI, 125 PSI maximum pressure
  • Produces less heat to dissipate heat more efficiently
  • Output pressure regulator
  • Two pressure control gauges
  • Two 1/4in. universal (F) connectors
  • Low amp draw - 7.5 Amps; 220 Volts; 60 Hz
  • No assembly required
  • 1-year limited warranty

Key Specs

AttributeSpecification

item#

114713

Brand

California Air Tools

Manufacturer's Warranty

1 year limited warranty

Ship Weight

68.0 LB

Horsepower

2 HP

Air Tank Size

4.6 Gal

Volts

220

CFM at 90 PSI

5.30

Max. PSI

125

Stage

1

Air Outlets (qty.)

2

Amps

7.5

Duty Cycle

0.233 %

Motor RPM

1,680

Working Pressure

90 PSI

Motor Phase

1
AttributeSpecification

Pump Life

3,000 hr

Pump Material

Steel

Air Outlet Size

1/4 in. NPT

CFM at 40 PSI

6.40

CFM at Max. PSI

5.30

Noise Level

70 dB

Oil Required

No

Lubrication System

Dual-Piston

Pressure Gauge

Yes

After Cooler Included

No

Tank Fill Time

1 min

Drain Type

Ball Valve

Tank Orientation

Horizontal

Product Weight

64.0000 lb

Dimensions L x W x H (in.)

18.75 x 17.0 x 19.7 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
