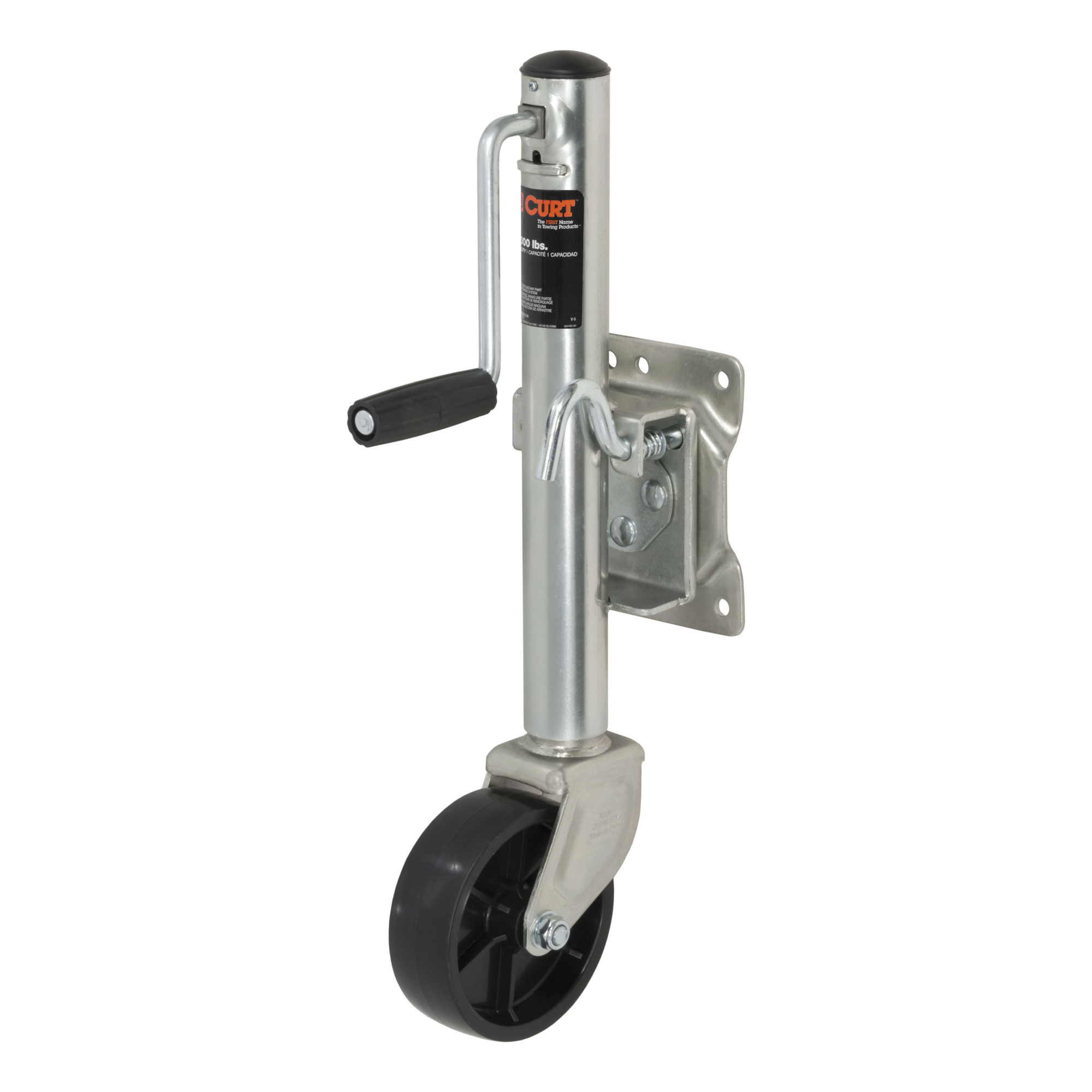

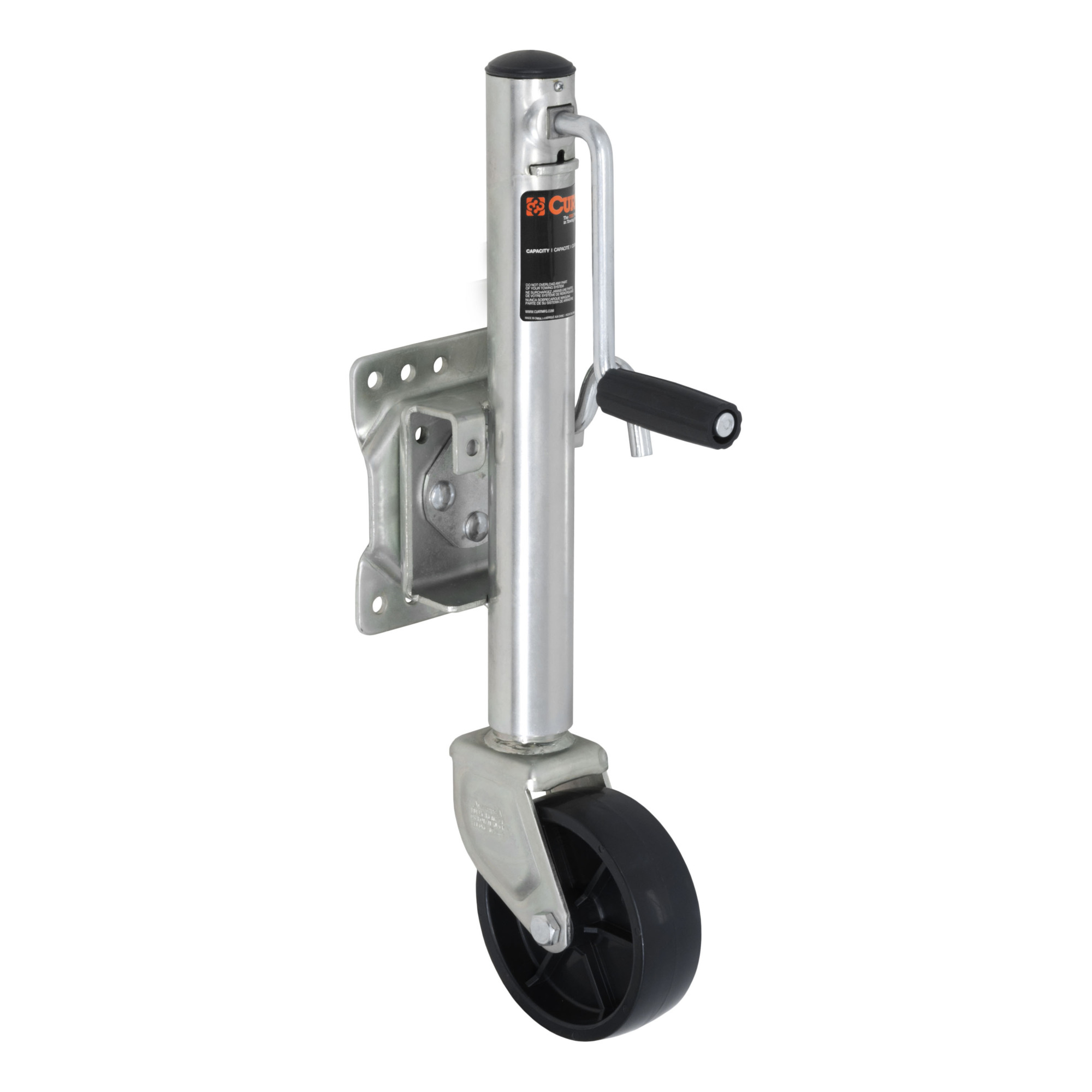

Curt Manufacturing, Marine Jack w 6in. Wheel 1200 lbs, 10in. Travel, Model# 28112

Item# 5278001
"Curt Manufacturing, Marine Jack w 6in. Wheel 1200 lbs, 10in. Travel, Model# 28112"
Curt Manufacturing, Marine Jack w 6in. Wheel 1200 lbs, 10in. Travel, Model# 28112

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Curt Manufacturing, Marine Jack w 6in. Wheel 1200 lbs, 10in. Travel, Model# 28112

Click or Tap image to Zoom

$72.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Supports up to 1,200 lbs. trailer tongue weight
  • Side-wind handle easily raises or lowers trailer coupler

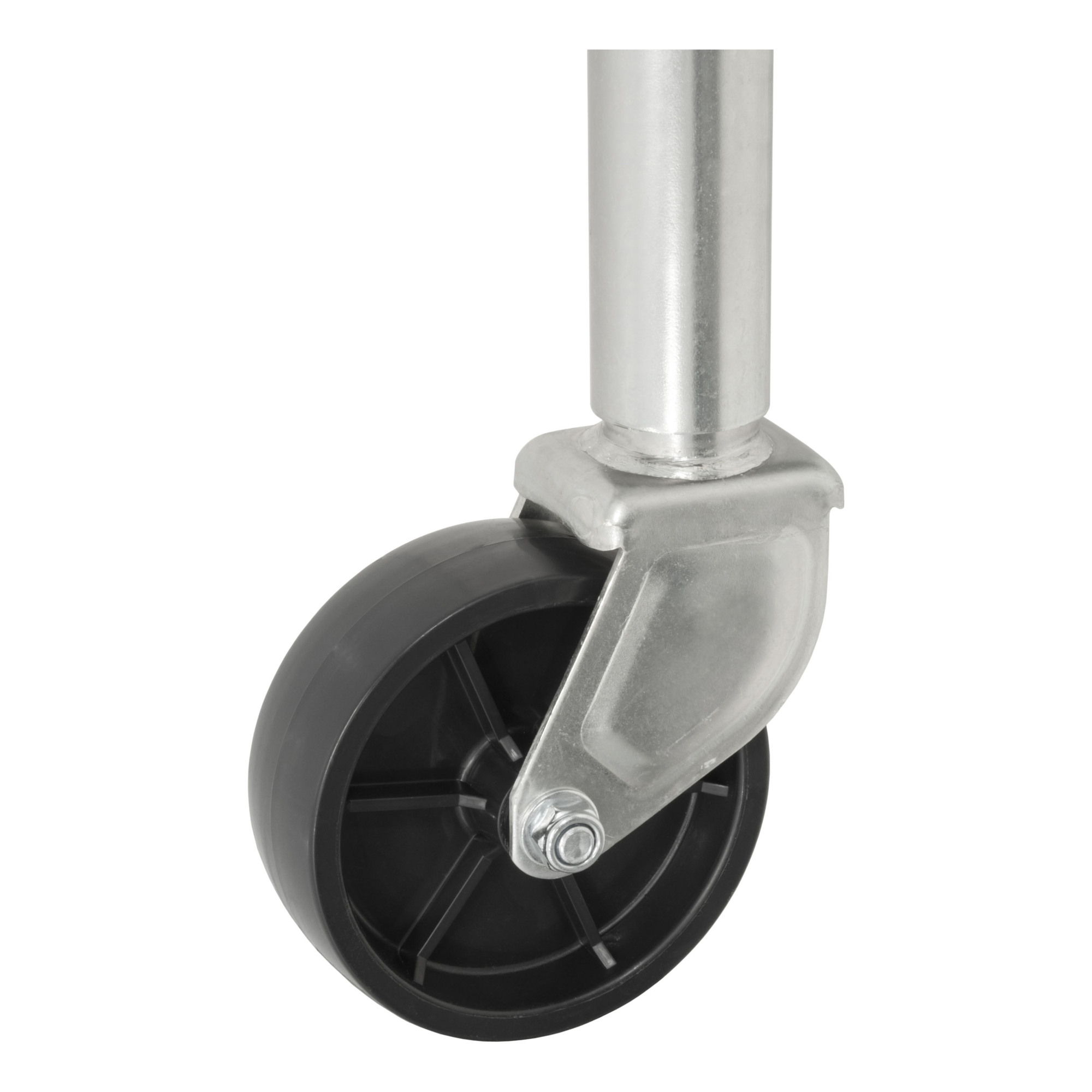

  • 6" wheel for convenient trailer mobility and coupling

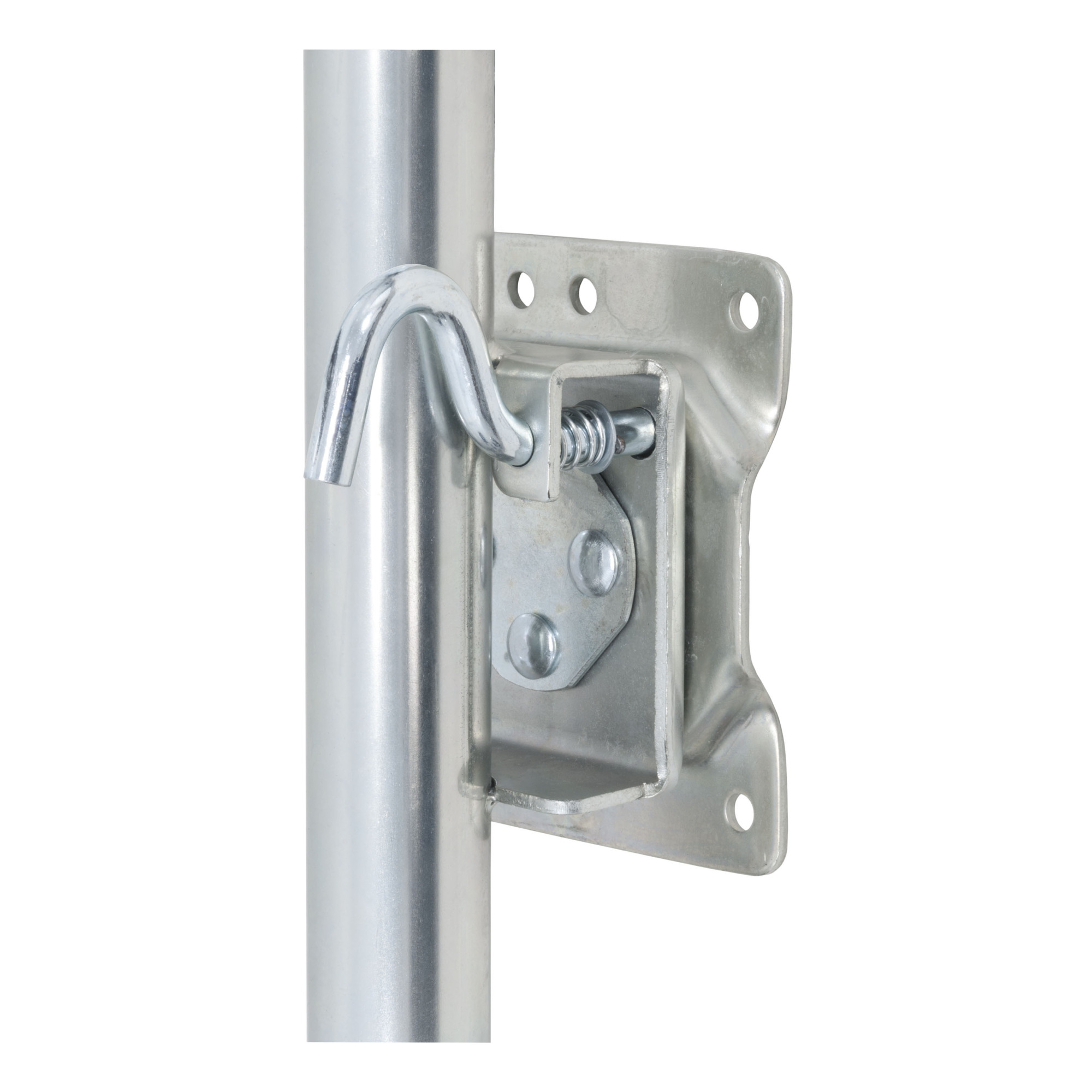

  • Swivel bracket allows jack to fully swing up and out of the way for travel
  • Heavy-duty pull-pin keeps jack securely locked in place

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

In our goal of being your best source for all things towing, the CURT line of trailer jacks is designed with care and manufactured with pride. CURT jacks are made with quality to promote the life and function of your trailer, and they come in several different styles to accommodate your needs, whether you are a frequenter of the boat landing, the campground, the racetrack or the field. Designed to withstand the wear and tear of frequent water exposure, CURT marine jacks are the jack of choice for the avid fisherman or boating enthusiast. Our marine jacks have a few features that make them a special addition to our trailer jack line. Unlike any of our other jacks, CURT marine trailer jacks are equipped with wheels, allowing for greater mobility and easier coupling of your trailer. Choose from models with one or two wheels. Marine jacks also have a heavy-duty pull-pin that allows them to pivot on their mounting bracket to be out of the way for travel. To protect them from corrosion and the damage of moisture, these jacks come with a zinc finish. This CURT marine jack features a weight capacity of 1200 lbs., a travel of 10in. and a wheel diameter of 6in. It comes with a side-wind handle and all the necessary bolt-on hardware for a complete installation. It does not matter what kind of trailer you tow -- a boat trailer, utility trailer, livestock hauler or recreational vehicle trailer -- if you have a receiver-style trailer, you will want a jack that complements its function. For a trailer jack that will not steer you wrong, CURT has the answer.

What's Included

    (1) Marine Jack with 6" Wheel

Features + Benefits

  • Supports up to 1,200 lbs. trailer tongue weight
  • Side-wind handle easily raises or lowers trailer coupler
  • 6" wheel for convenient trailer mobility and coupling
  • Swivel bracket allows jack to fully swing up and out of the way for travel
  • Heavy-duty pull-pin keeps jack securely locked in place
  • 10" of vertical travel accommodate multiple ball heights

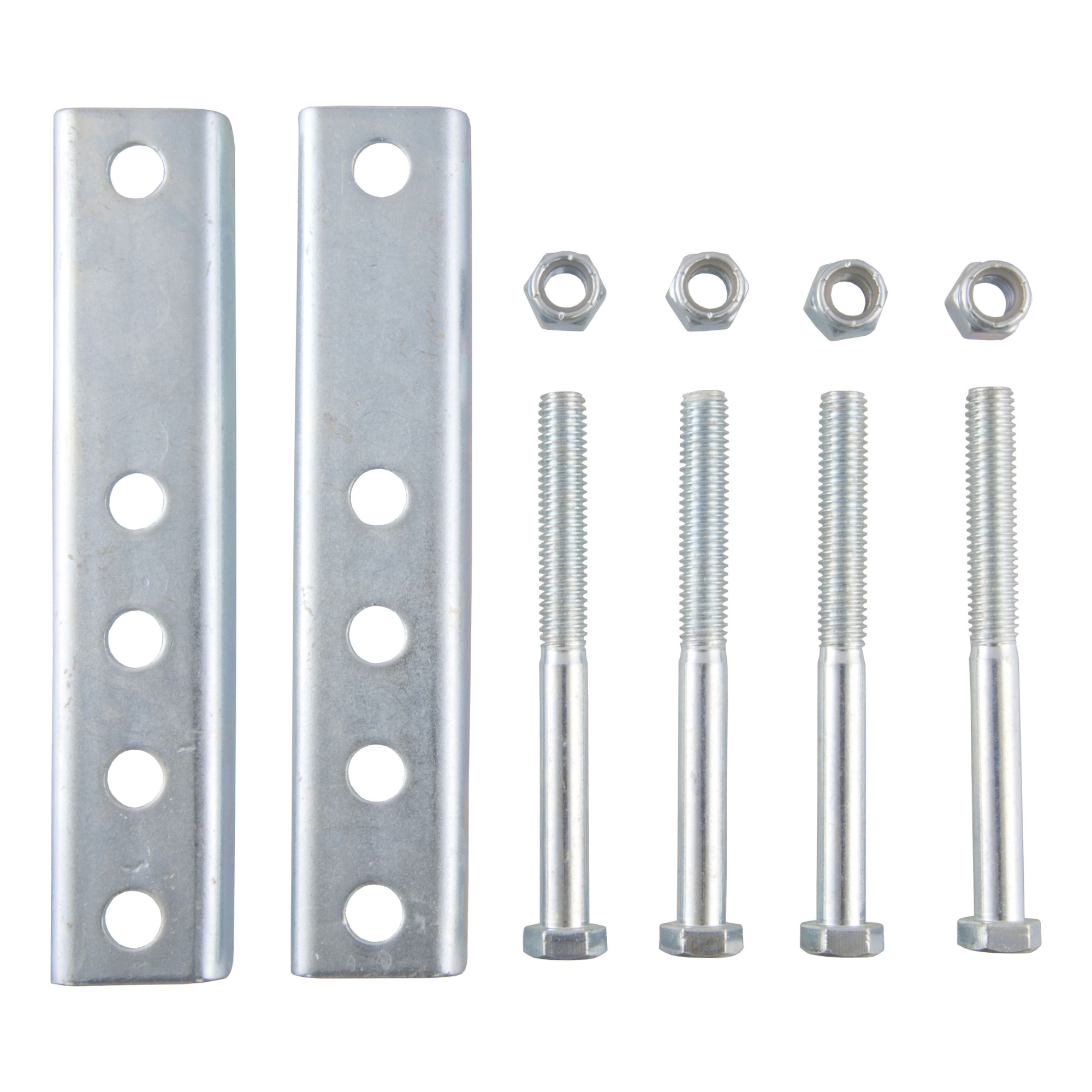

  • Bolt-on hardware included for secure mounting
  • Protected by a durable zinc-plated finish
  • Limited lifetime warranty (one-year finish, one-year parts)

Key Specs

AttributeSpecification

item#

5278001

Brand

Curt Manufacturing

Manufacturer's Warranty

Lifetime Limited warranty

Ship Weight

15.1 LB

Lift Capacity

1,200 lb

Jack Type

Marine and Swivel

Mount Type

Bolt-On

Tube Type

Round
AttributeSpecification

Tube Size

2 in

Length Extended

23.5 in

Length Retracted

12.2 in

Support Capacity

1,200 lb

Ground Support

Caster

Length of Travel

10 in

Product Weight

15.1000 lb

Dimensions L x W x H (in.)

23.0 x 5.75 x 9.3 in

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. Minimum and maximum distance from floor to pivot

    1 answer

    1. The maximum distance from the ground to the pivot when fully extended is 23.5". When retracted the distance is 12.2".

      Helpful?

  2. What are the dimensions of the mounting plate?

    1 answer

    1. The mounting plate measures 5 3/4 inches high by 6 3/4 inches wide.

      Helpful?

Warranty

Manufacturer's Warranty

Lifetime Limited warranty
