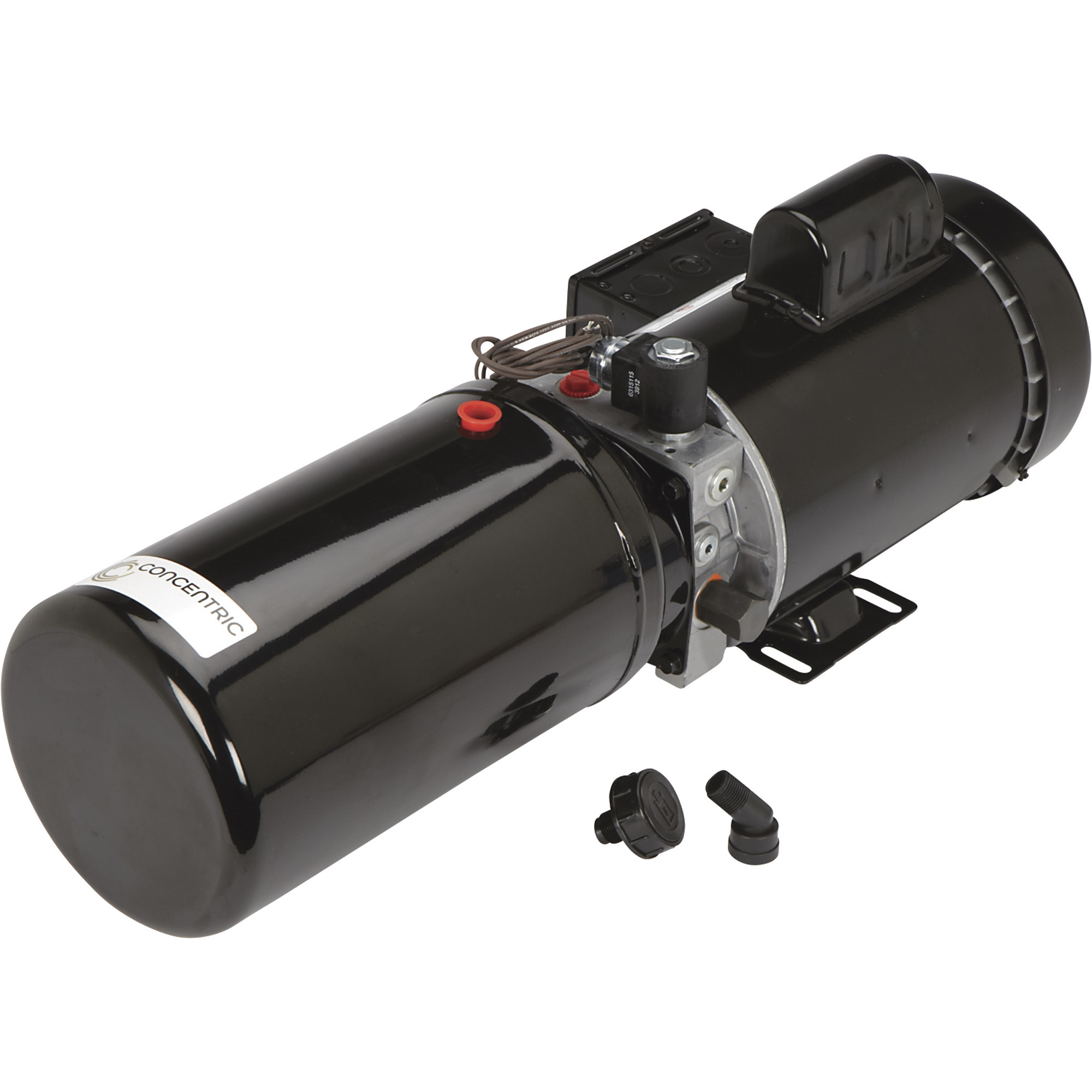

Concentric 1 HP 115/208-230 Volt AC Hydraulic Power Unit, Solenoid, Model# 1530037

Item# 105891
"Concentric 1 HP 115/208-230 Volt AC Hydraulic Power Unit, Solenoid, Model# 1530037"
Concentric 1 HP 115/208-230 Volt AC Hydraulic Power Unit, Solenoid, Model# 1530037

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Concentric 1 HP 115/208-230 Volt AC Hydraulic Power Unit, Solenoid, Model# 1530037

Click or Tap image to Zoom

$699.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not available - online only
  • Power Unit: Solenoid Operated
  • Relief valve torque can be adjusted from 114 to 180 in./lbs.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Mounts vertically or horizontally. 60 Hz TEFC motor turns at 3450 RPM. .097 displacement pump and 1.5-gallon reservoir. Relief valve set at 2000 PSI. 1.25 GPM with check valve to prevent back flow.

What's Included

    (1) Hydraulic power unit

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Power Unit: Solenoid Operated
  • Relief valve torque can be adjusted from 114 to 180 in./lbs.

Key Specs

AttributeSpecification

item#

105891

Brand

Concentric

Manufacturer's Warranty

1 year limited warranty

Ship Weight

56.3 LB

Max. Flow Rate

1.25 GPM

Max. PSI

2,000

Max. RPM

3,450

Power Source

Electric
AttributeSpecification

Port Inlet Size

9/16 in

Port Outlet Size

9/16 in

Thread Type

SAE

Reservoir Capacity

1.5 Gal

Volts

230

Phase

AC

Action

Single Acting

Reviews

Questions & Answers

9 Reviews This action will navigate to reviews.

Questions

1–10 of 27 Questions
Sort by:

  1. What kinda flow? At 2000 psi

    1 answer

    1. The hydraulic power unit would have a flow rate of 1.25 gallons per minute (GPM) at 2000 PSI.

      Helpful?

  2. do you sell this in 2 hp?

    1 answer

    1. We do not carry this power unit in a 2 HP.

      Helpful?

  3. Where can I find instructions on setting up this pump? The included product manual is a simple drawing of the product.

    1 answer

    1. For installation information, we recommend contacting the manufacturer directly. The manufacturer is Concentric Rockford.

      Helpful?

  4. What kind of oil or fluid to use in this unit?

    1 answer

    1. ISO Grade 32 hydraulic oil is recommended.

      Helpful?

  5. Can this safely be run in reverse, provided that we connect it to a reversing solenoid?

    1 answer

    1. This unit is not capable of running in the reverse direction. Running it in reverse would cause the shaft seal to burst and/or leak.

      Helpful?

  6. what is the solenoid used for.

    1 answer

    1. The solenoid controls the valving on the power unit allowing the unit to be controlled by a remote mounted switch.

      Helpful?

  7. Can it be installed outdoors? Is it a drip proof motor ?

    1 answer

    1. This is not drip proof, and should not be installed outdoors.

      Helpful?

  8. Can I hook this up to 220

    1 answer

    1. The hydraulic power unit can be set up on 220 volt.

      Helpful?

  9. Is there an optional cable and control button to operate the pump?

    1 answer

    1. At this time, a control pendant is not available for this power unit.

      Helpful?

  10. Hi Folks! The solenoid controlled valve is NO (normally open) or NC (normally closed)

    1 answer

    1. This is NC, normally closed.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
