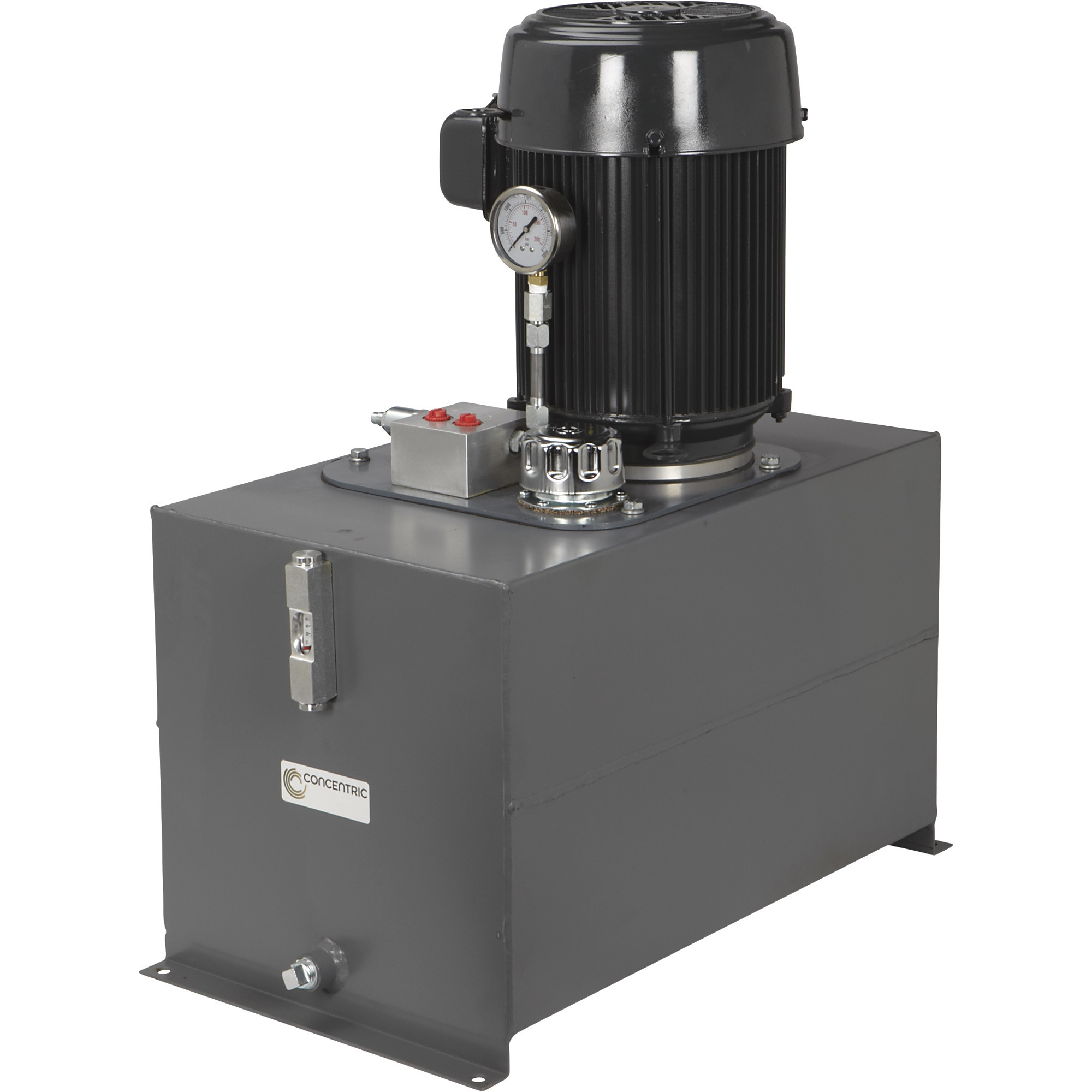

Haldex AC Hydraulic Power System Self-Contained, 5 HP, 230/460V AC, Model# 1400030

Item# 10593
"Haldex AC Hydraulic Power System Self-Contained, 5 HP, 230/460V AC, Model# 1400030"
Haldex AC Hydraulic Power System Self-Contained, 5 HP, 230/460V AC, Model# 1400030

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Haldex AC Hydraulic Power System Self-Contained, 5 HP, 230/460V AC, Model# 1400030

Click or Tap image to Zoom

$2349.99

  • Shipping:

    Available now

  • Store Pickup:

    Not available - online only
  • Fully integrated power unit, featuring reservoir, electric motor and pump
  • Robust construction featuring steel reservoir
  • Built-in check valve and relief valve for protection against over-pressurization of system components
  • Includes filter and breather to ensure fluid cleanliness
  • TEFC motor for extended duty cycles

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Handles a wide variety of industrial applications. All models have 1725 RPM TEFC (totally enclosed, fan-cooled) motors, check valve, adjustable relief valve and 3000 PSI pressure gauge. High-strength cast iron housing. DU® bearings. Filler screen, sight gauge and flexible coupling. Hardened and ground alloy steel gears and shafts. Pressure-balanced pumps provide up to 90% overall efficiency. Ideal for systems using low-viscosity fluids in high temps and high duty cycle applications. Pressure-balanced pump provides high speed positioning and then maximum working pressure as in clamping, crimping and metal-forming machines. Does not include manifold or interface.

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Fully integrated power unit, featuring reservoir, electric motor and pump
  • Robust construction featuring steel reservoir
  • Built-in check valve and relief valve for protection against over-pressurization of system components
  • Includes filter and breather to ensure fluid cleanliness
  • TEFC motor for extended duty cycles
  • Pressure-balanced pump for high efficiency operation which maximizes flow rate
  • AC motor for use in industrial application such as garage door lifts, hydraulic presses and lift tables
  • Pressure gauge monitors system's operating pressure up to 3000 PSI
  • Reservoir drain plug allows for easy fluid replacement

Key Specs

AttributeSpecification

item#

10593

Brand

Concentric

Manufacturer's Warranty

1 year limited warranty

Ship Weight

132.0 LB

Max. Flow Rate

3.5 GPM

Max. PSI

2,000

Max. RPM

1,725

Power Source

Electric
AttributeSpecification

Port Inlet Size

9/16 in

Port Outlet Size

9/16 in

Thread Type

SAE

Reservoir Capacity

15 Gal

Volts

460

Phase

AC

Action

Single Acting

Reviews

Questions & Answers

10 Reviews This action will navigate to reviews.

Questions

1–10 of 13 Questions
Sort by:

  1. What is the replacement motor part # or model #?

    1 answer

    1. You would contact the manufacturer direct for replacement parts on this hydraulic power system.

      Helpful?

  2. Can I add a variable speed controller to the line going to the motor?

    1 answer

    1. A variable speed controller can be added to this unit.

      Helpful?

  3. What is the viscosity requirement to use with this power system? is there any restrains on the minimum viscosity used??

    1 answer

    1. A high-quality automatic transmission fluid is recommended for use with this unit.

      Helpful?

  4. Is there a port for a solenoid valve? If so what thread/pitch is it?

    It would appear there is another plug in the manifold next to the check valve. I would assume this is a port for a solenoid valve to be installed? If so, what size is the port?

    1 answer

    1. The block only has the P( pump) & T (tank) provisions. A manifold would be required based on the application. The unit uses 9/16-18 SAE inlet and outlet ports.

      Helpful?

  5. Can the output pressure be controlled by the motor or separate valve system is used?

    1 answer

    1. The output pressure for this Haldex AC Hydraulic Power System can be adjusted by an adjustable relieve valve than comes installed on the unit.

      Helpful?

  6. What is the power requirement for this (e.g. 240V 50Amps)?

    I am not familiar with the power requirement spec showing 230V/460V.

    1 answer

    1. The Hydraulic power system requires 240 volt 3 phase or 460 volt 3 phase. It can be wired by a qualified electrician to operate using one or the other voltage.

      Helpful?

  7. What is the flow rate in GPM?

    1 answer

    1. This units pumps at the rate of 3.5 gallons per minute (GPM)

      Helpful?

  8. What is the O.D of the motor at the base of the tank

    1 answer

    1. The motor is 6.5" at the tank.

      Helpful?

  9. Where is the fluid filter located ?

    1 answer

    1. There is a 40 micron inlet filter located on top of the breather cap and an outlet can strainer inside the reservoir on the bottom.

      Helpful?

  10. Is this unit available in single phase? Is it a single or dual stage pump?

    Haldex AC Hydraulic Power System Self-Contained, 5 HP, 230/460V AC, Model# 1400030
    Item# 10593

    1 answer

    1. We are unable to provide the Haldex Hydraulic Power System in a 230/460 volt in a single phase. The pumps are single stage.

      Helpful?
