NorTrac 12 Volt DC Hydraulic Power Unit, L-H-L, Single Acting

Item# 106667
"NorTrac 12 Volt DC Hydraulic Power Unit, L-H-L, Single Acting"
NorTrac 12 Volt DC Hydraulic Power Unit, L-H-L, Single Acting

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorTrac 12 Volt DC Hydraulic Power Unit, L-H-L, Single Acting

Click or Tap image to Zoom

$419.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not available - online only
  • Large 1.32 gallon reservoir capacity
  • Heavy-duty 12 Volt, 2 HP motor delivers 3,000 max. RPM
  • 1.5 GPM flow rate
  • 2.1cc displacement
  • 9/16-18 SAE O-rings on the outlet ports

See full description

Complete Your Solution

  • NorTrac 12 Volt DC Hydraulic Power Unit, L-H-L, Single Acting
  • Meyer M1 Hydraulic Oil, 12 Bottles
Price for all two:

$584.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This NorTrac 12 Volt DC Single-Acting Power Unit can be used for OEM or replacement applications. The power up, gravity down circuit allows for fast lifting and lowering. Ideal for use with fork lifts, electric pallet trucks, scissor lift tables, mini lift tables, dump trucks/trailers or a variety of other applications utilizing remote pendant controls (not for use with bale spike power units).

What's Included

    (1) 12V DC power unit

Downloads

Product Manual Product Manual2

Features + Benefits

  • Large 1.32 gallon reservoir capacity
  • Heavy-duty 12 Volt, 2 HP motor delivers 3,000 max. RPM
  • 1.5 GPM flow rate
  • 2.1cc displacement
  • 9/16-18 SAE O-rings on the outlet ports
  • Low-amperage draw
  • Fast-acting pump for rapid raising
  • Lowering speed is controlled by the pressure compensated flow control valve
  • 18.22in.L x 7.83in.W x 8.01in.H overall size

Key Specs

AttributeSpecification

item#

106667

Brand

NorTrac

Manufacturer's Warranty

1 year limited warranty

Ship Weight

31.0 LB

Max. Flow Rate

1.5 GPM

Max. PSI

2,900

Max. RPM

3,000
AttributeSpecification

Port Outlet Size

9/16 in

Reservoir Capacity

1.32 Gal

Volts

12

Horsepower

2

Product Weight

31.0000 lb

Dimensions L x W x H (in.)

18.22 x 7.83 x 8.01 in

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–9 of 9 Questions
Sort by:

  1. Lifting capacity

    1 answer

    1. The lift capacity will depend on the hydraulic system this unit is used with. It can deliver up to 3,000 RPM with a 1.5 GPM flow rate.

      Helpful?

  2. Can this pump/reservoir be mounted vertically?

    1 answer

    1. The power unit is designed for horizontal mounting applications only.

      Helpful?

  3. What oil is recommended for this unit.

    1 answer

    1. This unit uses N46, ISO 46 & 32 Hydraulic oils with a viscosity between 15-68 Centistoke.

      The manufacturer recommends using a premium hydraulic oil to ensure optimum performance and
      system life. Select oil that has anti-wear properties, rust and oxidation inhibitors, foam inhibitors and good stability. Examples of premium grade hydraulic oils: Chevron Rando HDZ, Mobil DTE 10, DTE 20 series, AMSOIL, and Shell Tellus.

      Automotive Transmission Oils are acceptable under normal conditions.

      Aviation Oils such as Valvoline ROYCO series or Mobil Aero HF or HFA may be used
      in prolonged, extreme cold environments.

      Do Not Use Biodegradable Hydraulic Fluid. Do Not Mix Oils.

      Helpful?

  4. What size port is large port on top of the resivior with the red plug.?

    1 answer

    1. The port size is 9/16"-18 UNF.

      Helpful?

  5. What are the full load amps of this motor?

    1 answer

    1. This power unit has a 133 amperage draw.

      Helpful?

  6. Can you add a wireless remote switch to this unit ?

    1 answer

    1. A wireless remote switch can be added. This option is available through the manufacturer.

      Helpful?

  7. So the unit comes with a red plastic plug and below that comes with a steel plug, so I take it the red plug is pressure so is the plug below for return?

    1 answer

    1. The steel ports are auxillary port options.

      Helpful?

  8. What is the recommended 12 Volt battery type and size to run this power unit?

    1 answer

    1. A 12 Volt, deep cycle battery would be recommended for this power unit. This power unit has a 133 Amp draw.

      Helpful?

  9. Outlet ports are labeled P2 and T.  Does it matter which of these ports I attach the hose to?

    1 answer

    1. Ports labeled with P are a high-pressure input ports. Ports labeled with a T are for low pressure return to the tank.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

See All Paint + Fluids

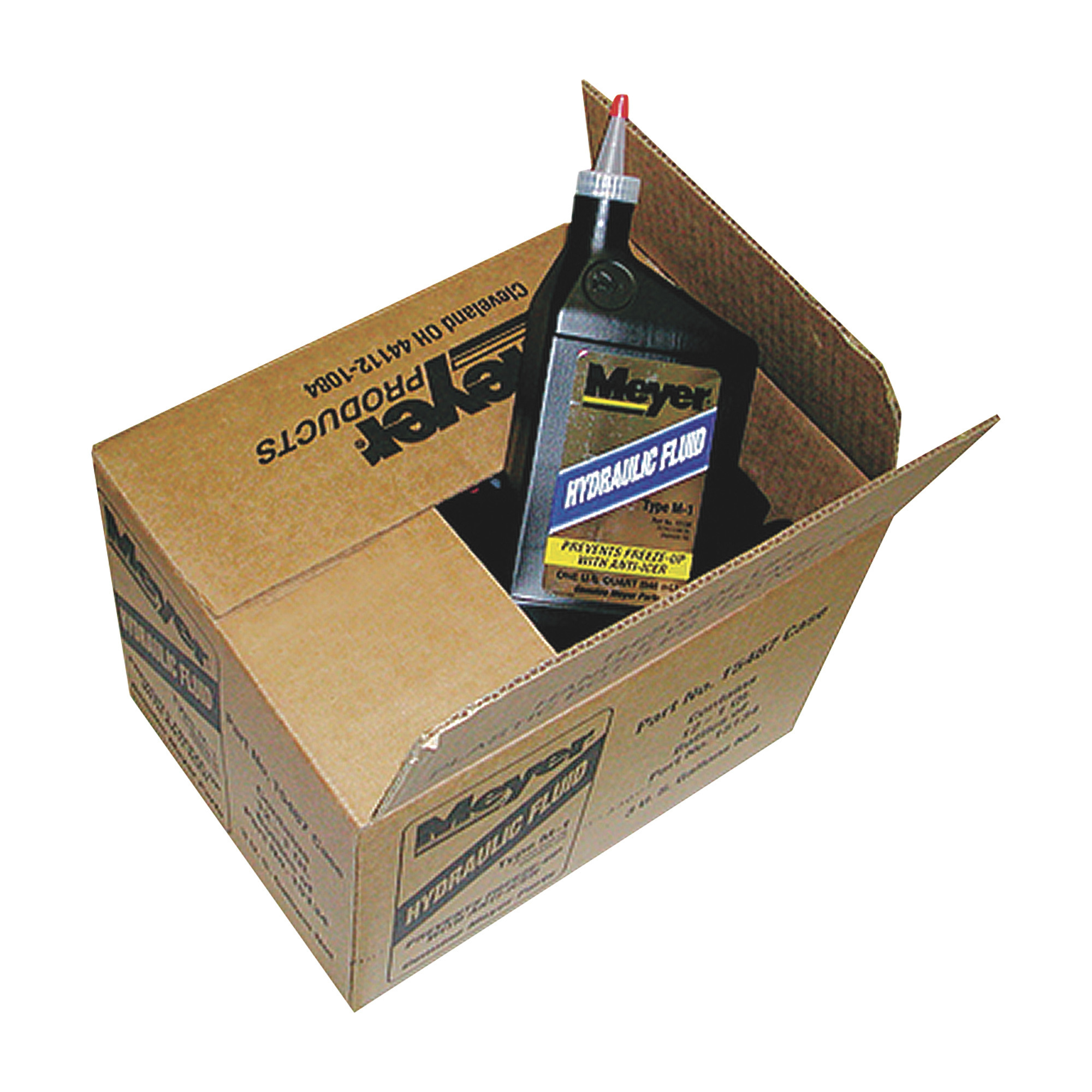

Meyer M1 Hydraulic Oil, 12 Bottles
